Type TIM
Solid Tantalum Capacitors
Molded, Radial Lead, Solid Tantalum Capacitors

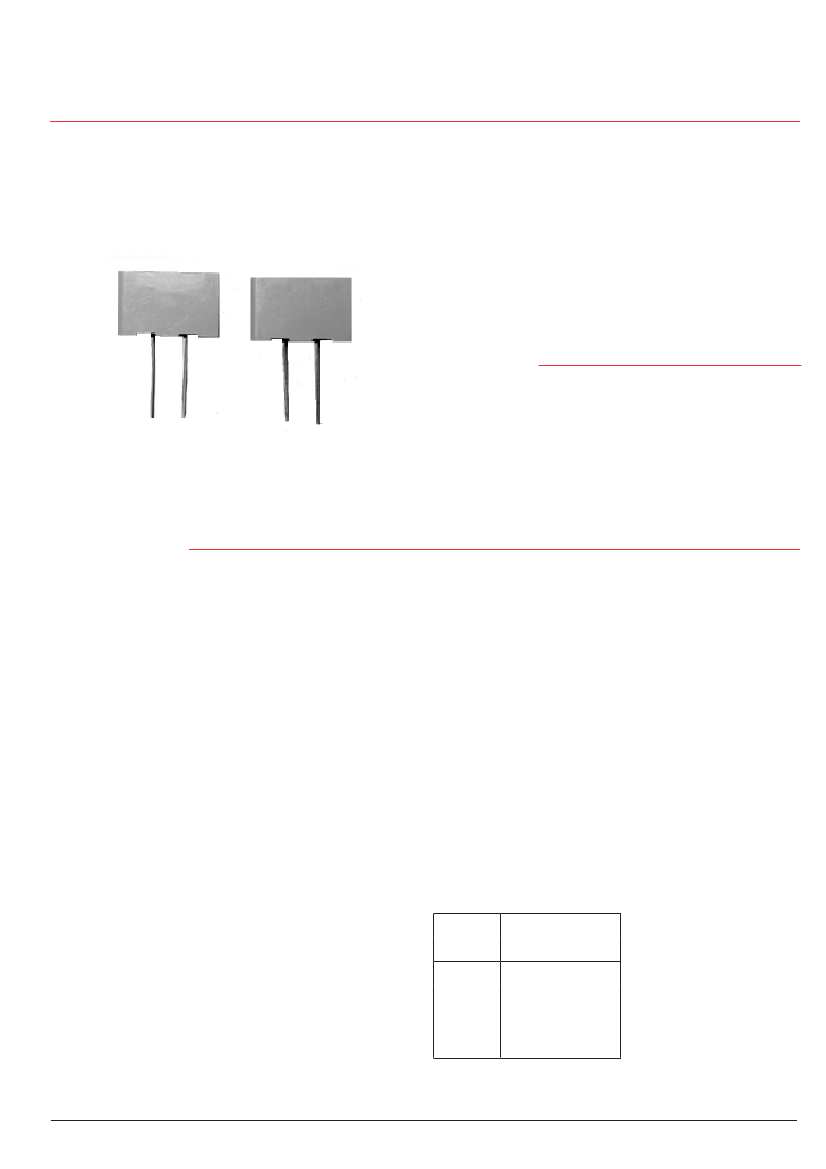

The Type TIM radial molded solid tantalum capacitor
is great for saving board space with its higher profile
and smaller board space requirement. It is ideal for high
density packaging coupled with low DCL and low ESR
performance needed in compact power supply designs.
The radius on the vertical side allows for polarization
during automatic or hand insertion. The Type TIM is
available in bulk or on radial tape and reel.
Highlights
♦
♦
♦
♦
♦
♦
♦
Precision Molded
Low DCL
Low ESR
Radius on vertical edge for polarity identification
Excellent temperature stability
Standoffs for easier flux removal
Resistant to shock and vibraton
Specifications
Capacitance Range:
Voltage Range:
Tolerance:
Operating Temperature Range:
DC Leakage:
0.10 µF to 220 µF
6 WVdc to 50 WVdc at 85 ºC
±10%, ±20%
–55 ºC to +125 ºC (with proper derating)
+25 ºC - See ratings limit
+85 ºC - 10 x 25 ºC limit
+125 ºC - 12.5 x 25 ºC limit
–10% @ –55 ºC
+10% @ +85 ºC
+15% @ +125 ºC
W&X
Y
Z
Case
Code
W
X
Y
Z
Quantity
1,500 per 14" Reel
1,500 per 14" Reel
1,500 per 14" Reel
N/A
Capacitance Change Maximum:
Maximum Power Dissipation:
.090 Watts
.100 Watts
.125 Watts
Reel Packaging per EIA- RS-468:
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 •
www.cde.com
Type TIM
Solid Tantalum Capacitors

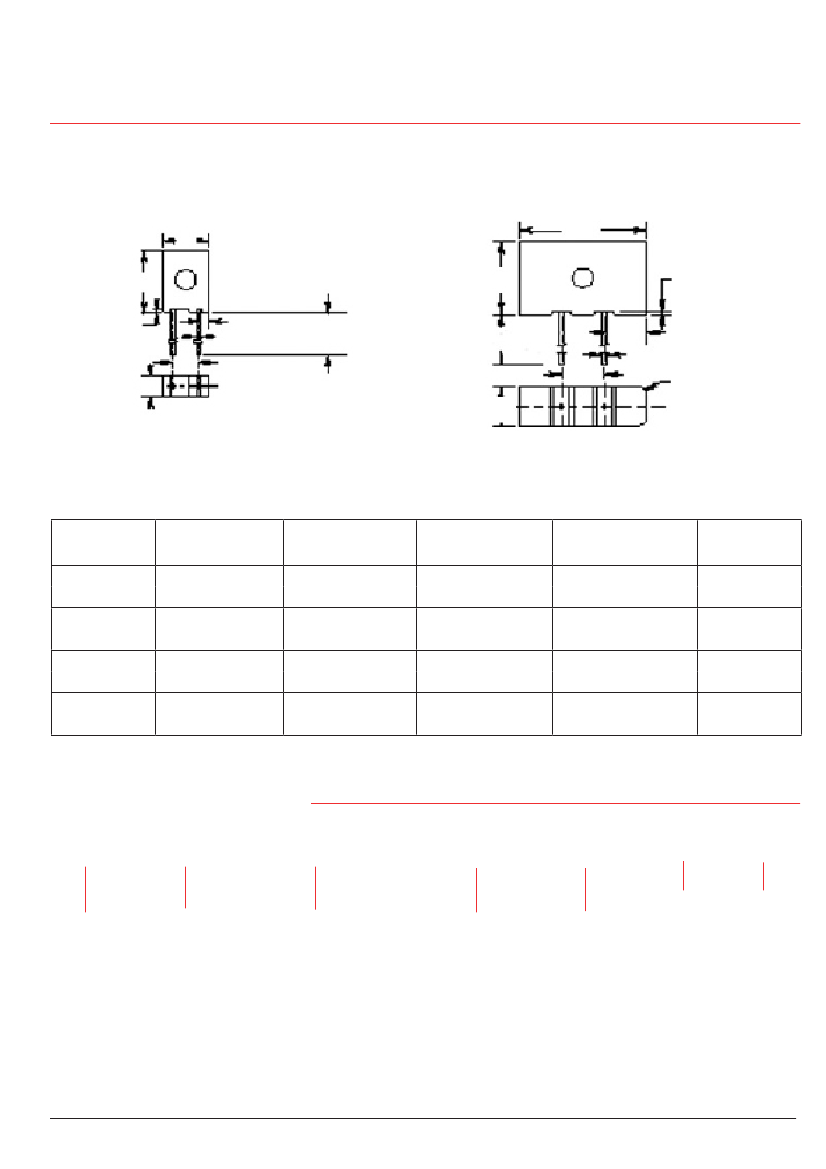

Capacitor Outline Drawing
W Case
W
X, Y, Z Cases
W
H
.020
±.006
(0.51 ±0.15)
(Stand Off)
T
H
.015 ±.005
(.38 ±0.13)
(Stand Off)
E
S
.020
±.001
(0.51 ±0.03)
.051 ±0.03
E
.500 ±.125
(12.7 ±3.18)
.500 ±.125
(12.7 ±3.18)
S
.025
±.001
(.64 ±0.03)
.050R ±.005
(1.27R ±0.13)
Note:
On the “X” Case sizes,
the standoff appears
only between the
two leads
H
Case Code
W
X
Y
Z
Case Height
.345 ±.008
(8.76 ±.203)
.225 ±.015
(5.71 ±0.38
.325 ±.015
(8.26 ±0.38)
.375 ±.015
(9.53 ±0.38)
W
Case Width
.230 ±.005
(5.84 ±.127)
.285 ±.015
(7.24 ±.0.38)
.325 ±.015
(8.26 ±.0.38)
.600 ±.015
(15.24 ±.0.38)
T
Case Thickness
.105 ±.005
(2.67 ±.127)
.170 ±.015
(4.32 ±.0.38)
.170 ±.015
(4.32 ±.0.38)
.195 ±.015
(4.95 ±.0.38)
E
Case to Wire
.050 ±.010
(1.27 ±0.25)
.042 ±.010
(1.07 ±.0.25)
.062 ±.010
(1.57 ±.0.25)
.200 ±.010
(5.08 ±.0.25)
S
Lead spacing
.125 ±.005
(3.18 ±0.127)
.200 ±.005
(5.08 ±.0.127)
.200 ±.005
(5.08 ±.0.127)
.200 ±.005
(5.08 ±.0.127)
Dimensions in inches
Part Numbering System
TIM
150
K
010
P
0
Molded
Case
0
Z
Case
Code
W
X
Y
Z
Type
TIM
Capacitance
104
= 0.10 µF
105
= 1.0 µF
225
= 2.2 µF
186
= 18.6 µF
157
= 150 µF
Tolerance
K
= ±10%
M
= ±20%
Voltage
006
= 6 Vdc
010
= 10 Vdc
015
= 15 dc
020
= 20 Vdc
025
= 25 Vdc
035
= 35 Vdc
050
= 50 Vdc
Polar
P =
Polar
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 •
www.cde.com
Type TIM
Solid Tantalum Capacitors
Ratings
Max
Catalog
Cap
(µF)
Part Number
Case
Code
DCL
@ +25 ºC
(µA)
6 WVdc @ 85 ºC
4 WVdc @ 125 ºC
22
56
68
220
TIM226*006P0X
TIM566*006P0Y
TIM686*006P0Y
TIM227*006P0Z
X
Y
Y
Z
1
5
5
10
10 WVdc @ 85 ºC
7 WVdc @ 125 ºC
6.8
10
10
15
15
22
33
39
47
56
150
TIM685*010P0X
TIM106*010P0W
TIM106*010P0X
TIM156*010P0W
TIM156*010P0X
TIM226*010P0Y
TIM336*010P0Y
TIM396*010P0Y
TIM476*010P0Y
TIM566*010P0Y
TIM157*010P0Z
X
W
X
W
X
Y
Y
Y
Y
Y
Z
1
1
1
1
1
2
2
5
5
5
10
15 WVdc @ 85 ºC
10 WVdc @ 125 ºC
5.6
6.8
8.2
10
15
22
27
33
TIM565*015P0X
TIM685*015P0X
TIM825*015P0X
TIM106*015P0Y
TIM156*015P0Y
TIM226*015P0Y
TIM276*015P0Y
TIM336*015P0Y
X
X
X
Y
Y
Y
Y
Y
1
1
1
1
2
5
5
5
20 WVdc @ 85 ºC
13 WVdc @ 125 ºC
5.6
6.8
TIM565*020POW
TIM685*020POW
W
W
1
1
25 WVdc @ 85 ºC
17 WVdc @ 125 ºC
3.3
3.3
4.7
6.8
10
10
12
15
TIM335*025P0W
TIM335*025P0X
TIM475*025P0X
TIM685*025P0Y
TIM106*025P0X
TIM106*025P0Y
TIM126*025P0Y
TIM156*025P0Y
W
X
X
Y
X
Y
Y
Y
1
1
1
1
1
1
1
2
4
6
6
6
6
6
6
6
21
21
31
45
4
66
79
99
150
150
180
200
190
240
260
290
6
6
29
36
180
200
6
6
6
6
6
6
6
6
22
27
32
35
59
87
100
130
180
180
200
270
290
360
390
440
6
6
6
6
6
6
6
6
6
6
6
18
26
26
39
39
58
87
100
120
140
390
150
220
220
270
270
360
440
480
590
650
920
6
6
6
6
35
89
100
350
290
570
630
1000
Max DF
@ +25 ºC
120 Hz
(%)
@ 120 Hz
(mA rms)
Max Ripple
25 ºC
@ 1 kHz
(mA rms)
CDE may improve your order and shorten delivery by substituting a tighter tolerance or higher voltage capacitors in the same case size.
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 •
www.cde.com
Type TIM
Solid Tantalum Capacitors
Max
Catalog
Cap
(µF)
Part Number
Case
Code
DCL
@ +25 ºC
(µA)
35 WVdc @ 85 ºC
23 WVdc @ 125 ºC
0.10
0.22
0.47
1.00
2.20
2.20
2.70
3.30
3.90
4.70
4.70
6.80
8.20
10.00
22.00
27.00
33.00
TIM104*035P0X
TIM224*035P0X
TIM474*035P0X
TIM105*035P0X
TIM225*035P0W
TIM225*035P0X
TIM275*035P0W
TIM335*035P0X
TIM395*035P0Y
TIM475*035P0X
TIM475*035P0Y
TIM685*035P0Y
TIM825*035P0Y
TIM106*035P0Y
TIM226*035P0Z
TIM276*035P0Z
TIM336*035P0Z
X
X
X
X
W
X
W
X
Y
X
Y
Y
Y
Y
Z
Z
Z
1
1
1
1
1
1
1
1
1
1
1
2
5
5
10
10
10
50 WVdc @ 85 ºC
33 WVdc @ 125 ºC
0.10
0.22
0.33
1.0
1.0
1.5
1.5
2.2
4.7
5.6
6.8
10.0
15.0
TIM104*050P0X
TIM224*050P0X
TIM334*050P0X
TIM105*050P0W
TIM105*050P0X
TIM155*050P0W
TIM155*050P0X
TIM225*050P0X
TIM475*050P0Y
TIM565*050P0Y
TIM685*050P0Z
TIM106*050P0Z
TIM156*050P0Z
X
X
X
W
X
W
X
X
Y
Y
Z
Z
Z
1
1
1
1
1
1
1
1
5
5
5
5
10
6
6
6
4
6
4
6
6
6
6
6
6
6
1.3
2.9
4.4
13
13
19
19
29
62
74
90
130
190
11
24
36
86
87
100
100
120
200
220
220
270
330
6
6
6
6
4
6
4
6
6
6
6
6
6
6
6
6
6
1
2
4.3
9.3
20
20
25
30
35
32
43
63
76
93
200
250
300
9
17
36
77
120
120
140
150
180
155
200
210
220
240
400
450
490
Max DF
@ +25 ºC
120 Hz
(%)
Max Ripple
25 ºC
@ 120 Hz
(mA rms)
@ 1 kHz
(mA rms)
CDE may improve your order and shorten delivery by substituting a tighter tolerance or higher voltage capacitors in the same case size.
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 •
www.cde.com
