941C6P15K-F: DescriptionCAPACITOR, METALLIZED FILM, POLYPROPYLENE, 600 V, 0.15 uF, THROUGH HOLE MOUNT; CategoryPassive components; File Size146KB，2 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]

Download Datasheet Parametric Compare View All

941C6P15K-F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	941C6P15K-F	-	-	View	Buy Now

941C6P15K-F Overview

CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 600 V, 0.15 uF, THROUGH HOLE MOUNT

941C6P15K-F Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 Cel
Minimum operating temperature	-55 Cel
negative deviation	10 %
positive deviation	10 %
Rated DC voltage urdc	600 V
Processing package description	AXIAL LEADED, ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
terminal coating	TIN
Installation features	THROUGH HOLE MOUNT
Manufacturer Series	941C
capacitance	0.1500 uF
packaging shape	TUBULAR PACKAGE
Capacitor type	METALLIZED FILM
Terminal shape	WIRE
dielectric materials	POLYPROPYLENE

Preview

Download Datasheet

View All

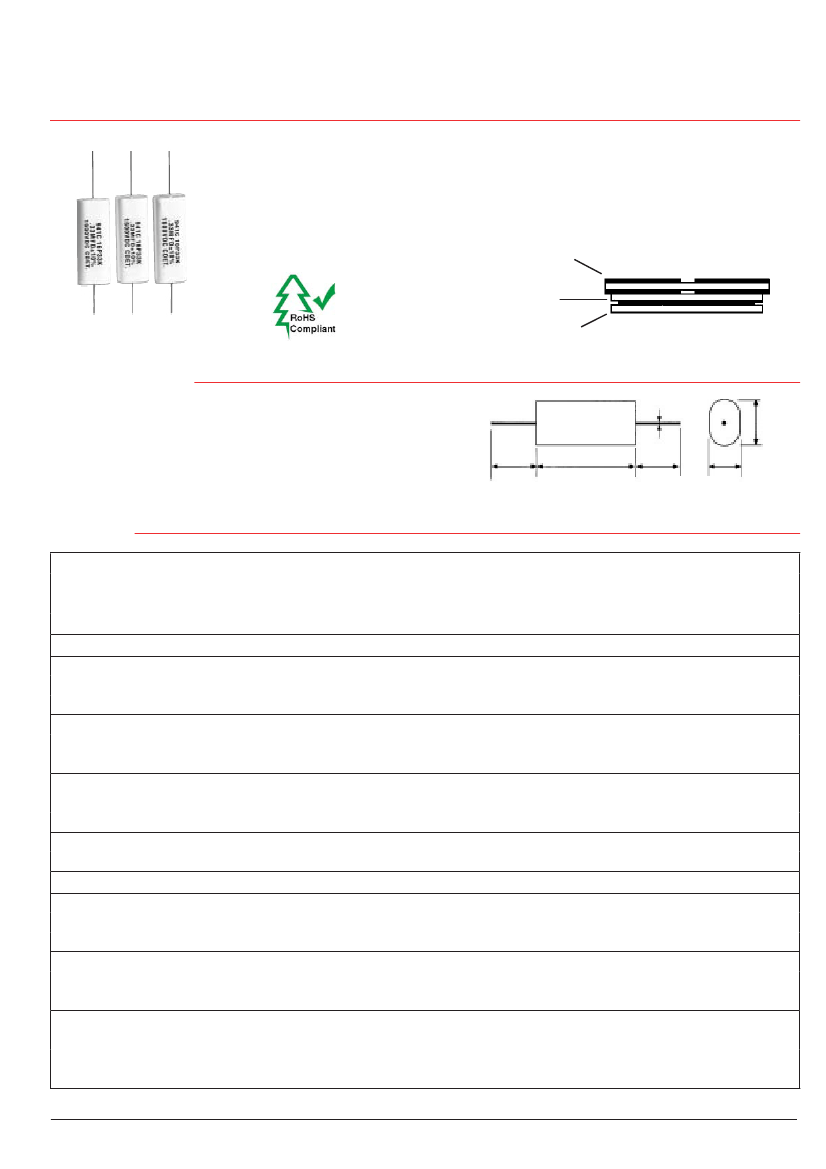

Type 941C

High dV/dt, Metallized Polypropylene Film Capacitors

Oval Axial Leaded Capacitors

Type 941C ﬂat, oval ﬁlm capacitors are constructed with polypropylene ﬁlm and

dual metallized electrodes for both self healing properties and high peak current

carrying capability (dV/dt). This series features low ESR characteristics, excellent

high frequency and high voltage capabilities.

Double

Metallized

Polyester

Polypropylene

Metallized Polypropylene

Complies with the EU Directive 2002/95/EC requirement restricting the use of Lead (Pb), Mercury (Hg), Cadmium (Cd), Hexavalent chromium (Cr(VI)),

PolyBrominated Biphenyls (PBB) and PolyBrominated Diphenyl Ethers (PBDE).

d

W Max

850 Vdc and Higher

Construction

Speciﬁcations

Capacitance Range:

.01 µF to 4.7 µF

Voltage Range:

600 to 3000 Vdc (275 to 750 Vac, 60 Hz)

Capacitance Tolerance:

±10%

Operating Temperature Range:

–55 ºC to 105 ºC

*Full rated at 85 ºC, Derate linearly to 50% rated voltage at 105 ºC

Ratings

Catalog

Cap.

(µF)

.10

.15

.22

.33

.47

.68

1.0

1.5

2.0

3.3

4.7

.15

.22

.33

.47

.68

1.0

1.5

2.0

2.2

2.5

941C6P1K-F

941C6P15K-F

941C6P22K-F

941C6P33K-F

941C6P47K-F

941C6P68K-F

941C6W1K-F

941C6W1P5K-F

941C6W2K-F

941C6W3P3K-F

941C6W4P7K-F

941C8P15K-F

941C8P22K-F

941C8P33K-F

941C8P47K-F

941C8P68K-F

941C8W1K-F

941C8W1P5K-F

941C8W2K-F

941C8W2P2K-F

941C8W2P5K-F

Part Number

T

W

L Max

1.625

T

(41 mm)

Max

Min

Note

:

Refer to Application Guide for test conditions. Contact us for other

capacitance values, sizes and performance speciﬁcations

I

RMS

Typical Typical

L

600 Vdc (275 Vac)

.223 (5.7)

.266 (6.8)

.318 (8.1)

.387 (9.8)

.462 (11.7)

.558 (14.2)

.680 (17.3)

.837 (21.3)

.717 (18.2)

.886 (22.5)

1.125 (28.6)

.378(9.6)

.458(11.6)

.562(14.3)

.674(17.1)

.815(20.7)

.679(17.2)

.847(21.5)

.990(25.1)

1.042(26.5)

1.117(28.4)

.470 (11.9)

.513 (13.0)

.565 (14.3)

.634 (16.1)

.709 (18.0)

.805 (20.4)

.927 (23.5)

1.084 (27.5)

1.088 (27.6)

1.253 (31.8)

1.311 (33.3)

.625 (15.9)

.705 (17.9)

.810 (20.6)

.922 (23.4)

1.063 (27.0)

1.050 (26.7)

1.218 (30.9)

1.361 (34.6)

1.413 (35.9)

1.488 (37.8)

1.339 (34.0)

1.811 (46.0)

2.126 (54.0)

1.339 (34.0)

1.811 (46.0)

.032 (0.8)

.040 (1.0)

.047 (1.2)

.032 (0.8)

.040 (1.0)

.047 (1.2)

28

13

12

9

7

6

5

4

8

7

5

4

5

4

3

17

18

19

20

21

23

24

28

34

36

19

20

21

22

24

28

30

31

32

33

196

128

105

713

400

20

29

43

65

92

134

196

295

255

346

492

107

157

235

335

485

400

600

800

880

1000

2.8

4.4

4.9

6.1

7.6

8.9

9.9

12.1

13.1

17.3

18.7

6.4

7.0

8.3

10.8

13.3

12.7

15.8

19.8

20.4

21.2

d

ESR

(mΩ)

ESL

(nH)

Inches (mm) Inches (mm) Inches (mm) Inches (mm)

(V/µs)

(A)

70 ºC

dV/dt I peak

100 kHz

(A)

850 Vdc (450 Vac)

NOTE: Refer to Application Guide for test conditions. Contact us for other capacitance values, sizes and performance speciﬁcations

CDE Cornell Dubilier•1605 E. Rodney French Blvd.•New Bedford, MA 02740•Phone: (508)996-8561•Fax: (508)996-3830 www.cde.com
