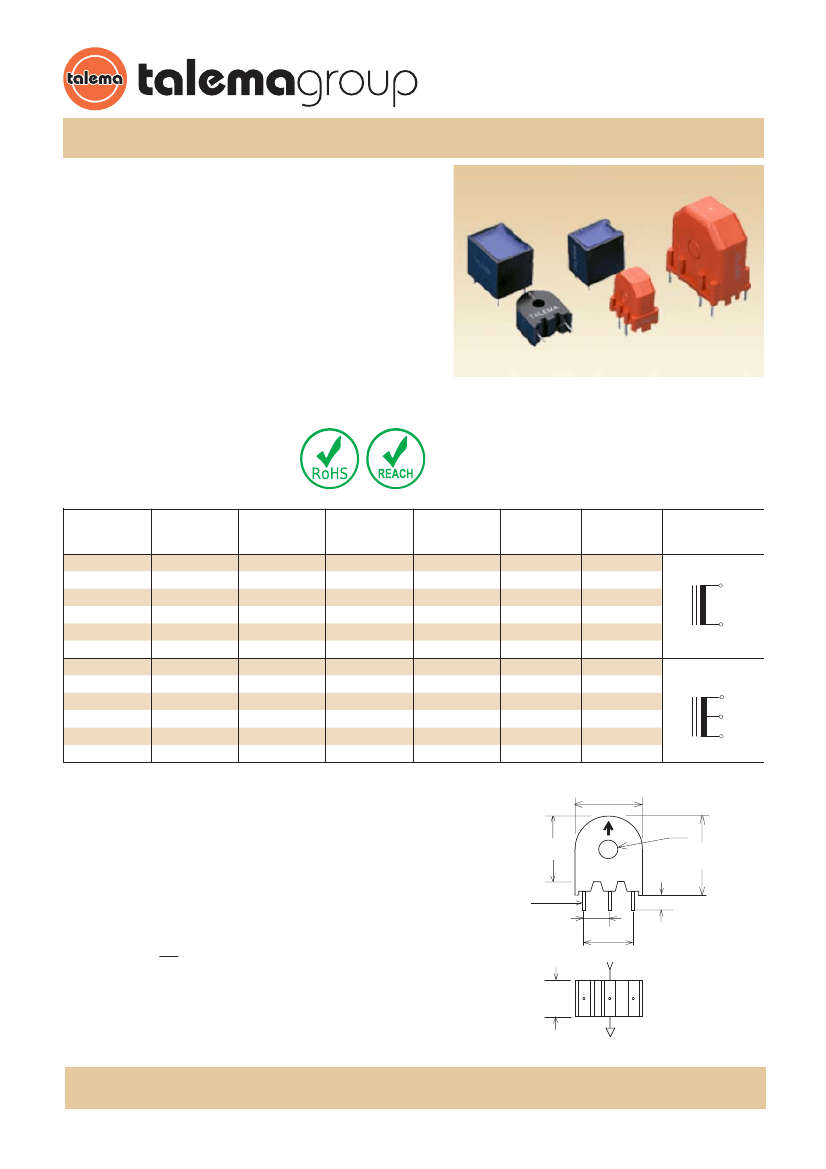

AS Series
•
Current Sense Inductors & Transformers
AS Series
Current Sensors are designed as a low cost method of
controlling, monitoring or measuring AC currents. The sensors serve
as feedback elements between the output and pulse control circuitry
providing accurate regulation of switch mode power supplies.
Features
•
Fully encapsulated for optimal PC board mounting
• Frequency range from 20KHz to 200KHz
• Primary current rating to 30 Amps
• Primary to secondary isolated to 2500 or 4000VAC
• Meets VDE norms
• Optimum performance over designated current and
frequency range
• Competitive pricing due to high volume production
• Manufactured in an ISO 9001:2015 and
ISO 14001:2015 certified Talema facility
• Fully RoHS & REACH Compliant

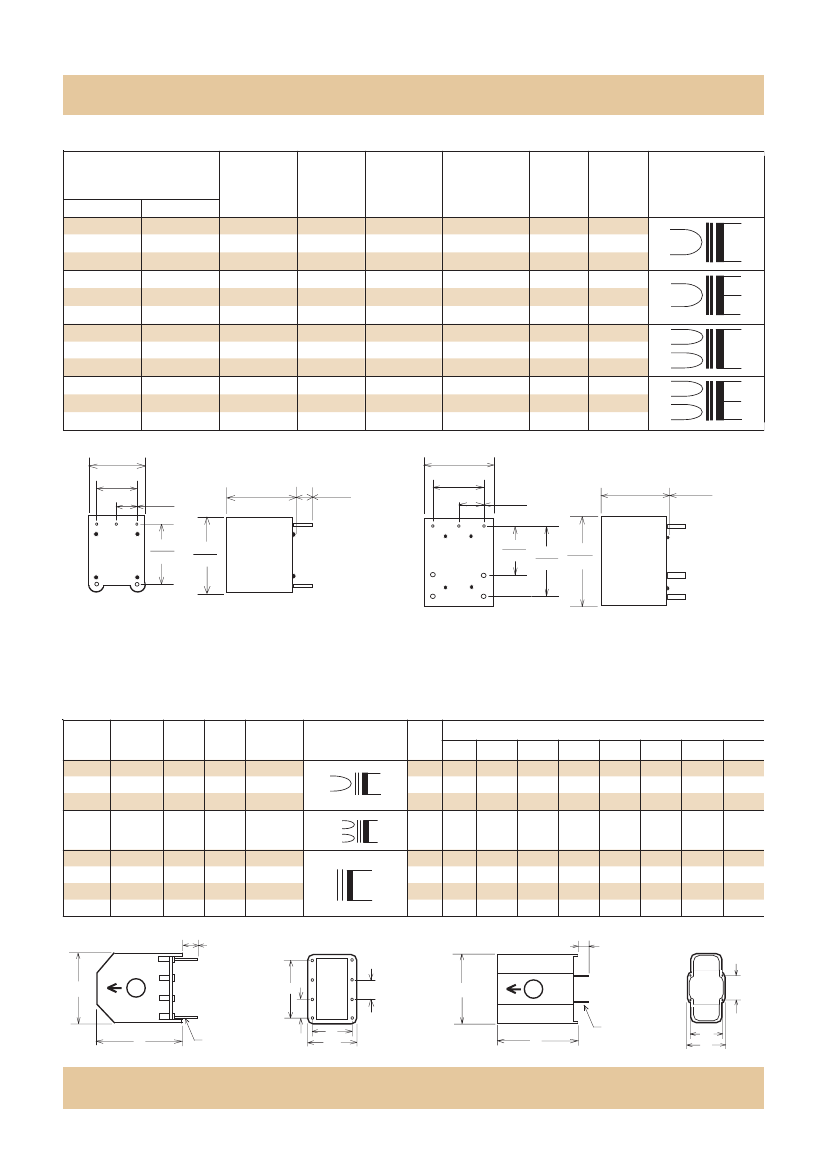

Electrical Specifications @ 25°C
Part Number
AS-100
AS-101
AS-102
AS-103
AS-104
AS-105
AS-110
AS-111
AS-112
AS-113
AS-114
AS-115
Prim./Sec.
Ratio
1:50
1:100
1:200
1:300
1:500
1:750
1:50CT
1:100CT
1:200CT
1:300CT
1:500CT
1:750CT
L
sec (1)
(mH Min)
5
22
89
200
560
1260
5
22
89
200
560
1260
D C R sec
(Ohms Max.)
0.6
1.1
4.5
10.0
25.0
43.0
0.3 / 0.3
0.55 / 0.55
2.25 / 2.25
5.0 / 5.0
12.5 / 12.5
21.5 / 21.5
Applications
Isolated current feed-back signal in Switch Mode Power
Supplies • Motor current load/overload • Lighting • Switch
Controls Ultra-sound current • High resolution sonar
current • Isolated bi-directional current sensor with full
wave bridge rectifier
Sec. Term.
(2)
Resistance
(Ohms Nom.)
50
100
200
300
500
750
25 + 25
50 + 50
100 + 100
150 + 150
250 + 250
375 + 375
I
sec (3)
Max.
300mA
150mA
75mA
50mA
30mA
40mA
300mA
150mA
75mA
50mA
30mA
40mA
Volt µS
(4)
Max.
175
350
700
900
1500
3750
175
350
700
900
1500
3750
1
2
3
3
1
Schematic
Notes:
1)
L
sec
:
Secondary inductance tested at 10KHz and 10mV for 1:50 through1:500
Prim./Sec. Ratios and 1KHz/10mV for Prim./Sec. ratio of 1:750
2) This nominal termination resistance value will yield approximately 1.0V of output for
each amp of current in a single turn sense line. The output Voltage/Ampere of these
devices can be increased or decreased linearly over a restricted temperature
range by adjusting the terminating resistance.
3) For Prim./Sec. Ratios of 1:50 through 1:500, the I
sec
value corresponds to a maximum
primary current of 15 Amp-turns rms while the Isec value for the ratio of 1:750
corresponds to a max. primary current of 30 Amp-turns rms.
1
4) VµS = R t x Is x 2F
Rt (Ohms) : Recommended Terminating Resistance
Is (A) : Secondary Current
F (Hz) : Frequency
5) Operating Temperature Range: -40°C to +120°C
6) Pin# 2 is on Center-Tapped (CT) versions only
Mechanical Drawing
17.2
Ø 5.0
17.0
TALEMA
ASXXX
1
2
3
0.66 x 0.45
6.35
12.7
+
4.0
20.4
9.53
1
+
2
_
3
_
Primary Sense Current
Talema Group
•
Magnetic Components
•
www.talema.com
AS Series
Electrical Specifications @ 25°C
Part Number
Type 1
AS-200
AS-201
AS-202
AS-210
AS-211
AS-212
-
-
-
-
-
-
Type 2
AS-300
AS-301
AS-302
AS-310
AS-311
AS-312
AS-320
AS-321
AS-322
AS-330
AS-331
AS-332
1:50
1:100
1:200
1:50CT
1:100CT
1:200CT
1:50
1:100
1:200
1:50CT
1:100CT
1:200CT
Type 1
14.50
(0.571)
10.15
(0.400)
•
Current Sense Inductors & Transformers
Prim./Sec.
Ratio
L
sec
(1)
(mHMin.)
5
20
80
5
20
80
5
20
80
5
20
80
D C R
sec
(Ohms Max.)
0.65
1.30
4.50
0.65
1.30
4.50
0.65
1.30
4.50
0.65
1.30
4.50
Sec. Term.
(2)
Resistance
(Ohms Nom.)
50
100
200
25 + 25
50 + 50
100 + 100
50
100
200
25 + 25
50 + 50
100 + 100
17.8
(0.700)
12.7
(0.500)
I
sec
(3)
Max.
300mA
150mA
75mA
300mA
150mA
75mA
300mA
150mA
75mA
300mA
150mA
75mA
Volt µS
(4)
Max.
175
350
700
175
350
700
175
350
700
175
350
700
Schematic
3
1
2
5
3
1
4
2
5
1
2
6
7
1
2
6
7
3
5
3
4
5
Type 2
5.08
(0.200)
5
18.0
(0.709)
4.0
(0.157)
6.35
(0.250)
5
17.8
(0.700)
4.0
(0.157)
3
4
15.25
(0.600)
1
2
19.60
(0.772)
Pins 1 & 2
Ø 1.30 (0.051)
Pins 3, 4 &5
Ø 1.00 (0.039)
3
4
12.7
(0.500)
6
1
7
2
17.8
(0.700)
22.9
(0.902)
Pins 1, 2, 6 & 7
Ø 1.30 (0.051)
Pins 3, 4 &5
Ø 0.80 (0.032)
Features
• Meets requirements of IEC 950 and VDE norms
UL94V-0 recognized materials
• Operating frequency range from 20KHz to 200KHz
Electrical Specifications at 25°C
Part
Number
AS-400
AS-401
AS-402
AS-403
AS-404
AS-405
AS-406
AS-407
Pri./Sec.
Ratio
1:100
1:100
1:100
1:100
1:100
1:500
1:500
1:500
I
P
Volt µS
Application
Amps (Max.)
1
2
5
10
50
50
65
80
350
550
1500
1500
1500
2700
4200
7500
3.5 ±0.3
7
8
• Operating Temperature Range: -40°C to +120°C
• Primary current rating to 80 Amps
Schematic
1
2
1
2
3
4
C ase
Type
7
8
7
Dimensions
C
17.8
23.0
32.5
32.0
32.5
23.0
27.0
32.5
D
12.8
15.5
18.0
20.5
18.0
15.5
18.0
18.0
E
20.0
25.0
35.5
35.0
35.5
25.0
30.0
35.5
F
10.0
12.5
15.0
17.5
15.0
12.5
15.0
15.0
Type B
5.0 ±0.3
G
5.0
10.0
12.5
12.5
12.5
10.0
12.5
12.5
H
15.0
20.0
--
27.5
--
20.0
22.5
--
I
5.0
5.0
--
7.5
--
5.0
5.0
--
Hole
--
--
--
--
Ø8
Ø5
Ø5
Ø8
Switching
Switching
Switching
Switching
Switching
Switching
Switching
Switching
A
A
B
A
8
7
8
B
A
A
B
Type A
C
H
I
3
1
4
2
1
G
C
7
0.60 x 0.88 mm
E
Pin # 1 & 2 Blind Pins
for AS-404 & AS-407
2
8
G
E
0.60 x 0.88 mm
(AS-403 0.75 x 1.10)
F
D
F
D
Talema Group
•
Magnetic Components
•
www.talema.com
