R114.089.325W: DescriptionRF SMB Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Plug; CategoryThe connector The connector; File Size226KB，3 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric Compare View All

R114.089.325W Overview

RF SMB Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Plug

R114.089.325W Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
subject depth	0.509 inch
Body diameter	0.236 inch
Body/casing type	PLUG
Cable type	RG-58
Characteristic impedance	50 Ω
Connector type	RF SMB CONNECTOR
Contact point gender	FEMALE
Contact style	COAX
Dielectric withstand voltage	1400VAC V
Durability	100 Cycles
Insertion loss	0.25 dB
Insulation resistance	1000000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE
Manufacturer's serial number	R114
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating frequency	4 GHz
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
reliability	COMMERCIAL
Shell surface	NICKEL
Termination type	CRIMP
Total number of contacts	1
voltage standing wave ratio	1.06
Base Number Matches	1

Preview

Download Datasheet

View All

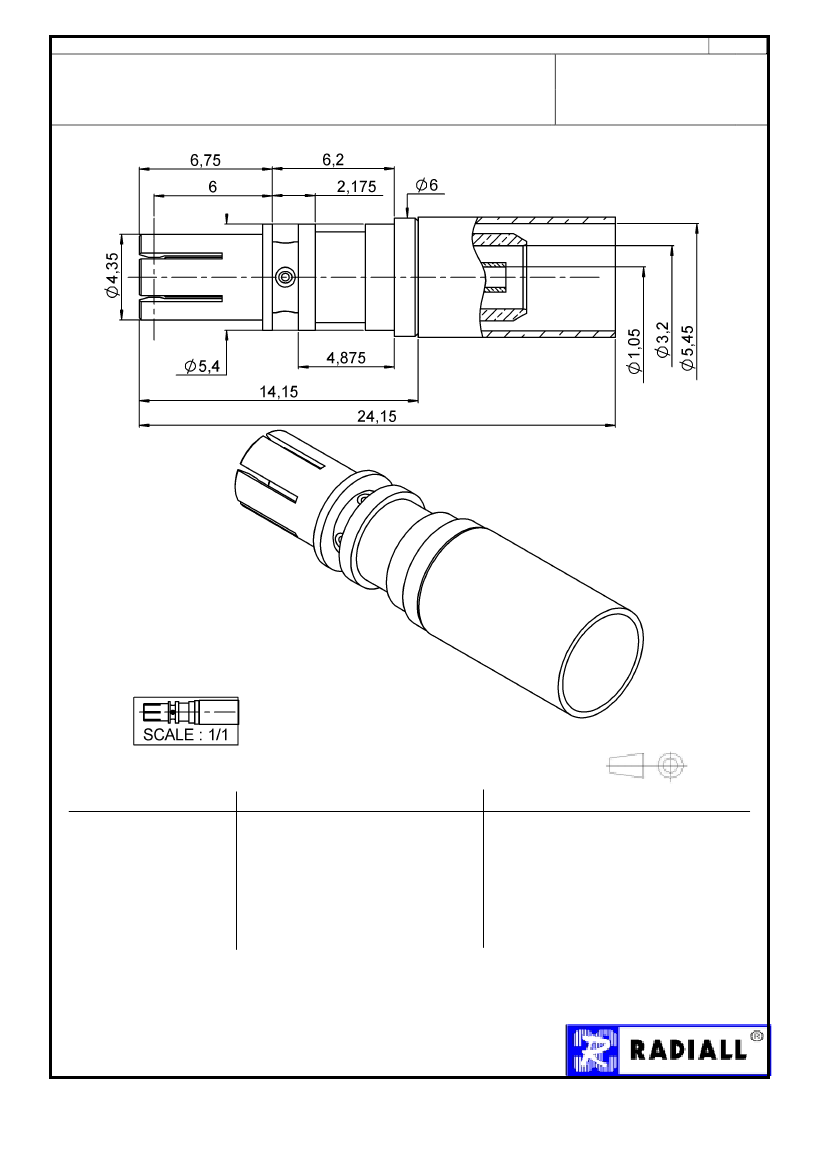

TECHNICAL DATA SHEET

1/3

STRAIGHT FEMALE PLUG CRIMP TYPE

CABLE 5/50S

R114.089.325

Series :

SMB

All dimensions are in mm.

.

pn

.

ao

COMPONENTS

BODY

CENTER CONTACT

OUTER CONTACT

INSULATOR

GASKET

OTHERS PARTS

-

BRONZE

-

PTFE

-

BRASS

-

MATERIALS

PLATINGS

(µm)

NICKEL 2

GOLD 0.8 OVER NICKEL 2

-

NICKEL 2

-

Issue : 0319 A

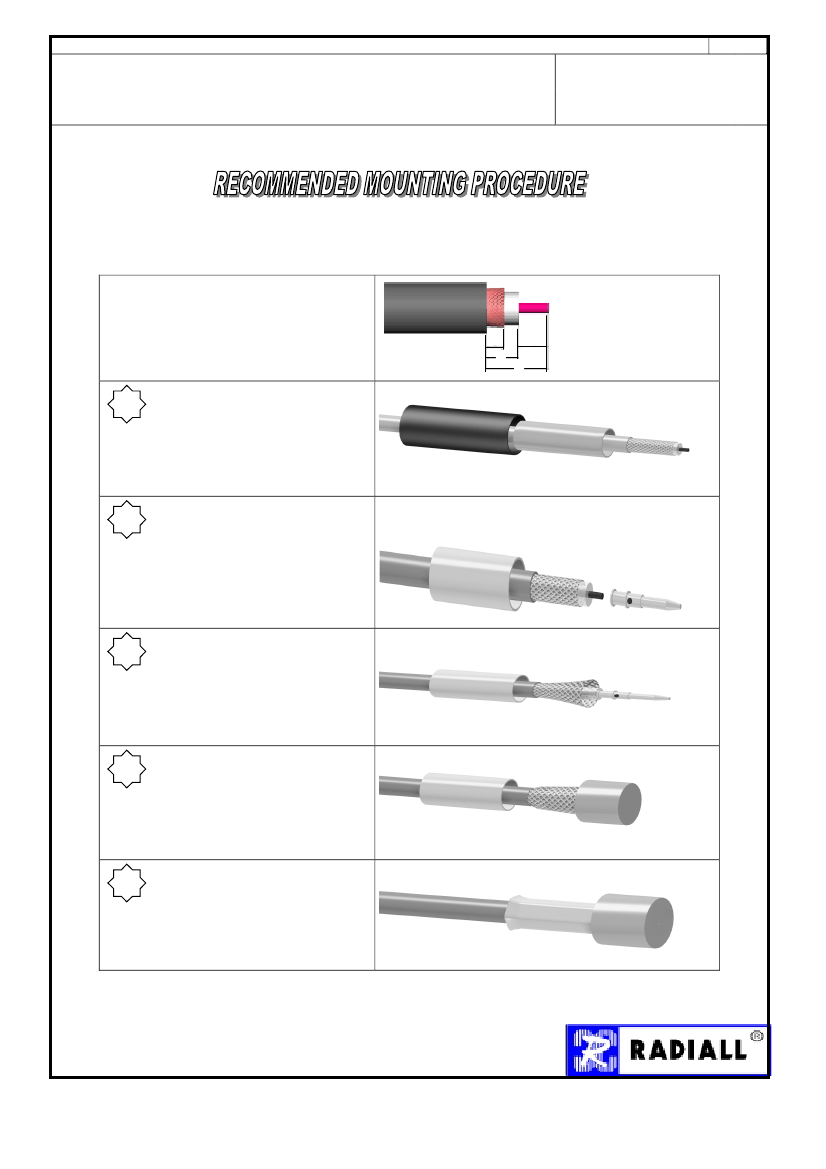

In the effort to improve our products, we reserve the right to make changes judged to be

necessary.

R114.089.325W Related Products

	R114.089.325W	R114.089.325
Description	RF SMB Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Plug	RF SMB Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Plug
Reach Compliance Code	unknown	unknow
subject depth	0.509 inch	0.509 inch
Body diameter	0.236 inch	0.236 inch
Body/casing type	PLUG	PLUG
Cable type	RG-58	RG-58
Characteristic impedance	50 Ω	50 Ω
Connector type	RF SMB CONNECTOR	RF SMB CONNECTOR
Contact point gender	FEMALE	FEMALE
Contact style	COAX	COAX
Dielectric withstand voltage	1400VAC V	1400VAC V
Durability	100 Cycles	100 Cycles
Insertion loss	0.25 dB	0.5 dB
Insulation resistance	1000000000 Ω	1000000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUORO ETHYLENE
Manufacturer's serial number	R114	SMB
Installation option 1	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE
Number of ports	1	1
Maximum operating frequency	4 GHz	4 GHz
Maximum operating temperature	110 °C	110 °C
Minimum operating temperature	-40 °C	-40 °C
reliability	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL
Termination type	CRIMP	CRIMP
Total number of contacts	1	1
voltage standing wave ratio	1.06	1.22
Base Number Matches	1	1
