SHA395A

Description
12 A, 100 V, SILICON, RECTIFIER DIODE, TO-66
CategoryDiscrete semiconductor    diode
File Size172KB,2 Pages
ManufacturerSSDI
Websitehttp://www.ssdi-power.com/
Download Datasheet Parametric Compare View All

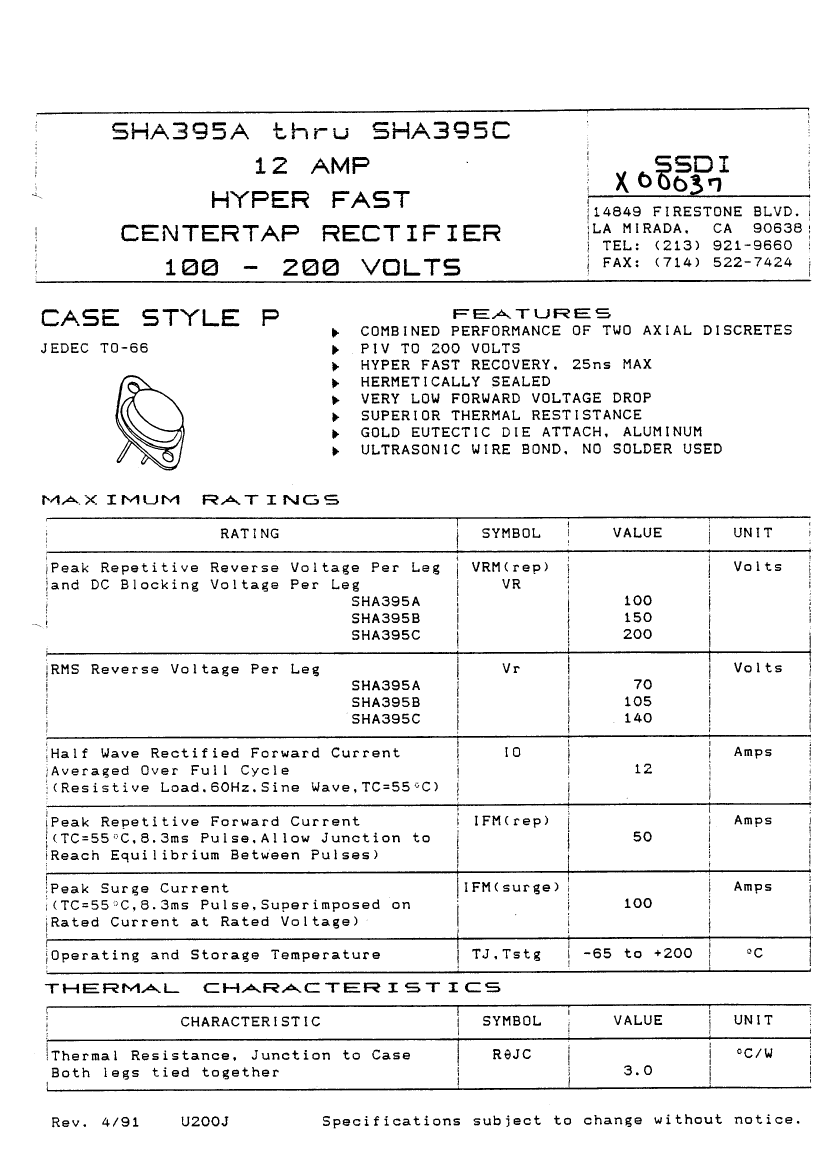

SHA395A Overview

12 A, 100 V, SILICON, RECTIFIER DIODE, TO-66

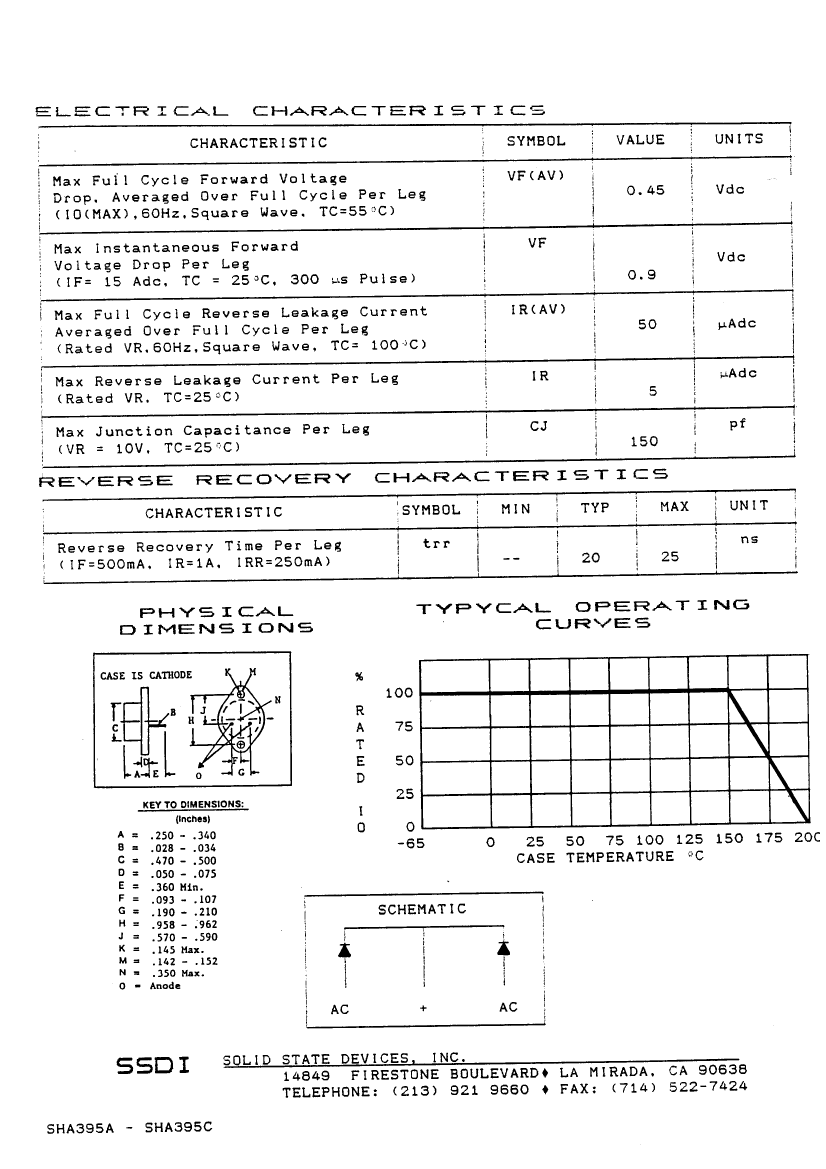

SHA395A Parametric

Parameter NameAttribute value
MakerSSDI
Reach Compliance Codecompli
ECCN codeEAR99
applicationHYPER FAST RECOVERY
Shell connectionCATHODE
ConfigurationCOMMON CATHODE, 2 ELEMENTS
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)0.45 V
JEDEC-95 codeTO-66
JESD-30 codeO-MBFM-P2
Maximum non-repetitive peak forward current100 A
Number of components2
Phase1
Number of terminals2
Maximum operating temperature200 °C
Minimum operating temperature-65 °C
Maximum output current12 A
Package body materialMETAL
Package shapeROUND
Package formFLANGE MOUNT
Certification statusNot Qualified
Maximum repetitive peak reverse voltage100 V
Maximum reverse recovery time0.025 µs
surface mountNO
Terminal formPIN/PEG
Terminal locationBOTTOM

SHA395A Related Products

SHA395A SHA395B SHA395C
Description 12 A, 100 V, SILICON, RECTIFIER DIODE, TO-66 12 A, 150 V, SILICON, RECTIFIER DIODE, TO-66 12 A, 200 V, SILICON, RECTIFIER DIODE, TO-66
Maker SSDI SSDI SSDI
Reach Compliance Code compli compli compli
ECCN code EAR99 EAR99 EAR99
application HYPER FAST RECOVERY HYPER FAST RECOVERY HYPER FAST RECOVERY
Shell connection CATHODE CATHODE CATHODE
Configuration COMMON CATHODE, 2 ELEMENTS COMMON CATHODE, 2 ELEMENTS COMMON CATHODE, 2 ELEMENTS
Diode component materials SILICON SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE
Maximum forward voltage (VF) 0.45 V 0.45 V 0.45 V
JEDEC-95 code TO-66 TO-66 TO-66
JESD-30 code O-MBFM-P2 O-MBFM-P2 O-MBFM-P2
Maximum non-repetitive peak forward current 100 A 100 A 100 A
Number of components 2 2 2
Phase 1 1 1
Number of terminals 2 2 2
Maximum operating temperature 200 °C 200 °C 200 °C
Minimum operating temperature -65 °C -65 °C -65 °C
Maximum output current 12 A 12 A 12 A
Package body material METAL METAL METAL
Package shape ROUND ROUND ROUND
Package form FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT
Certification status Not Qualified Not Qualified Not Qualified
Maximum repetitive peak reverse voltage 100 V 150 V 200 V
Maximum reverse recovery time 0.025 µs 0.025 µs 0.025 µs
surface mount NO NO NO
Terminal form PIN/PEG PIN/PEG PIN/PEG
Terminal location BOTTOM BOTTOM BOTTOM
Base Number Matches - 1 1
