1. Minimum input swing for which AC parameters are guaranteed. The device has a DC gain of
≈40.
2. The CMR range is referenced to the most positive side of the differential input signal. Normal operation is obtained if the HIGH level falls within the specified
range and the peak-to-peak voltage lies between V
PP
(Min._ and 1V. The lower end of the CMR range is dependent on V
EE
and is equal to V
EE
+ 2.5V.
2
Micrel
SY10EL89
DC BLOCKING CAPACITORS
DC BLOCKING CAPACITORS
75Ω 75Ω COAX
EL89
0.1µF
75Ω 75Ω COAX
150Ω 150Ω
0.1µF
V
EE
Figure 1. Termination Configuration
PRODUCT ORDERING CODE
Ordering
Code
SY10EL89ZC
SY10EL89ZCTR*
*Tape and Reel
Note 1.
Recommended for new designs.
Package
Type
Z8-1
Z8-1
Operating
Range
Commercial
Commercial
Marking
Code
HEL89
HEL89
Ordering
Code
SY10EL89ZI
(1)
SY10EL89ZITR*
(1)
Package
Type
Z8-1
Z8-1
Operating
Range
Industrial
Industrial
Marking
Code
HEL89
HEL89
3
Micrel
SY10EL89

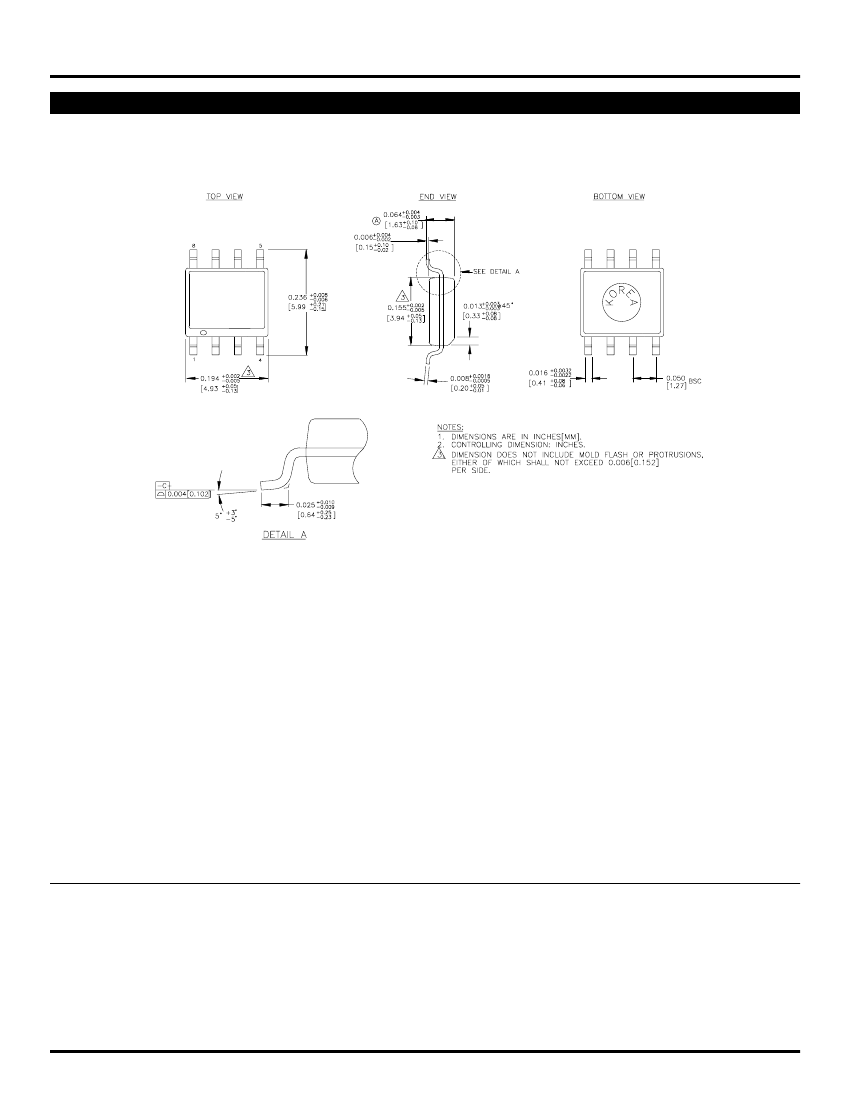

8 LEAD SOIC .150" WIDE (Z8-1)
Rev. 03
MICREL, INC.
TEL
1849 FORTUNE DRIVE SAN JOSE, CA 95131
FAX
USA
+ 1 (408) 944-0800
+ 1 (408) 944-0970
WEB
http://www.micrel.com
The information furnished by Micrel in this datasheet is believed to be accurate and reliable. However, no responsibility is assumed by Micrel for its use.
Micrel reserves the right to change circuitry and specifications at any time without notification to the customer.
Micrel Products are not designed or authorized for use as components in life support appliances, devices or systems where malfunction of a product can
reasonably be expected to result in personal injury. Life support devices or systems are devices or systems that (a) are intended for surgical implant into
the body or (b) support or sustain life, and whose failure to perform can be reasonably expected to result in a significant injury to the user. A Purchaser’s
use or sale of Micrel Products for use in life support appliances, devices or systems is at Purchaser’s own risk and Purchaser agrees to fully indemnify
Micrel for any damages resulting from such use or sale.
