MURF30005 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> MURF30005

MURF30005: DescriptionRectifier Diode, 1 Phase, 2 Element, 150A, 50V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size811KB，2 Pages; ManufacturerDaco Semiconductor Co., Ltd.

Download Datasheet Parametric Compare View All

MURF30005 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MURF30005	-	-	View	Buy Now

MURF30005 Overview

Rectifier Diode, 1 Phase, 2 Element, 150A, 50V V(RRM), Silicon,

MURF30005 Parametric

Parameter Name	Attribute value
package instruction	R-XUFM-X2
Reach Compliance Code	unknown
ECCN code	EAR99
application	SUPER FAST RECOVERY
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	R-XUFM-X2
Maximum non-repetitive peak forward current	2750 A
Number of components	2
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Maximum output current	150 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	50 V
Maximum reverse current	25 µA
Maximum reverse recovery time	0.1 µs
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Base Number Matches	1

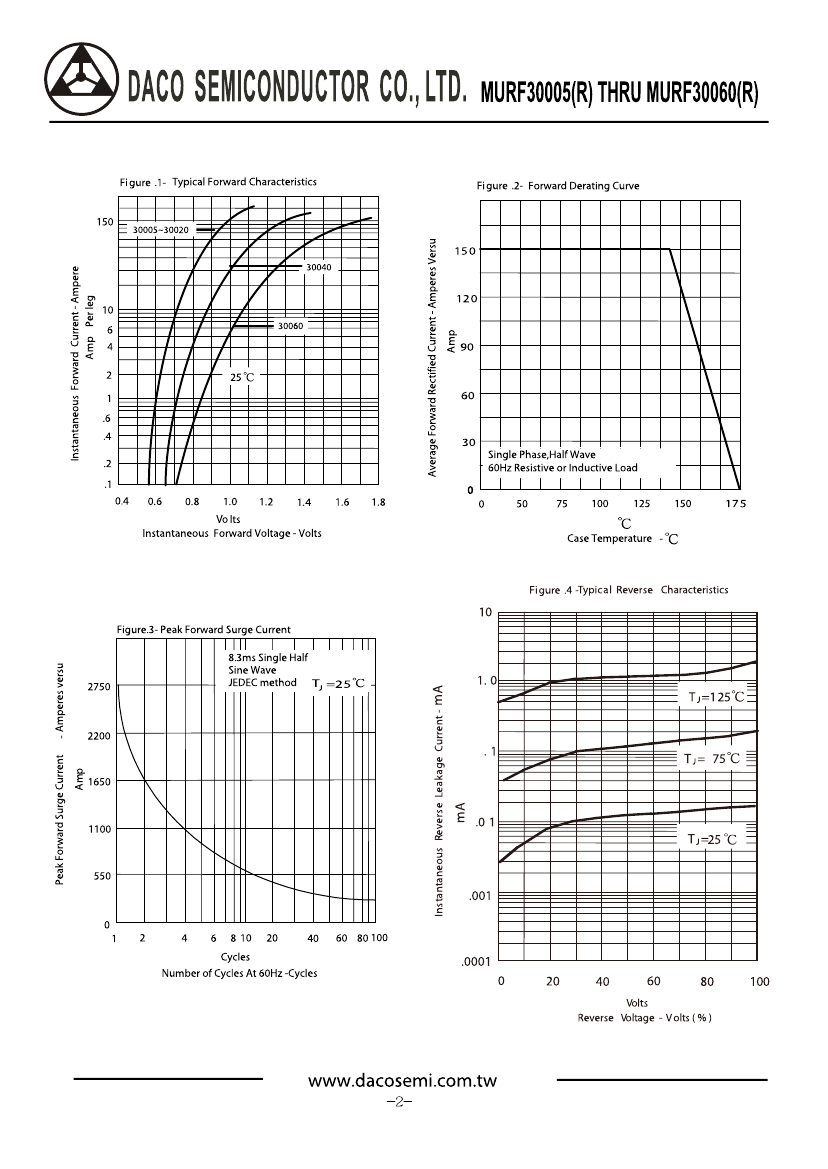

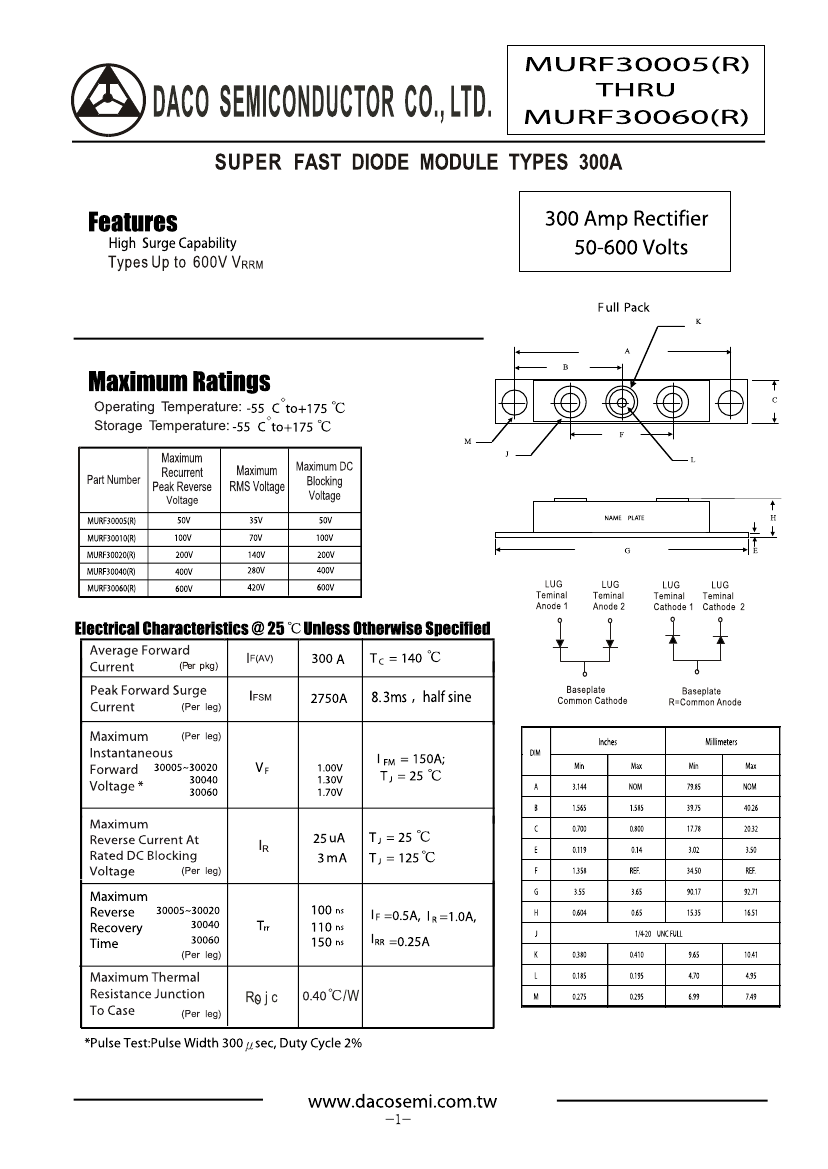

Preview

Download Datasheet

View All

MURF30005 Related Products

	MURF30005	MURF30060	MURF30060R	MURF30020R	MURF30005R	MURF30010	MURF30040	MURF30040R
Description	Rectifier Diode, 1 Phase, 2 Element, 150A, 50V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 150A, 600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 150A, 600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 150A, 200V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 150A, 50V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 150A, 100V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 150A, 400V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 150A, 400V V(RRM), Silicon,
package instruction	R-XUFM-X2	R-XUFM-X2	R-XUFM-X2	R-XUFM-X2	R-XUFM-X2	R-XUFM-X2	R-XUFM-X2	R-XUFM-X2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow	unknow	unknow
application	SUPER FAST RECOVERY	SUPER FAST RECOVERY	SUPER FAST RECOVERY	SUPER FAST RECOVERY	SUPER FAST RECOVERY	SUPER FAST RECOVERY	SUPER FAST RECOVERY	SUPER FAST RECOVERY
Shell connection	CATHODE	CATHODE	ANODE	ANODE	ANODE	CATHODE	CATHODE	ANODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1.7 V	1.7 V	1 V	1 V	1 V	1.3 V	1.3 V
JESD-30 code	R-XUFM-X2	R-XUFM-X2	R-XUFM-X2	R-XUFM-X2	R-XUFM-X2	R-XUFM-X2	R-XUFM-X2	R-XUFM-X2
Maximum non-repetitive peak forward current	2750 A	2750 A	2750 A	2750 A	2750 A	2750 A	2750 A	2750 A
Number of components	2	2	2	2	2	2	2	2
Phase	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	150 A	150 A	150 A	150 A	150 A	150 A	150 A	150 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Maximum repetitive peak reverse voltage	50 V	600 V	600 V	200 V	50 V	100 V	400 V	400 V
Maximum reverse current	25 µA	25 µA	25 µA	25 µA	25 µA	25 µA	25 µA	25 µA
Maximum reverse recovery time	0.1 µs	0.15 µs	0.15 µs	0.1 µs	0.1 µs	0.1 µs	0.11 µs	0.11 µs
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99
Base Number Matches	1	1	1	1	1	-	-	-
Maker	-	Daco Semiconductor Co., Ltd.	Daco Semiconductor Co., Ltd.	-	Daco Semiconductor Co., Ltd.	Daco Semiconductor Co., Ltd.	Daco Semiconductor Co., Ltd.	Daco Semiconductor Co., Ltd.
