JPJ3667-01-245

Description
Audio/RCA Connector, 6 Pole(s), Solid Lead Terminal, Jack
CategoryThe connector    The connector
File Size96KB,1 Pages
ManufacturerHosiden Corporation
Download Datasheet Parametric View All

JPJ3667-01-245 Overview

Audio/RCA Connector, 6 Pole(s), Solid Lead Terminal, Jack

JPJ3667-01-245 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Body/casing typeJACK
Configuration1X3 HORIZONTAL
Connector typeAUDIO/RCA CONNECTOR
DIN complianceNO
IEC complianceNO
MIL complianceNO
Installation typeBOARD
Number of poles6
Number of ports3
OptionsGENERAL PURPOSE
Termination typeSOLID LEAD
Base Number Matches1
Horizontal Type Triple Pin Jacks Horizontal Arrayal
Unit: mm

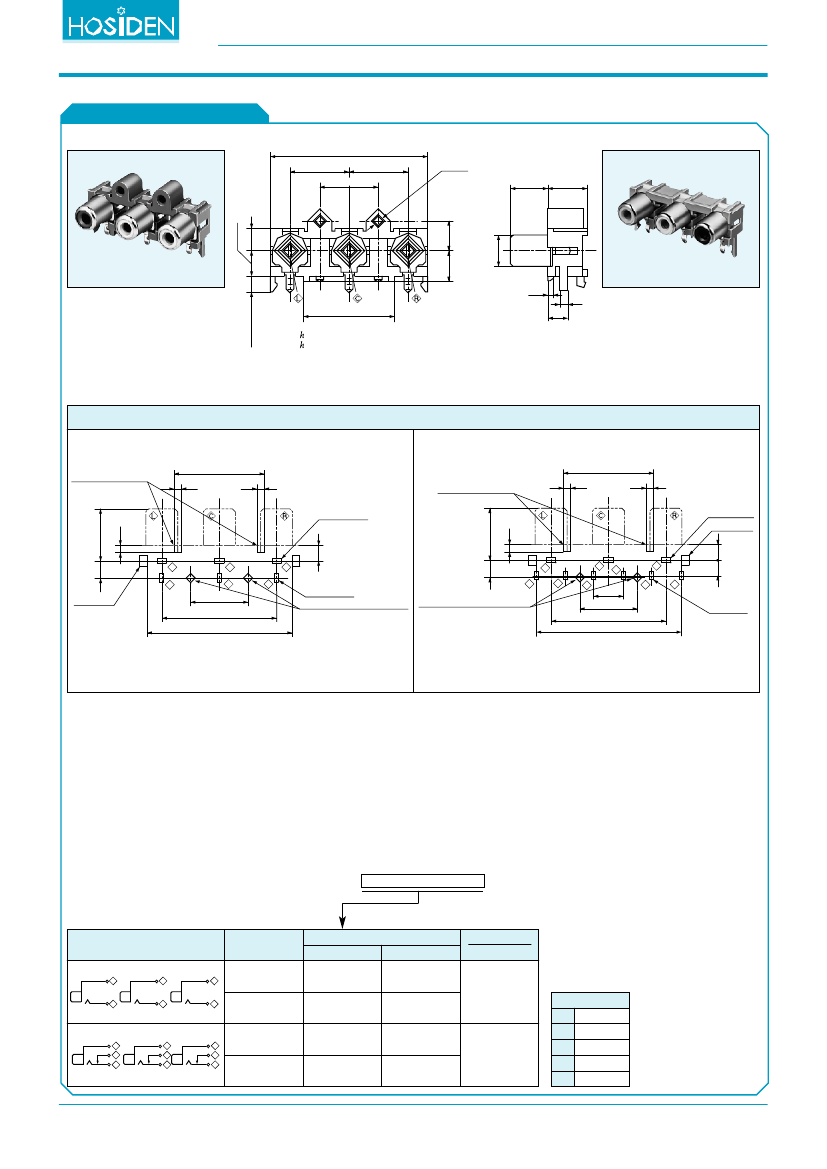

JPJ4668 / JPJ3668 Series
h
= 6.5 or 8 mm
15
15
40
15
ø
2.4
9.5
10
h=6.5
5.6
7.5
h=8
ø
8.3
H=4 or 5.5
With Installation Hole
JPJ4668
1.5
23.4
= 6.5 version has H = 4
= 8 version has H = 5.5
5
2
JPJ3668
Without Installation Hole
Hole Layout (Bottom View)
h=8 version has
no holes
23.4
1.9
1.9
3-1.3×2.5
h=8 version has
no holes
23.4
1.9
1.9
3-1.3×2.5
2-2×2.4
3.7 4
3
13.5
13.5
1.7
1.7
4
4.5
4.5
1
2
1
2
2
1
1
2
3
2
1
3
2
1
2-2×2.4
15
30
37.6
3-2.2×1.2
2-
ø
2.2
h=8 version has no holes.
2-φ2.2
h=8 version has no holes
7.5
15
30
37.6
6-2.5×1
Fig. 1
Fig. 2
Model No.
□□□□□□□
L C R
○○ ○
Schematic
L
C
R
Dimension
h
mm
1
2
Installation Hole
With
Without
JPJ4668-01-
JPJ4648-01-
JPJ4667-01-
JPJ4647-01-
JPJ3668-01-
Hole Layout
(Bottom view)
Fig. 1
L
R
,
, and
indicate pinjack color No. below.
C
L
Housing color is same with
pinjack.
1
2
1
2
6.5
8
6.5
8
JPJ3648-01-
JPJ3667-010
Fig. 2
JPJ3647-01-
1
3
2
1
3
2
1
3
2
Color No.
1 Black
2 Red
3 White
4 Yellow
5 Blue
