JANKCA1N4615 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> JANKCA1N4615

JANKCA1N4615: DescriptionZener Diode, 2V V(Z), 5%, 0.25W, Silicon, Unidirectional, DIE-2; CategoryDiscrete semiconductor diode; File Size118KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric View All

JANKCA1N4615 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	JANKCA1N4615	-	-	View	Buy Now

JANKCA1N4615 Overview

Zener Diode, 2V V(Z), 5%, 0.25W, Silicon, Unidirectional, DIE-2

JANKCA1N4615 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	DIE
package instruction	S-XXUC-N2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	METALLURGICALLY BONDED
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	1200 Ω
JESD-30 code	S-XXUC-N2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Maximum operating temperature	200 °C
Package body material	UNSPECIFIED
Package shape	SQUARE
Package form	UNCASED CHIP
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.25 W
Certification status	Qualified
Guideline	MIL-19500/435F
Nominal reference voltage	2 V
surface mount	YES
technology	ZENER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal location	UNSPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	5%
Working test current	0.25 mA
Base Number Matches	1

Preview

Download Datasheet

View All

• 1N4614-1THRU 1N4627-1 AVAILABLE IN

JAN, JANTX, JANTXV AND JANS

PER MIL-PRF-19500/435

• LOW CURRENT OPERATION AT 250

• LOW REVERSE LEAKAGE AND LOW NOISE CHARACTERISTICS

• DOUBLE PLUG CONSTRUCTION

• METALLURGICALLY BONDED

1N4614 thru 1N4627

and

1N4614-1 thru 1N4627-1

MAXIMUM RATINGS

Operating Temperature: -65°C to +175°C

DC Power Dissipation: 500mW @ +50°C

Power Derating: 4 mW / °C above +50°C

Forward Voltage @ 200 mA: 1.1 Volts maximum

* ELECTRICAL CHARACTERISTICS

@ 25°C, unless otherwise speci½ed.

JEDEC

TYPE

NUMBER

NOMINAL

ZENER

VOLTAGE

V @I

(Note 1)

VOLTS

ZENER

TEST

CURRENT

MAXIMUM

ZENER

IMPEDANCE

(Note 2)

MAXIMUM REVERSE

LEAKAGE CURRENT

MAXIMUM

DC ZENER

CURRENT

lZM

MAXIMUM

NOISE

DENSITY

250

OHMS

1200

1250

1300

1400

1500

1600

1650

1700

1650

1600

1550

1500

1400

1200

7.5

5.0

4.0

2.0

1.0

0.8

7.5

5.0

4.0

10.0

VOLTS

1.5

120

110

100

1N4614

1N4615

1N4616

1N4617

1N4618

1N4619

1N4620

1N4621

1N4622

1N4623

1N4624

1N4625

1N4626

1N4627

1.8

2.0

2.2

2.4

2.7

3.0

3.3

3.6

3.9

4.3

4.7

5.1

5.6

6.2

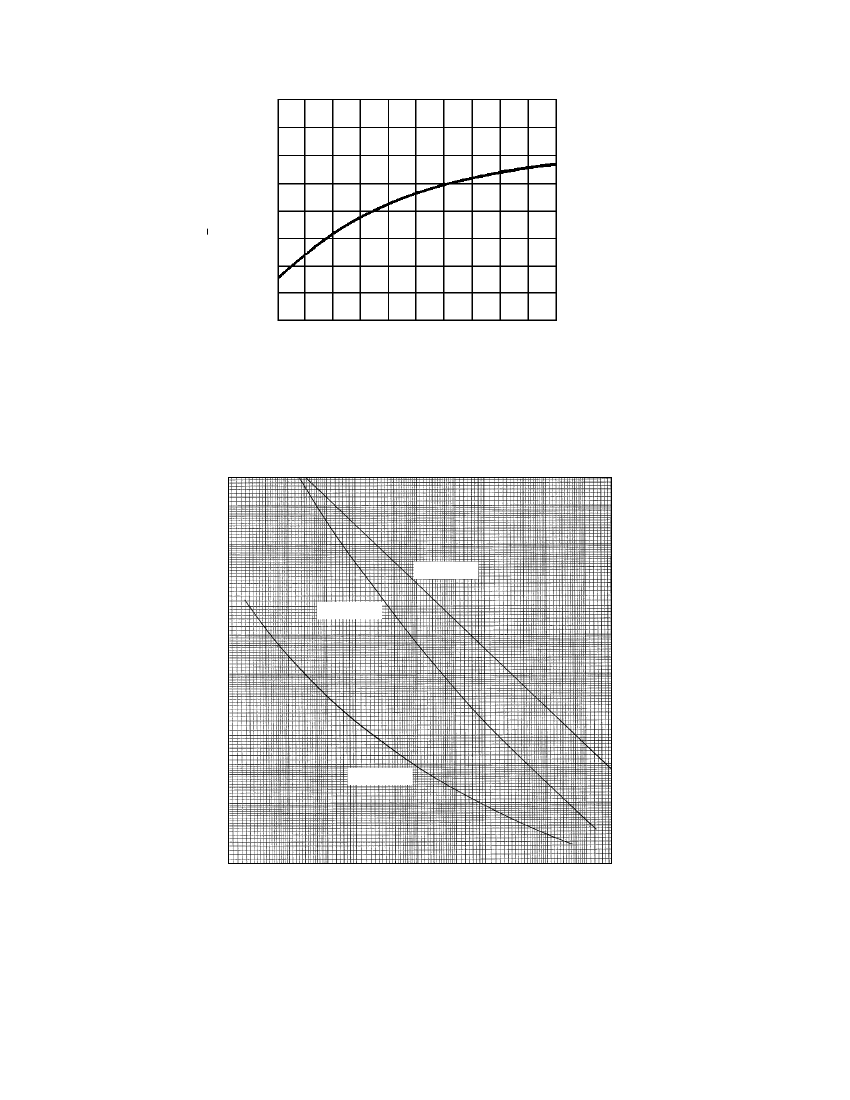

FIGURE 1

DESIGN DATA

CASE:

Hermetically sealed glass

case. DO – 35 outline.

LEAD MATERIAL:

Copper clad steel.

LEAD FINISH:

Tin / Lead

THERMAL RESISTANCE: (R

OJEC):

250

C/W maximum at L = .375 inch

THERMAL IMPEDANCE: (Z

OJX): 35

C/W maximum

POLARITY:

Diode to be operated with

the banded (cathode) end positive.

MOUNTING POSITION:

ANY.

* JEDEC Registered Data.

NOTE 1

The JEDEC type numbers shown above have a Zener voltage tolerance of + 5% of

the nominal Zener voltage. Vz is measured with the device junction in thermal equilib-

rium at an ambient themperature of 25°C + 3°C. A “C” suffix denotes a + 2%

tolerance and a “D” suffix denotes a + 1% tolerance.

Zener impedance is derived by superimposing on l ZT A 60Hz rms a.c. current equal

to 10% of l ZT (25

A a.c.)

NOTE 2

6 LAKE STREET, LAWRENCE, MASSACHUSETTS 01841

PHONE (978) 620-2600

FAX (978) 689-0803

WEBSITE: http://www.microsemi.com
