DUY06A: Description8mm (0.32”) SINGLE DIGIT NUMERIC DISPLAY; CategoryLED optoelectronic/LED photoelectric; File Size167KB，4 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

DUY06A Overview

8mm (0.32”) SINGLE DIGIT NUMERIC DISPLAY

DUY06A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUNLED
package instruction	ROHS COMPLIANT PACKAGE-10
Reach Compliance Code	compli
ECCN code	EAR99
Other features	IC COMPATIBLE
color	YELLOW
Configuration	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT
Display height	8 mm
Maximum forward current	0.03 A
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Preview

Download Datasheet

View All

Part Number:

www.SunLED.com

DUY06A

8mm (0.32”) SINGLE DIGIT NUMERIC DISPLAY

Features

●

0.32 INCH DIGIT HEIGHT.

●

LOW CURRENT OPERATION.

●

EXCELLENT CHARACTER APPEARANCE.

●

HIGH LIGHT OUTPUT.

●

EASY MOUNTING ON P.C. BOARDS OR SOCKETS.

●

I.C. COMPATIBLE.

●

MECHANICALLY RUGGED.

●

STANDARD: GRAY FACE,WHITE SEGMENT.

●

RoHS COMPLIANT.

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.25(0.01") unless otherwise noted.

3.Specifications are subject to change without notice.

Absolute Maximum Ratings

=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Lead Solder Temperature

[2mm Below Package Base]

Tstg

(GaAsP/GaP)

140

-40 ~ +85

Unit

°C

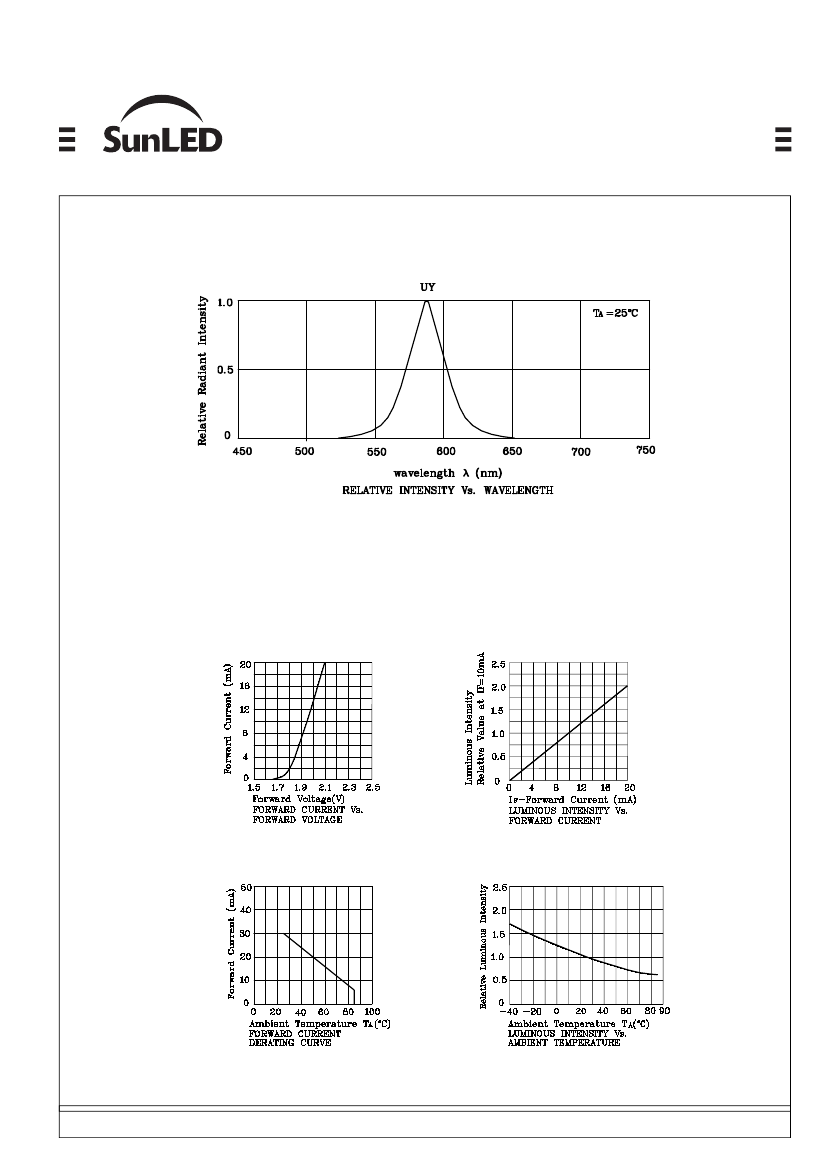

Operating Characteristics

(TA=25°C)

Forward Voltage (Typ.)

=10mA)

Forward Voltage (Max.)

=10mA)

Reverse Current (Max.)

=5V)

Wavelength Of Peak

Emission (Typ.)

=10mA)

Wavelength Of Dominant

Emission (Typ.)

=10mA)

Spectral Line Full Width

At Half-Maximum (Typ.)

=10mA)

Capacitance (Typ.)

=0V, f=1MHz)

Luminous

Intensity

(IF=10mA)

ucd

min.

DUY06A

Yellow

GaAsP/GaP

1200

typ.

5041

590

Common Anode.Rt.Hand Decimal

Wavelength

(GaAsP/GaP)

1.95

2.5

Unit

590

588

260°C For 3-5 Seconds

Δλ

Part

Number

Emitting

Color

Emitting

Material

Description

Published Date : FEB 29.2008

Drawing No :SDSA2012

Checked : Shin Chi

P.1/4
