QSE-060-01-C-D-K-TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> QSE-060-01-C-D-K-TR

QSE-060-01-C-D-K-TR: DescriptionBoard Stacking Connector,; CategoryThe connector The connector; File Size782KB，5 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

QSE-060-01-C-D-K-TR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	QSE-060-01-C-D-K-TR	-	-	View	Buy Now

QSE-060-01-C-D-K-TR Overview

Board Stacking Connector,

QSE-060-01-C-D-K-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Connector type	BOARD STACKING CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

REVISION BL

DO NOT

SCALE FROM

THIS PRINT

(*= SEE NOTE 17)

No OF POSITIONS

-020, -040, -060

*-080, *-100 (PER ROW)

(*= SEE NOTE 17)

LEAD STYLE

-01: .1280[3.251]

QSE-XXX-01-XXX-D-XXX

PLATING SPECIFICATION

(SEE NOTES 8, 11 & 13)

-F: 3µ" SELECTIVE GOLD IN CONTACT

AREA, MATTE TIN ON TAIL

(USE C-126-21-F, T-1G2-01-F)

(SEE NOTE 8)

-L: 10µ" SELECTIVE GOLD IN CONTACT

AREA, MATTE TIN ON TAIL

(USE C-126-21-L, T-1G2-01-L)

-H: 30µ" GOLD IN CONTACT AREA,

3µ" GOLD ON TAIL

(USE C-126-21-H, T-1G2-01-G)

-C: 50µ" ELECTRO POLISHED SELECTIVE

GOLD IN CONTACT AREA,

MATTE TIN ON TAIL

(USE C-126-21-C, T-1G2-01-L)

-STL: 30µ" SELECTIVE GOLD IN CONTACT

AREA, TIN LEAD (90/10 ±5%) ON TAIL

(USE C-126-21-STL, T-1G2-01-STL)

-FTL: 3µ" SELECTIVE GOLD INCONTACT

AREA, TIN LEAD (90/10 ±5%) ON TAIL

(USE C-126-21-FTL, T-1G2-01-FTL)

-LTL: 10µ" SELECTIVE GOLD IN CONTACT

AREA, TIN LEAD (90/10 ±5%) ON TAIL

(USE C-126-21-LTL, T-1G2-01-LTL)

-S: 30µ" SELECTIVE GOLD IN CONTACT

AREA, MATTE TIN ON TAIL

(USE C-126-21-S, T-1G2-01-L)

"A" REF

.7875 20.003 (TYP)

19 EQ. SPCS

@ .0315 [0.800]

=.599[15.20]

(TYP)

.285 7.24

REF

.150 3.81

REF

.245 6.22

REF

-A: ALIGNMENT PINS

(USE QSE-20-XX-D-XX-A)

(NOT AVAILABLE WITH -LC OPTION)

-LC: LOCKING CLIPS(SEE NOTE 14)

(USE LC-08-TM-01, SEE FIG 2, SHT 2)

(NOT AVAILABLE WITH -A OPTION)

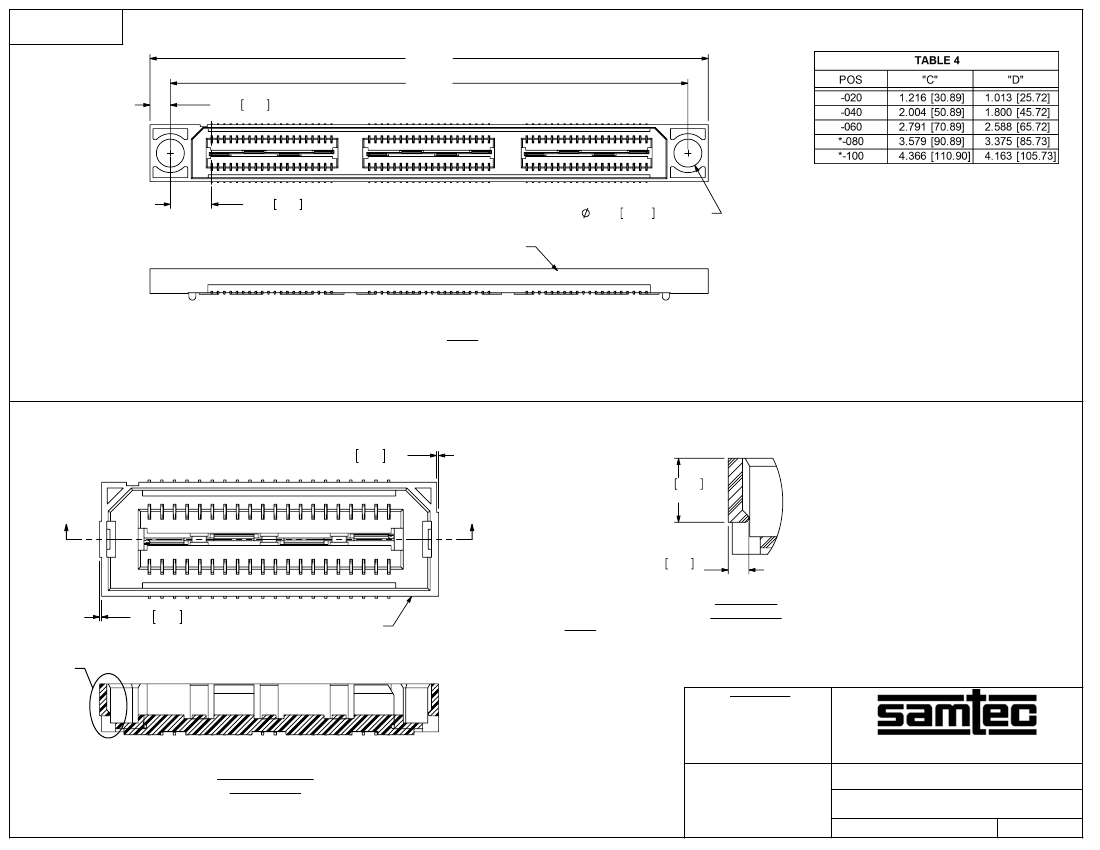

-GP: GUIDE POSTS (SEE FIG 4, SHT 3)

(USE QSE-20-01-D-XX-X-GP)

(T & R PACKAGING: 40 POS MAX)

-K: POLYIMIDE FILM

(USE K-DOT-.325-.450-.005)

(SEE FIG 3, SHT 2)

-TR: TAPE & REEL (60 POS MAX)

(SEE FIG 8, SHT 5)

(40 POS MAX -GP OPTION)

-FL: FRICTION LOCKS

(SEE FIG 5, SHT 3)

(NOT AVAILABLE WITH -GP)

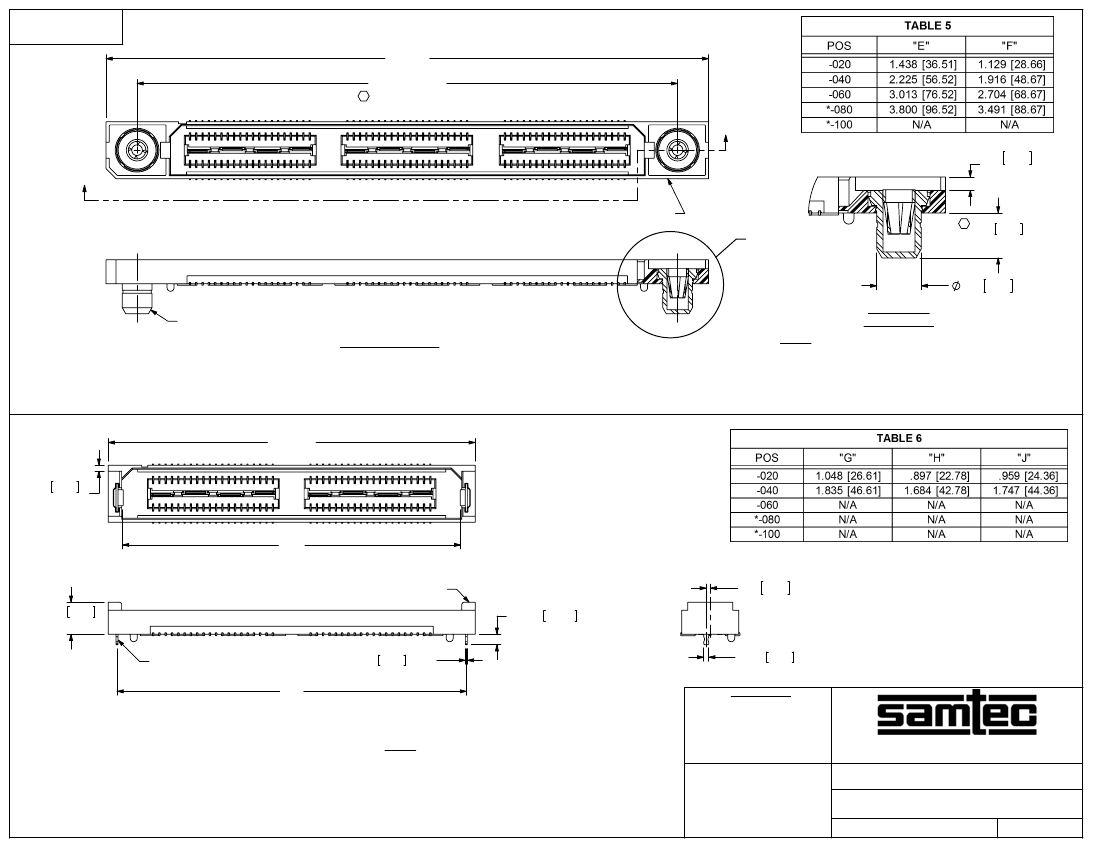

-RT1: RETENTION OPTION

(MUST USE -A OPTION)

(USE QSE-20-01-D-XX-A-RT1 &

SUB-SC-05-01-FF)

(SEE FIG 6, SHT 4)

(NOT AVAILABLE WITH -LC, -GP, OR -FL)

(NOT AVAILABLE WITH -100 POS)

-L: LATCHING OPTION (40 POS MAX)

(SEE FIG 7, SHT 4)

(MUST USE -A OPTION)

(NOT AVAILABLE WITH -LC, -GP, -FL,

OR -RT1)

OPTION

.0975 2.477

REF

.0225 0.571

REF

.6250 15.875

REF

ROW SPECIFICATION

-D: DOUBLE

(USE QSE-20-XX-D-XX)

No OF BANKS

QSE-20-01-D-XX-A

"A"

SEE NOTE 15

.038 0.95

REF

.725 18.42

REF

"A"

"B" REF

T-1G2-01-XXX

.120 3.05

REF

.017±.005 0.43±0.13

(SEE NOTE 16)

.0030 0.076 REF

.167

+.004

4.24

+0.10

- .002

- 0.05

.1280

+.0030

3.251

+0.076

- .0010

- 0.025

(SEE NOTE 6 & 7)

NOTES:

REPRESENTS A CRITICAL DIMENSION.

.035 0.89 REF

2. MINIMUM CONTACT RETENTION: 8 OZ

3. MINIMUM GROUND PLANE RETENTION: 8 OZ

4. PARTS ARE MOLDED TO POSITION.

5. DELETED.

6. MAXIMUM VARIANCE: .002[0.51].

7. DIMENSION APPLIES TO CONTACTS & GROUND PLANE.

8. -L PLATING CAN BE SUBSTITUTED FOR -F PLATING, -G PLATED GROUND

PLANE CAN BE SUBSTITUTED FOR -F PLATED GROUND PLANE.

9. GROUND PLANE PRESS HEIGHT MUST BE .003 [0.08] LESS THAN THE MAX HEIGHT

OR .001 [0.03] GREATER THAN THE MINIMUM HEIGHT OF THE SOCKETS.

10. MINIMUM SUB-SC-05-01-XX RETENTION: 1 LB IN BODY.

11. MAY SUB C-126-01-XXX FOR C-126-21-XXX.

12. NOTE DELETED.

13. FOR -080, -100 POSITIONS USE C-269-11-XXX. DO NOT SUB C-126.

14. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE -LC OPTION

IS NOT COMPATIBLE WITH AUTO PLACEMENT.SAMTEC RECOMMENDS

MANUAL PLACEMENT FOR ALL ASSEMBLIES WITH THE -LC OPTION.

15. SIDE WALLS ARE RIBBED AS NECESSARY TO CONTROL BOW.

16. CHECK ONCE PER BANK ALTERNATING SIDES FOR MULTIPLE BANK PARTS.

17. AVAILABLE FOR EXISTING CUSTOMERS ONLY.

18. NOTE DELETED.

.105 2.67

REF

SEE TABLE 1

.064 1.62 REF

.007 0.18 REF

-A: ALIGNMENT PIN OPTION

(QSE-060-01-XXX-D-A SHOWN)

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

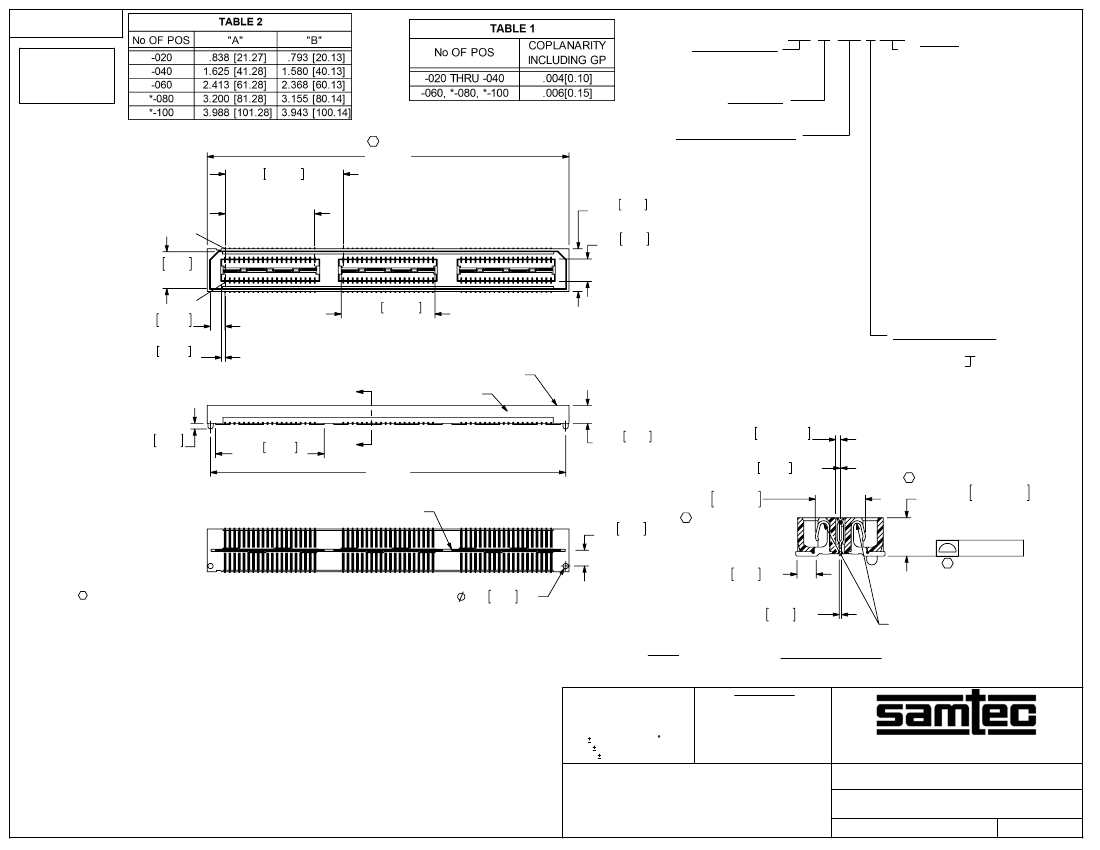

FIG 1

C-126-21-XXX

(SEE NOTE 13)

SECTION "A"-"A"

PROPRIETARY NOTE

.XX: .01[.3]

.XXX: .005[.13]

.XXXX: .0020[.051]

ANGLES

THIS DOCUMENT CONTAINS CONFIDENTIAL AND

PROPRIETARY INFORMATION AND ALL DESIGN,

MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS

AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,

INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE

OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR

REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY

OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS

WRITTEN CONSENT OF SAMTEC, INC.

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

DO NOT SCALE DRAWING

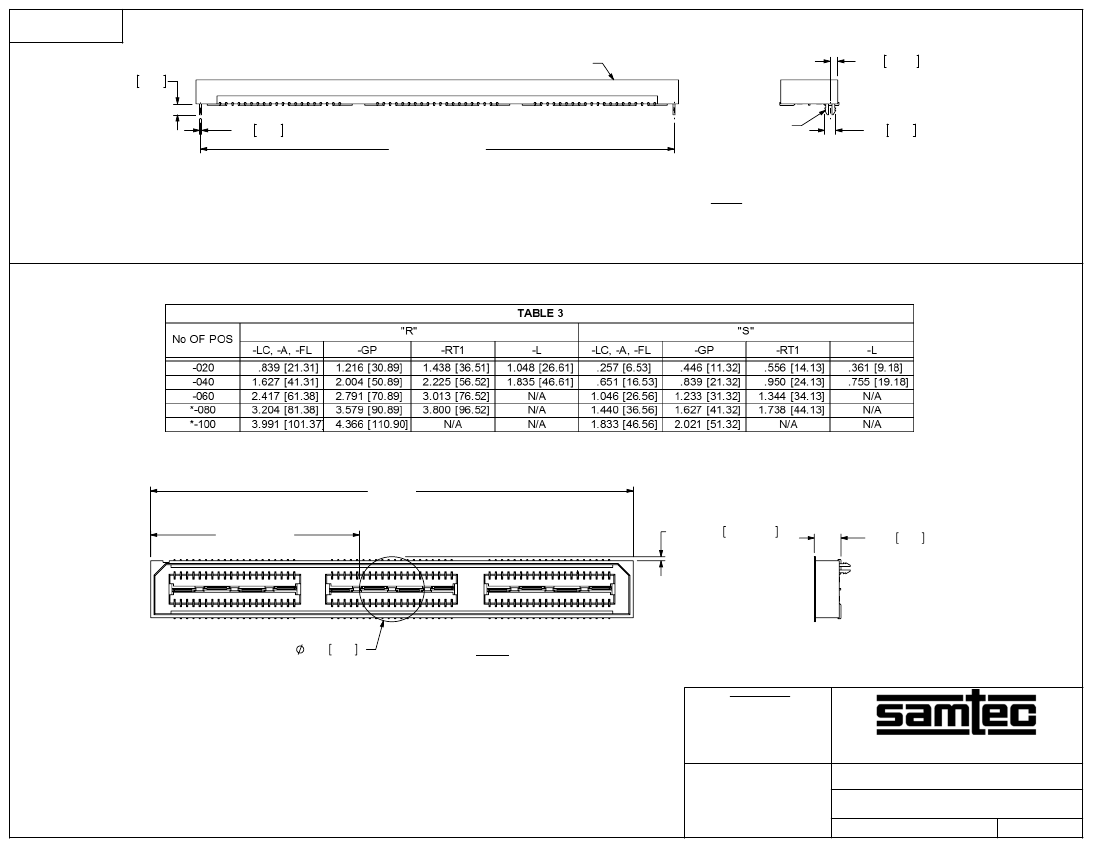

SHEET SCALE: 1.5:1

INSULATOR: LCP, UL94V-0; COLOR: BLACK

CONTACT: PHOS BRONZE

GROUND PLANE: PHOS BRONZE

F:\DWG\MISC\MKTG\QSE-XXX-01-XXX-D-XXX-MKT.SLDDRW

.8mm DOUBLE ROW HS SOCKET ASSEMBLY

BY:

ERIC M

QSE-XXX-01-XXX-D-XXX

05/20/1999

SHEET
