MP7686SD/883 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> MP7686SD/883

MP7686SD/883: DescriptionADC, Flash Method, 6-Bit, 1 Func, Parallel, Word Access, CMOS, CDIP18,; CategoryAnalog mixed-signal IC converter; File Size303KB，10 Pages; ManufacturerMicro Power Systems

Download Datasheet Parametric Compare View All

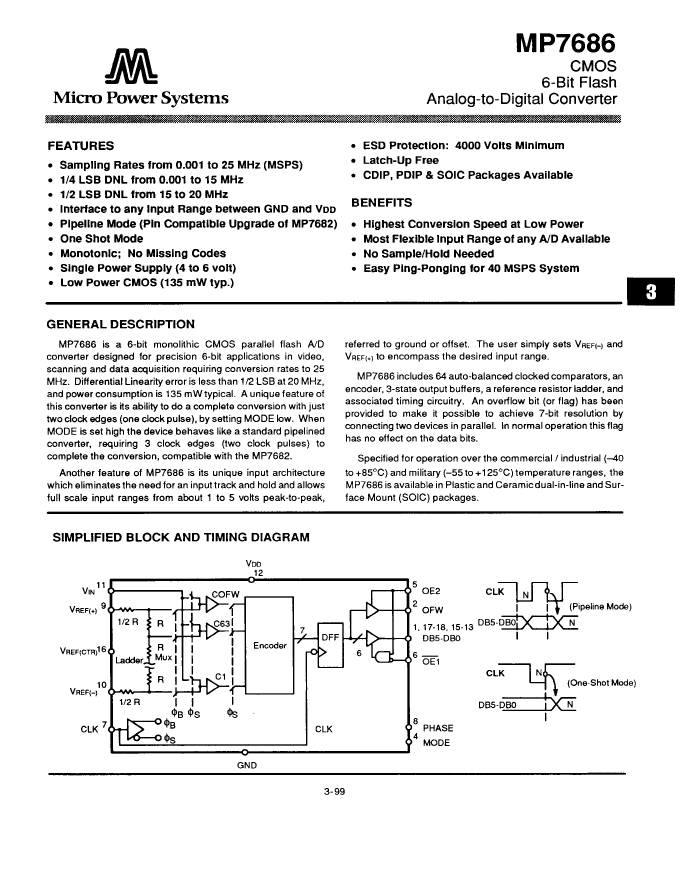

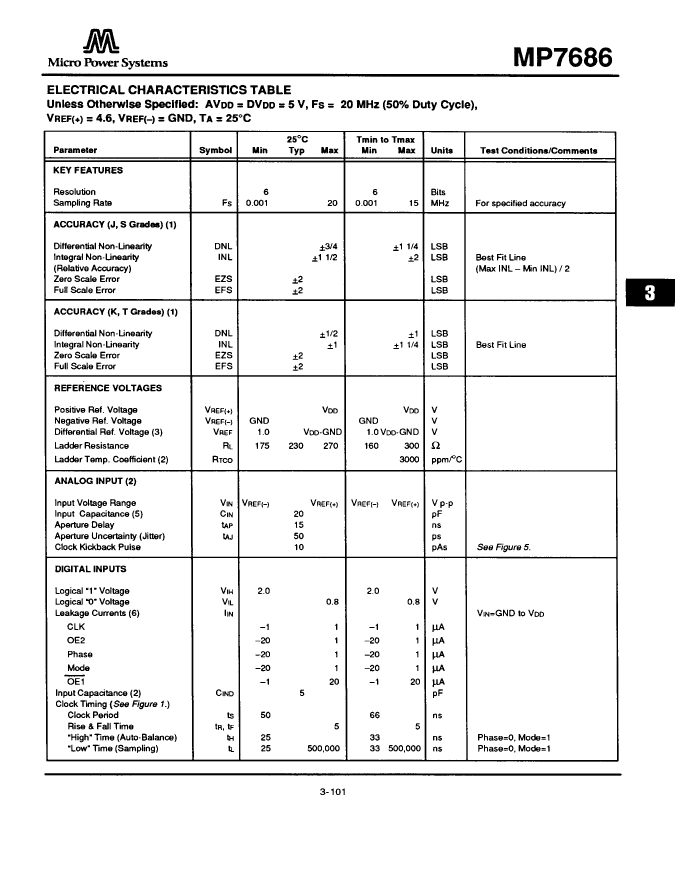

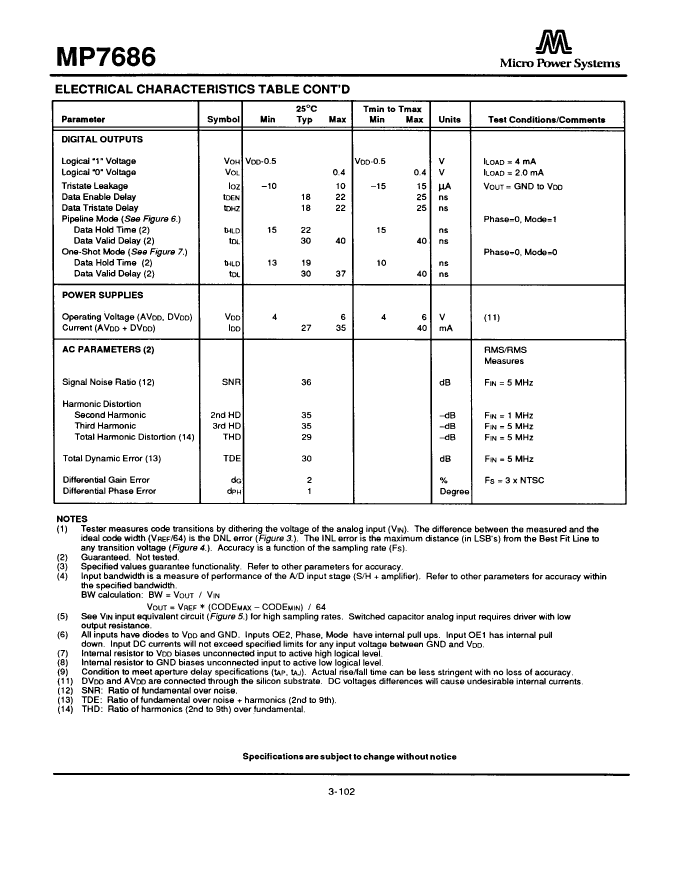

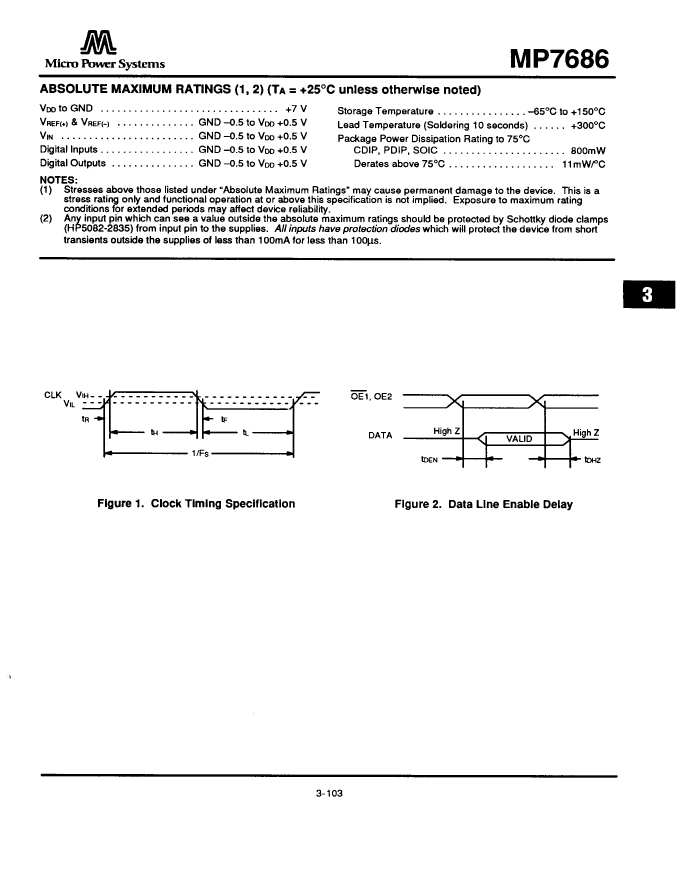

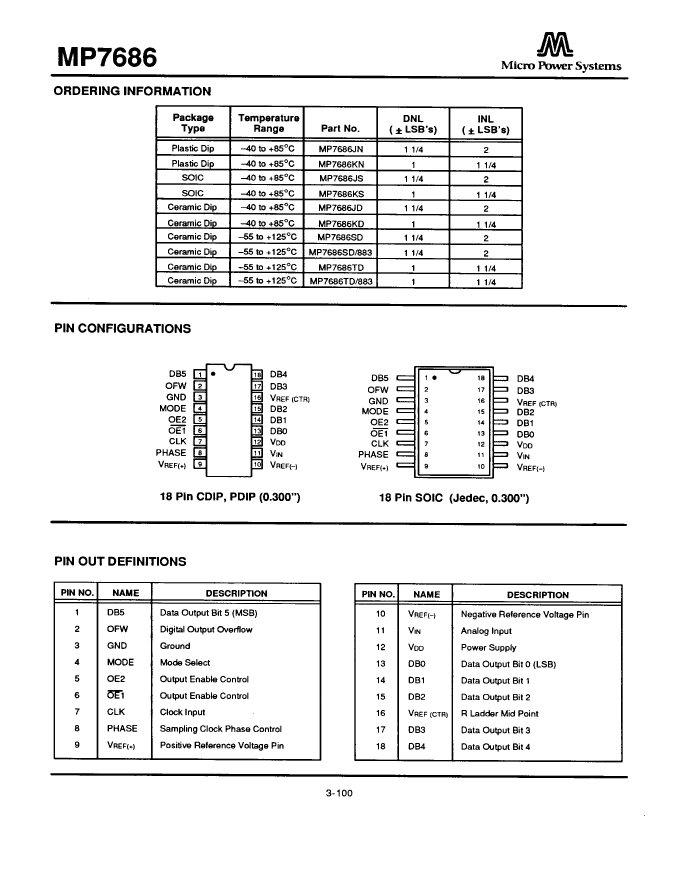

MP7686SD/883 Overview

ADC, Flash Method, 6-Bit, 1 Func, Parallel, Word Access, CMOS, CDIP18,

MP7686SD/883 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Maximum analog input voltage	5 V
Minimum analog input voltage
Maximum conversion time	1000 µs
Converter type	ADC, FLASH METHOD
JESD-30 code	R-GDIP-T18
Maximum linear error (EL)	2.34%
Number of digits	6
Number of functions	1
Number of terminals	18
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	OFFSET BINARY
Output format	PARALLEL, WORD
Package body material	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Sampling rate	25 MHz
Maximum slew rate	35 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

MP7686SD/883 Related Products

	MP7686SD/883	MP7686JD	MP7686JN	MP7686JS	MP7686SD	MP7686KD	MP7686TD	MP7686KN	MP7686TD/883	MP7686KS
Description	ADC, Flash Method, 6-Bit, 1 Func, Parallel, Word Access, CMOS, CDIP18,	ADC, Flash Method, 6-Bit, 1 Func, Parallel, Word Access, CMOS, CDIP18,	ADC, Flash Method, 6-Bit, 1 Func, Parallel, Word Access, CMOS, PDIP18,	ADC, Flash Method, 6-Bit, 1 Func, Parallel, Word Access, CMOS, PDSO18,	ADC, Flash Method, 6-Bit, 1 Func, Parallel, Word Access, CMOS, CDIP18,	ADC, Flash Method, 6-Bit, 1 Func, Parallel, Word Access, CMOS, CDIP18,	ADC, Flash Method, 6-Bit, 1 Func, Parallel, Word Access, CMOS, CDIP18,	ADC, Flash Method, 6-Bit, 1 Func, Parallel, Word Access, CMOS, PDIP18,	ADC, Flash Method, 6-Bit, 1 Func, Parallel, Word Access, CMOS, CDIP18,	ADC, Flash Method, 6-Bit, 1 Func, Parallel, Word Access, CMOS, PDSO18,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum analog input voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Maximum conversion time	1000 µs	1000 µs	1000 µs	1000 µs	1000 µs	1000 µs	1000 µs	1000 µs	1000 µs	1000 µs
Converter type	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD
JESD-30 code	R-GDIP-T18	R-GDIP-T18	R-PDIP-T18	R-PDSO-G18	R-GDIP-T18	R-GDIP-T18	R-GDIP-T18	R-PDIP-T18	R-GDIP-T18	R-PDSO-G18
Maximum linear error (EL)	2.34%	2.34%	2.34%	2.34%	2.34%	1.56%	1.56%	1.56%	1.56%	1.56%
Number of digits	6	6	6	6	6	6	6	6	6	6
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	18	18	18	18	18	18	18	18	18	18
Maximum operating temperature	125 °C	85 °C	85 °C	85 °C	125 °C	85 °C	125 °C	85 °C	125 °C	85 °C
Minimum operating temperature	-55 °C	-40 °C	-40 °C	-40 °C	-55 °C	-40 °C	-55 °C	-40 °C	-55 °C	-40 °C
Output bit code	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY
Output format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Sampling rate	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz
Maximum slew rate	35 mA	35 mA	35 mA	35 mA	35 mA	35 mA	35 mA	35 mA	35 mA	35 mA
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	YES	NO	NO	NO	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	MILITARY	INDUSTRIAL	MILITARY	INDUSTRIAL	MILITARY	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	-	Micro Power Systems	Micro Power Systems	Micro Power Systems	Micro Power Systems	Micro Power Systems	Micro Power Systems	Micro Power Systems	Micro Power Systems	Micro Power Systems
