LX5112ACPWPT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> LX5112ACPWPT

LX5112ACPWPT: DescriptionSCSI Terminator, 9-Line, 110ohm, BICMOS, PDSO24, POWER, PLASTIC, TSSOP-24; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size146KB，4 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

LX5112ACPWPT Overview

SCSI Terminator, 9-Line, 110ohm, BICMOS, PDSO24, POWER, PLASTIC, TSSOP-24

LX5112ACPWPT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	TSSOP
package instruction	POWER, PLASTIC, TSSOP-24
Contacts	24
Reach Compliance Code	not_compliant
ECCN code	EAR99
Differential output	NO
Interface integrated circuit type	SCSI BUS TERMINATOR
JESD-30 code	R-PDSO-G24
JESD-609 code	e0
length	7.8 mm
Number of functions	1
Number of signal lines	9
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP24,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	4.75 V
Nominal pull-up resistor	110 Ω
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
Nominal supply voltage	4.75 V
surface mount	YES
technology	BICMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	4.4 mm
Base Number Matches	1

Preview

Download Datasheet

View All

LIN D

O C

51115

UltraMAX

H E

LX5111A/5112A

A T A

U LT R A 9 - C

HANNEL

S C S I T

E R M I N ATOR

N F I N I T E

O W E R

O F

N N O VA T I O N

R E L I M I N A R Y

H E E T

DESCRIPTION

The LX5111A/5112A SCSI terminators are part of

Linfinity's UltraMAX family of high-performance,

adaptive, non-linear mode SCSI products, which

are designed to deliver true UltraSCSI performance

in SCSI applications. The low voltage BiCMOS

architecture employed in their design offers su-

perior performance to older linear passive and

active techniques. Linfinity's UltraMAX architecture

employs high-speed adaptive elements for each

channel, thereby providing the fastest response

possible — typically 35MHz, which is 100 times

faster than the older linear regulator/terminator

approach used by other manufacturers. Products

using this older linear regulator approach have

bandwidths which are dominated by the output

capacitor and which are limited to 500KHz (see

further discussion in the Functional Description

section). The UltraMAX architecture also eliminates

the output compensation capacitor typical in earlier

terminator designs. Each is approved for use with

SCSI-1, -2, -3, UltraSCSI and beyond — providing

the highest performance alternative available to-

day.

Another key improvement offered by the

LX5111A/12A lies in their ability to insure reliable,

error-free communications even in systems which

do not adhere to recommended SCSI hardware

design guidelines, such as the use of improper

cable lengths and impedances. Frequently, this

situation is not controlled by the peripheral or host

designer and, when problems occur, they are the

first to be made aware of the problem. The

LX5111A/12A architecture is much more tolerant

of marginal system integrations.

Recognizing the needs of portable and

configurable peripherals, the LX5111A/12A have

a TTL compatible sleep/disable mode. Quiescent

current is typically less than 275µA in this mode,

while the output capacitance is also less than 3pF.

The obvious advantage of extended battery life

for portable systems is inherent in the product's

sleep-mode feature. Additionally, the disable

function permits factory-floor or production-line

configurability, reducing inventory and product-

line diversity costs. Field configurability can also

be accomplished without physically removing

components which, often times results in field

returns due to mishandling.

Reduced component counts is also inherent in

the LX5111A/12A's architecture. Traditional ter-

mination techniques require large stabilization and

transient protection capacitors of up to 20µF in

value and size. The LX5111A/12A architecture

does not require these components, allowing all

the cost savings associated with inventory, board

space, assembly, reliability, and component costs.

K E Y F E AT U R E S

Ultra-Fast Response For FAST-20 SCSI

Applications

35MHz Channel Bandwidth

3.0V Operation

Less Than 3pF Output Capacitance

Thermally Self-Limiting

NO External Compensation Capacitors

Implements 8-bit Or 16-bit (Wide)

Applications

Compatible with Active Negation

Drivers

Compatible With Passive And Active

Terminations

Approved For Use With SCSI 1, 2, 3

And Ultra SCSI

Hot-Swap Compatible

Pin-For-Pin Compatible With

LX5211 and UC5606 (LX5111)

Pin-For-Pin Compatible With

LX5212 And UC5603/5613/5614

(LX5112)

IMPORTANT:

For the most current data, consult LinFinity's web site:

http://www.linfinity.com.

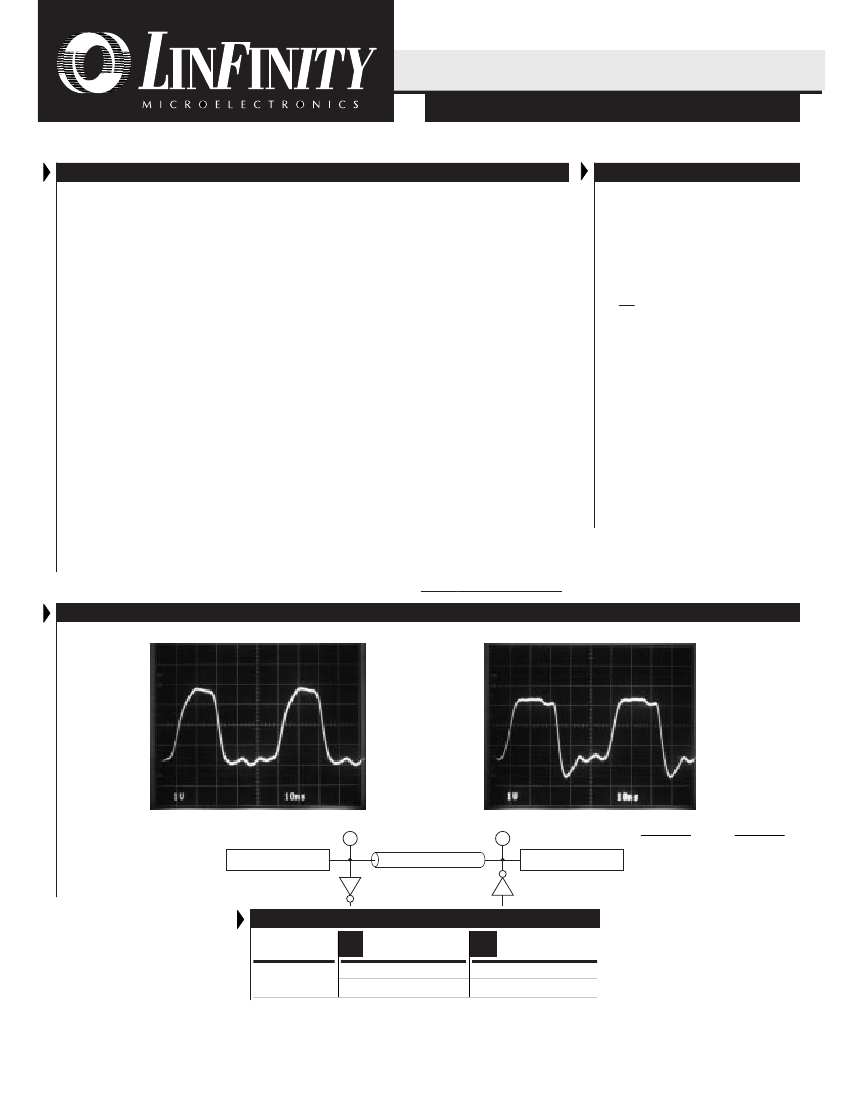

PRODUCT HIGHLIGHT

E C E I V I N G

AV E F O R M

- 2 0 M H

R I V I N G

AV E F O R M

- 2 0 M H

Receiver

1 Meter, AWG 28

LX5111A/5112A

LX5268

Driver

NOTE:

LX5111A/5112A

For An In-Depth

Discussion On Applying

SCSI, Request Linfinity

Application Note:

"Understanding The Single-

Ended SCSI Bus"

LX5268

PA C K A G E O R D E R I N F O R M AT I O N

(°C)

0 to 70

Plastic SOIC

16-pin, Power

LX5111ACDP

LX5112ACDP

PWP

Plastic TSSOP

24-pin, Power

LX5111ACPWP

LX5112ACPWP

Note: All surface-mount packages are available in Tape & Reel.

Append the letter "T" to part number. (i.e. LX5111ACDPT)

Rev. 0.1 3/99

INITY

ICROELECTRONICS

11861 W

ESTERN

VENUE

, G

ARDEN

ROVE

, CA. 92841, 714-898-8121, F

: 714-893-2570

LX5112ACPWPT Related Products

	LX5112ACPWPT	LX5112ACDPT	LX5111ACPWPT	LX5111ACDPT
Description	SCSI Terminator, 9-Line, 110ohm, BICMOS, PDSO24, POWER, PLASTIC, TSSOP-24	SCSI Terminator, 9-Line, BICMOS, PDSO16, PLASTIC, SOIC-16	SCSI Terminator, 9-Line, BICMOS, PDSO24, PLASTIC, TSSOP-24	SCSI Terminator, 9-Line, 110ohm, BICMOS, PDSO16, POWER, PLASTIC, SOIC-16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Parts packaging code	TSSOP	SOIC	TSSOP	SOIC
package instruction	POWER, PLASTIC, TSSOP-24	POWER, PLASTIC, SOIC-16	POWER, PLASTIC, TSSOP-24	POWER, PLASTIC, SOIC-16
Contacts	24	16	24	16
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Differential output	NO	NO	NO	NO
Interface integrated circuit type	SCSI BUS TERMINATOR	SCSI BUS TERMINATOR	SCSI BUS TERMINATOR	SCSI BUS TERMINATOR
JESD-30 code	R-PDSO-G24	R-PDSO-G16	R-PDSO-G24	R-PDSO-G16
JESD-609 code	e0	e0	e0	e0
length	7.8 mm	9.9 mm	7.8 mm	9.9 mm
Number of functions	1	1	1	1
Number of signal lines	9	9	9	9
Number of terminals	24	16	24	16
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	SOP	TSSOP	SOP
Encapsulate equivalent code	TSSOP24,.25	SOP16,.25	TSSOP24,.25	SOP16,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE
power supply	4.75 V	4.75 V	4.75 V	4.75 V
Nominal pull-up resistor	110 Ω	110 Ω	110 Ω	110 Ω
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.75 mm	1.2 mm	1.75 mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	3 V	3 V	3 V	3 V
Nominal supply voltage	4.75 V	4.75 V	4.75 V	4.75 V
surface mount	YES	YES	YES	YES
technology	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	1.27 mm	0.65 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	4.4 mm	3.9 mm	4.4 mm	3.9 mm
