MWT-0618Z-4N1: DescriptionRF/Microwave Amplifier, 6000 MHz - 18000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER; CategoryWireless rf/communication Radio frequency and microwave; File Size213KB，2 Pages; ManufacturerMicrowave Technology Inc.

Download Datasheet Parametric Compare View All

MWT-0618Z-4N1 Overview

RF/Microwave Amplifier, 6000 MHz - 18000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER

MWT-0618Z-4N1 Parametric

Parameter Name	Attribute value
package instruction	FLNG,.4"H.SPACE
Reach Compliance Code	unknown
structure	MODULE
Gain	7 dB
Maximum operating frequency	18000 MHz
Minimum operating frequency	6000 MHz
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
Encapsulate equivalent code	FLNG,.4"H.SPACE
power supply	8 V
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum slew rate	60 mA
technology	GAAS
Maximum voltage standing wave ratio	1.7
Base Number Matches	1

Preview

Download Datasheet

View All

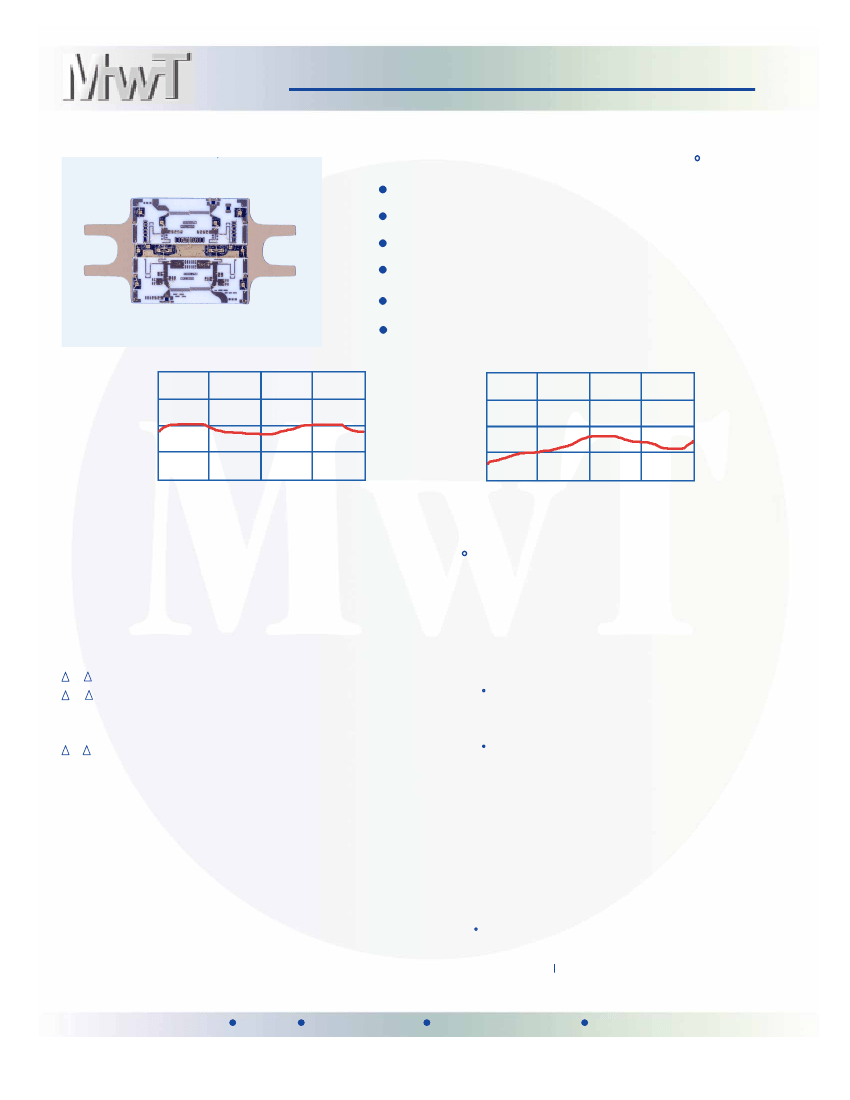

MwT-0618S-4N1/0618Z-4N1

6.0-18.0 GHz Balanced Amplifier Module

www.mwtinc.com

Email: info@mwtinc.com

TYPICAL SPECIFICATIONS AT 25 C

14.0 dBm P-1dB

7.5 dB SMALL SIGNAL GAIN

15.0 dB INPUT/OUTPUT RETURN LOSS

40 mA @ +8V

USES TWO MwT-4SN GaAs FET DEVICES

4.5 dB NOISE FIGURE

7.0

6.0

5.0

4.0

3.0

6

12

Frequency (GHz)

18

9.0

8.0

7.0

6

12

Frequency (GHz)

18

ELECTRICAL SPECIFICATIONS

SYMBOL

FREQ

SSG

G/ F

G/ T

P-1dB

PSAT

P/ T

IP3

2nd HAR

NF

VSWR IN

VSWR OUT

ISO

VDD

IDD

RTH

PARAMETERS

(Ta=25 C)

UNITS

GHz

dB

+/-dB

dB/ C

dBm

dB/ C

dBm

dBc

dB

-----

dB

+V

mA

C/W

MIN

6.0

7.0

TYP

MAX

18.0

7.5

0.4

-.012

14.0

16.0

-.008

25.0

-21.0

-16.0

4.5

1.5:1

-20.0

8.0

40.0

216.0

0.6

Frequency Range

Small Signal Gain

SSG Flatness

SSG Variation over Temperature

Output Power at 1dB Compression

Output Power at 6 dB Compression

P-1dB Variation over Temperature

Third Order Intercept Point

2nd Harmonic at Pout=14.0 dBm

2nd Harmonic at Pout=16.0 dBm

Noise Figure

Input VSWR

Output VSWR

Reverse Isolation

Power Supply Voltage

Small Signal Module Current

Thermal Resistance Including FET*

Typical Noise Figure

(dB)

Typical Small

Signal Gain (dB)

12.0

1.7:1

8.1

60.0

7.9

* When calculating Tch, use FET Vds = 4.0 volts and FET ds = 20mA

4268 Solar Way Fremont California 94538 Phone: (510) 651-6700 Fax: (510) 651-2208

651-2208

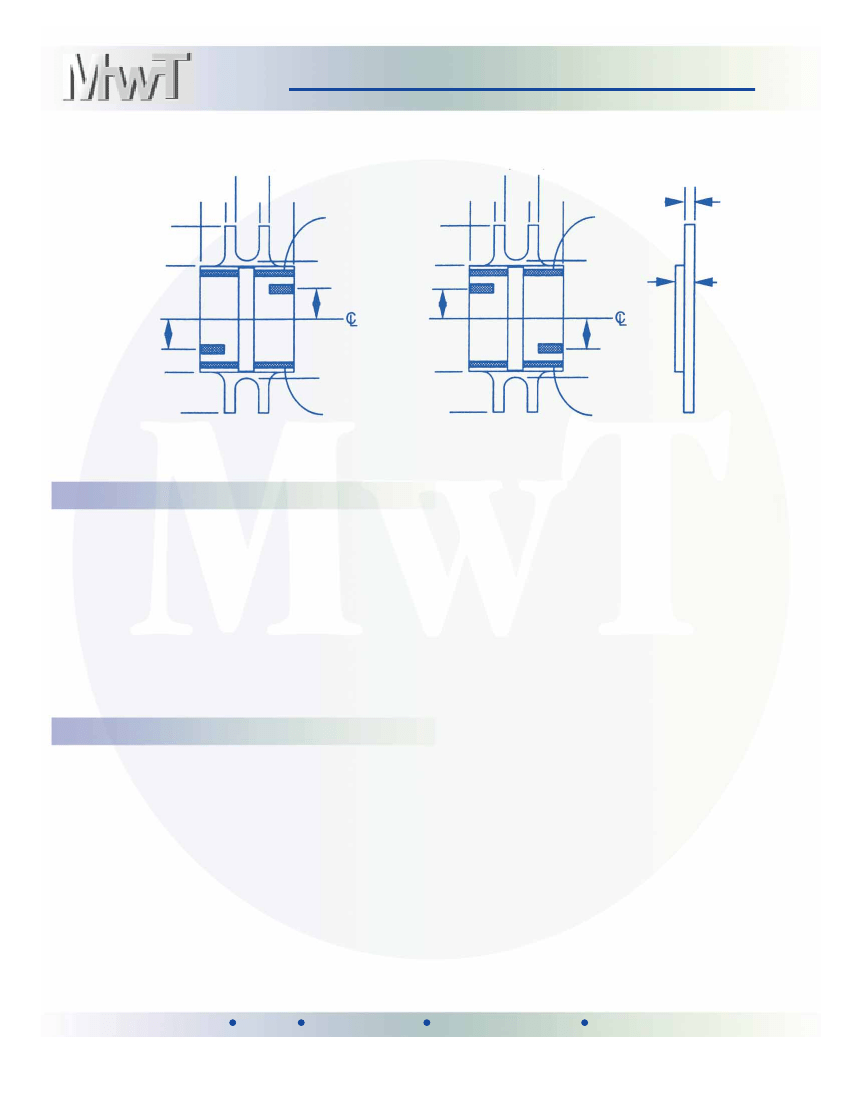

MWT-0618Z-4N1 Related Products

	MWT-0618Z-4N1	MWT-0618S-4N1
Description	RF/Microwave Amplifier, 6000 MHz - 18000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER	RF/Microwave Amplifier, 6000 MHz - 18000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER
package instruction	FLNG,.4"H.SPACE	FLNG,.4"H.SPACE
Reach Compliance Code	unknown	unknown
structure	MODULE	MODULE
Gain	7 dB	7 dB
Maximum operating frequency	18000 MHz	18000 MHz
Minimum operating frequency	6000 MHz	6000 MHz
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC
Encapsulate equivalent code	FLNG,.4"H.SPACE	FLNG,.4"H.SPACE
power supply	8 V	8 V
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum slew rate	60 mA	60 mA
technology	GAAS	GAAS
Maximum voltage standing wave ratio	1.7	1.7
Base Number Matches	1	1
