SRN7222: Description20 MHz - 200 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-19, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size202KB，4 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

SRN7222 Overview

20 MHz - 200 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-19, 4 PIN

SRN7222 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	27.5 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	200 MHz
Minimum operating frequency	20 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

Cross Reference Guide

RN7222 / SRN7222*

* Part number for additional environmental screening.

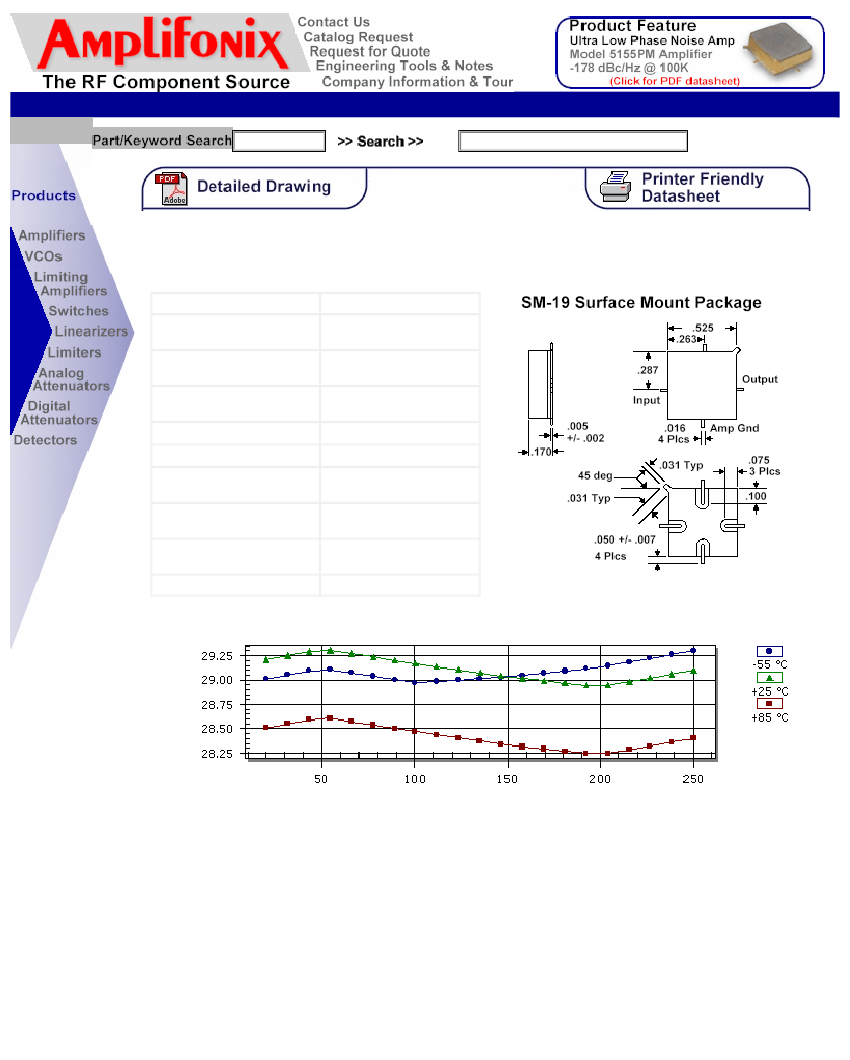

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

20.0 - 200.0 MHz

29.0 dB Typical

27.5 dB Min

2.9 dB Typical

4.0 dB Max

20.5 dBm Typical

18.0 dBm Min

32.0 dBm Typical

38.0 dBm Typical

1.8/2.0 Input Typ/Max

1.8/2.0 Output Typ/Max

-34.5 dB Typical

-34.0 dB Min

15.0 Volts

47.0 mA

-55.0 - 85.0 °C

Package Drawing

Gain

Frequency (MHz)

Noise Figure

SRN7222 Related Products

	SRN7222	RN7222
Description	20 MHz - 200 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-19, 4 PIN	20 MHz - 200 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-19, 4 PIN
Reach Compliance Code	unknown	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COMPONENT
Gain	27.5 dB	27.5 dB
Maximum input power (CW)	13 dBm	13 dBm
Maximum operating frequency	200 MHz	200 MHz
Minimum operating frequency	20 MHz	20 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2
Base Number Matches	1	1
