HDR-EA26LFYPG1-SLD+ datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> HDR-EA26LFYPG1-SLD+

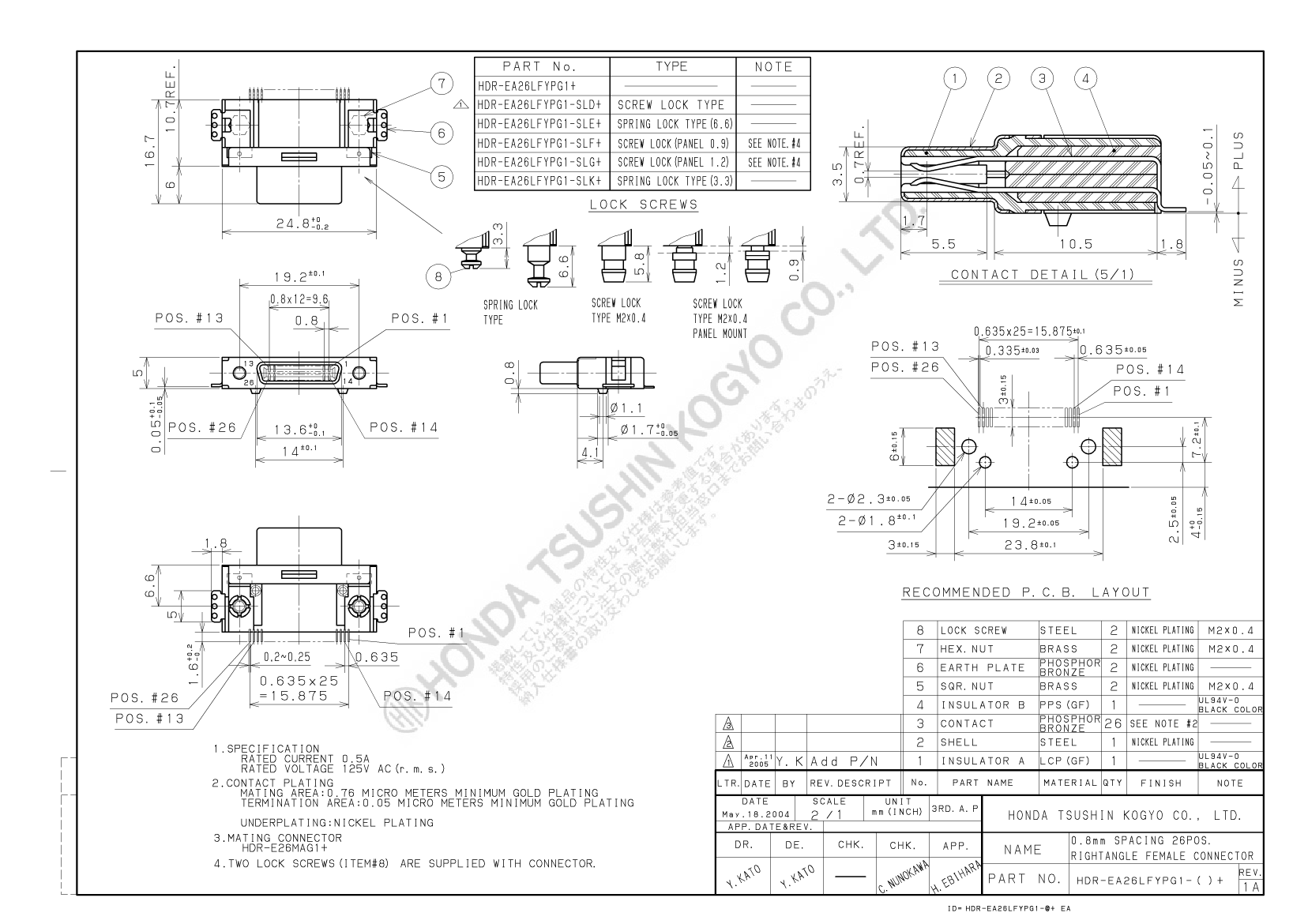

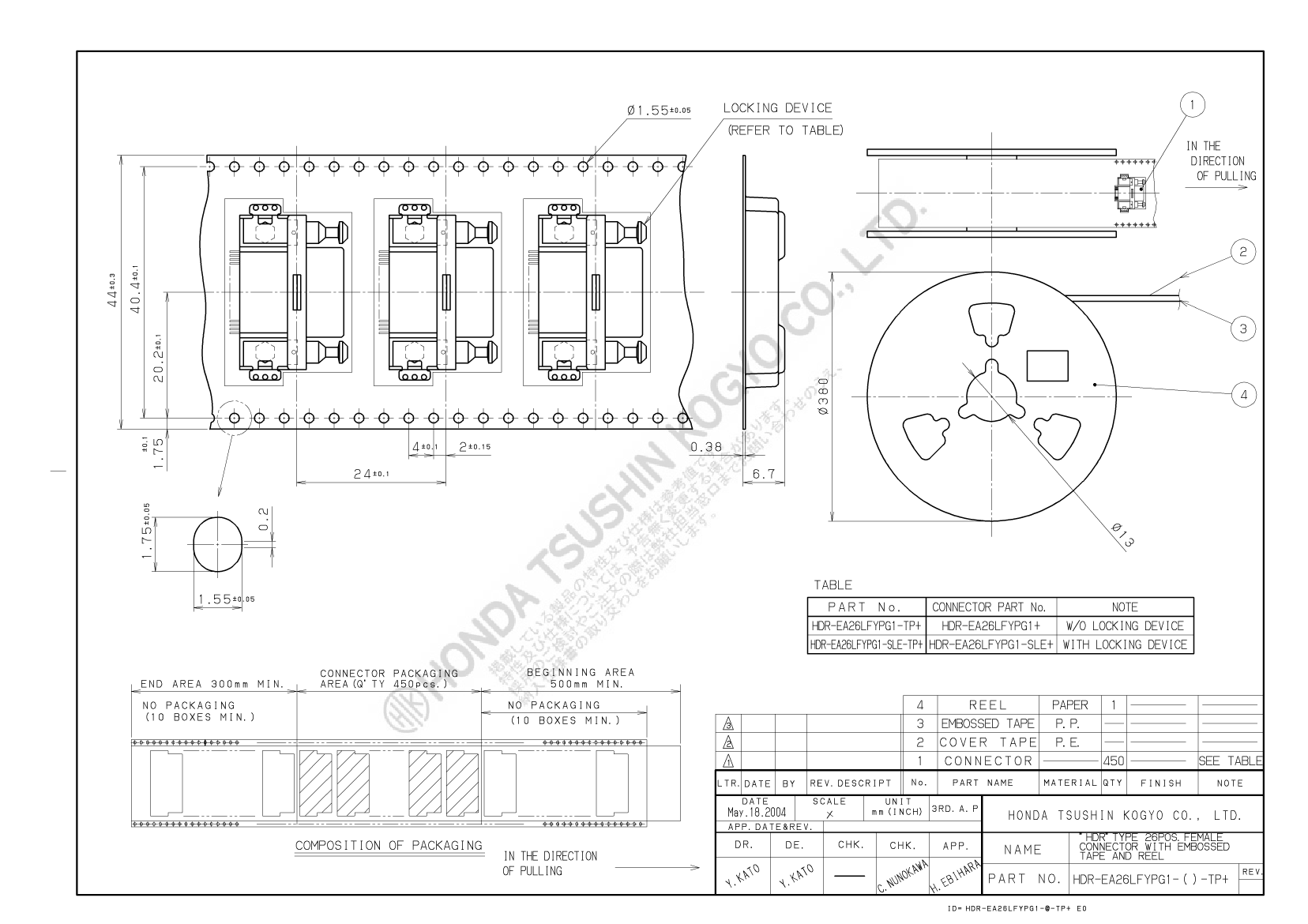

Preview

HDR-EA26LFYPG1-SLD+: DescriptionTelecom and Datacom Connector, 26 Contact(s), Female, Right Angle, Surface Mount Terminal, Locking, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size335KB，4 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

HDR-EA26LFYPG1-SLD+ Overview

Telecom and Datacom Connector, 26 Contact(s), Female, Right Angle, Surface Mount Terminal, Locking, Plug, ROHS COMPLIANT

HDR-EA26LFYPG1-SLD+ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.197 inch
subject depth	0.421 inch
body length	0.976 inch
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	70 mΩ
DIN compliance	NO
Dielectric withstand voltage	500VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULFIDE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.031 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	SCREWLOCKS
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	26
UL Flammability Code	94V-0
Base Number Matches	1

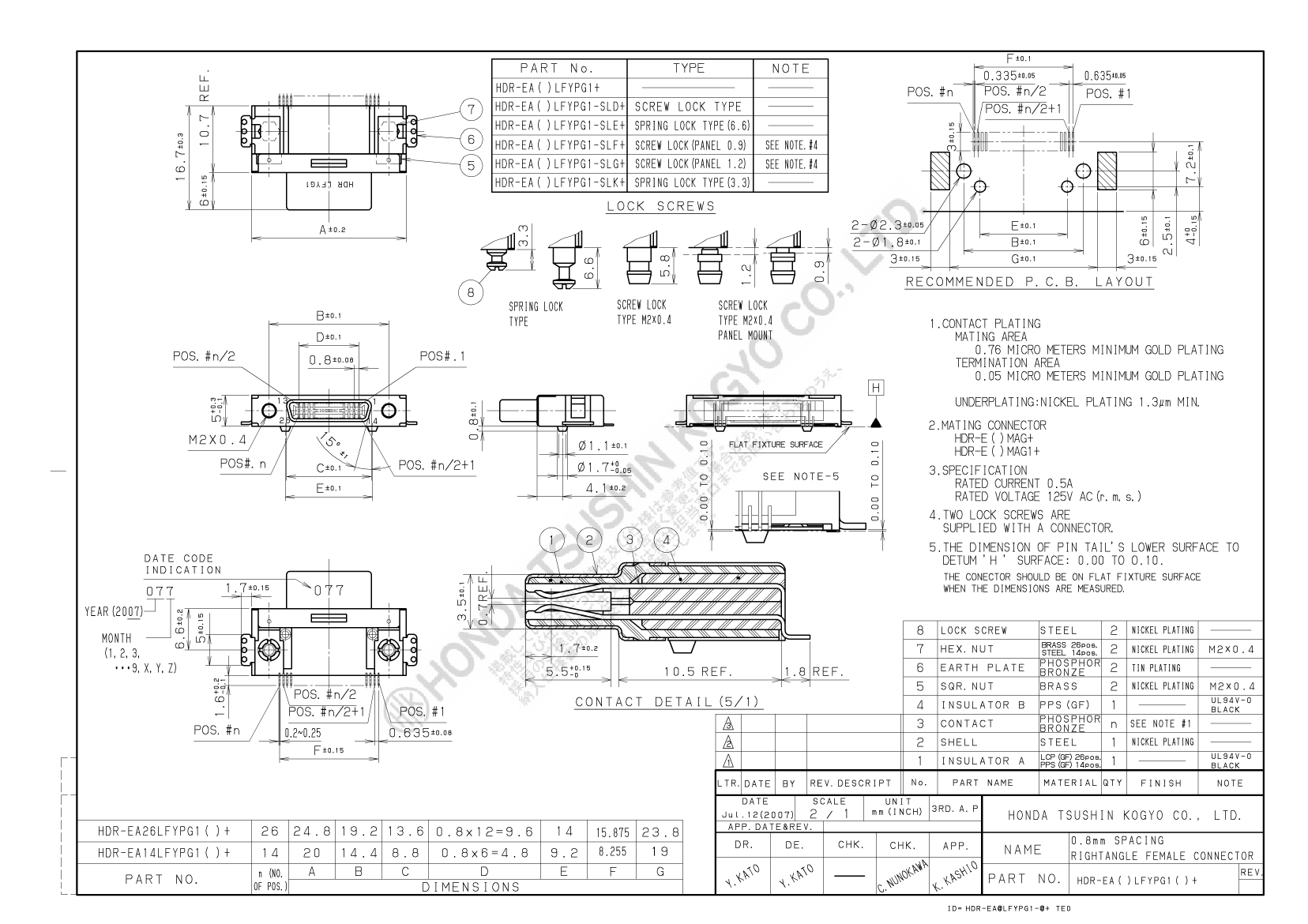

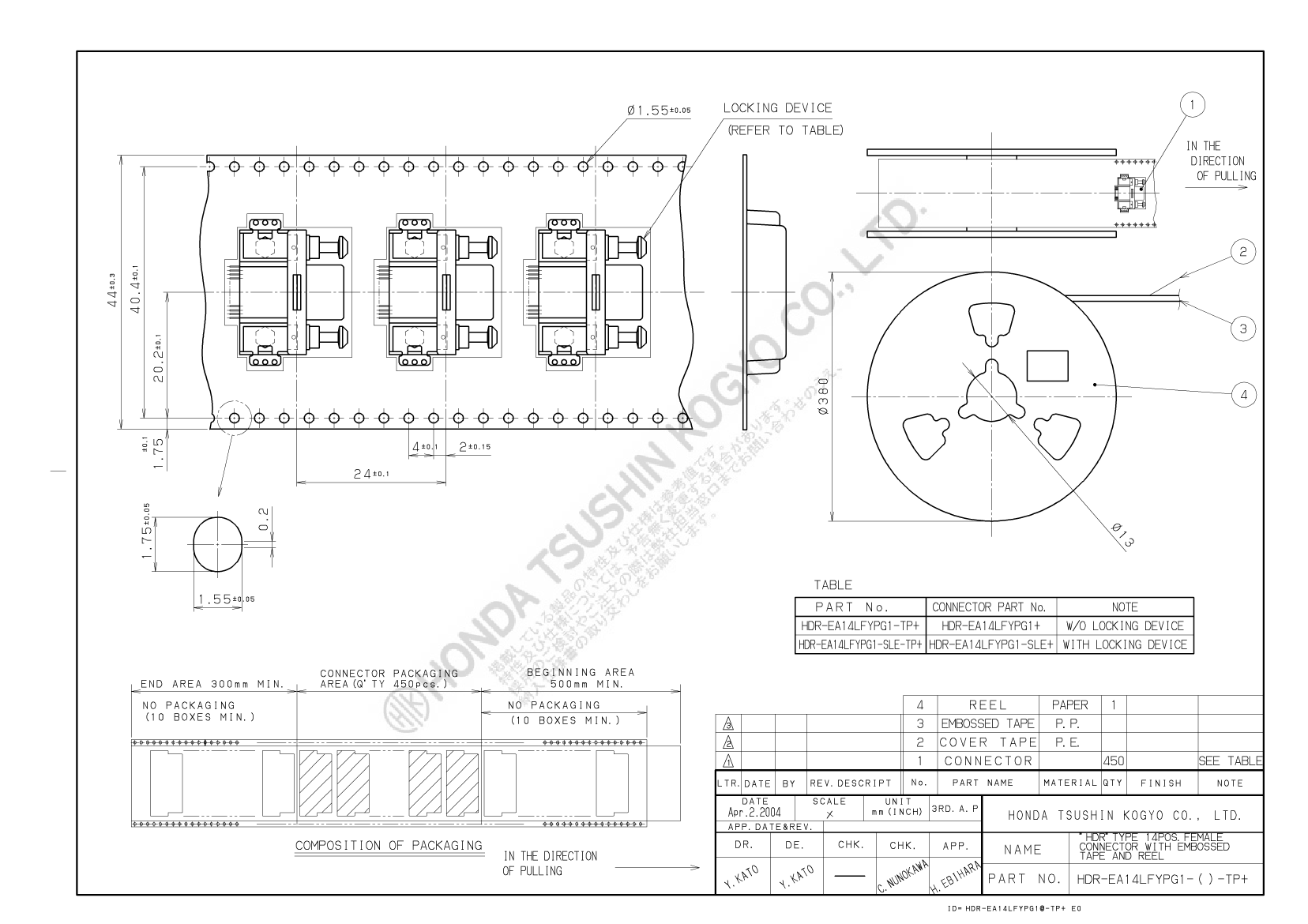

Preview

Download Datasheet

View All

HDR-EA26LFYPG1-SLD+ Related Products

	HDR-EA26LFYPG1-SLD+	HDR-EA26LFYPG1+	HDR-EA26LFYPG1-SLF+	HDR-EA26LFYPG1-SLG+	HDR-EA14LFYPG1-SLE-TP+	HDR-EA14LFYPG1-TP+	HDR-EA26LFYPG1-SLE-TP+	HDR-EA26LFYPG1-TP+
Description	Telecom and Datacom Connector, 26 Contact(s), Female, Right Angle, Surface Mount Terminal, Locking, Plug, ROHS COMPLIANT	Telecom and Datacom Connector, 26 Contact(s), Female, Right Angle, Surface Mount Terminal, Locking, Plug, ROHS COMPLIANT	Telecom and Datacom Connector, 26 Contact(s), Female, Right Angle, Surface Mount Terminal, Locking, Plug, ROHS COMPLIANT	Telecom and Datacom Connector, 26 Contact(s), Female, Right Angle, Surface Mount Terminal, Locking, Plug, ROHS COMPLIANT	Telecom and Datacom Connector, 14 Contact(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT	Telecom and Datacom Connector, 14 Contact(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT	Telecom and Datacom Connector, 26 Contact(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT	Telecom and Datacom Connector, 26 Contact(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL (51)	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	GOLD (2) OVER NICKEL	GOLD (2) OVER NICKEL	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	GOLD (2) OVER NICKEL	GOLD (2) OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	PHOSPHOR BRONZE	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	GLASS FILLED POLYPHENYLENE SULFIDE	GLASS FILLED POLYPHENYLENE SULFIDE	GLASS FILLED POLYPHENYLENE SULFIDE	GLASS FILLED POLYPHENYLENE SULFIDE	GLASS FILLED POLYPHENYLENE SULFIDE	GLASS FILLED POLYPHENYLENE SULFIDE	GLASS FILLED POLYPHENYLENE SULFIDE	GLASS FILLED POLYPHENYLENE SULFIDE
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	26	26	26	26	14	14	26	26
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-	-
