Part Number:

LUG12D

www.SunLED.com

T-1 3/4 (5mm) SOLID STATE LAMP

Features

LOW POWER CONSUMPTION.

POPULAR T-1 3/4 DIAMETER PACKAGE.

GENERAL PURPOSE LEADS.

RELIABLE AND RUGGED.

LONG LIFE - SOLID STATE RELIABILITY.

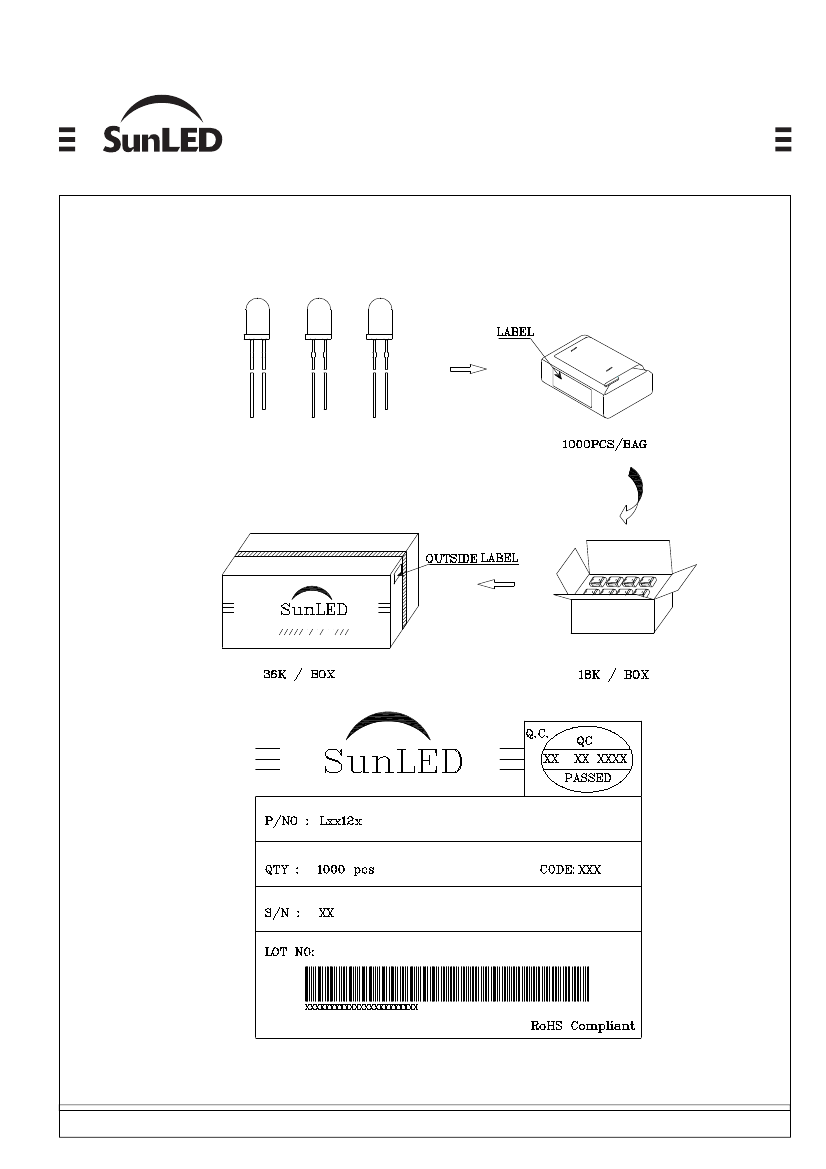

AVAILABLE ON TAPE AND REEL.

RoHS COMPLIANT.

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.25(0.01") unless otherwise noted.

3.Specifications are subject to change without notice.

Absolute Maximum Ratings

=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Lead Solder Temperature

[2mm Below Package Base]

Lead Solder Temperature

[5mm Below Package Base]

Tstg

(GaP)

140

62.5

-40 ~ +85

260°C For 3 Seconds

260°C For 5 Seconds

Unit

°C

Operating Characteristics

=25°C)

Forward Voltage (Typ.)

=10mA)

Forward Voltage (Max.)

=10mA)

Reverse Current (Max.)

=5V)

Wavelength of Peak

Emission (Typ.)

=10mA)

Wavelength of Dominant

Emission (Typ.)

=10mA)

Spectral Line Full Width

At Half-Maximum (Typ.)

=10mA)

Capacitance (Typ.)

=0V, f=1MHz)

(GaP)

2.0

2.5

Unit

565

568

Δλ

Part

Number

Emitting

Color

Emitting

Material

Lens-color

Luminous

Intensity

(IF=10mA)

mcd

min.

typ.

Wavelength

Viewing

Angle

1/2

LUG12D

Green

GaP

Green Diffused

565

30°

Published Date : MAR 22, 2008

Drawing No : SDSA1258

Checked : B.L.LIU

P.1/4
