EN29LV320
EN29LV320
32 Megabit (4096K x 8-bit / 2048K x 16-bit) Flash Memory
Boot Sector Flash Memory, CMOS 3.0 Volt-only
FEATURES
•
Single power supply operation
- Full voltage range: 2.7 to 3.6 volts read and
write operations
•
High performance
- Access times as fast as 70 ns
•
Low power consumption (typical values at 5
MHz)
- 9 mA typical active read current
- 20 mA typical program/erase current
- Less than 1
µA
current in standby or automatic
sleep mode.
•
Standard DATA# polling and toggle bits
feature
•
Unlock Bypass Program command supported
•
Erase Suspend / Resume modes:
Read and program another Sector during
Erase Suspend Mode
•
Support JEDEC Common Flash Interface
(CFI).
•
Low Vcc write inhibit < 2.5V
•
Minimum 100K program/erase endurance
cycles.
•
RESET# hardware reset pin
- Hardware method to reset the device to read
mode.
•
WP#/ACC input pin
- Write Protect (WP#) function allows
protection of outermost two boot sectors,
regardless of sector protect status
- Acceleration (ACC) function provides
accelerated program times
•
Package Options
- 48-pin TSOP (Type 1)
- 48 ball 6mm x 8mm FBGA
•
Commercial and Industrial Temperature
Range.
•
Flexible Sector Architecture:
- Eight 8-Kbyte sectors, sixty-three 64k-byte
sectors.
- 8-Kbyte sectors for Top or Bottom boot.
- Sector/Sector Group protection:
Hardware locking of sectors to prevent
program or erase operations within individual
sectors
Additionally, temporary Sector Group
Unprotect allows code changes in previously
locked sectors.
•
-
-
-
High performance program/erase speed
Word program time: 8µs typical
Sector erase time: 500ms typical
Chip erase time: 70s typical
•
JEDEC Standard compatible
GENERAL DESCRIPTION
The EN29LV320 is a 32-Megabit, electrically erasable, read/write non-volatile flash memory, organized
as 4,194,304 bytes or 2.097,152 words. Any word can be programmed typically in 8µs. The
EN29LV320 features 3.0V voltage read and write operation, with access times as fast as 70ns to
eliminate the need for WAIT states in high-performance microprocessor systems.
The EN29LV320 has separate Output Enable (OE#), Chip Enable (CE#), and Write Enable (WE#)
controls, which eliminate bus contention issues. This device is designed to allow either single Sector
or full Chip erase operation, where each Sector can be individually protected against program/erase
operations or temporarily unprotected to erase or program. The device can sustain a minimum of 100K
program/erase cycles on each Sector.
.
This Data Sheet may be revised by subsequent versions
1
or modifications due to changes in technical specifications.
©2004 Eon Silicon Solution, Inc., www.essi.com.tw
Rev. E, Issue Date: 2006/05/16
EN29LV320

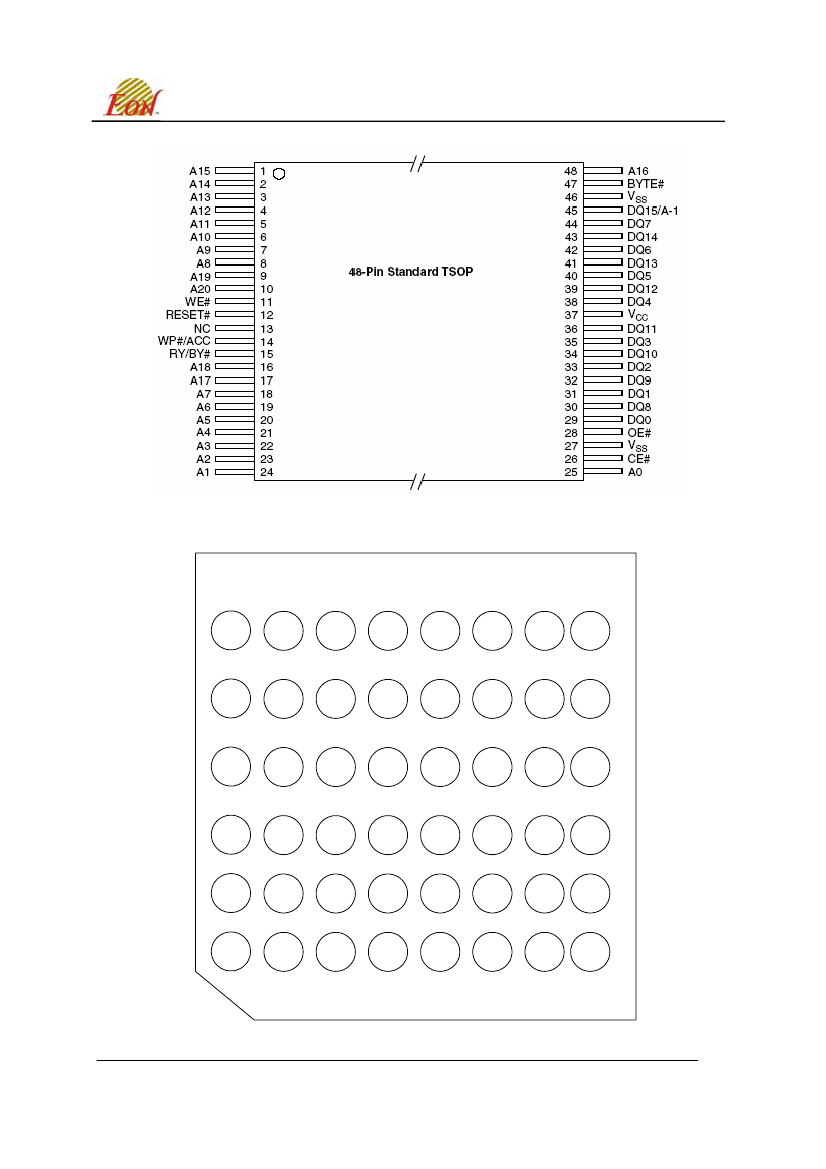

TABLE 1. PIN DESCRIPTION
LOGIC DIAGRAM
Pin Name
A0-A20
DQ0-DQ14
DQ15 / A-1
CE#
OE#
WE#
WP#/ACC
RESET#
BYTE#
RY/BY#
Vcc
Vss
NC
Function
21 Address inputs
15 Data Inputs/Outputs
DQ15 (data input/output, in word mode),
A-1 (LSB address input, in byte mode)
Chip Enable
Output Enable
Write Enable
Write Protect / Acceleration Pin
Hardware Reset Pin
Byte/Word mode selection
Ready/Busy Output
Supply Voltage
(2.7-3.6V)
Ground
Not Connected to anything
EN29 LV320
A0 – A20
WP#/ACC
RESET#
CE#
OE#
WE#
BYTE#
RY/BY#
DQ0 – DQ15
(A-1)
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
3
©2004 Eon Silicon Solution, Inc., www.essi.com.tw
Rev. E, Issue Date: 2006/05/16
EN29LV320
ORDERING INFORMATION
─
EN29LV320
T
70
T
C
P
PACKAGING CONTENT
(Blank) = Conventional
P = Pb Free
TEMPERATURE RANGE
C = Commercial (0°C to +70°C)
I = Industrial (-40°C to +85°C)
PACKAGE
T = 48-pin TSOP
B = 48-Ball Fine Pitch Ball Grid Array (FBGA)
0.80mm pitch, 6mm x 8mm package
SPEED
70 = 70ns
90 = 90ns
BOOT CODE SECTOR ARCHITECTURE
T = Top boot Sector
B = Bottom boot Sector
BASE PART NUMBER
EN = EON Silicon Solution Inc.
29LV = FLASH, 3V Read, Program and Erase
320 = 32 Megabit (4M x 8 / 2M x 16)
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
4
©2004 Eon Silicon Solution, Inc., www.essi.com.tw
Rev. E, Issue Date: 2006/05/16
