ZFAMOK10A2 Overview

SURFACE MOUNT DISPLAY

ZFAMOK10A2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUNLED
Objectid	1808561888
package instruction	ROHS COMPLIANT PACKAGE-32
Reach Compliance Code	compli
ECCN code	EAR99
compound_id	8181061
color	ORANGE
Configuration	COMMON ANODE, 2 DIGITS WITH DECIMAL POINT
Display height	10.16 mm
Maximum forward current	0.03 A
Number of functions	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	14 SEG ALPHANUMERIC LED DISPLAY

Preview

Download Datasheet

View All

Part Number:

www.SunLED.com

ZFAMOK10A2

SURFACE MOUNT DISPLAY

Features

0.4 INCH CHARACTER HEIGHT.

LOW CURRENT OPERATION.

HIGH CONTRAST AND LIGHT OUTPUT.

CATEGORIZED FOR LUMINOUS INTENSITY.

MECHANICALLY RUGGED.

GRAY FACE, WHITE SEGMENT.

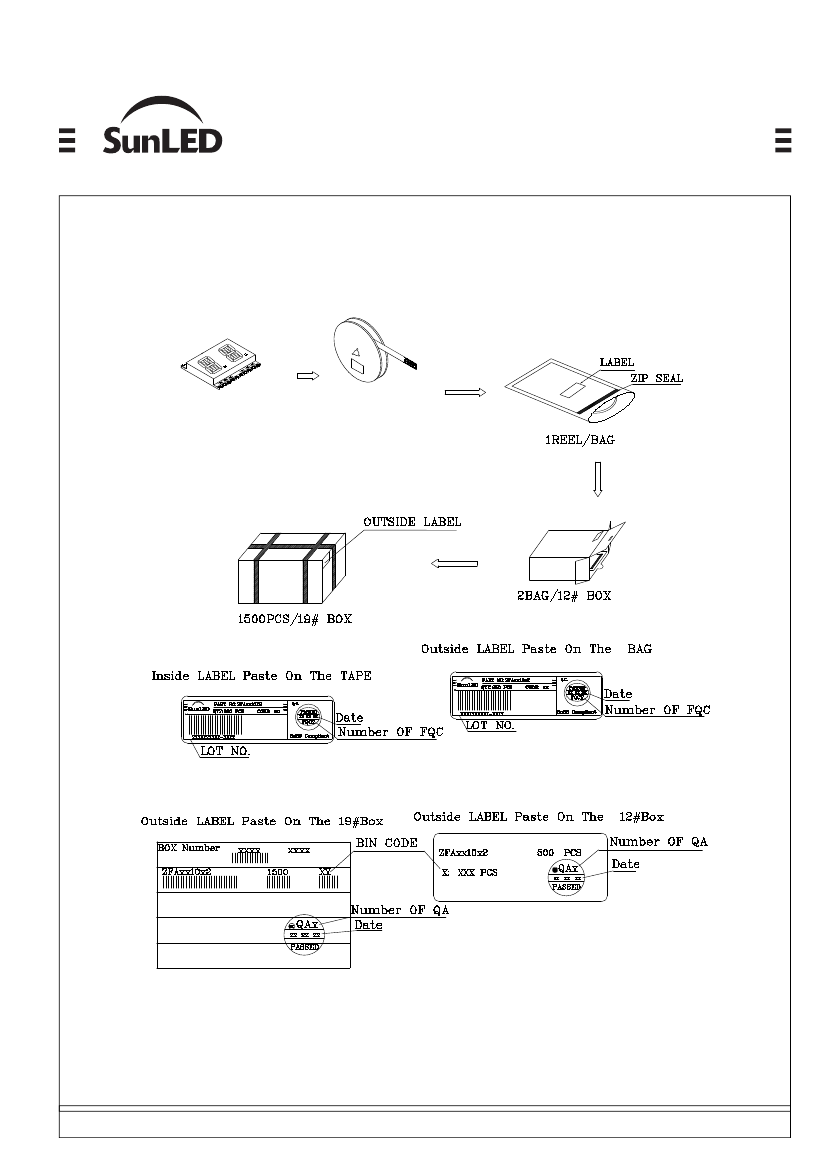

PACKAGE :250PCS / REEL.

MOISTURE SENSITIVITY LEVEL : LEVEL 4.

RoHS COMPLIANT.

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.25(0.01") unless otherwise noted.

3.Specifications are subject to change without notice

4.The gap between the reflector and PCB shall not exceed 0.25mm.

Absolute Maximum Ratings

=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Tstg

MOK

(InGaAlP)

195

-40 ~ +85

Unit

°C

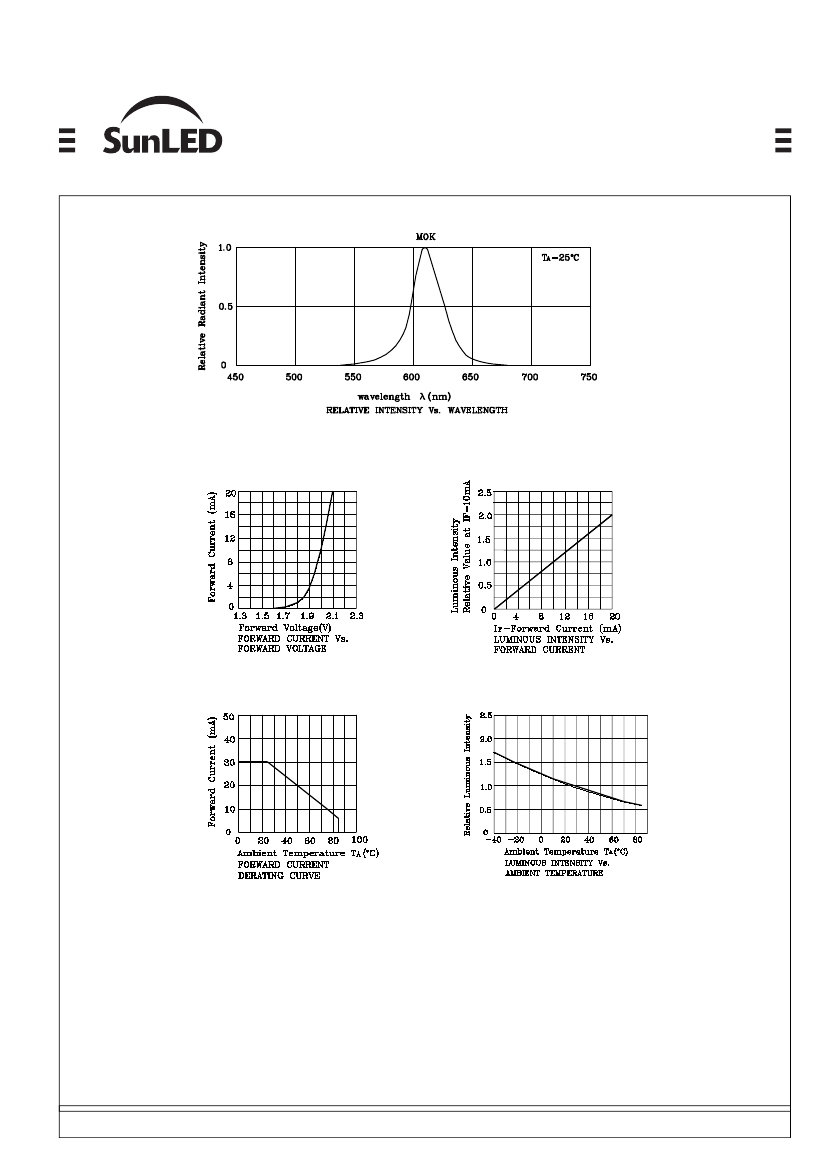

Operating Characteristics

(TA=25°C)

Forward Voltage (Typ.)

=10mA)

Forward Voltage (Max.)

=10mA)

Reverse Current (Max.)

=5V)

Wavelength Of Peak

Emission (Typ.)

=10mA)

Wavelength Of Dominant

Emission (Typ.)

=10mA)

Spectral Line Full Width

At Half-Maximum (Typ.)

=10mA)

Capacitance (Typ.)

=0V, f=1MHz)

Luminous

Intensity

(IF=10mA)

ucd

min.

typ.

43990

610

MOK

(InGaAlP)

2.0

2.5

Unit

610

601

Δλ

Part

Number

Emitting

Color

Emitting

Material

Wavelength

Description

ZFAMOK10A2

Orange

InGaAlP

12000

Common Anode, Rt. Hand Decimal

Published Date : MAR 13,2008

Drawing No : SDSA5421

Checked : Shin Chi

P.1/4
