ZFUY05A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> ZFUY05A

ZFUY05A: DescriptionSURFACE MOUNT DISPLAY; CategoryLED optoelectronic/LED photoelectric; File Size184KB，4 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

ZFUY05A Overview

SURFACE MOUNT DISPLAY

ZFUY05A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUNLED
package instruction	ROHS COMPLIANT PACKAGE-10
Reach Compliance Code	compli
Other features	IC COMPATIBLE
color	YELLOW
Configuration	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT
Display height	44.5 mm
Maximum forward current	0.03 A
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Preview

Download Datasheet

View All

www.SunLED.com

Part Number:

ZFUY05A

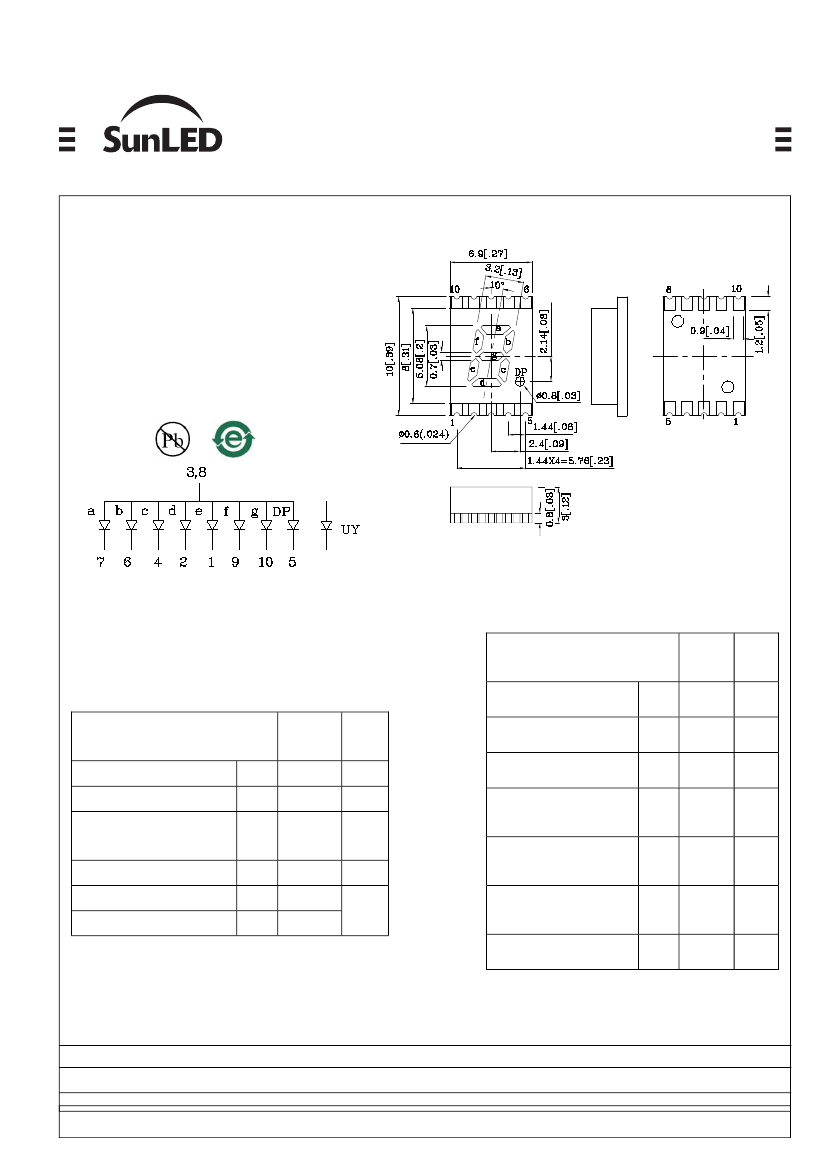

SURFACE MOUNT DISPLAY

Features

●

0.21 INCH DIGIT HEIGHT.

●

LOW CURRENT OPERATION.

●

EXCELLENT CHARACTER APPEARANCE.

●

I.C. COMPATIBLE.

●

MECHANICALLY RUGGED.

●

GRAY FACE,WHITE SEGMENT.

●

PACKAGE : 650 PCS / REEL.

●MOISTURE

SENSITIVITY LEVEL : LEVEL 4.

●

RoHS COMPLIANT.

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.25(0.01") unless otherwise noted.

3.The gap between the reflector and PCB shall not exceed 0.25mm.

4.Specifications are subject to change without notice.

Operating Characteristics

=25°C)

Forward Voltage (Typ.)

=10mA)

Absolute Maximum Ratings

=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Tstg

(GaAsP/

GaP)

140

-40 ~ +85

Unit

°C

Forward Voltage (Max.)

=10mA)

Reverse Current (Max.)

=5V)

Wavelength of Peak Emis-

sion (Typ.)

=10mA)

Wavelength of Dominant

Emission (Typ.)

=10mA)

Spectral Line Full Width

At Half-Maximum (Typ.)

=10mA)

Capacitance (Typ.)

=0V, f=1MHz)

Luminous

Intensity

(IF=10mA)

ucd

min.

ZFUY05A

Yellow

GaAsP/GaP

480

typ.

1890

590

Common Anode. Rt. Hand Decimal

(GaAsP/

GaP)

1.95

2.5

Unit

590

588

Δλ

Part

Number

Emitting

Color

Emitting

Material

Wavelength

Description

Published Date : FEB 28. 2008

Drawing No : SDSA5286

Checked : Shin Chi

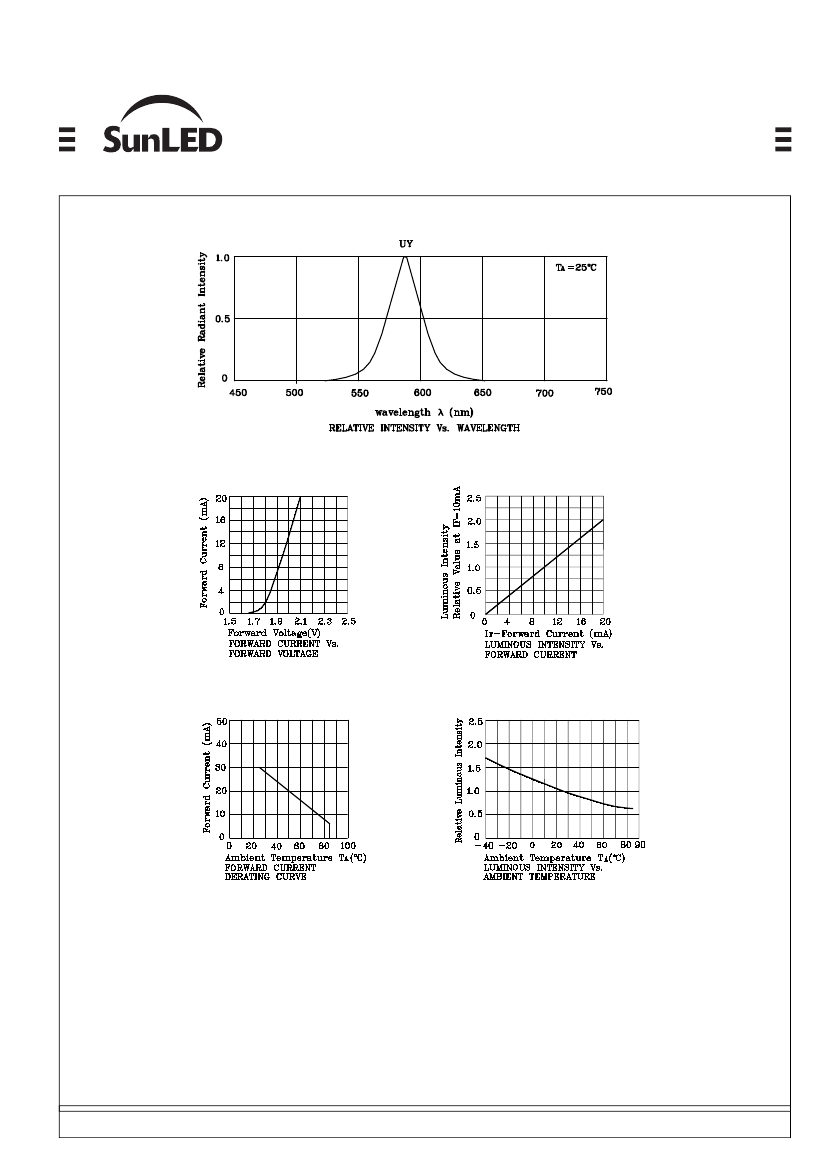

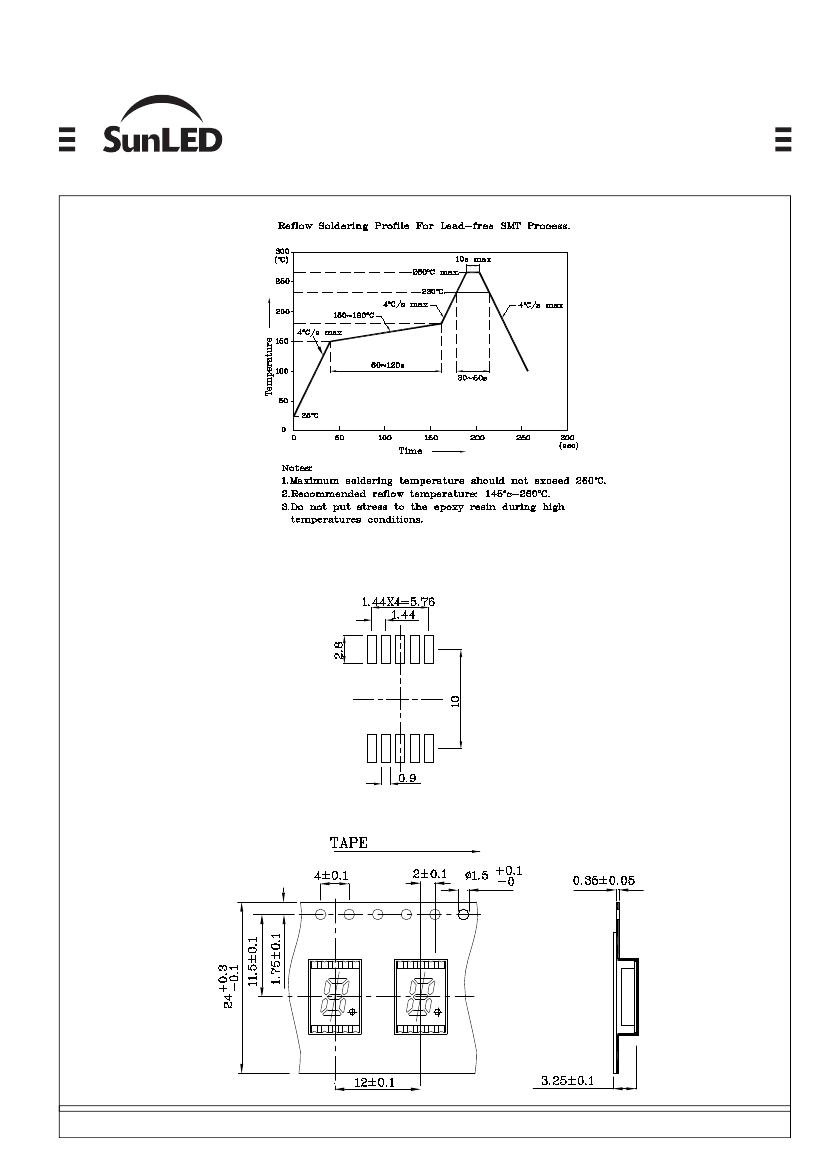

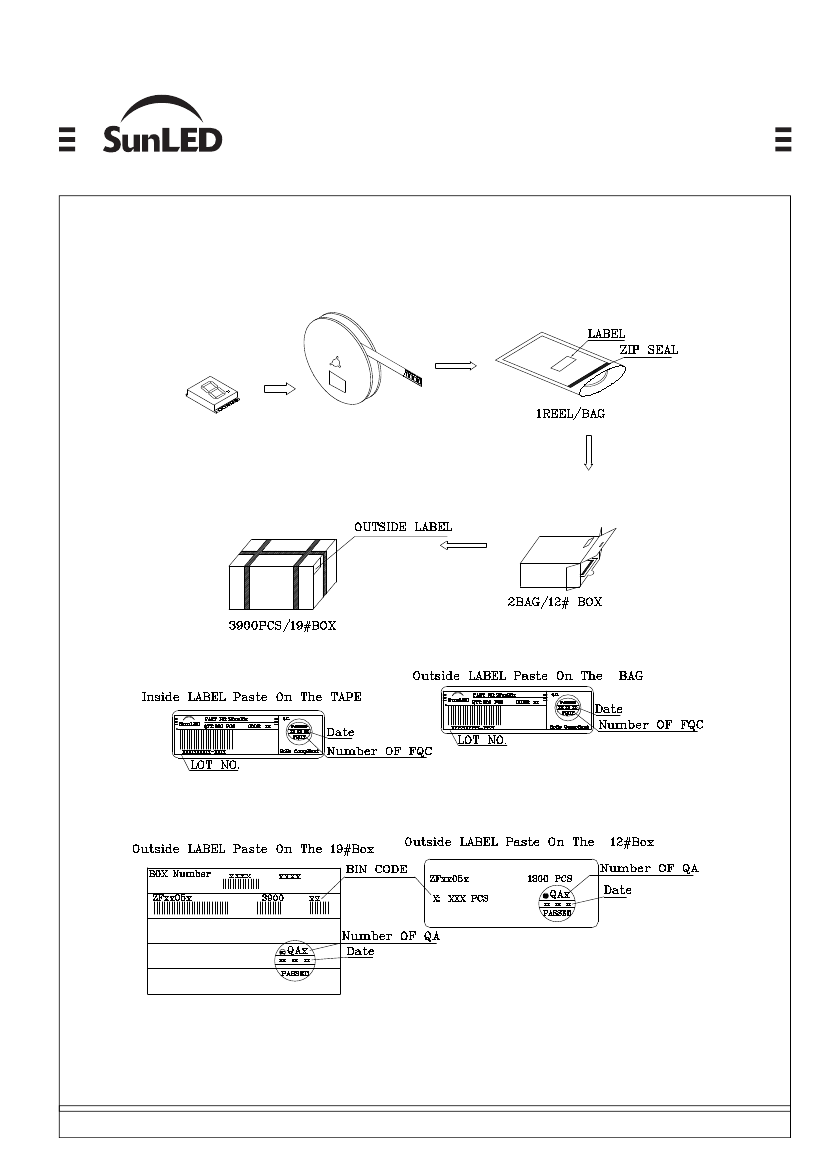

P.1/4
