Part Number:
ZFBBA10A
www.SunLED.com
SURFACE MOUNT DISPLAY
PRELIMINARY SPEC
Features
●
0.4INCH DIGIT HEIGHT.
●
LOW CURRENT OPERATION.
●
EXCELLENT CHARACTER APPEARANCE.
●
I.C. COMPATIBLE
●
MECHANICALLY RUGGED.
●
GRAY FACE,WHITE SEGMENT.
●
PACKAGE : 400PCS / REEL.
●
MOISTURE SENSITIVITY LEVEL : LEVEL 4.
●
RoHS COMPLIANT.
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Notes:

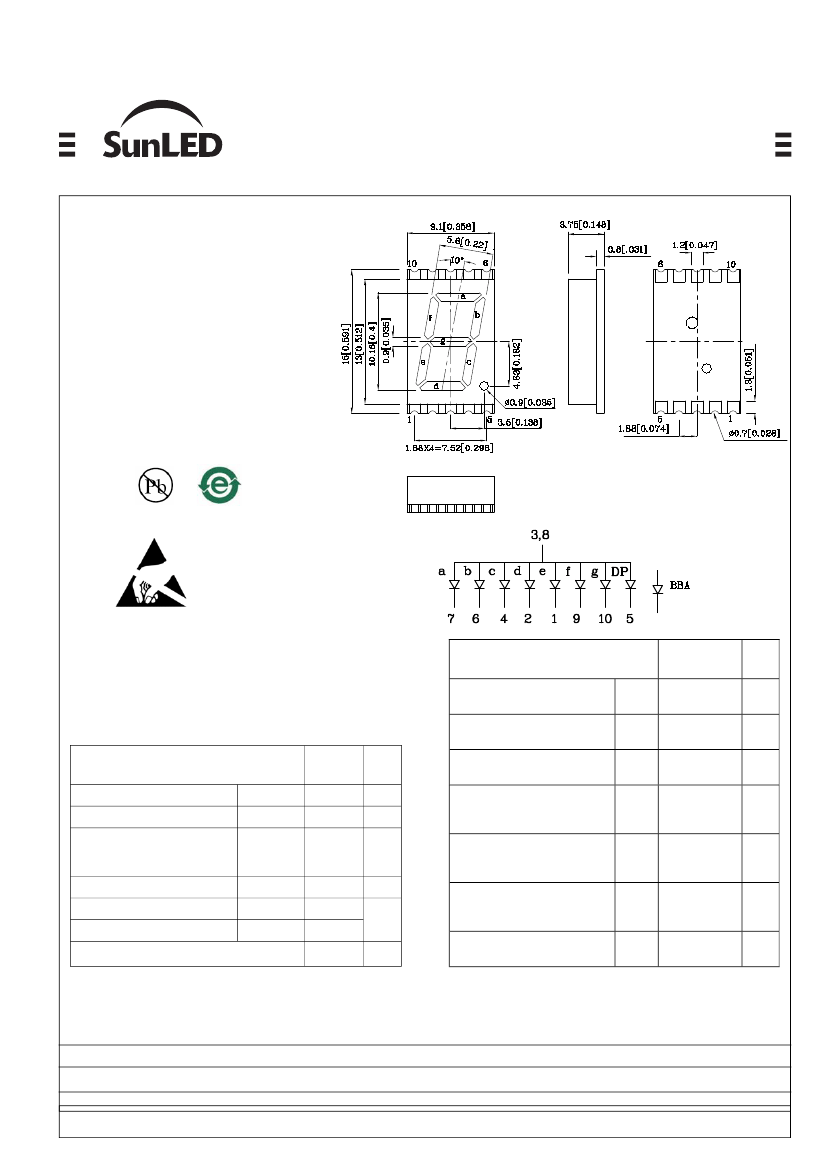

1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.25(0.01") unless otherwise noted.
3. The gap between the reflector and PCB shall not exceed 0.25mm.
4.Specifications are subject to change without notice.
Absolute Maximum Ratings
(T
A
=25°C)
Reverse Voltage
Forward Current
Forward Current (Peak)
1/10 Duty Cycle
0.1ms Pulse Width
Power Dissipation
Operating Temperature
Storage Temperature
V
R
I
F
i
FS
P
T
T
A
Tstg
BBA
(InGaN)
5
30
100
120
-40 ~ +85
-40 ~ +85
1000
Operating Characteristics
(TA=25°C)
Forward Voltage (Typ.)
(I
F
=10mA)
Forward Voltage (Max.)
(I
F
=10mA)
Unit
V
mA
mA
mW
°C
V
Reverse Current (Max.)
(V
R
=5V)
Wavelength of Peak
Emission (Typ.)
(I
F
=10mA)
Wavelength of Dominant
Emission (Typ.)
(I
F
=10mA)
Spectral Line Full Width At
Half-Maximum (Typ.)
(I
F
=10mA)
Capacitance (Typ.)
(V
F
=0V, f=1MHz)
Luminous
Intensity
(IF=10mA)
ucd
min.
typ.
4690
468
V
F
V
F
I
R
BBA
(InGaN)
3.05
4.0
10
Unit
V
V
uA
λ
P
468
nm
λ
D
470
nm
Δλ
21
nm
Electrostatic Discharge Threshold (HBM)
C
100
pF
Part
Number
Emitting
Color
Emitting
Material
Wavelength
nm
λ
P
Description
ZFBBA10A
Blue
InGaN
1200
Common Anode. Rt. Hand Decimal
Published Date : FEB 29, 2008
Drawing No : SDSA5353
V2
Checked : Shin Chi
P.1/4
Part Number:
ZFBBA10A
www.SunLED.com
SURFACE MOUNT DISPLAY
BBA
Remarks:

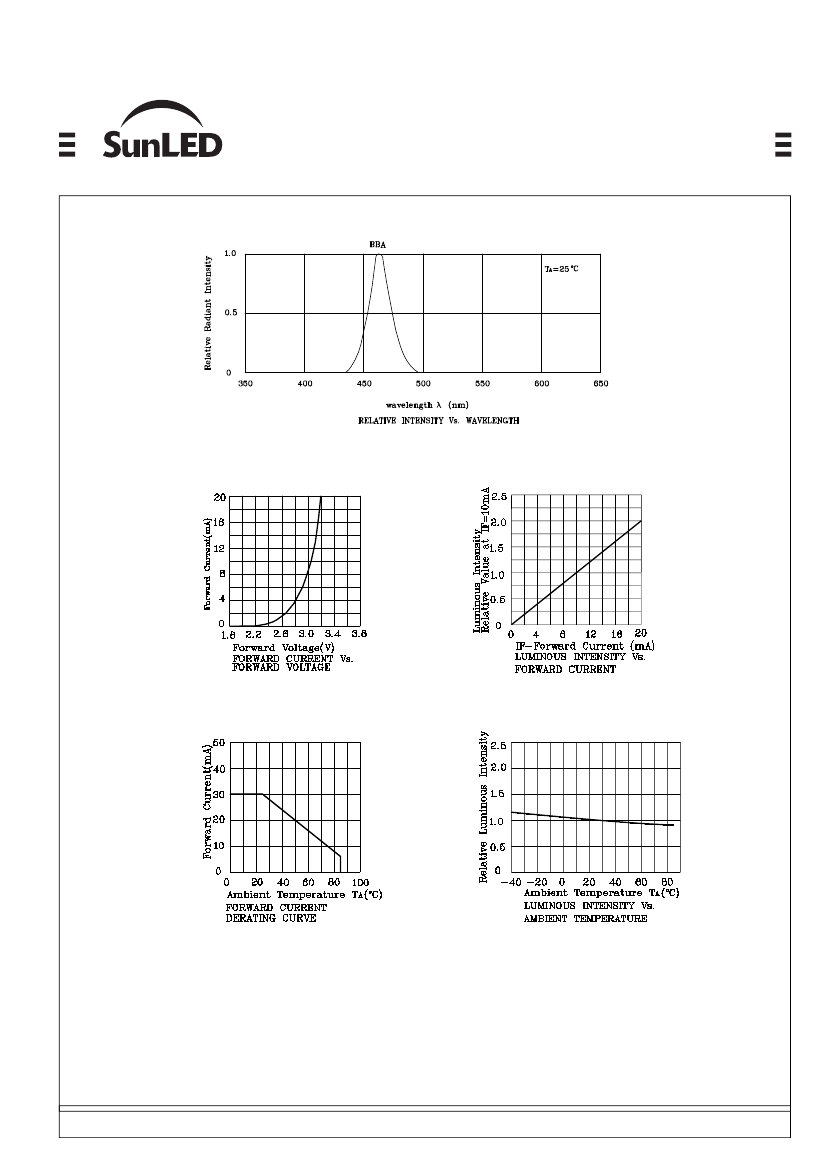

If special sorting is required (e.g. binning based on forward voltage, luminous intensity / luminous flux or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity / Luminous Flux: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
Published Date : FEB 29, 2008
Drawing No : SDSA5353
V2
Checked : Shin Chi
P.2/4
Part Number:
ZFBBA10A
www.SunLED.com
SURFACE MOUNT DISPLAY

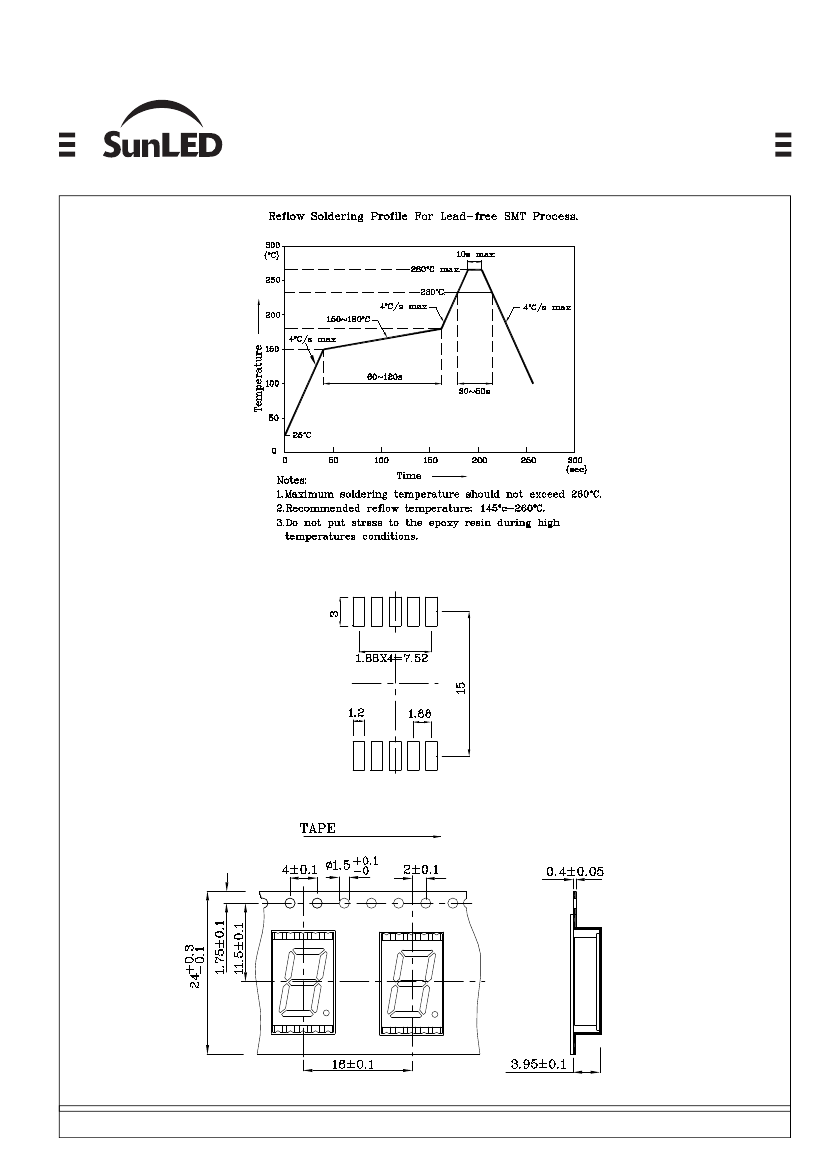

Recommended Soldering Pattern (Units : mm;Tolerance:
±
0.15)
Tape Specification (Units : mm)
Published Date : FEB 29, 2008
Drawing No : SDSA5353
V2
Checked : Shin Chi
P.3/4
Part Number:
ZFBBA10A
www.SunLED.com
SURFACE MOUNT DISPLAY

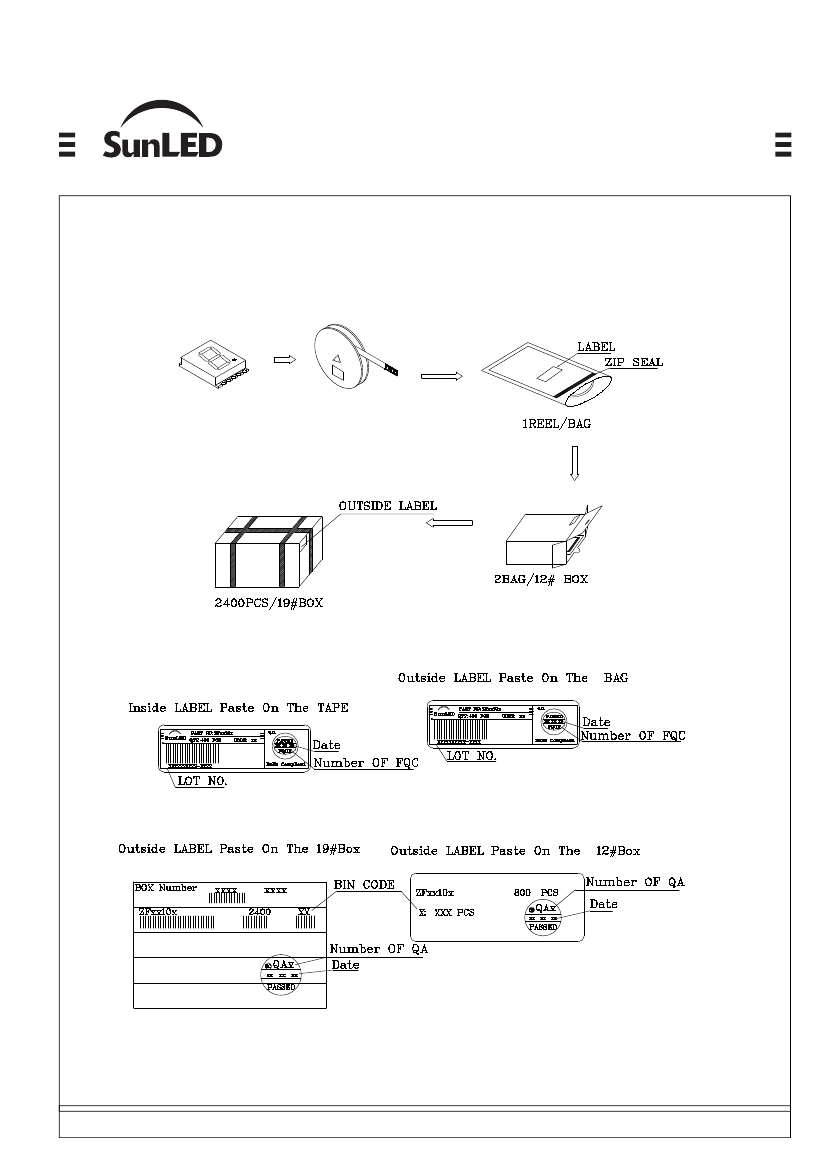

PACKING & LABEL SPECIFICATIONS
ZFBBA10A
Published Date : FEB 29, 2008
Drawing No : SDSA5353
V2
Checked : Shin Chi
P.4/4
