Part Number:
ZFUY05C2
www.SunLED.com
SURFACE MOUNT DISPLAY
Features
●0.2
INCH DIGIT HEIGHT.
●LOW
CURRENT OPERATION.
●EXCELLENT
CHARACTER APPEARANCE.
●I.C.
COMPATIBLE.
●MECHANICALLY
RUGGED.
●GRAY
FACE, WHITE SEGMENT.
●PACKAGE
: 300PCS / REEL.
●MOISTURE
SENSITIVITY LEVEL : LEVEL 4.
●RoHS
COMPLIANT.
UY
Notes:

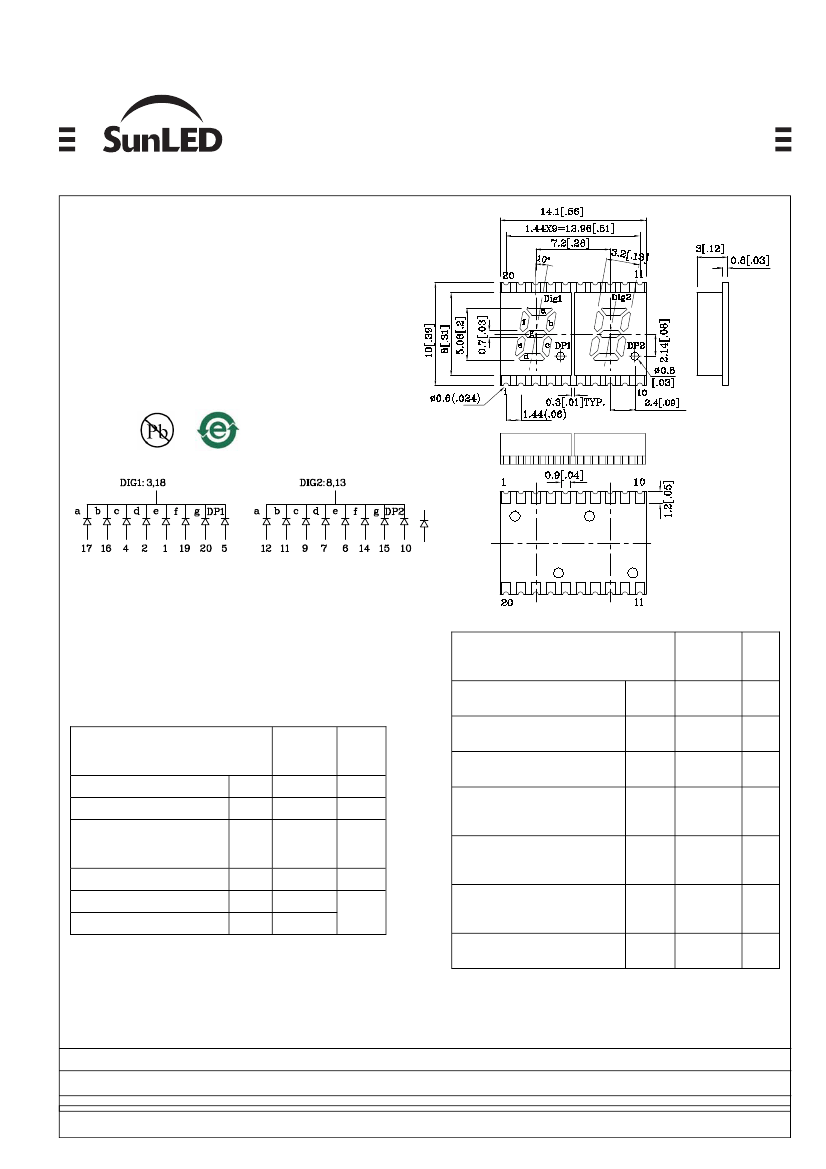

1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.25(0.01") unless otherwise noted.
3.The gap between the reflector and PCB shall not exceed 0.25mm.
4.Specifications are subject to change without notice.
Operating Characteristics
(T
A
=25°C)
Forward Voltage (Typ.)
(I
F
=10mA)
Forward Voltage (Max.)
(I
F
=10mA)
Reverse Current (Max.)
(V
R
=5V)
Wavelength of Peak
Emission (Typ.)
(I
F
=10mA)
Wavelength of Dominant
Emission (Typ.)
(I
F
=10mA)
Spectral Line Full Width At
Half-Maximum (Typ.)
(I
F
=10mA)
Capacitance (Typ.)
(V
F
=0V, f=1MHz)
Luminous
Intensity
(IF=10mA)
ucd
min.
ZFUY05C2
Yellow
GaAsP/GaP
480
typ.
1890
590
Common Cathode.Rt.Hand Decimal
V
F
V
F
I
R
UY
(GaAsP/
GaP)
1.95
2.5
10
Unit
V
V
uA
Absolute Maximum Ratings
(TA=25°C)
Reverse Voltage
Forward Current
Forward Current (Peak)
1/10 Duty Cycle
0.1ms Pulse Width
Power Dissipation
Operating Temperature
Storage Temperature
V
R
I
F
i
FS
P
T
T
A
Tstg
UY
(GaAsP/
GaP)
5
30
140
75
-40 ~ +85
-40 ~ +85
Unit
V
mA
mA
mW
°C
λ
P
590
nm
λ
D
588
nm
Δλ
35
nm
C
20
pF
Part
Number
Emitting
Color
Emitting
Material
Wavelength
nm
λ
P
Description
Published Date : FEB 28,2008
Drawing No :SDSA5303
V4
Checked : Shin Chi
P.1/4
Part Number:
ZFUY05C2
www.SunLED.com
SURFACE MOUNT DISPLAY

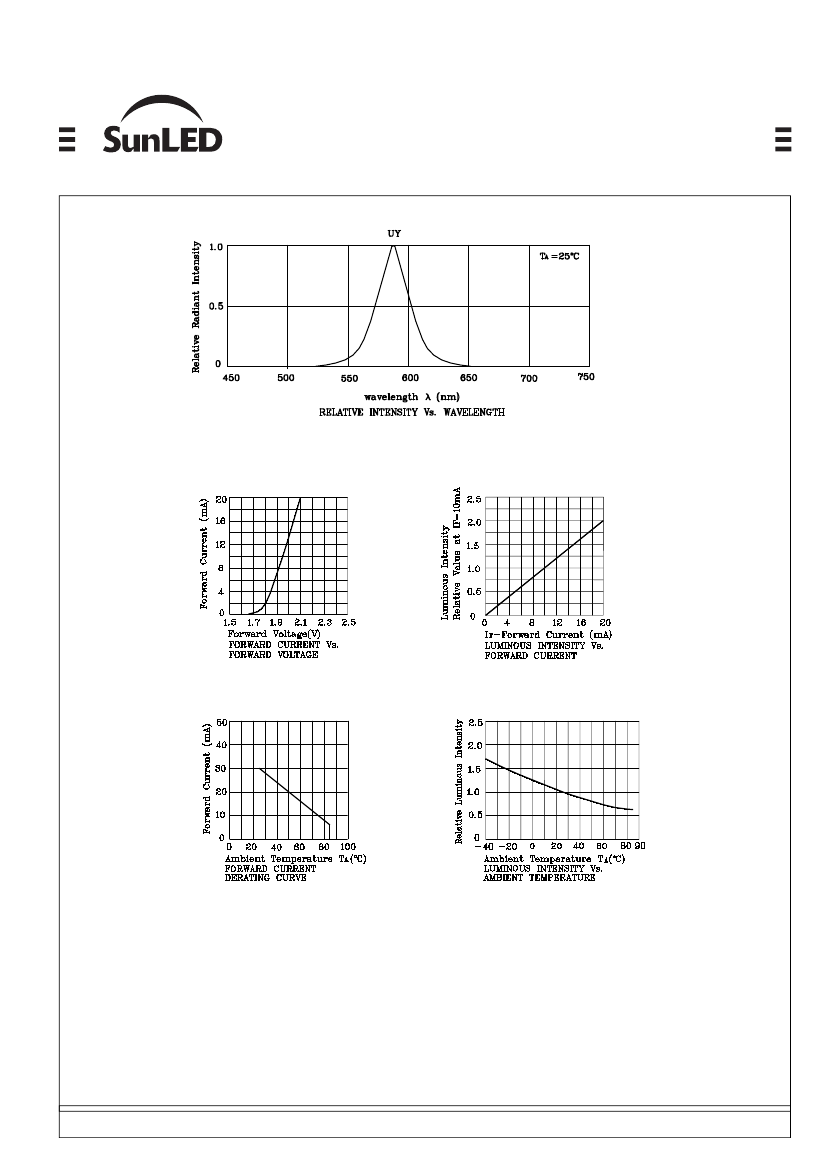

UY
Remarks:
If special sorting is required (e.g. binning based on forward voltage, Luminous intensity / luminous flux, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity / Luminous Flux: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
Published Date : FEB 28,2008
Drawing No :SDSA5303
V4
Checked : Shin Chi
P.2/4
Part Number:
ZFUY05C2
www.SunLED.com
SURFACE MOUNT DISPLAY

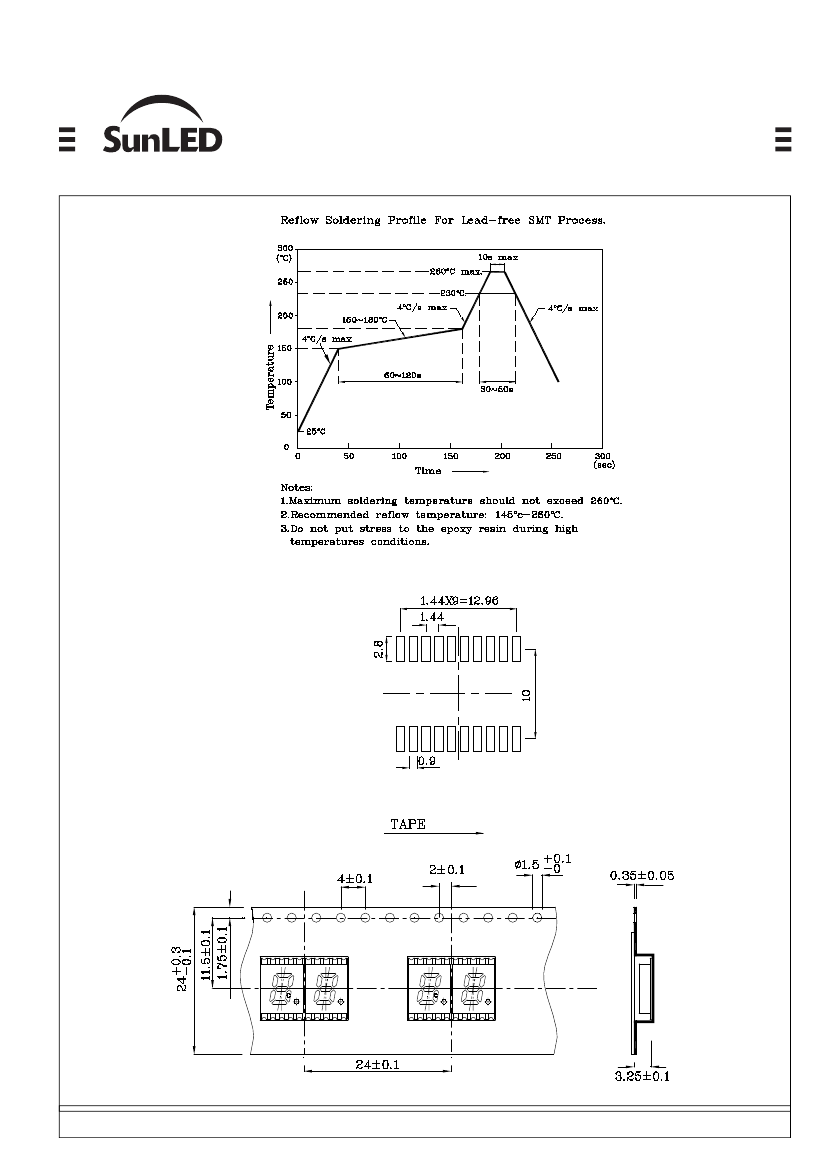

Recommended Soldering Pattern (Units : mm;Tolerance:
±
0.15)
Tape Specification (Units : mm)
Published Date : FEB 28,2008
Drawing No :SDSA5303
V4
Checked : Shin Chi
P.3/4
Part Number:
ZFUY05C2
www.SunLED.com
SURFACE MOUNT DISPLAY

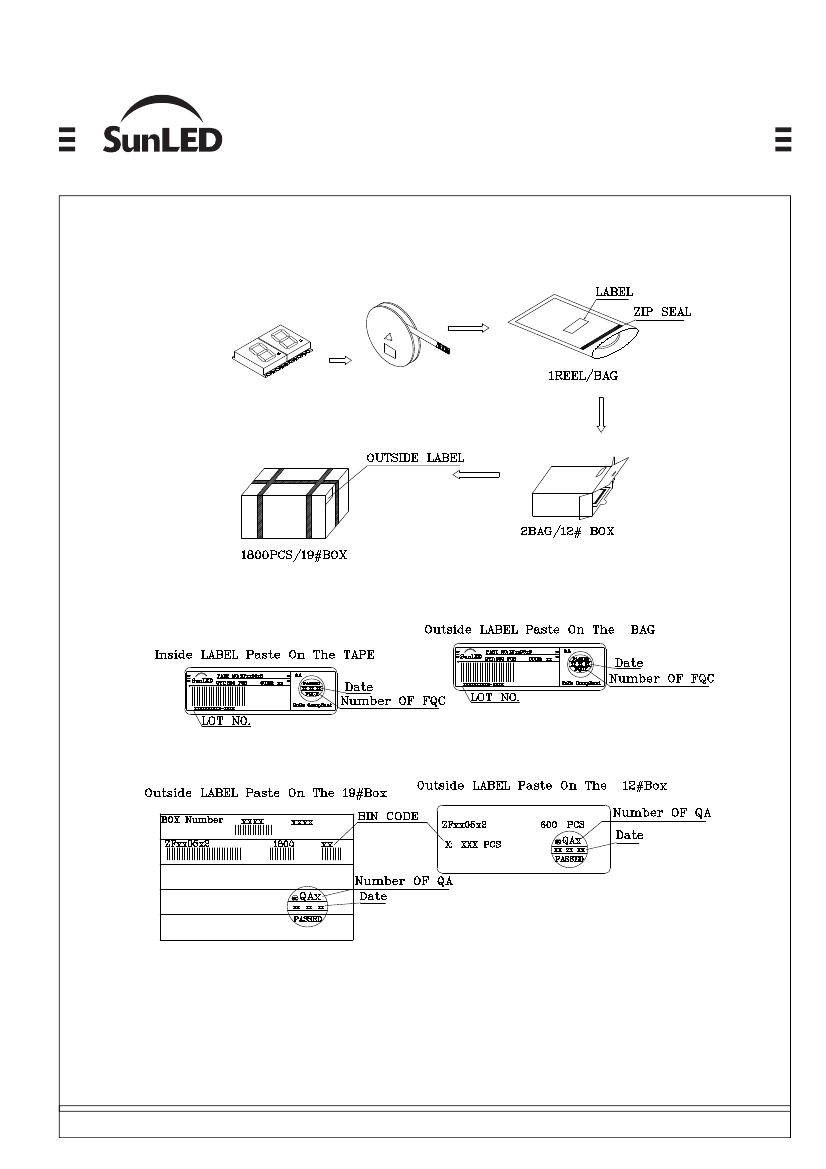

PACKING & LABEL SPECIFICATIONS
ZFUY05C2
Published Date : FEB 28,2008
Drawing No :SDSA5303
V4
Checked : Shin Chi
P.4/4
