BI7-EM18EWD-LI-H1143 datasheet, PDF

Datasheet> All Categories > The sensor> Sensor/transducer> BI7-EM18EWD-LI-H1143

BI7-EM18EWD-LI-H1143: DescriptionInductive Sensor,; CategoryThe sensor Sensor/transducer; File Size332KB，3 Pages; ManufacturerTURCK Inc.; Websitehttps://www.turck.us/

Download Datasheet Parametric View All

BI7-EM18EWD-LI-H1143 Overview

Inductive Sensor,

BI7-EM18EWD-LI-H1143 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	IP67; SHORT CIRCUIT PROTECTION; REVERSE POLARITY PROTECTION
body height	72 mm
Body length or diameter	18 mm
shell	STAINLESS STEEL
Maximum measuring range (mm)	5 mm
Minimum measuring range (mm)	2 mm
Installation features	FLUSH MOUNTING
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Output interface type	3-WIRE INTERFACE
Output type	ANALOG OUTPUT
Package Shape/Form	BARREL
Sensor/Transducer Type	PROXIMITY SENSOR,INDUCTIVE
Maximum supply voltage	30 V
Minimum supply voltage	15 V
surface mount	NO
Base Number Matches	1

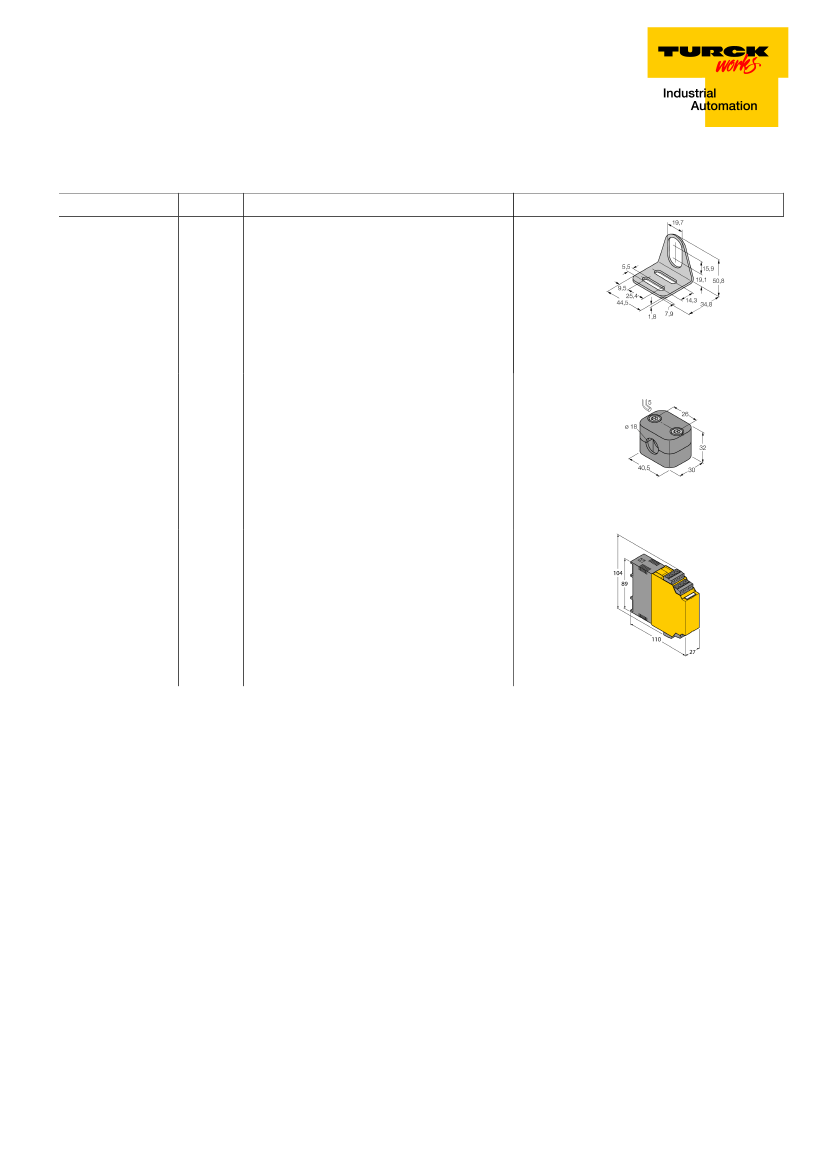

Preview

Download Datasheet

View All

Inductive sensor

For the food industry with analog output

BI7-EM18EWD-LI-H1143

■

Threaded barrel, M18 x 1

■

Stainless steel, 1.4404

■

Front cap made of liquid crystal poly-

mer

■

High protection class IP69K, for harsh

environments

■

Special double-lip seal

■

Protection against all common acid and

alkaline cleaning agents

■

Laser engraved label, permanently legi-

ble

■

For the food industry

■

3-wire, 15…30 VDC

■

Analog output

Type designation

Ident-No.

Measuring range [A…B]

Mounting conditions

Correction factors

Repeatability

Reproducibility

Linearity deviation

Temperature drift

Ambient temperature

Operating voltage

Residual ripple

No-load current I

Isolation test voltage

Short-circuit protection

Wire breakage/Reverse polarity protection

Output function

Current output

Load resistance, current output

Measuring sequence frequency

Design

Dimensions

Housing material

Active area material

Connector housing

Admissible pressure on front cap

Max. tightening torque housing nut

Vibration resistance

Shock resistance

Protection class

MTTF

BI7-EM18EWD-LI-H1143

1535568

2 mm…5mm mm

Flush

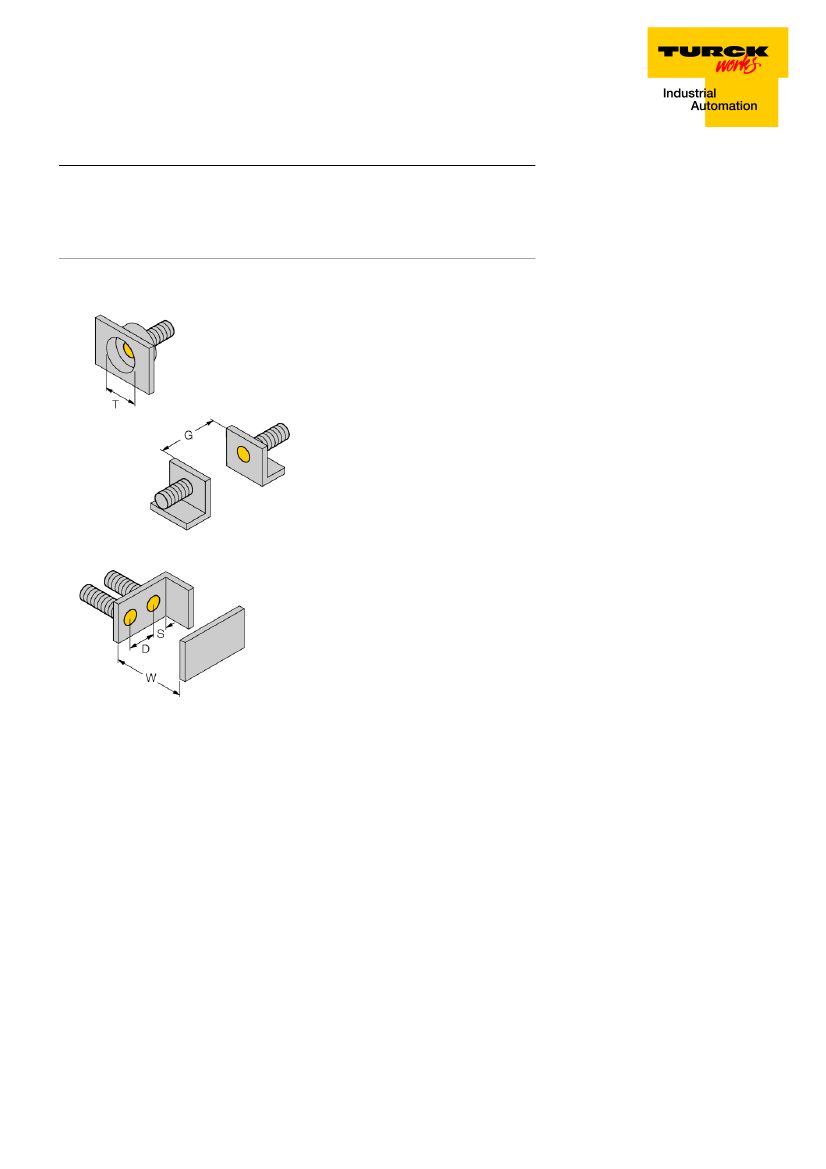

St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4

1 % of measuring range |A - B|

0.5 %, after warm-up 0.5 h

30 µm

15 µm, after a warm-up time of 0.5 h

± 0.06 % / K

-25…+70 °C

15…30 VDC

10 % U

8 mA

0.5 kV

yes

no/ Complete

3-wire, Analog output

0…20 mA

0.4 kò

200 Hz

Threaded barrel,M18 × 1

72 mm

Stainless steel, V4A (1.4404)

Plastic, LCP

plastic, PP

15 bar

25 Nm

55 Hz (1 mm)

30 g (11 ms)

IP67

751 years acc. to SN 29500 (Ed. 99) 40 °C

■

0…20 mA

■

M12 x 1 male connector

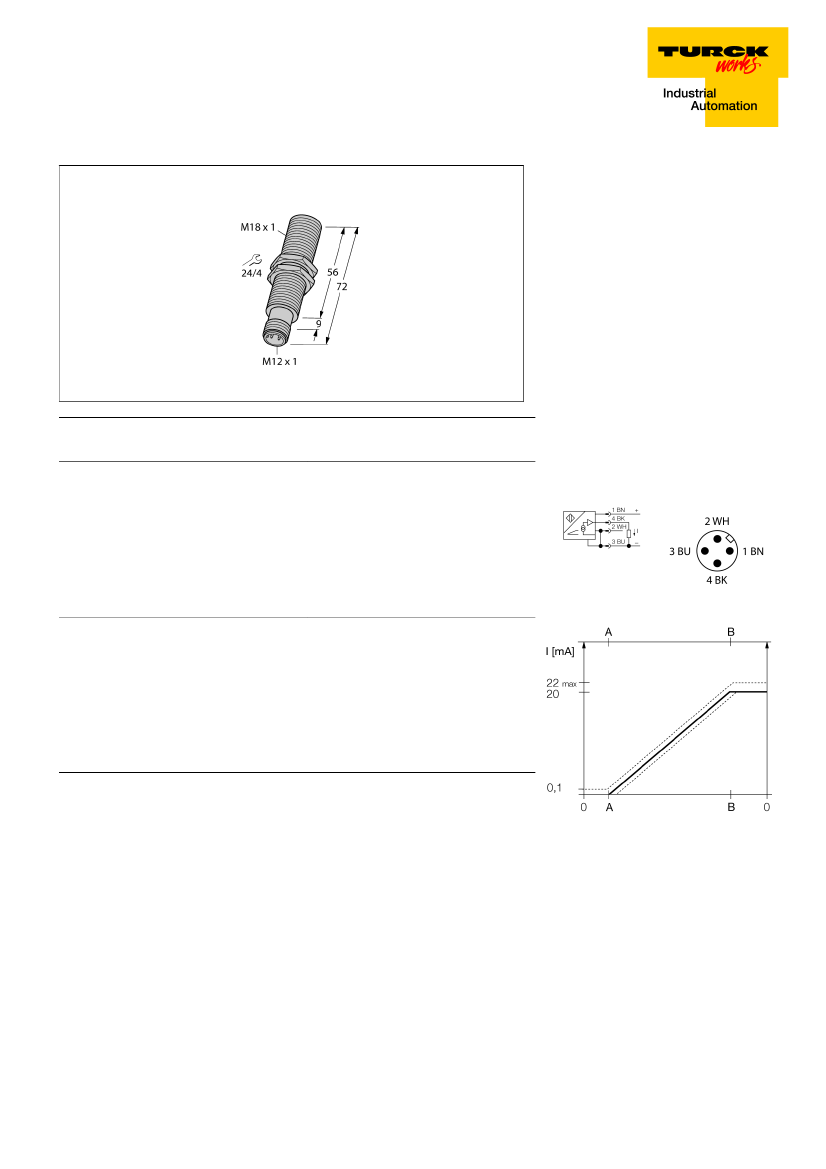

Wiring Diagram

Measuring Range

Edition • 2018-05-19T23:56:49+02:00

1/3

TURCK Inc.

3000 Campus Drive Minneapolis, MN 55441-2656

Phone: 763-553-7300

Application Support: 1-800-544-7769

Fax 763-553-0708

www.turck.com
