RCR1616-120M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> RCR1616-120M

RCR1616-120M: DescriptionGeneral Purpose Inductor, 12uH, 20%, 1 Element,; CategoryPassive components inductor; File Size50KB，1 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/

Download Datasheet Parametric View All

RCR1616-120M Overview

General Purpose Inductor, 12uH, 20%, 1 Element,

RCR1616-120M Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
ECCN code	EAR99
structure	Magnetic Shielded
DC Resistance	0.011 Ω
Nominal inductance(L)	12 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Lead diameter	0.8 mm
Lead length	5 mm
lead spacing	7.5 mm
Manufacturer's serial number	RCR1616
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-30 °C
Package diameter	16.5 mm
Package length	16.5 mm
Package form	Radial
Maximum rated current	7.4 A
series	RCR1616
Shape/Size Description	CYLINDRICAL PACKAGE
shield	YES
surface mount	NO
Terminal location	RADIAL
Terminal shape	WIRE
Test frequency	0.001 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

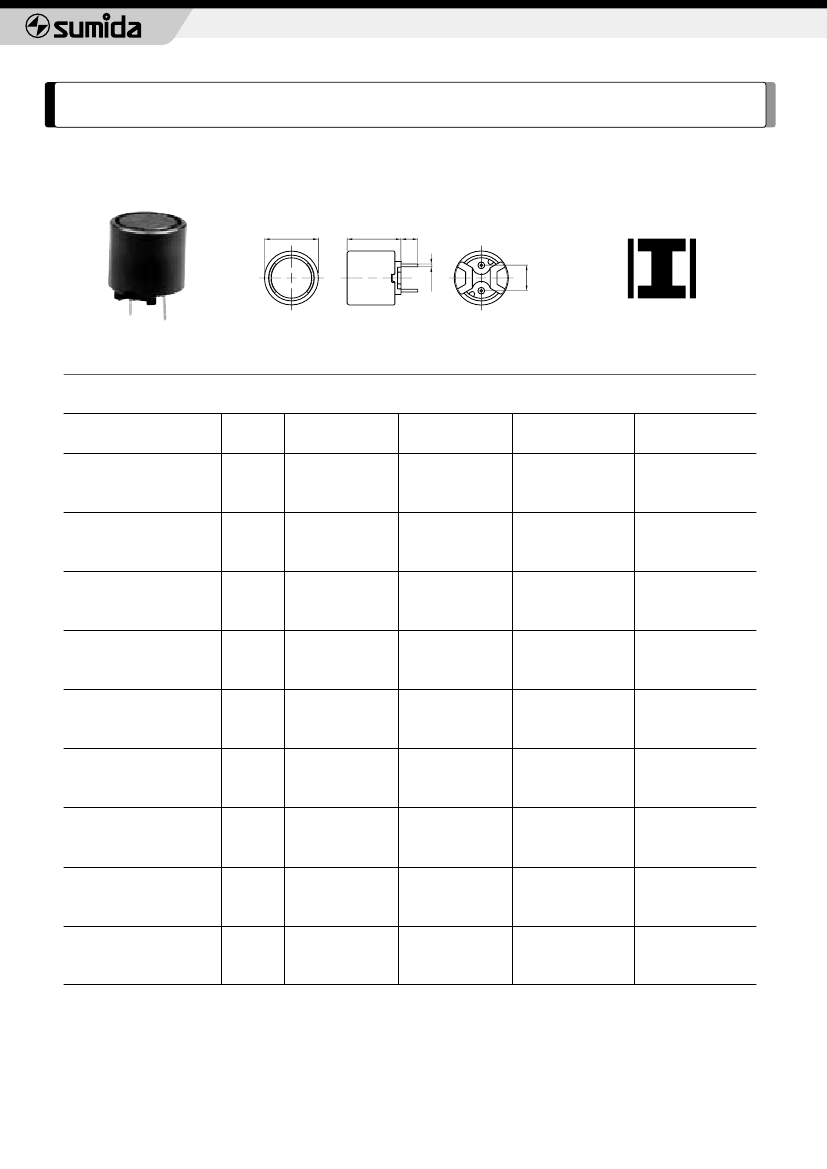

POWER INDUCTORS (Pin Type)

RCR1616

OUTLINE

RCR1616 is

ø16

Pin type power inductor is used for strong currents and is magnetically shielded.

DIMENSIONS(mm)

ø16.5MAX.

16.5MAX.

5.0

CONSTRUCTION

(4.7µH – 1.00mH)

SPECIFICATIONS

Parts No.

Stamp

Inductance(Within)

(at 1 kHz)

D.C.R.(Ω)

½1

(at 20:)

Saturation Rated

Current(A)

½A

Temperature Rise

Rated Current

½!

RCR1616-4R7M

RCR1616-6R8M

RCR1616-100M

RCR1616-120M

RCR1616-150M

RCR1616-180M

RCR1616-220M

RCR1616-270M

RCR1616-330M

RCR1616-390M

RCR1616-470M

RCR1616-560M

RCR1616-680M

RCR1616-820M

RCR1616-101K

RCR1616-121K

RCR1616-151K

RCR1616-181K

RCR1616-221K

RCR1616-271K

RCR1616-331K

RCR1616-391K

RCR1616-471K

RCR1616-561K

RCR1616-681K

RCR1616-821K

RCR1616-102K

½1:(

)is typical. value.

4R7M

6R8M

100M

120M

150M

180M

220M

270M

330M

390M

470M

560M

680M

820M

101K

121K

151K

181K

221K

271K

331K

391K

471K

561K

681K

821K

102K

4.7µH±20%

6.8µH±20%

10µH±20%

12µH±20%

15µH±20%

18µH±20%

22µH±20%

27µH±20%

33µH±20%

39µH±20%

47µH±20%

56µH±20%

68µH±20%

82µH±20%

100µH±10%

120µH±10%

150µH±10%

180µH±10%

220µH±10%

270µH±10%

330µH±10%

390µH±10%

470µH±10%

560µH±10%

680µH±10%

820µH±10%

1.00mH±10%

ø0.8

6.70m(5.15m)

9.35m(7.20m)

10.5m(8.25m)

11.0m(8.47m)

14.5m(11.2m)

16.5m(12.7m)

17.0m(13.0m)

20.0m(15.2m)

27.0m(20.5m)

33.0m(25.4m)

37.0m(28.4m)

45.0m(34.5m)

56.0m(43.0m)

64.5m(49.5m)

68.0m(52.5m)

80.0m(61.7m)

91.0m(70.0m)

135m(104m)

155m(119m)

180m(140m)

240m(183m)

255m(196m)

280m(215m)

380m(291m)

515m(397m)

575m(443m)

665m(513m)

7.5

12.60

9.80

9.30

8.50

7.10

6.70

6.20

5.60

5.00

4.60

4.20

3.80

3.30

2.90

2.70

2.50

2.30

2.00

1.80

1.70

1.50

1.30

1.20

1.10

1.00

960m

850m

9.2

8.0

7.8

7.4

6.2

6.0

5.7

5.2

4.8

4.5

4.1

3.8

3.4

3.1

2.9

2.6

2.4

2.0

1.8

1.7

1.4

1.3

1.1

1.0

990m

930m

Other

½A

Saturation Rated Current : The current when the inductance becomes 10% lower than its initial value.(Ta=20;)

½!

Temperature Rise Rated Current : The current when temperature of coil increases up to Max.

∆

T=40;.(Ta=20;)
