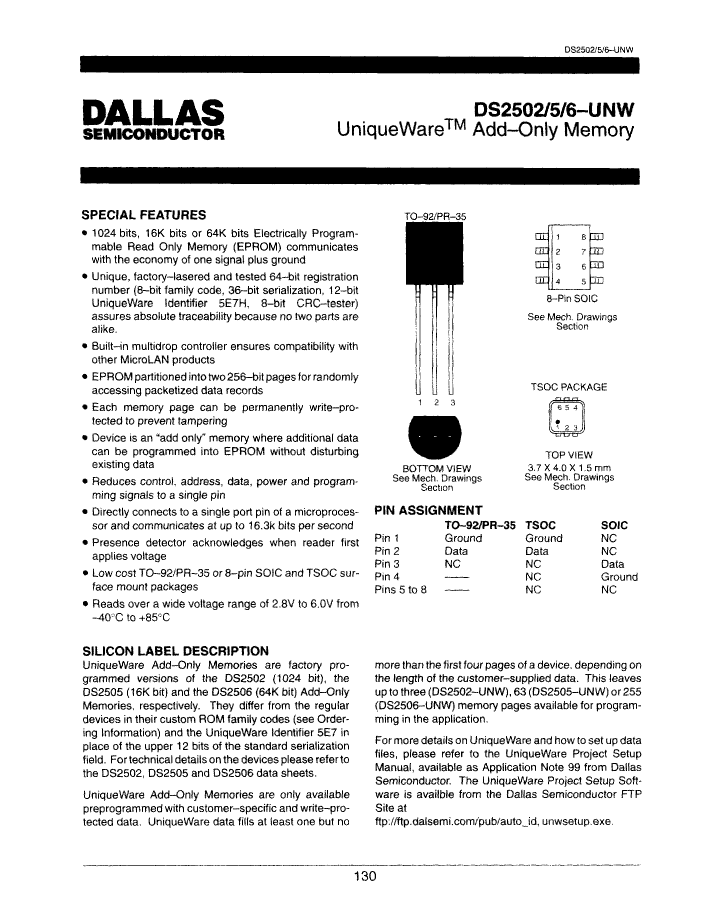

DS2506P-UNW datasheet, PDF - EEWORLD Datasheet

DS2506P-UNW: DescriptionOTP ROM, 8KX8, CMOS, PDSO6,; Categorystorage storage; File Size60KB，1 Pages; ManufacturerDALLAS; Websitehttp://www.dalsemi.com

Download Datasheet Parametric Compare View All

DS2506P-UNW Overview

OTP ROM, 8KX8, CMOS, PDSO6,

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Other features	MICROLAN COMPATIBLE
JESD-30 code	R-PDSO-G6
memory density	65536 bit
Memory IC Type	OTP ROM
memory width	8
Number of functions	1
Number of terminals	6
word count	8192 words
character code	8000
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	8KX8
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	SERIAL
Certification status	Not Qualified
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2.8 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

	DS2506P-UNW	DS2505S-UNW
Description	OTP ROM, 8KX8, CMOS, PDSO6,	OTP ROM, 16KX1, CMOS, PDSO8,
Reach Compliance Code	unknown	unknown
JESD-30 code	R-PDSO-G6	R-PDSO-G8
memory density	65536 bit	16384 bit
Memory IC Type	OTP ROM	OTP ROM
memory width	8	1
Number of functions	1	1
Number of terminals	6	8
word count	8192 words	16384 words
character code	8000	16000
Operating mode	SYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
organize	8KX8	16KX1
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	SERIAL	SERIAL
Certification status	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	6 V	6 V
Minimum supply voltage (Vsup)	2.8 V	2.8 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
Base Number Matches	1	1
