TRANSFORMER SELECTION GUIDE
FOR SIEMENS TELECOM ICs
IU-3
SC
BH
AN
Transformers, hybrids and common mode
chokes specifically matched to Siemens
transceiver ICs
Applications include ISDN-BRI S and U
interfaces, ISDN-PRI/T1/E1 and ISDN UPO
Safety agency approvals for most models
Surface mount and through hole models
Transformer Selection Guide
IC Chip
PEB
PEB
PEB
PEB
PEB
PSB
PEB
PEB
PEB
2080
2081
2084
2085
2086
2186
2091
2091
2095
Application
ISDN-S
ISDN-S/T
ISDN-S/T
ISDN-S
ISDN-S
ISDN-S/T
ISDN-U
ISDN-U
ISDN-UP0
ISDN-Upn
T1/CEPT/PRI
Ratio
1:2
1:2
1:2
1:2
1:2
1:2
1.65:1
Echo Cancellation
THT
Single
PE-64995
PE-64995
PE-64995
PE-64995
PE-64995
PE-64995
PE-65575
PE-36005
PE-65378
–
–
THT
3KV Single
PE-68995
PE-68995
PE-68995
PE-68995
PE-68995
PE-68995
PE-68669
–
–
–
PE-68788
THT
Vertical
Package
PE-68975
PE-68975
PE-68975
PE-68975
PE-68975
PE-68975
–
–
–
–
–
THT
Dual
PE-65495
PE-65495
PE-65495
PE-65495
PE-65495
PE-65495
–
–
–
–
–
SMT
Single
–
–
–
–
–
–
–
PE-36005W
PE-68616
PE-68617
SMT
Dual
PE-65795
PE-65795
PE-65795
PE-65795
PE-65795
PE-65795
–
–
–
–
PE-68786
SMT
Ext Temp
Dual
–
–
–
–
–
–
–
–
–
–
PE-68887
1.25:1
2:1
1CT:1.41CT
PSB 2196
PEB 2254
TABLE A: Packaging Information
Package
LA
PA-2
SC
SH-3
SH-4
BH
AN
DP-14SM
DP-14TH
ID
IN
IS
VC
WD
HC
IU-3
Type
SMT
SMT
SMT
SMT
SMT
SMT
SMT
SMT
THT
THT
THT
THT
THT
THT
THT
THT
Part Weight
2 grams
4 grams
7 grams
0.2 grams
0.3 grams
1 gram
4.0 grams
1.5 grams
1.5 grams
7 grams
2.5 grams
4 grams
3.5 grams
9 grams
1.2 grams
14 grams
Parts/Tube
30
35
20
60
25
40
30
25
25
20
35
35
40
25
60
–
Parts/Tray
60
–
50
–
–
–
–
–
–
–
–
–
–
–
–
45
Parts/Reel
250
150
150
1500
1500
600
250
–
–
–
–
–
–
–
–
–
Reel Diameter
13 inches
13 inches
13 inches
13 inches
13 inches
13 inches
13 inches
–
–
–
–
–
–
–
–
–
Tape Width
24 mm
32 mm
44 mm
16 mm
24 mm
24 mm
32 mm
–
–
–
–
–
–
–
–
–
Pitch
24 mm
24 mm
24 mm
12 mm
12 mm
12 mm
24 mm
–
–
–
–
–
–
–
–
–
12220 WORLD TRADE DRIVE, SAN DIEGO, CALIFORNIA 92128 • TEL 619-674-8100 • FAX 619-674-8262 • http://www.pulseeng.com
1
T609.A (5/96)

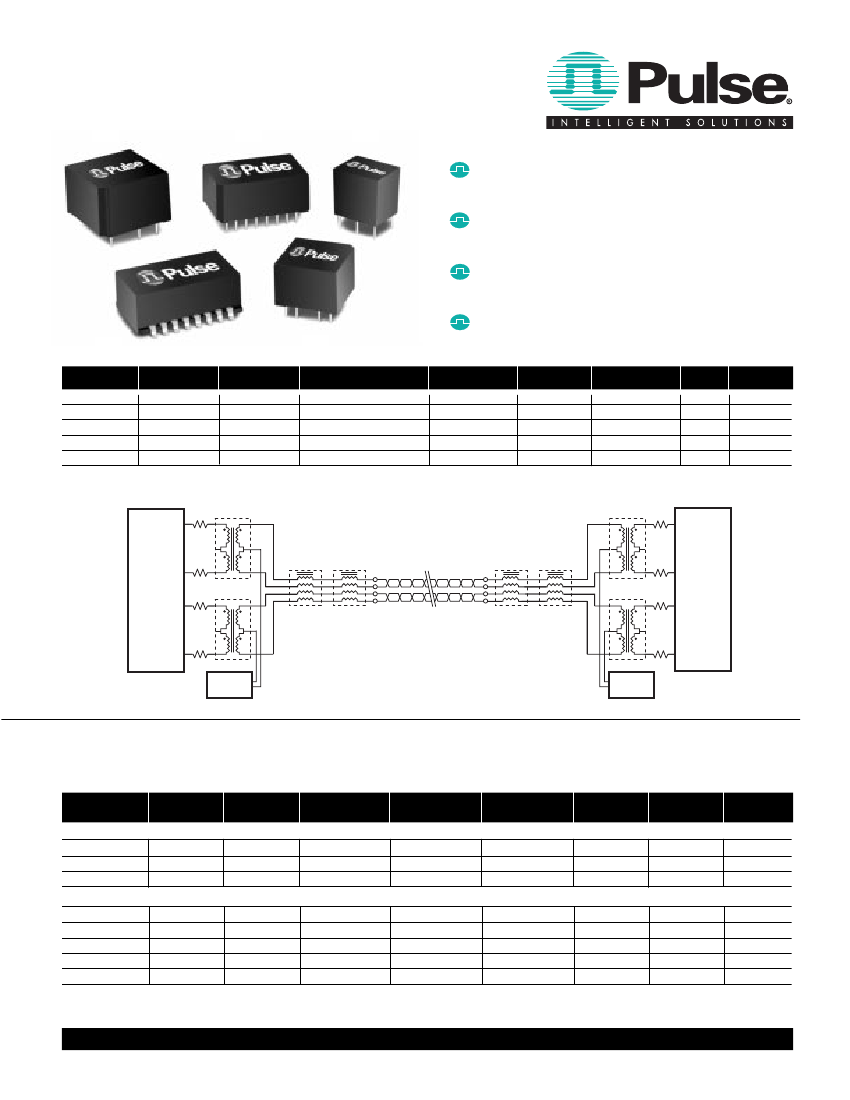

T1/CEPT/ISDN-PRI
TRANSFORMERS
IS
AN
Characteristics matched to Siemens
transceiver chips
Dual and single models available
Extended and standard temperature
range models available
Surface mount and through hole models
BH
Part Number
PE-68786
PE-68887
PE-68788
Type
Dual Xfmr
Dual Xfmr
Single Xfmr
Mounting
SMT
SMT
THT
Turns Ratio
1CT:1.41CT&1CT:1.41CT
1CT:1.41CT&1CT:1.41CT
1CT:1.41CT
Inductance
1.0 mH MIN
0.8 mH MIN
1.2 mH MIN
Operating
Temp Range
0°C to +70°C
-40°C to +85°C
-40°C to +85°C
Isolation
Voltage
1500 Vrms
1500 Vrms
3000 Vrms
Package
BH
AN
IS
Data Sheet
T608
T608
T608
TYPICAL T1/CEPT APPLICATION
Transformer
IC
XMIT
Transformer
IC
RCV
RCV
4-Line
High
Freq
Choke
4-Line
High
Freq
Choke
XMIT
COMMON MODE CHOKES
LA
HC
IN
SH-4
SH-3
Designed for 2-wire and 4-wire
digital links
Models for EMI reduction and improv-
ing balance in ISDN S applications
Low frequency models effective from
100 KHz to 50 MHz
High frequency models effective from
1 MHz to 300 MHz
12220 WORLD TRADE DRIVE, SAN DIEGO, CALIFORNIA 92128 • TEL 619-674-8100 • FAX 619-674-8262 • http://www.pulseeng.com
2
T609.A (5/96)

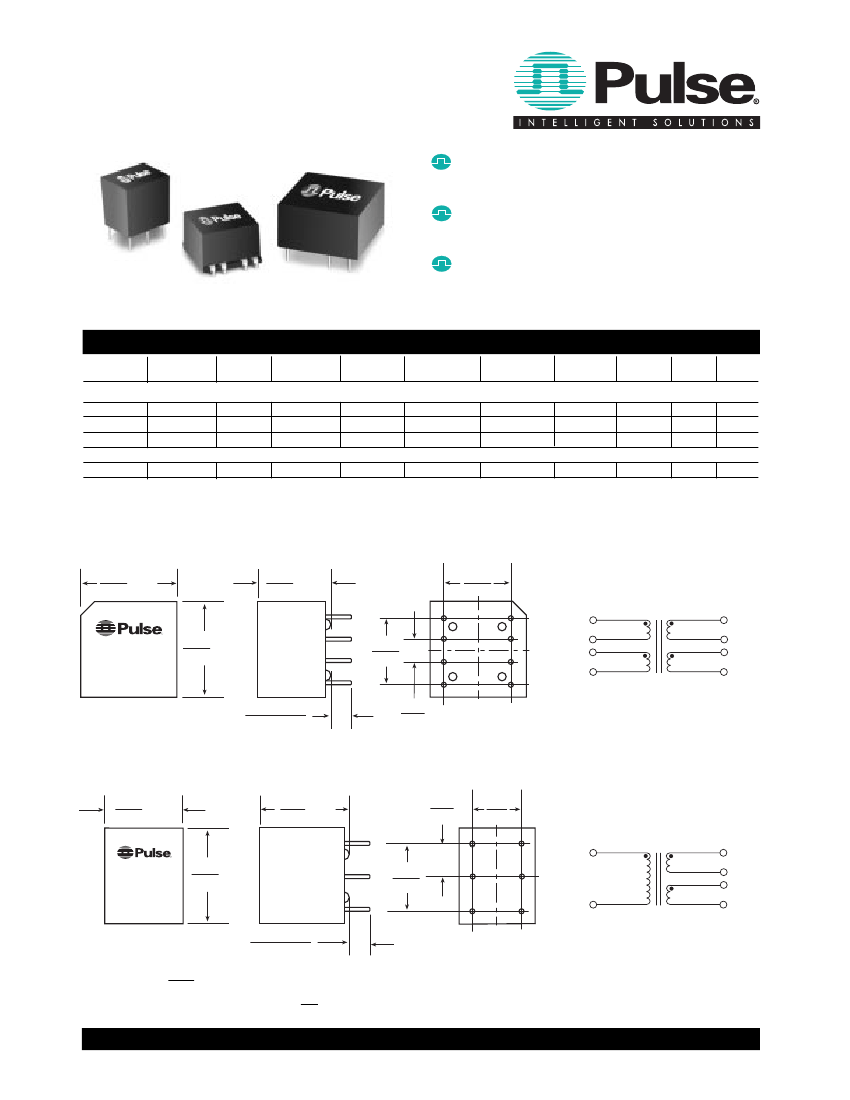

ISDN S-INTERFACE
TRANSFORMERS
WD
ID
VC
Characteristics matched to
Siemens transceiver chips
Designed to meet layer 1
requirements of ITU I.430
Safety agency approvals per EN
41003/ EN 60950 and UL 1459
Excellent longitudinal balance
SC
Part Number
PE-64995
PE-65495
PE-65795
PE-68975
PE-68995
Type
Single Xfmr
Dual Xfmr
Dual Xfmr
Single Xfmr
Single Xfmr
TE
Sec : Pri
IC
XMIT
IS
∆I
DC MAX
1
1
1
1
5
mA
mA
mA
mA
mA
Mounting
THT-Horz
THT-Horz
SMT-Horz
THT-Vert
THT-Horz
Turns Ratio
1CT:2CT
1CS:2CS & 1CS:2CS
1CS:2CS & 1CS:2CS
1CS:2
1CS:2
Inductance
22
22
22
22
22
mH
mH
mH
mH
mH
MIN
MIN
MIN
MIN
MIN
Isolation Voltage
2000 Vrms
2000 Vrms
2000 Vrms
2000 Vrms
3000 Vrms
NT
Pri : Sec
Package
IS
ID
SC
VC
WD
Data Sheet
T604
T604
T604
T609
T604
TYPICAL ISDN S-INTERFACE APPLICATION
IC
RCV
Sec : Pri
4-Line
Low
Freq
Choke
Local
Power
4-Line
High
Freq
Choke
4-Line
High
Freq
Choke
4-Line
Low
Freq
Choke
Pri : Sec
RCV
XMIT
DC
Supply
Common Mode Chokes
Part Number
Number
of Lines
4-Line
4-Line
4-Line
4-Line
4-Line
4-Line
2-Line
2-Line
Mounting
Inductance
Peak Common
Mode Attentuation
1 MHz
1 MHz
1 MHz
30
30
30
30
30
MHz
MHz
MHz
MHz
MHz
Application
Isolation
Voltage
500 Vrms
500 Vrms
500 Vrms
500 Vrms
500 Vrms
500 Vrms
500 Vrms
500 Vrms
Package
Data Sheet
Low Frequency Chokes
PE-65853
PE-65950
PE-68613
PE-65554
PE-65854
PE-65857
PE-65944
PE-68624
SMT
THT-Horz
THT-Vert
THT
SMT
SMT
THT
SMT
4.7 mH ±30%
4.7 mH ±30%
4.7 mH ±30%
24 µH MIN
47 µH MIN
22.5 µH MIN
24 µH MIN
47 µH MIN
Improve Balance
Improve Balance
Improve Balance
EMI
EMI
EMI
EMI
EMI
Reduction
Reduction
Reduction
Reduction
Reduction
PA-2
IS
VC
IN
SH-4
LA
HC
SH-3
T604
T604
T604
T604
T604
T604
G002
G002
High Frequency Chokes
12220 WORLD TRADE DRIVE, SAN DIEGO, CALIFORNIA 92128 • TEL 619-674-8100 • FAX 619-674-8262 • http://www.pulseeng.com
3
T609.A (5/96)

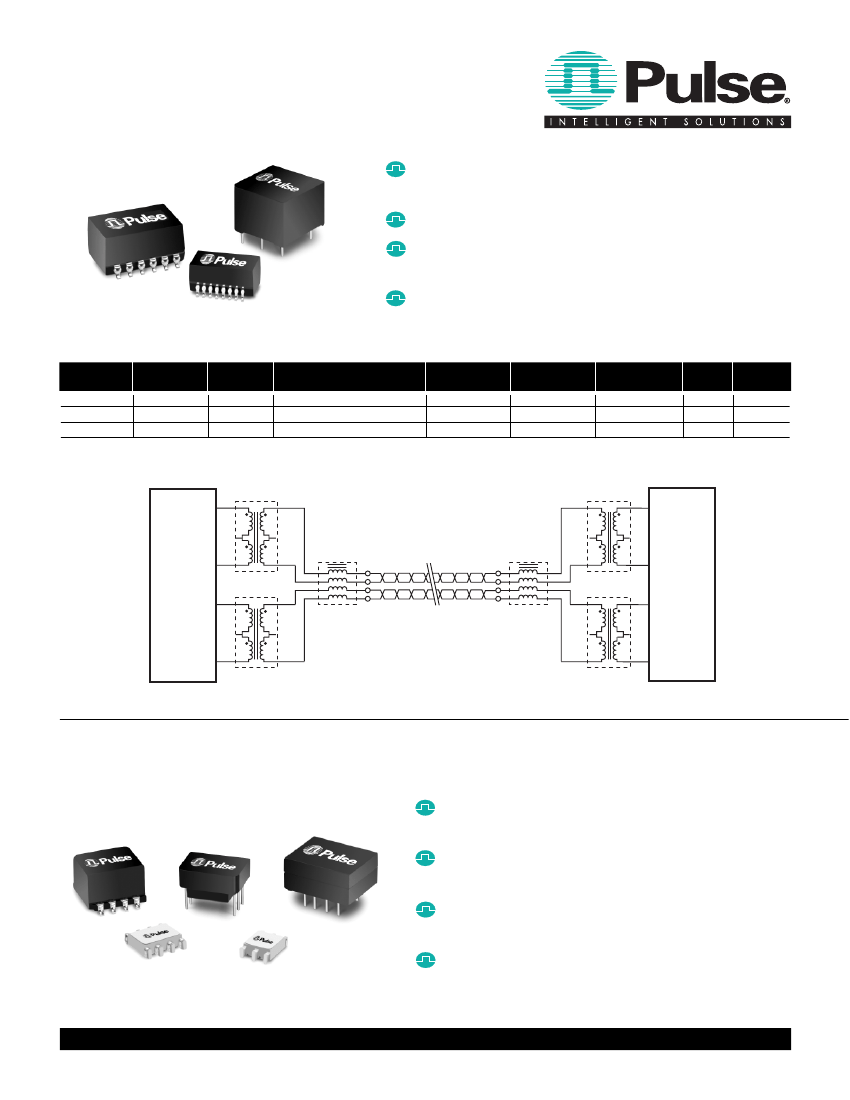

ISDN U-INTERFACE
TRANSFORMERS
IU-3
DP-14TH
DP-14SM
Part Number
PE-65575
PE-68669
Mounting
THT
THT
Receive Turns Ratio
1.65CS:1CT
1.65CS:1CT
Inductance
13 mH-18 mH
13 mH-18 mH
For ISDN U-Interface 2B1Q
Applications
Characteristics matched to Siemens
transceiver chips
Meets key parameters of ANSI
T1-601-1992
Space savings Echo Cancellation
Hybrid available
∆I
DC MAX
50 mA
50 mA
Isolation Voltage
2000 Vrms
3000 Vrms
Package
IU-3
IU-3
Data Sheet
T603
T603
Part Number
PE-36005
PE-36005W
Type
Echo Cancellation Hybrid
Echo Cancellation Hybrid
Mounting
THT
SMT
Package
DP-14 TH
DP-14 SM
Data Sheet
T603
T603
TYPICAL ISDN U-INTERFACE APPLICATION
Echo Cancellation Hybrid
10 nF
A-OUT
5
619
7
B-IN
A-IN
11
3.01 K
10 K
619
23.3
10 nF
6
7
10 K
10
B-OUT
12
6.8 nF
4
681
10 K
10 K
10 nF
2
5
1
4
3
23.3
9
8
Transformer
PE-65575
or
PE-68669
2-Line
High Freq
Choke
PEB 2091
PE-36005/PE-36005W
Notes
1. The purpose of the T609 data sheet is to serve as a
selection guide for Pulse products matched to
Siemens telecom transceiver chips. For complete
electrical, mechanical and safety information, request
the data sheet listed next to the part number. The data
sheets can be requested through any Pulse location
worldwide, authorized distributors, the WEB site or
through the “Quick-Facts” system. Please see the
back page for more information.
2. In this catalog, turns ratio is expressed as
“primary:secondary”. The term “CT” designates a cen-
ter tapped winding. The term “CS” designates a split
center tap winding. A center tapped winding can be
created by connecting two ends of a split center wind-
ing together on the printed circuit board. In ISDN S
applications, the primary winding is the line side trans-
former winding.
3. Standard packaging for the chokes and transformers
listed in this catalog is anti-static tubes. Optional anti-
static tray packaging can be ordered for the surface
mount SC and LA packages by adding an “R” suffix to
the part number, (ie: PE-65795R). Optional tape and
reel packaging can be ordered for surface mount
packages by adding a “T” suffix to the part number,
(ie: PE-65795T). See Table A for more information.
12220 WORLD TRADE DRIVE, SAN DIEGO, CALIFORNIA 92128 • TEL 619-674-8100 • FAX 619-674-8262 • http://www.pulseeng.com
4
T609.A (5/96)

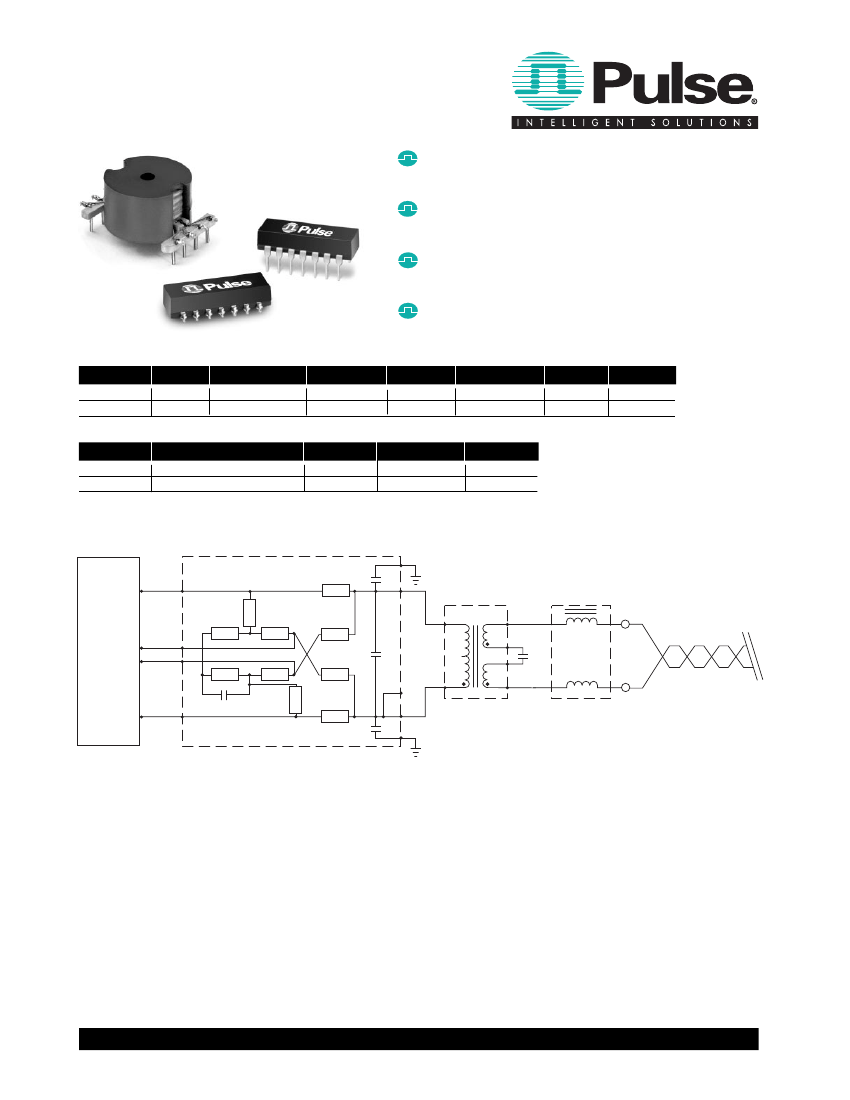

ISDN U
P0
AND ISDN U
pn
TRANSFORMERS
VC
SA
Characteristics matched to
Siemens transceiver chips
Available in surface mount and
through hole packages
PA-2
PE-68975 is electrically
equivalent to PE-64995
Electrical Specifications @ 25°C — Operating Temperature 0°C to 70°C
Part Number
Type
Mounting Turns Ratio
Inductance
(mH)
4.2 ±10%
1.7 MIN
1.7 MIN
22 MIN
DCR Pri
DCR Sec
Isolation
(Vrms MIN)
1500
1500
1500
2000
∆I
DC
MAX
80 mA
60 mA
100 mA
1 mA
Primary Package
Pins
1-4
1-5
6-10
1-6
SA-1/A
PA-2/B
PA-2/C
VC-1/D
ISDN UP0 and ISDN Upn Transformers
PE-65378
Single Xfmr
THT 1.25CS:1CS
PE-68616
Single Xfmr
SMT
1CS:1.25
PE-68617
Single Xfmr
SMT
1CS:2
ISDN S Transformer
PE-68975
Single Xfmr THT-Vert
1CS:2
2.9 MAX
1.6 MAX
4.2 MAX
2.5 ±25%
Ω
2.4
Ω
MAX
2.4
Ω
MAX
8.0
Ω
MAX
5.0 +25%
Ω
Mechanicals
SA-1
.750
MAX
19,05
1
8
.600
15,24
C
L
Schematics
.470
MAX
11,94
.600
15,24
1
2
3
4
A
8
7
6
5
2
PE-XXXXX
7 .750
MAX
Date Code
6 19,05
3
4
Country of
Origin
5
.130
±
.010
3,30
±
0,25
.200
5,08
C
L
VC-1
.400
MAX
10,16
1
3
5
PE-XXXXX
Date Code
Country of
Origin
.500
MAX
12,70
.200
5,08
.300
7,62
10
8
6
.115
±
.010
2,92
±
0,25
C
L
D
3
1
10
5
8
6
.505
MAX
12,83
.400
10,16
C
L
Dimensions:
Inches
mm
Unless otherwise specified all tolerances are ± .010
