Part Number:
ZMD60W
www.SunLED.com
3.0mmx1.5mm SMD CHIP LED LAMP
Features
3.0mmx1.5mm SMT LED,1.4mm THICKNESS.
LOW POWER CONSUMPTION.
WIDE VIEWING ANGLE.
IDEAL FOR BACKLIGHT AND INDICATOR.
VARIOUS COLORS AND LENS
TYPES AVAILABLE.
PACKAGE : 2000PCS / REEL.
MOISTURE SENSITIVITY LEVEL : LEVEL 3.
RoHS COMPLIANT.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.20(0.008") unless otherwise noted.
3.Specifications are subject to change without notice.
Absolute Maximum Ratings
(T
A
=25°C)
Reverse Voltage
Forward Current
Forward Current (Peak)
1/10 Duty Cycle
0.1ms Pulse Width
Power Dissipation
Operating Temperature
Storage Temperature
V
R
I
F
i
FS
P
T
T
A
Tstg
MD
(InGaAlP)
5
30
185
75
-40 ~ +85
Unit
V
mA
mA
mW
Operating Characteristics
(T
A
=25°C)
Forward Voltage (Typ.)
(I
F
=20mA)
Forward Voltage (Max.)
(I
F
=20mA)
Reverse Current (Max.)
(V
R
=5V)
Wavelength of Peak
Emission (Typ.)
(I
F
=20mA)
Wavelength of Dominant
Emission (Typ.)
(I
F
=20mA)
Spectral Line Full Width
At Half-Maximum (Typ.)
(I
F
=20mA)
Capacitance (Typ.)
(V
F
=0V, f=1MHz)
V
F
V
F
I
R
MD
(InGaAlP)
1.9
2.5
10
Unit
V
V
uA
λ
P
640
nm
°C
-40 ~ +85
λ
D
628
nm
Δλ
27
nm
C
45
pF
Part
Number
Emitting
Color
Emitting
Material
Lens-color
Luminous
Intensity
(IF=20mA)
mcd
min.
typ.
278
Wavelength
nm
λ
P
Viewing
Angle
2
θ
1/2
ZMD60W
Red
InGaAlP
Water Clear
110
640
70°
Published Date : FEB 23, 2008
Drawing No : SDSA2524
V5
Checked : B.L.LIU
P.1/4
Part Number:
ZMD60W
www.SunLED.com
3.0mmx1.5mm SMD CHIP LED LAMP

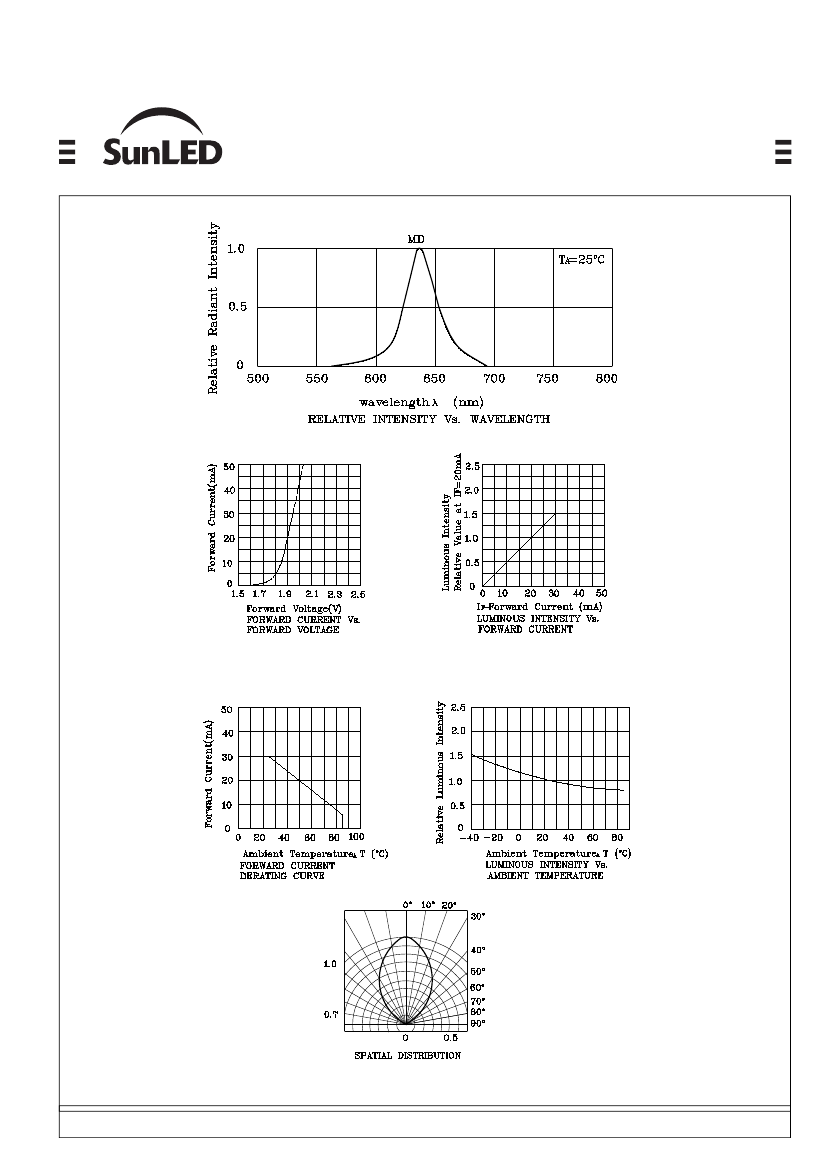

MD
Published Date : FEB 23, 2008
Drawing No : SDSA2524
V5
Checked : B.L.LIU
P.2/4
Part Number:
ZMD60W
www.SunLED.com
3.0mmx1.5mm SMD CHIP LED LAMP

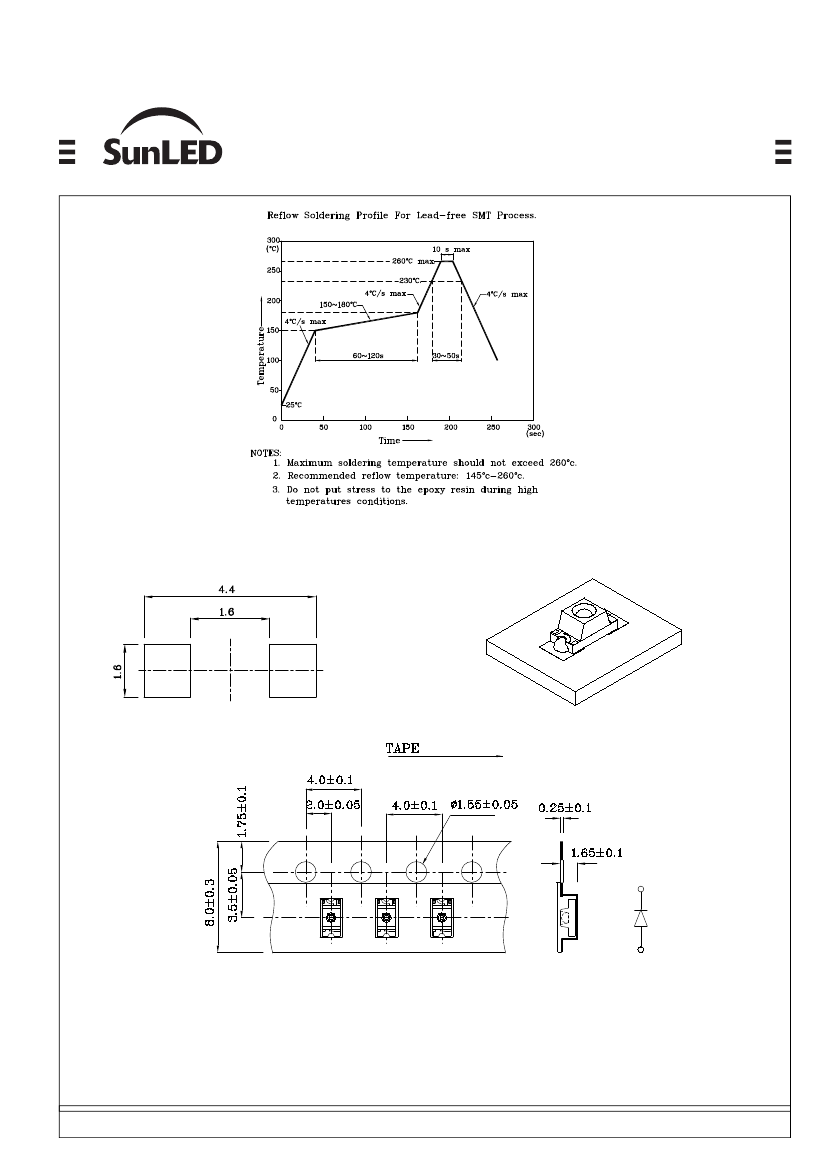

Recommended Soldering Pattern
(Units : mm; Tolerance: ± 0.1)
The device has a single mounting surface. The device
must be mounted according to the specifications
.
Tape Specification (Units : mm)
Remarks:
If special sorting is required (e.g. binning based on forward voltage, Luminous intensity / luminous flux, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous intensity / luminous flux: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
Published Date : FEB 23, 2008
Drawing No : SDSA2524
V5
Checked : B.L.LIU
P.3/4
Part Number:
ZMD60W
www.SunLED.com
3.0mmx1.5mm SMD CHIP LED LAMP

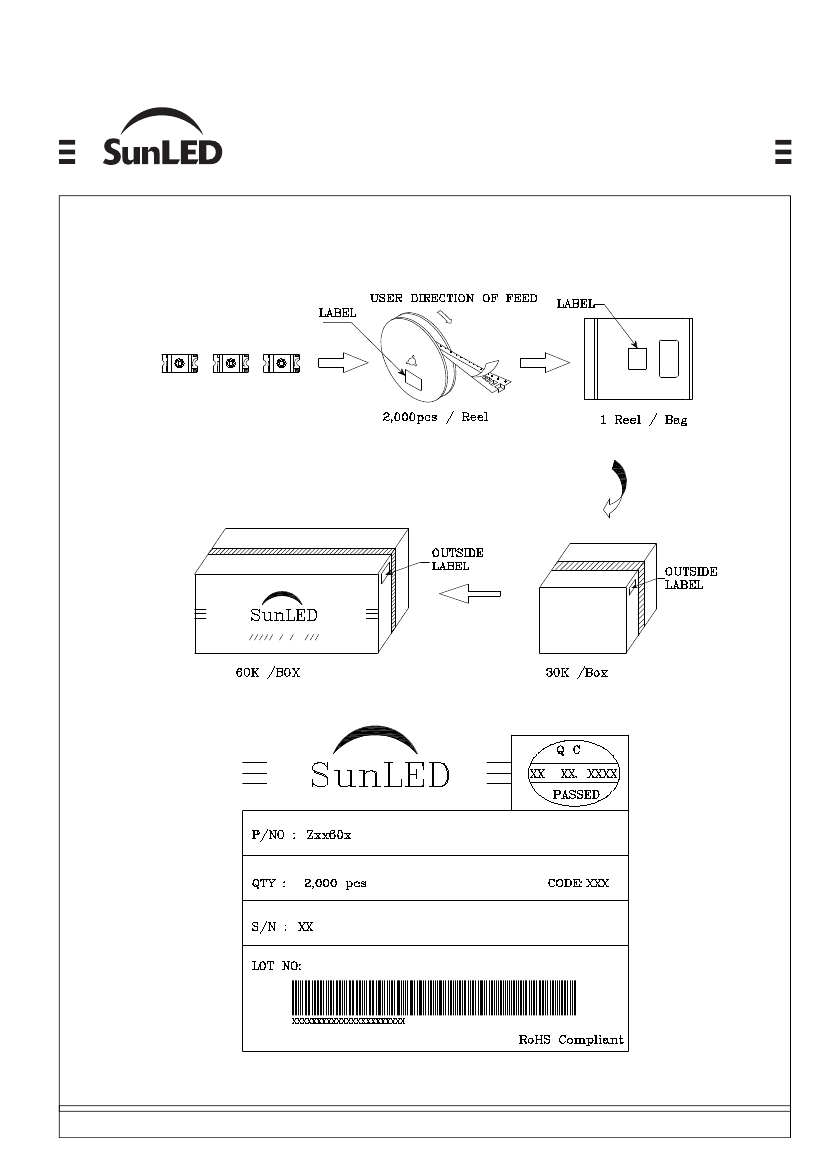

PACKING & LABEL SPECIFICATIONS
ZMD60W
Published Date : FEB 23, 2008
Drawing No : SDSA2524
V5
Checked : B.L.LIU
P.4/4
