XC2301
Series
Tri-State Buffer ICs
ETR1409_001
■GENERAL
DESCRIPTION
The 2301 series are a group of high frequency, CMOS low power tri-state buffer ICs with input amplifier, divider and output
tri-state buffer circuits built-in.
Output can be selected from any one of the following values for fin (input frequency) : fin/1, fin/2, fin/4, fin/8.
The series is available in an ultra small SOT-26 package.
■APPLICATIONS
●VCXO
Modules
●Crystal
Oscillator Modules
■FEATURES
Maximum Operating Frequency
Operating Voltage Range
Divider Ratio
Output
Built-In Input Amplifier
Ultra Small Package
: SOT-26
: 160MHz
: 3.3V±10%
: Selectable from
fin/1, fin/2, fin/4, fin/8
: 3-State
CMOS Low Power Consumption
■PIN
CONFIGURATION
■PIN
ASSIGNMENT
PIN
NUMBER
1
2
3
4
5
6
PIN
NAME
/I
NH
XT
V
SS
Q0
V
DD
/XT
FUNCTION
Stand-by Control (*)
Clock Input
GND
Clock Output
Power Supply
Feedback Resistor Connection
(Output)
*Stand-by control pin has a pull-up resistor built-in.
■/INH,
Q0 PIN FUNCTION
/I
NH
“H” or OPEN
“L”
Q0
Clock Output
High Impedance
1/6
XC2301
Series
■
PRODUCT CLASSIFICATION
●Ordering
Information
XC2301
①②③④⑤⑥
DESIGNATOR
①
②
DESCRIPTION
Duty Level
Fixed Number
SYMBOL
C
5
1
③
Divider Ratio
2
4
8
④
⑤
⑥
Output
Package
Device Orientation
V
M
R
L
: CMOS (VDD/2)
:-
: Q0=fin/1
: Q0=fin/2
: Q0=fin/4
: Q0=fin/8
: Tri-state buffer
: SOT-26
: Embossed tape, standard feed
: Embossed tape, reverse feed
DESCRIPTION
■BLOCK
DIAGRAM
■ABSOLUTE
MAXIMUM RATINGS
PARAMETER
Supply Voltage
Input Voltage
Power Dissipation
Operating Temperature Range
Storage Temperature Range
SYMBOL
V
DD
V
IN
Pd
Topr
Tstg
CONDITIONS
V
SS
- 0.3 ~ V
SS
+ 7.0
V
SS
- 0.3 ~ V
DD
+ 0.3
250(**)
- 40 ~ + 85
- 55 ~ + 125
Ta=25℃
UNITS
V
V
mW
℃
℃
** When implemented on a glass epoxy PCB.
■ELECTRICAL
CHARACTERISTICS
●DC
Electrical Characteristics
PARAMETER
Operating Supply Voltage
Input Voltage "High"
Input Voltage "Low"
Output Voltage "High"
Output Voltage "Low"
SYMBOL
V
DD
V
IH
V
IL
V
OH
V
OL
/I
NH
pin
/I
NH
pin
Q0 pin, V
DD
=2.97V, I
OH
= -8mA
Q0 pin, V
DD
=2.97V, I
OL
=8mA
/I
NH
=OPEN,
Supply Current 1
I
DD1
Q
0
=OPEN
Fin=160MHz
Supply Current 2
Input Pull-Up Resistance 1
Input Pull-Up Resistance 2
Output Off Leak Current
I
DD2
Rup1
Rup2
IOZ
XC2301C51V (fin/1)
XC2301C52V (fin/2)
XC2301C54V (fin/4)
XC2301C58V (fin/8)
/I
NH
="L"
/I
NH
=0.7V
DD
Q
0
pin, /I
NH
="L"
(Unless otherwise stated, V
DD
=3.3V, No Load, Ta=25℃)
CONDITIONS
MIN.
2.97
2.4
-
2.2
-
-
-
-
-
-
1.0
35
-
TYP.
3.30
-
-
2.4
0.3
13.0
9.0
7.0
6.0
4.5
2.0
70
-
MAX.
3.63
-
0.4
-
0.4
-
-
-
-
-
4.0
140
10
mA
MΩ
kΩ
μA
mA
UNITS
V
V
V
V
V
/I
NH
="L", fin=160MHz
2/6
XC2301
Series
■ELECTRICAL
CHARACTERISTICS (Continued)
●AC
Electrical Characteristics
(Unless otherwise stated, V
DD
=3.3V, No Load, Ta=25℃)
PARAMETER
Maximum Operating Frequency
SYMBOL
fmax
CONDITIONS
MIN.
160
TYP.
-
MAX.
-
UNITS
MHz
●Reference
Value : XC2301C51V (fQ0 = fin/1), XC2301C52V (fQ0 = fin/2)
(Unless otherwise stated, V
DD
=3.3V, No Load, Ta=25℃)
PARAMETER
Input Amplitude
Output Duty Cycle (*1)
SYMBOL
Vipp
fin=160MHz, C
L
=15pF, Vipp=1.0Vpp
DUTY
fin=125MHz, C
L
=15pF, Vipp=0.5Vpp
fin=70MHz, C
L
=30pF, Vipp=0.5Vpp
Output Rise Time (*2)
Output Fall Time (*3)
tr
tf
fin=160MHz, C
L
=15pF, Vipp=1.0Vpp
fin=70MHz, C
L
=30pF, Vipp=0.5Vpp
fin=160MHz, C
L
=15pF, Vipp=1.0Vpp
fin=70MHz, C
L
=30pF, Vipp=0.5Vpp
-
-
-
-
(1.7)
(2.7)
(1.7)
(2.7)
3.0
4.5
3.0
4.5
ns
ns
ns
ns
40
-
60
%
CONDITIONS
MIN.
0.5
TYP.
-
MAX.
-
UNITS
Vpp
*1) 0.5V
DD
*2) 0.1V
DD
→0.9V
DD
*3) 0.9V
DD
→0.1V
DD
●Reference
Value : XC2301C54V (fQ0=fin/4), XC2301C58V (fQ0=fin/8)
(Unless otherwise stated, V
DD
=3.3V, No Load, Ta=25℃)
PARAMETER
Input Amplitude
Output Duty Cycle (*1)
SYMBOL
Vipp
fin=160MHz, C
L
=15pF, Vipp=1.0Vpp
DUTY
fin=125MHz, C
L
=15pF, Vipp=0.5Vpp
fin=70MHz, C
L
=30pF, Vipp=0.5Vpp
Output Rise Time (*2)
Output Fall Time (*3)
tr
tf
fin=160MHz, C
L
=15pF, Vipp=1.0Vpp
fin=70MHz, C
L
=30pF, Vipp=0.5Vpp
fin=160MHz, C
L
=15pF, Vipp=1.0Vpp
fin=70MHz, C
L
=30pF, Vipp=0.5Vpp
-
-
-
-
(1.7)
(2.7)
(1.7)
(2.7)
3.0
4.5
3.0
4.5
ns
ns
ns
ns
45
-
55
%
CONDITIONS
MIN.
0.5
TYP.
-
MAX.
-
UNITS
Vpp
*1) 0.5V
DD
*2) 0.1V
DD
→0.9V
DD
*3) 0.9V
DD
→0.1V
DD
3/6
XC2301
Series

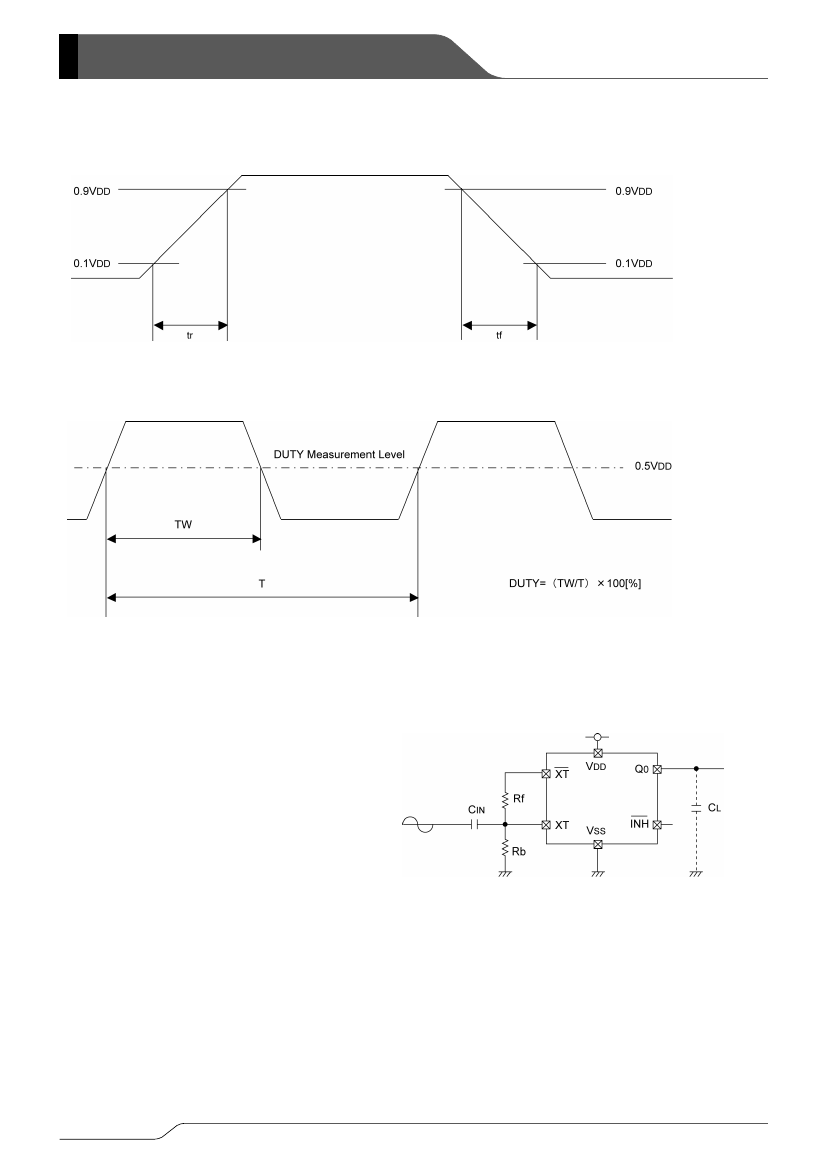

■SWITCHING
WAVEFORMS
(1) Switching Time
(2) Duty Cycle
■SUPPLY
CURRENT, DUTY MEASUREMENT CIRCUIT
*) The feedback resistor (fixed) Rf must be connected.
*) When the duty needs to be adjusted because of power
supply and/or input amplitude, duty resistor (fixed) Rb
should be connected.
<Reference Peripheral Values: Rf, Rb, C
IN
>
V
DD
=3.3V, fin=160MHz, Vipp=0.5Vpp
C
IN
= 10000 [pF]
Rf =
51 [kΩ]
Rb =
360 [kΩ]
4/6
XC2301
Series
■
PACKAGING INFORMATION

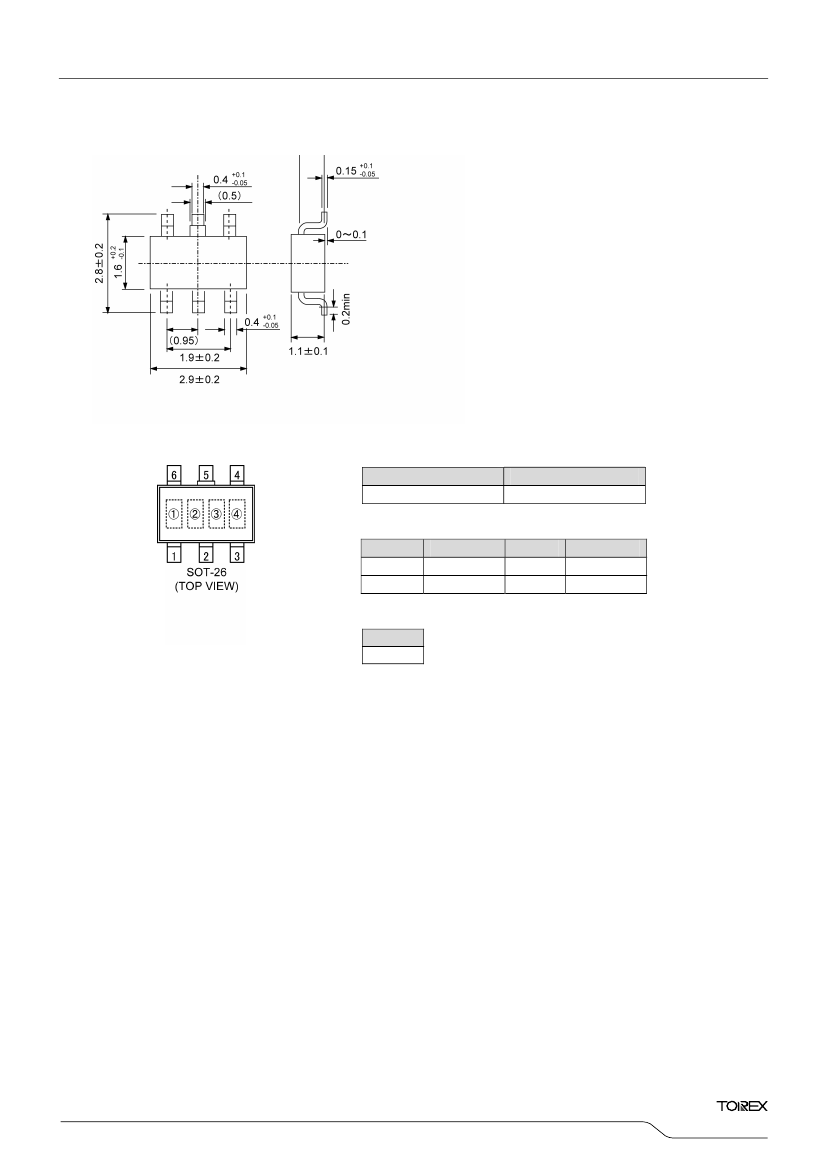

●SOT-26
■
MARKING RULE
●SOT-26
①Represents
product series
MARK
PRODUCT SERIES
1
XC2301xxxxxx
②Represents
divider ratio
MARK
C
D
RATIO
fin/1
fin/2
MARK
E
F
RATIO
fin/4
fin/8
③Represents
tri-state buffer ICs
MARK
V
④Represents
assembly lot number
(Based on internal standards)
5/6
