SRR0908-181Y datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> SRR0908-181Y

SRR0908-181Y: DescriptionGeneral Purpose Inductor, 180uH, 15%, 4 Element, Ferrite-Core, SMD, DIP-8; CategoryPassive components inductor; File Size232KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric Compare View All

SRR0908-181Y Overview

General Purpose Inductor, 180uH, 15%, 4 Element, Ferrite-Core, SMD, DIP-8

SRR0908-181Y Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
core material	FERRITE
DC Resistance	0.5 Ω
Nominal inductance(L)	180 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Manufacturer's serial number	SRR0908
Number of functions	4
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	35
Maximum rated current	0.7 A
self resonant frequency	4.2 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
special characteristics	Q MEASURED AT 0.796 MHZ
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal location	DUAL IN-LINE
Terminal shape	GULL WING
Test frequency	0.001 MHz
Tolerance	15%
Base Number Matches	1

Preview

Download Datasheet

View All

Ro VER LEA

H S SI D F

CO ON RE

M SA E

PL R

IA E

Features

■

Available in E6 series, E12 series optional

■

High inductance up to 15 mH

■

High current up to 5.6 A

■

Gull wing leads

■

Lead free version available (see How to

Applications

■

Input/output of DC/DC converters

■

Power supplies for:

•

Portable communication equipment

•

Camcorders

•

LCD TVs

•

Car radios

Order)

■

Lead free versions are RoHS compliant*

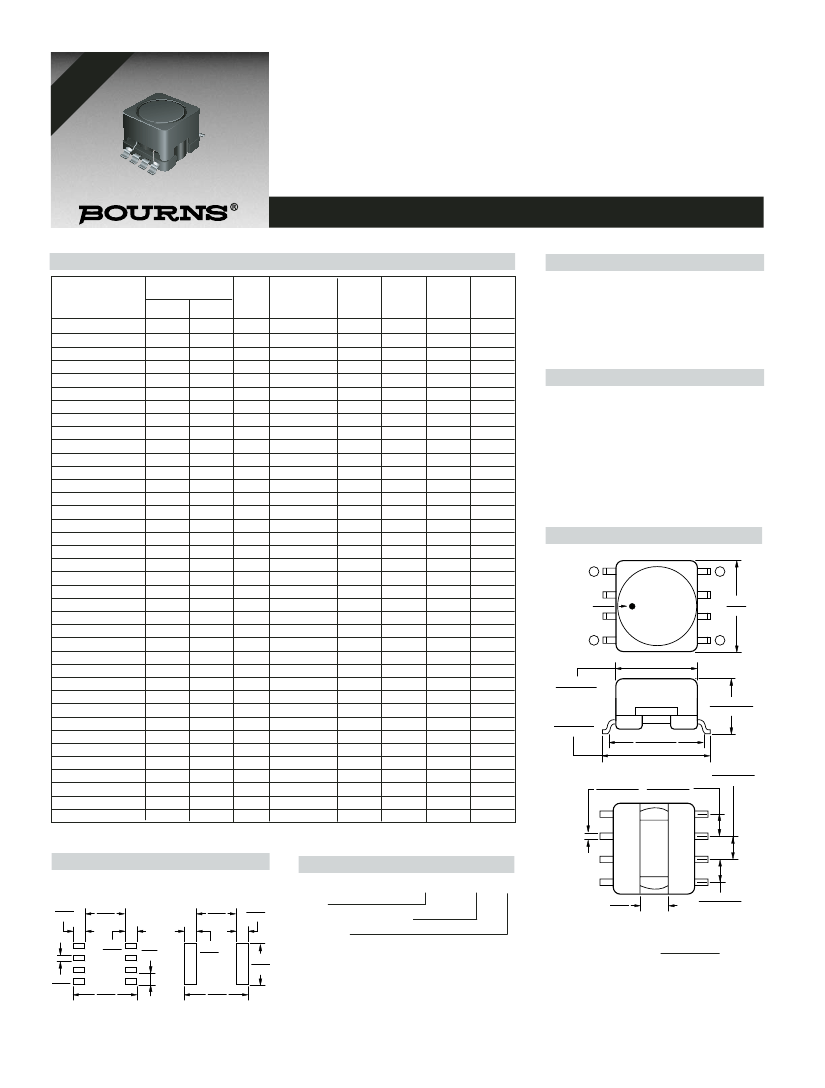

SRR0908 Series - SMD Shielded Power Inductors

Electrical Specifications

Inductance 1 kHz

Bourns Part No.

(µH)

Tol. %

Ref.

Test

Frequency

(MHz)

SRF

Min.

(MHz)

RDC

(ohms)

I rms

Max.

(A)

I sat

Typ.

(A)

SRR0908-1R5M_

SRR0908-2R7M_

SRR0908-3R9M_

SRR0908-5R6M_

SRR0908-7R5M_

SRR0908-100M_

SRR0908-120M_

SRR0908-150M_

SRR0908-180M_

SRR0908-220M_

SRR0908-270M_

SRR0908-330M_

SRR0908-390M_

SRR0908-470M_

SRR0908-560M_

SRR0908-680M_

SRR0908-820M_

SRR0908-101Y_

SRR0908-121Y_

SRR0908-151Y_

SRR0908-181Y_

SRR0908-221Y_

SRR0908-271Y_

SRR0908-331Y_

SRR0908-391Y_

SRR0908-471Y_

SRR0908-561Y_

SRR0908-681Y_

SRR0908-821Y_

SRR0908-102Y_

SRR0908-152Y_

SRR0908-222Y_

SRR0908-332Y_

SRR0908-472Y_

SRR0908-682Y_

SRR0908-822Y_

SRR0908-103Y_

SRR0908-153Y

1.5

2.7

3.9

5.6

7.5

100

120

150

180

220

270

330

390

470

560

680

820

1000

1500

2200

3300

4700

6800

8200

10000

15000

± 20

± 15

120

110

130

7.96M

2.52M

0.796M

0.252M

0.0796M

65.0

50.0

35.0

25.0

15.0

11.0

8.50

6.00

5.00

4.00

3.00

2.50

2.40

6.00

5.70

4.60

4.20

3.80

3.40

3.00

2.60

2.30

2.20

2.00

1.90

1.80

1.30

1.00

0.90

0.80

0.60

0.50

0.40

0.014

0.019

0.021

0.028

0.032

0.040

0.050

0.075

0.080

0.090

0.10

0.14

0.15

0.17

0.18

0.26

0.28

0.34

0.45

0.50

0.60

0.70

0.80

1.00

1.15

1.50

1.70

2.20

2.50

4.00

5.00

8.00

12.00

16.50

24.00

26.00

40.00

5.60

4.80

4.40

3.80

3.40

3.00

2.50

2.20

2.00

1.90

1.80

1.70

1.50

1.40

1.35

1.25

1.05

1.00

0.90

0.80

0.70

0.65

0.60

0.55

0.50

0.45

0.38

0.35

0.32

0.30

0.25

0.20

0.15

0.12

0.10

0.09

0.08

10.00

7.70

6.60

5.50

4.60

4.10

4.00

3.90

3.80

3.30

2.90

2.70

2.40

2.30

2.10

1.90

1.30

1.10

1.00

0.95

0.75

0.70

0.65

0.62

0.55

0.50

0.45

0.41

0.35

0.29

0.24

0.19

0.16

0.14

0.13

0.12

General Specifications

Test Voltage ........................................1 V

Reflow Soldering....230 °C, 50 sec. max.

Operating Temperature ..-40 °C to +125 °C

(Temperature rise included)

Storage Temperature ..-40 °C to +125 °C

Resistance to Soldering Heat

..................................260 °C for 5 sec.

Materials

Core .....................Ferrite DR and RI core

Wire .............................Enameled copper

Base..................................................LCP

Terminal ......................See How to Order

Adhesive ..............................Epoxy resin

Rated Current

....................Ind. drop 10 % typ. at Isat

Temperature Rise

.......................40 °C max. at rated Irms

Packaging.....................400 pcs. per reel

Product Dimensions

MARKING

(PIN 1 SIDE)

101

10.5

(.413)

9.5 ± 0.3

(.374 ± .012)

7.5 ± 0.3

(.295 ± .012)

12.5 ± 0.5

(.492 ± .020)

11.0 ± 0.5

(.433 ± .020)

2.5 ± 0.3

(.098 ± .012)

2.5 ± 0.3

0.7 ± 0.1

(.028 ± .004) (.098 ± .012)

Multiple windings possible (up to four windings).

Recommended Layout

SRR0908-101Y to 153Y

2.2

(.087)

10.3

(.406)

2.2

(.087)

1.0

(.039)

2.5

(.098)

SRR0908-1R5M to 820M

10.3

(.406)

2.2

(.087)

2.2

(.087)

How to Order

SRR0908 - 100M __

Model

Value/Tolerance: from table

Termination

L = Cu/Ni/Sn

Blank = Cu/Ni/SnPb

3.0

(.118)

2.5 ± 0.3

(.098 ± .012)

(.355)

DIMENSIONS:

(INCHES)

14.7

(.578)

14.7

(.578)

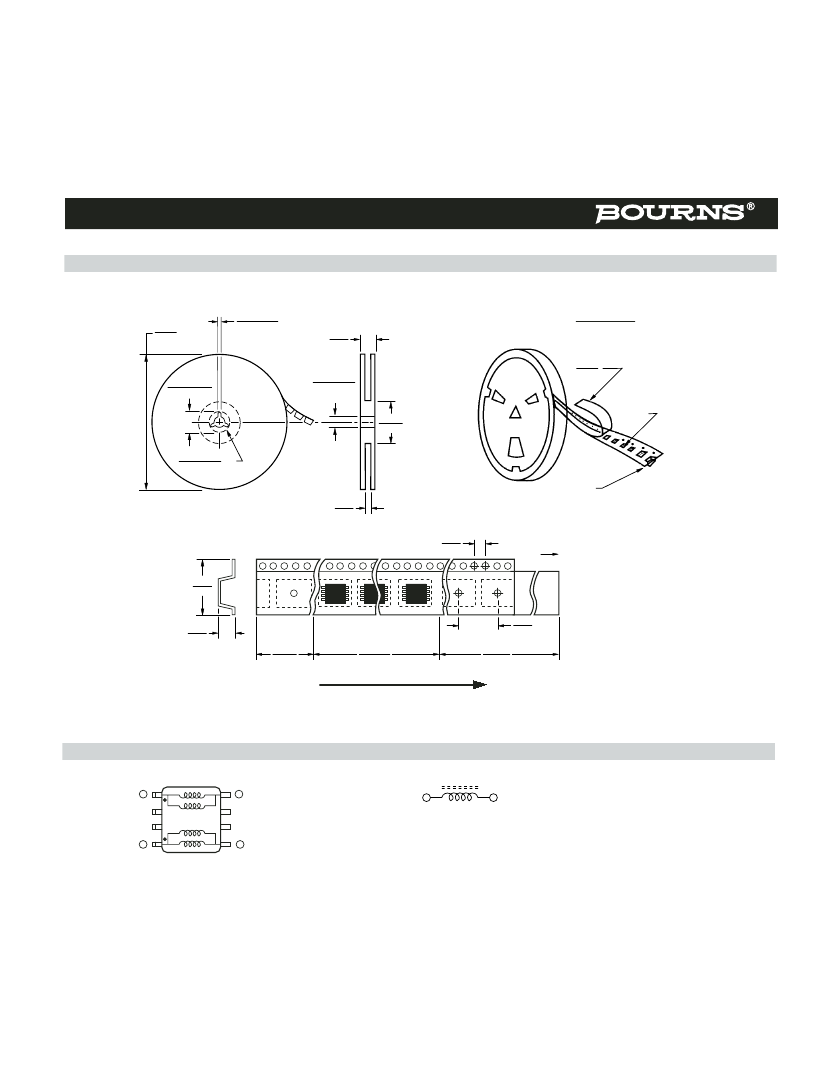

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.

SRR0908-181Y Related Products

	SRR0908-181Y	SRR0908-390M	SRR0908-821Y	SRR0908-271Y	SRR0908-121Y	SRR0908-270M	SRR0908-681Y	SRR0908-391Y
Description	General Purpose Inductor, 180uH, 15%, 4 Element, Ferrite-Core, SMD, DIP-8	General Purpose Inductor, 39uH, 20%, 4 Element, Ferrite-Core, SMD, DIP-8	General Purpose Inductor, 820uH, 15%, 4 Element, Ferrite-Core, SMD, DIP-8	General Purpose Inductor, 270uH, 15%, 4 Element, Ferrite-Core, SMD, DIP-8	General Purpose Inductor, 120uH, 15%, 4 Element, Ferrite-Core, SMD, DIP-8	General Purpose Inductor, 27uH, 20%, 4 Element, Ferrite-Core, SMD, DIP-8	General Purpose Inductor, 680uH, 15%, 4 Element, Ferrite-Core, SMD, DIP-8	General Purpose Inductor, 390uH, 15%, 4 Element, Ferrite-Core, SMD, DIP-8
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
core material	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE
DC Resistance	0.5 Ω	0.14 Ω	2.2 Ω	0.7 Ω	0.34 Ω	0.09 Ω	1.7 Ω	1 Ω
Nominal inductance(L)	180 µH	39 µH	820 µH	270 µH	120 µH	27 µH	680 µH	390 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Manufacturer's serial number	SRR0908	SRR0908	SRR0908	SRR0908	SRR0908	SRR0908	SRR0908	SRR0908
Number of functions	4	4	4	4	4	4	4	4
Number of terminals	8	8	8	8	8	8	8	8
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Minimum quality factor (at nominal inductance)	35	45	35	30	42	45	30	33
Maximum rated current	0.7 A	1.5 A	0.32 A	0.6 A	0.9 A	1.8 A	0.35 A	0.5 A
self resonant frequency	4.2 MHz	5 MHz	1.9 MHz	3.4 MHz	5.7 MHz	6 MHz	2 MHz	2.6 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES	YES	YES	YES	YES	YES	YES
special characteristics	Q MEASURED AT 0.796 MHZ	Q MEASURED AT 2.52 MHZ	Q MEASURED AT 0.796 MHZ	Q MEASURED AT 0.796 MHZ	Q MEASURED AT 0.796 MHZ	Q MEASURED AT 2.52 MHZ	Q MEASURED AT 0.796 MHZ	Q MEASURED AT 0.796 MHZ
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal location	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE
Terminal shape	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Test frequency	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz
Tolerance	15%	20%	15%	15%	15%	20%	15%	15%
Base Number Matches	1	1	1	1	1	1	-	-
