PP1FF14.31818MHZ datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> PP1FF14.31818MHZ

Preview

PP1FF14.31818MHZ: DescriptionParallel - Fundamental Quartz Crystal, 14.31818MHz Nom, ROHS COMPLIANT PACKAGE-4; CategoryPassive components Crystal/resonator; File Size255KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric Compare View All

PP1FF14.31818MHZ Overview

Parallel - Fundamental Quartz Crystal, 14.31818MHz Nom, ROHS COMPLIANT PACKAGE-4

PP1FF14.31818MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-4
Reach Compliance Code	unknown
Other features	AT-CUT CRYSTAL
Ageing	2 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.0015%
frequency tolerance	15 ppm
JESD-609 code	e4
load capacitance	18 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	14.31818 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
physical size	L6.0XB3.5XH1.2 (mm)/L0.236XB0.138XH0.047 (inch)
Series resistance	40 Ω
surface mount	YES
Terminal surface	Nickel/Gold (Ni/Au)
Base Number Matches	1

Preview

Download Datasheet

View All

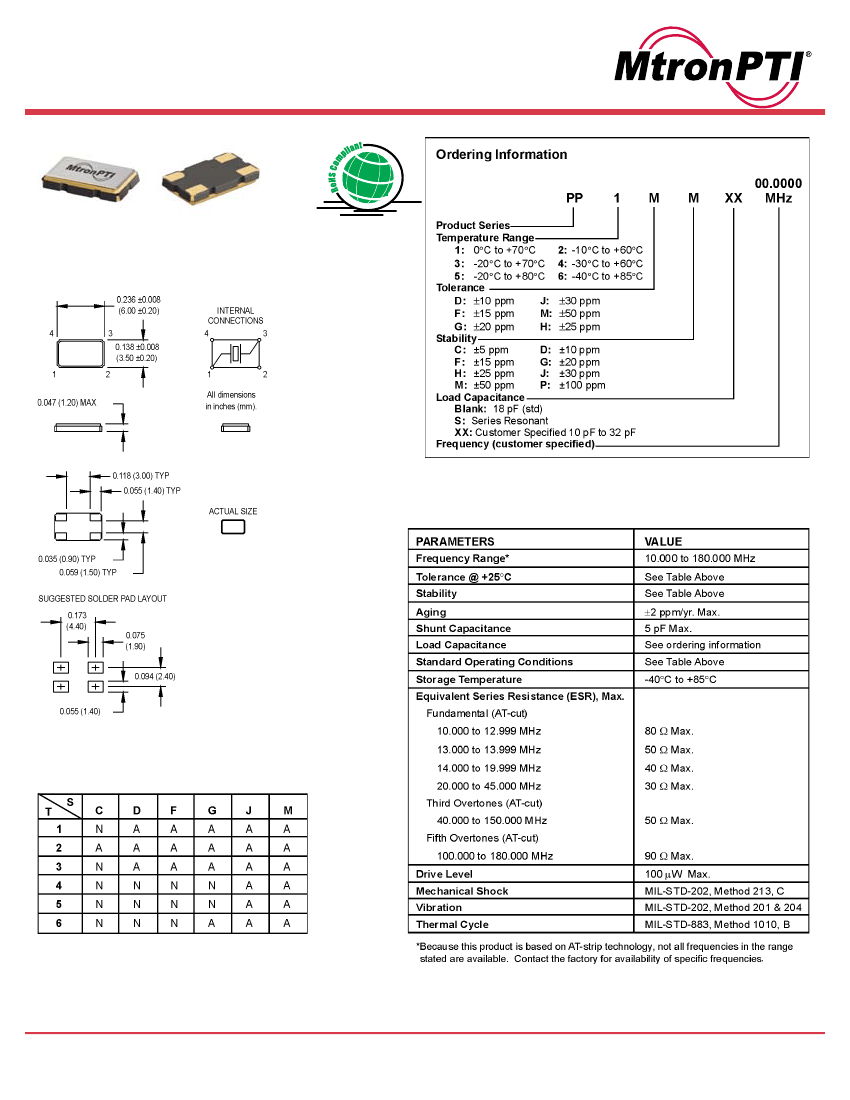

PP Surface Mount Crystals

3.5 x 6.0 x 1.2 mm

Electrical/Environmental Specifications

Available Stabilities vs. Temperature

A = Available

N = Not Available

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Revision: 02-28-07

PP1FF14.31818MHZ Related Products

	PP1FF14.31818MHZ	PP1GD25.000MHZ	PP6JJ12.0000MHZ	PP1FF17.734475MHZ	PP1FF17.73447MHZ	PP2GCSFREQ2
Description	Parallel - Fundamental Quartz Crystal, 14.31818MHz Nom, ROHS COMPLIANT PACKAGE-4	Parallel - Fundamental Quartz Crystal, 25MHz Nom, ROHS COMPLIANT PACKAGE-4	Parallel - Fundamental Quartz Crystal, 12MHz Nom, ROHS COMPLIANT PACKAGE-4	Parallel - Fundamental Quartz Crystal, 17.734475MHz Nom, ROHS COMPLIANT PACKAGE-4	Parallel - Fundamental Quartz Crystal, 17.73447MHz Nom, ROHS COMPLIANT PACKAGE-4	Series - Fundamental Quartz Crystal, 13MHz Min, 13.999MHz Max, ROHS COMPLIANT, MINIATURE PACKAGE-4
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT PACKAGE-4	ROHS COMPLIANT PACKAGE-4	ROHS COMPLIANT PACKAGE-4	ROHS COMPLIANT PACKAGE-4	ROHS COMPLIANT PACKAGE-4	ROHS COMPLIANT PACKAGE-4
Reach Compliance Code	unknown	compliant	compliant	unknown	unknown	unknown
Other features	AT-CUT CRYSTAL	AT-CUT CRYSTAL	AT-CUT CRYSTAL	AT-CUT CRYSTAL	AT-CUT CRYSTAL	AT-CUT CRYSTAL
Ageing	2 PPM/YEAR	2 PPM/YEAR	2 PPM/YEAR	2 PPM/YEAR	2 PPM/YEAR	2 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	SERIES - FUNDAMENTAL
Drive level	100 µW	100 µW	100 µW	100 µW	100 µW	100 µW
frequency stability	0.0015%	0.001%	0.003%	0.0015%	0.0015%	0.0005%
frequency tolerance	15 ppm	20 ppm	30 ppm	15 ppm	15 ppm	20 ppm
JESD-609 code	e4	e4	e4	e4	e4	e4
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	70 °C	70 °C	85 °C	70 °C	70 °C	60 °C
physical size	L6.0XB3.5XH1.2 (mm)/L0.236XB0.138XH0.047 (inch)	L6.0XB3.5XH1.2 (mm)/L0.236XB0.138XH0.047 (inch)	L6.0XB3.5XH1.2 (mm)/L0.236XB0.138XH0.047 (inch)	L6.0XB3.5XH1.2 (mm)/L0.236XB0.138XH0.047 (inch)	L6.0XB3.5XH1.2 (mm)/L0.236XB0.138XH0.047 (inch)	L6.0XB3.5XH1.2 (mm)/L0.236XB0.138XH0.047 (inch)
Series resistance	40 Ω	30 Ω	80 Ω	40 Ω	40 Ω	50 Ω
surface mount	YES	YES	YES	YES	YES	YES
Terminal surface	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)
load capacitance	18 pF	18 pF	18 pF	18 pF	18 pF	-
Nominal operating frequency	14.31818 MHz	25 MHz	12 MHz	17.734475 MHz	17.73447 MHz	-
