NJM2130F-(TE2): DescriptionNJM2130F-(TE2)放大器基础信息： NJM2130F-(TE2)是一款OPERATIONAL AMPLIFIER。常用的包装方式为MTP-5 NJM2130F-(TE2)放大器核心信息： NJM2130F-(TE2)的最低工作温度是-40 °C，最高工作温度是85 °C。其峰值回流温度为26025℃下的最大偏置电流为：0.25 µA他的最大平均偏置电流为0.25 µA 如何简单看一个放大器效率？看它的压摆率，NJM2130F-(TE2)的标称压摆率有0.5 V/us。厂商给出的NJM2130F-(TE2)的最大压摆率为0.17 mA.其最小电压增益为1000。NJM2130F-(TE2)的功率为NO。其可编程功率为NO。 NJM2130F-(TE2)的标称供电电压为15 V，其对应的标称负供电电压为-15 V。NJM2130F-(TE2)的输入失调电压为5000 µV（输入失调电压：使运算放大器输出端为0V(或接近0V)所需加于两输入端之间的补偿电压。） NJM2130F-(TE2)的相关尺寸： NJM2130F-(TE2)的宽度为：1.6 mm，长度为2.9 mmNJM2130F-(TE2)拥有5个端子.其端子位置类型为：DUAL。端子节距为0.95 mm。共有针脚：5 NJM2130F-(TE2)放大器其他信息： NJM2130F-(TE2) adopts the VOLTAGE-FEEDBACK architecture. It is not a low-bias amplifier. It does not belong to the low offset class of amplifiers. The frequency compensation status of NJM2130F-(TE2) is: YES. Its temperature grade is: INDUSTRIAL. And its humidity sensitivity level is: 2. It is a micropower amplifier. NJM2130F-(TE2) does not comply with Rohs certification. It does not contain lead. The corresponding JESD-30 code is: R-PDSO-G5. The corresponding JESD-609 code is: e0. The packaging code of NJM2130F-(TE2) is: LSSOP. NJM2130F-(TE2) packaging materials are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. NJM2130F-(TE2) package pin formats are: SMALL OUTLINE, LOW PROFILE, SHRINK PITCH. Its terminal forms are: GULL WING. The maximum seat height is 1.3 mm.; CategoryAnalog mixed-signal IC Amplifier circuit; File Size143KB，3 Pages; ManufacturerNew Japan Radio Co., Ltd..; Environmental Compliance; Alternative parts：NJM2130F-(TE2)

Download Datasheet Parametric Compare View All

NJM2130F-(TE2) Overview

NJM2130F-(TE2)放大器基础信息：

NJM2130F-(TE2)是一款OPERATIONAL AMPLIFIER。常用的包装方式为MTP-5

NJM2130F-(TE2)放大器核心信息：

NJM2130F-(TE2)的最低工作温度是-40 °C，最高工作温度是85 °C。其峰值回流温度为26025℃下的最大偏置电流为：0.25 µA他的最大平均偏置电流为0.25 µA

如何简单看一个放大器效率？看它的压摆率，NJM2130F-(TE2)的标称压摆率有0.5 V/us。厂商给出的NJM2130F-(TE2)的最大压摆率为0.17 mA.其最小电压增益为1000。NJM2130F-(TE2)的功率为NO。其可编程功率为NO。

NJM2130F-(TE2)的标称供电电压为15 V，其对应的标称负供电电压为-15 V。NJM2130F-(TE2)的输入失调电压为5000 µV（输入失调电压：使运算放大器输出端为0V(或接近0V)所需加于两输入端之间的补偿电压。）

NJM2130F-(TE2)的相关尺寸：

NJM2130F-(TE2)的宽度为：1.6 mm，长度为2.9 mmNJM2130F-(TE2)拥有5个端子.其端子位置类型为：DUAL。端子节距为0.95 mm。共有针脚：5

NJM2130F-(TE2)放大器其他信息：

NJM2130F-(TE2) adopts the VOLTAGE-FEEDBACK architecture. It is not a low-bias amplifier. It does not belong to the low offset class of amplifiers. The frequency compensation status of NJM2130F-(TE2) is: YES. Its temperature grade is: INDUSTRIAL.

And its humidity sensitivity level is: 2. It is a micropower amplifier. NJM2130F-(TE2) does not comply with Rohs certification. It does not contain lead. The corresponding JESD-30 code is: R-PDSO-G5.

The corresponding JESD-609 code is: e0. The packaging code of NJM2130F-(TE2) is: LSSOP. NJM2130F-(TE2) packaging materials are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. NJM2130F-(TE2) package pin formats are: SMALL OUTLINE, LOW PROFILE, SHRINK PITCH.

Its terminal forms are: GULL WING. The maximum seat height is 1.3 mm.

NJM2130F-(TE2) Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	MTP-5
Contacts	5
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.25 µA
Maximum bias current (IIB) at 25C	0.25 µA
Nominal Common Mode Rejection Ratio	90 dB
frequency compensation	YES
Maximum input offset voltage	5000 µV
JESD-30 code	R-PDSO-G5
JESD-609 code	e0
length	2.9 mm
low-bias	NO
low-dissonance	NO
micropower	YES
Humidity sensitivity level	2
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	5
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Encapsulate equivalent code	TSOP5/6,.11,37
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
method of packing	TAPE AND REEL
Peak Reflow Temperature (Celsius)	260
power	NO
power supply	+-15 V
Programmable power	NO
Certification status	Not Qualified
Maximum seat height	1.3 mm
Nominal slew rate	0.5 V/us
Maximum slew rate	0.17 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Minimum voltage gain	1000
broadband	NO
width	1.6 mm
Base Number Matches	1

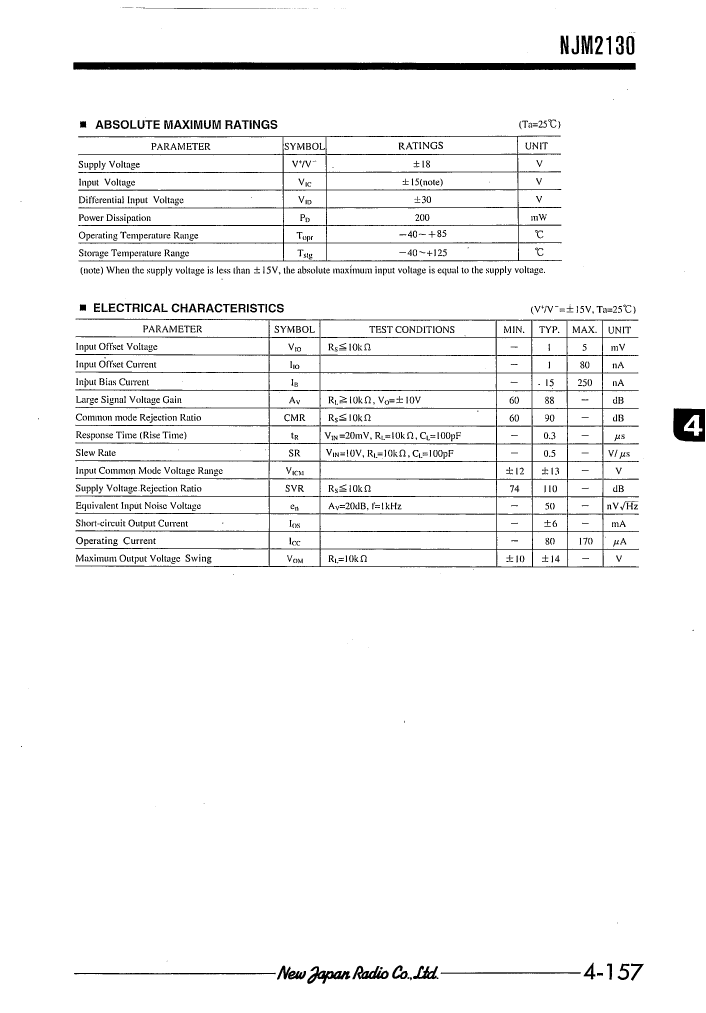

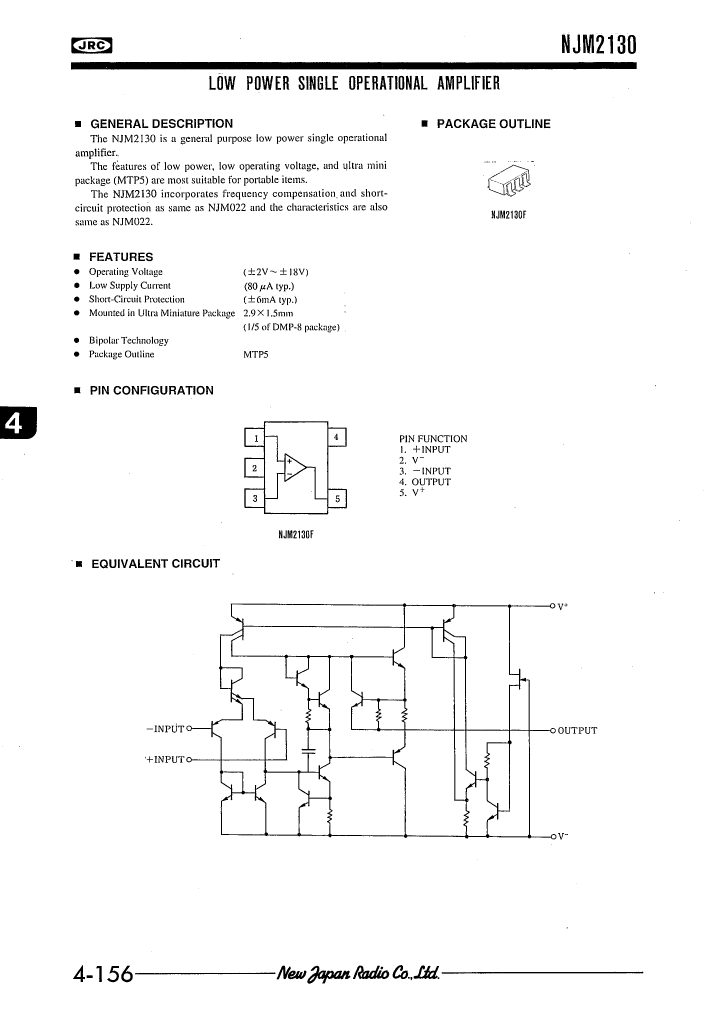

Preview

Download Datasheet

View All

NJM2130F-(TE2) Related Products

	NJM2130F-(TE2)	NJM2130F-(TE1)
Description	Operational Amplifier, 1 Func, 5000uV Offset-Max, BIPolar, PDSO5, MTP-5	Operational Amplifier, 1 Func, 5000uV Offset-Max, BIPolar, PDSO5, MTP-5
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	SOIC	SOIC
package instruction	MTP-5	MTP-5
Contacts	5	5
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.25 µA	0.25 µA
Maximum bias current (IIB) at 25C	0.25 µA	0.25 µA
Nominal Common Mode Rejection Ratio	90 dB	90 dB
frequency compensation	YES	YES
Maximum input offset voltage	5000 µV	5000 µV
JESD-30 code	R-PDSO-G5	R-PDSO-G5
JESD-609 code	e0	e0
length	2.9 mm	2.9 mm
low-bias	NO	NO
low-dissonance	NO	NO
micropower	YES	YES
Humidity sensitivity level	2	2
Negative supply voltage upper limit	-18 V	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of functions	1	1
Number of terminals	5	5
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSSOP	LSSOP
Encapsulate equivalent code	TSOP5/6,.11,37	TSOP5/6,.11,37
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
method of packing	TAPE AND REEL	TAPE AND REEL
Peak Reflow Temperature (Celsius)	260	260
power	NO	NO
power supply	+-15 V	+-15 V
Programmable power	NO	NO
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.3 mm	1.3 mm
Nominal slew rate	0.5 V/us	0.5 V/us
Maximum slew rate	0.17 mA	0.17 mA
Supply voltage upper limit	18 V	18 V
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	YES	YES
technology	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	0.95 mm	0.95 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Minimum voltage gain	1000	1000
broadband	NO	NO
width	1.6 mm	1.6 mm
Base Number Matches	1	1
