NJM2116M-(T1) datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> NJM2116M-(T1)

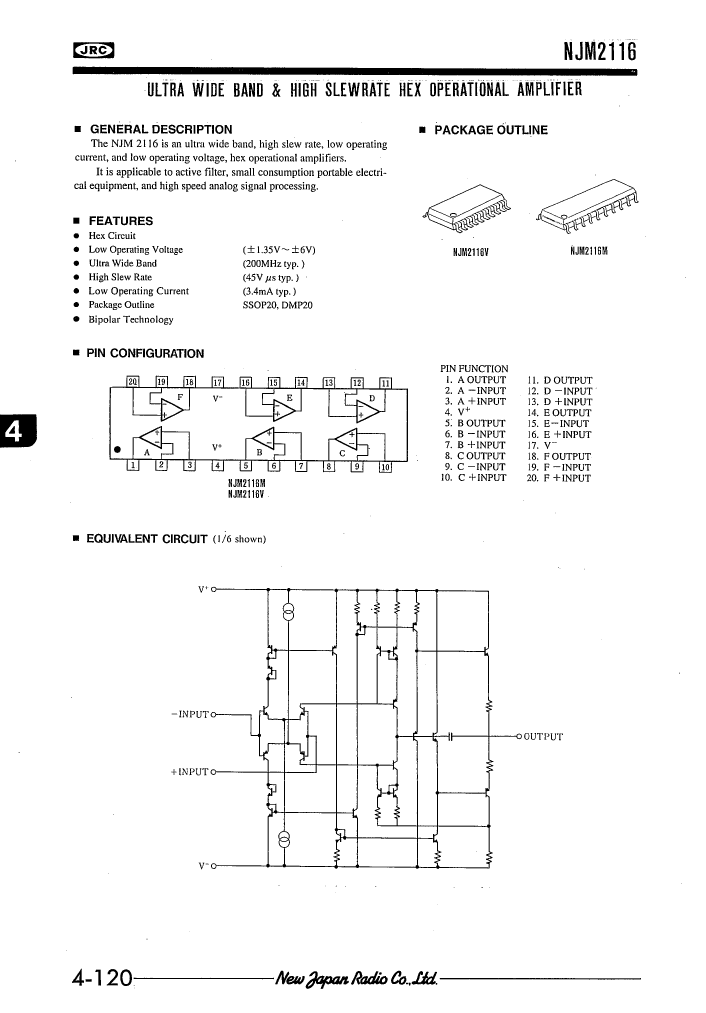

Preview

NJM2116M-(T1): DescriptionNJM2116M-(T1) amplifier basic information: NJM2116M-(T1) is an OPERATIONAL AMPLIFIER. The commonly used packaging method is DMP-20 NJM2116M-(T1) amplifier core information: The minimum operating temperature of NJM2116M-(T1) is -40 °C and the maximum operating temperature is 85 °C. Its peak reflow temperature is 260°C and its maximum average bias current is 2 µA How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of NJM2116M-(T1) is 45 V/us. When the op amp is used in a closed loop, at a specified closed loop gain (usually 1 or 2, 10, etc.), the frequency when the NJM2116M-(T1) gain becomes 0.707 times the low-frequency gain is 200000 kHz. The nominal supply voltage of NJM2116M-(T1) is 2.5 V, and its corresponding nominal negative supply voltage is -2.5 V. The input offset voltage of NJM2116M-(T1) is 5000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).) Relevant dimensions of NJM2116M-(T1): The width of NJM2116M-(T1) is: 5 mm and the length is 10 mm. NJM2116M-(T1) has 20 terminals. Its terminal position type is: DUAL. Terminal pitch is 0.95 mm. Total pins: 20 NJM2116M-(T1) amplifier other information: 其温度等级为：INDUSTRIAL。NJM2116M-(T1)不符合Rohs认证。其对应的的JESD-30代码为：R-PDSO-G20。其对应的的JESD-609代码为：e6。NJM2116M-(T1)的封装代码是：SSOP。 NJM2116M-(T1)封装的材料多为PLASTIC/EPOXY。而其封装形状为RECTANGULAR。NJM2116M-(T1)封装引脚的形式有：SMALL OUTLINE, SHRINK PITCH。其端子形式有：GULL WING。座面最大高度为2 mm。; CategoryAnalog mixed-signal IC Amplifier circuit; File Size215KB，5 Pages; ManufacturerNew Japan Radio Co., Ltd..; Environmental Compliance; Alternative parts：NJM2116M-(T1)

Download Datasheet Parametric Compare View All

NJM2116M-(T1) Overview

NJM2116M-(T1) amplifier basic information:

NJM2116M-(T1) is an OPERATIONAL AMPLIFIER. The commonly used packaging method is DMP-20

NJM2116M-(T1) amplifier core information:

The minimum operating temperature of NJM2116M-(T1) is -40 °C and the maximum operating temperature is 85 °C. Its peak reflow temperature is 260°C and its maximum average bias current is 2 µA

How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of NJM2116M-(T1) is 45 V/us. When the op amp is used in a closed loop, at a specified closed loop gain (usually 1 or 2, 10, etc.), the frequency when the NJM2116M-(T1) gain becomes 0.707 times the low-frequency gain is 200000 kHz.

The nominal supply voltage of NJM2116M-(T1) is 2.5 V, and its corresponding nominal negative supply voltage is -2.5 V. The input offset voltage of NJM2116M-(T1) is 5000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

Relevant dimensions of NJM2116M-(T1):

The width of NJM2116M-(T1) is: 5 mm and the length is 10 mm. NJM2116M-(T1) has 20 terminals. Its terminal position type is: DUAL. Terminal pitch is 0.95 mm. Total pins: 20

NJM2116M-(T1) amplifier other information:

其温度等级为：INDUSTRIAL。NJM2116M-(T1)不符合Rohs认证。其对应的的JESD-30代码为：R-PDSO-G20。其对应的的JESD-609代码为：e6。NJM2116M-(T1)的封装代码是：SSOP。

NJM2116M-(T1)封装的材料多为PLASTIC/EPOXY。而其封装形状为RECTANGULAR。NJM2116M-(T1)封装引脚的形式有：SMALL OUTLINE, SHRINK PITCH。其端子形式有：GULL WING。座面最大高度为2 mm。

NJM2116M-(T1) Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	SOIC
package instruction	DMP-20
Contacts	20
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	2 µA
Nominal Common Mode Rejection Ratio	60 dB
Maximum input offset voltage	5000 µV
JESD-30 code	R-PDSO-G20
JESD-609 code	e6
length	10 mm
Negative supply voltage upper limit	-6.75 V
Nominal Negative Supply Voltage (Vsup)	-2.5 V
Number of functions	6
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	2 mm
Nominal slew rate	45 V/us
Supply voltage upper limit	6.75 V
Nominal supply voltage (Vsup)	2.5 V
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	TIN BISMUTH
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	200000 kHz
width	5 mm
Base Number Matches	1

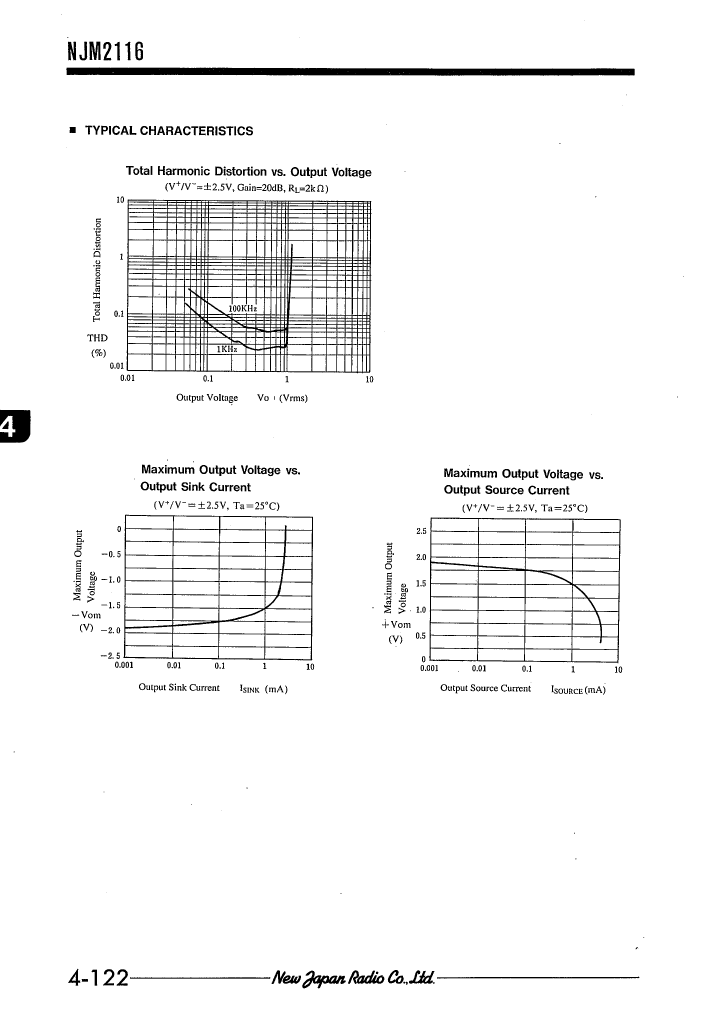

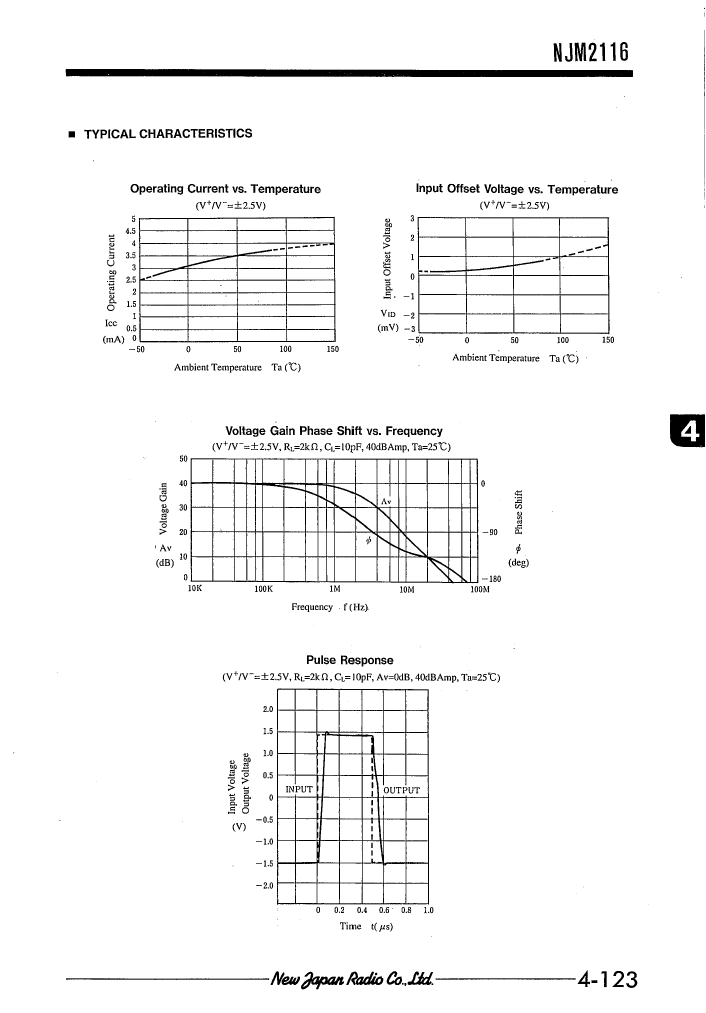

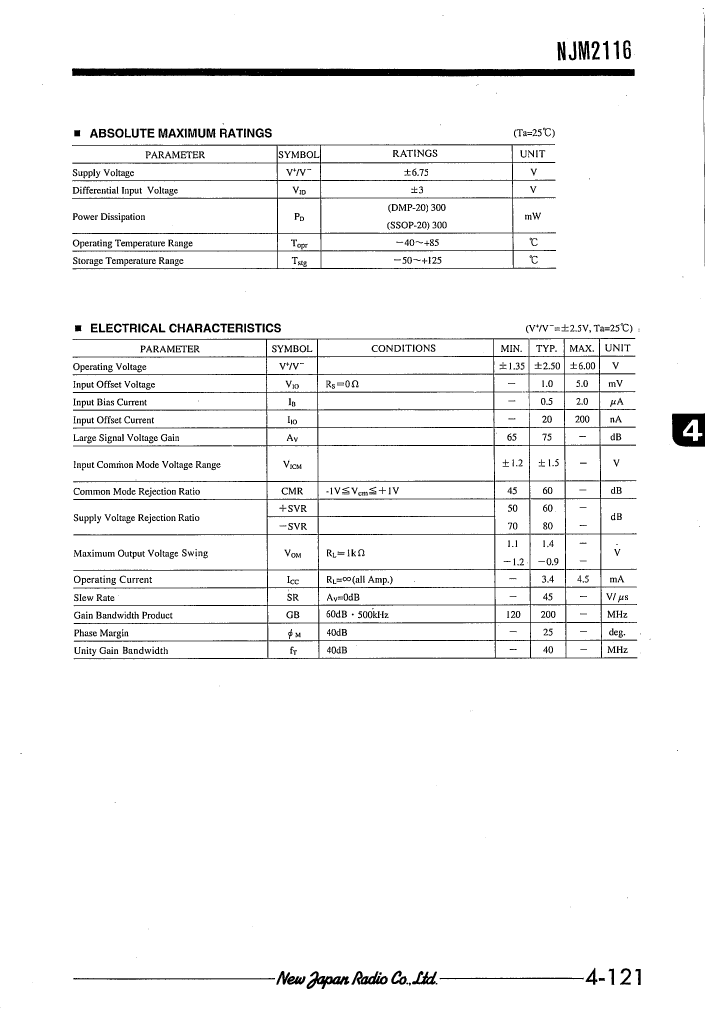

Preview

Download Datasheet

View All

NJM2116M-(T1) Related Products

	NJM2116M-(T1)	NJM2116M-(TE1)	NJM2116M-(TE2)	NJM2116M-(T2)	NJM2116V-(TE2)	NJM2116V-(TE1)
Description	Operational Amplifier, 6 Func, 5000uV Offset-Max, BIPolar, PDSO20, DMP-20	Operational Amplifier, 6 Func, 5000uV Offset-Max, BIPolar, PDSO20, DMP-20	Operational Amplifier, 6 Func, 5000uV Offset-Max, BIPolar, PDSO20, DMP-20	Operational Amplifier, 6 Func, 5000uV Offset-Max, BIPolar, PDSO20, DMP-20	Operational Amplifier, 6 Func, 5000uV Offset-Max, BIPolar, PDSO20, SSOP-20	Operational Amplifier, 6 Func, 5000uV Offset-Max, BIPolar, PDSO20, SSOP-20
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SSOP	SSOP
package instruction	DMP-20	DMP-20	DMP-20	DMP-20	SSOP-20	SSOP-20
Contacts	20	20	20	20	20	20
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	2 µA	2 µA	2 µA	2 µA	2 µA	2 µA
Nominal Common Mode Rejection Ratio	60 dB	60 dB	60 dB	60 dB	60 dB	60 dB
Maximum input offset voltage	5000 µV	5000 µV	5000 µV	5000 µV	5000 µV	5000 µV
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20
JESD-609 code	e6	e6	e6	e6	e6	e6
length	10 mm	10 mm	10 mm	10 mm	6.5 mm	6.5 mm
Negative supply voltage upper limit	-6.75 V	-6.75 V	-6.75 V	-6.75 V	-6.75 V	-6.75 V
Nominal Negative Supply Voltage (Vsup)	-2.5 V	-2.5 V	-2.5 V	-2.5 V	-2.5 V	-2.5 V
Number of functions	6	6	6	6	6	6
Number of terminals	20	20	20	20	20	20
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP	SSOP	SSOP	LSSOP	LSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2 mm	2 mm	2 mm	2 mm	1.45 mm	1.45 mm
Nominal slew rate	45 V/us	45 V/us	45 V/us	45 V/us	45 V/us	45 V/us
Supply voltage upper limit	6.75 V	6.75 V	6.75 V	6.75 V	6.75 V	6.75 V
Nominal supply voltage (Vsup)	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH	TIN BISMUTH
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.95 mm	0.95 mm	0.95 mm	0.95 mm	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	200000 kHz	200000 kHz	200000 kHz	200000 kHz	200000 kHz	200000 kHz
width	5 mm	5 mm	5 mm	5 mm	4.4 mm	4.4 mm
Base Number Matches	1	1	1	1	1	1
