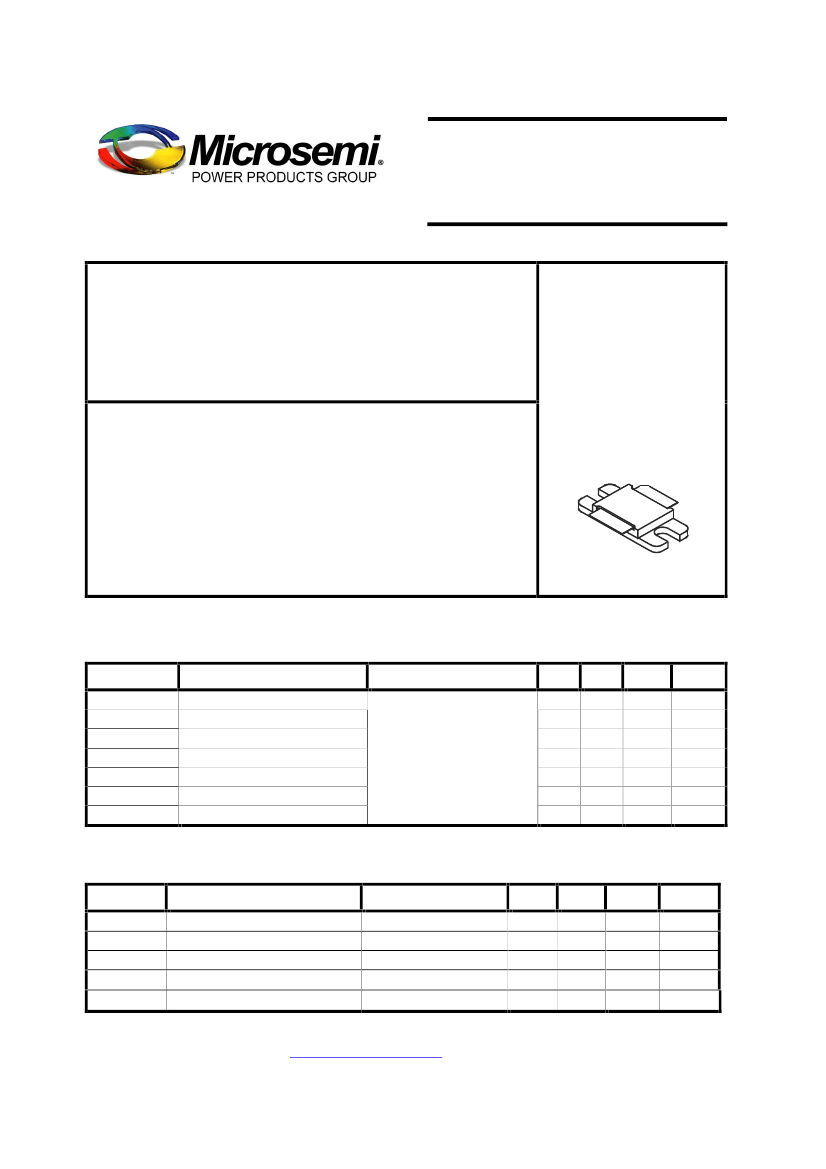

3134-100R1
100 Watts, 36 Volts, 100µs, 10%
Radar 3100-3400 MHz
3134-100
GENERAL DESCRIPTION
The 3134-100 is an internally matched, COMMON BASE bipolar transistor
capable of providing 100 Watts of pulsed RF output power at 100µõ pulse
s
width, 10% duty factor across the 3100 to 3400 MHz band. This hermetically
solder-sealed transistor is specifically designed for S-band radar applications. It
utilizes gold metallization and emitter ballasting to provide high reliability and
supreme ruggedness.

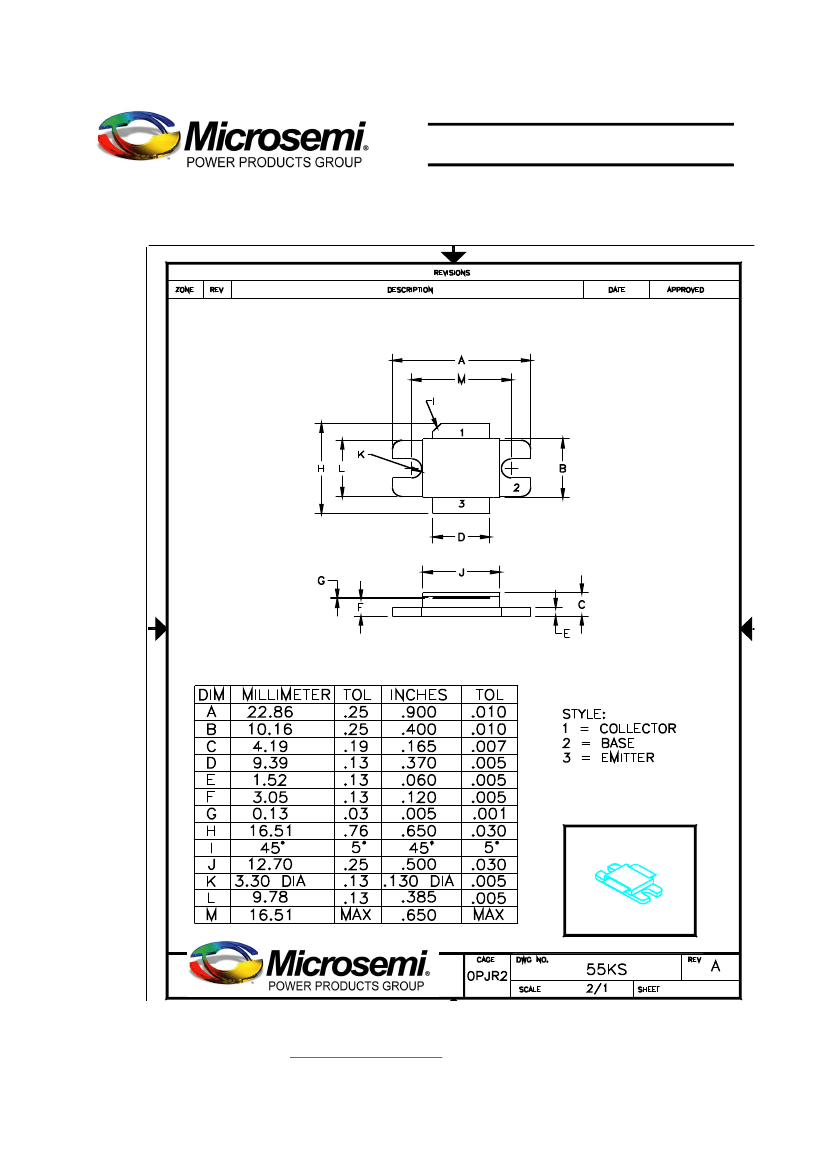

CASE OUTLINE
55KS-1
Common Base
ABSOLUTE MAXIMUM RATINGS
Maximum Power Dissipation
Device Dissipation @ 25°
1
C
570 W
Maximum Voltage and Current
Collector to Base Voltage (BV
ces
)
65
Emitter to Base Voltage (BV
ebo
)
3.0
Collector Current (I
c
)
17 A
Maximum Temperatures
Storage Temperature
-65 to +200
Operating Junction Temperature
+200
V
V
°
C
°
C
ELECTRICAL CHARACTERISTICS @ 25°C
SYMBOL
P
out
Gain
η
c
Droop
IRL
VSWR-S
VSWR-T
CHARACTERISTICS
Power Output
Power Gain
Collector Efficiency
Droop
Input Return Loss
Stability
Survivability
TEST CONDITIONS
F=3100-3400 MHz
Vcc = 36V
Pulse Width = 100 us
Duty Cycle = 10%
Pin = 16W
MIN
100
8.0
40
TYP
MAX
135
9.3
0.5
-7
1.5:1
2.0:1
UNITS
W
%
dB
dB
FUNCTIONAL CHARACTERISTICS @ 25°C
SYMBOL
BV
ebo
BV
ces
Ices
θjc
Tstg
CHARACTERISTICS
Emitter to Base Breakdown
Collector to Emitter Breakdown
Collector to Emitter Leakage
Thermal Resistance
Storage Temperature
TEST CONDITIONS
Ie = 30 mA
Ic = 120 mA
Vce = 36 V
MIN
3.0
65
7
0.35
200
TYP
MAX
UNITS
V
V
mA
°
C/W
°
C
-65
MICROSEMI RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE. TO VERIFY THE CURRENT VERSION PLEASE
CHECK OUR WEB SITE AT
WWW.MICROSEMI.COM
OR CONTACT OUR FACTORY DIRECTLY.
3134-100R1
3134 – 100

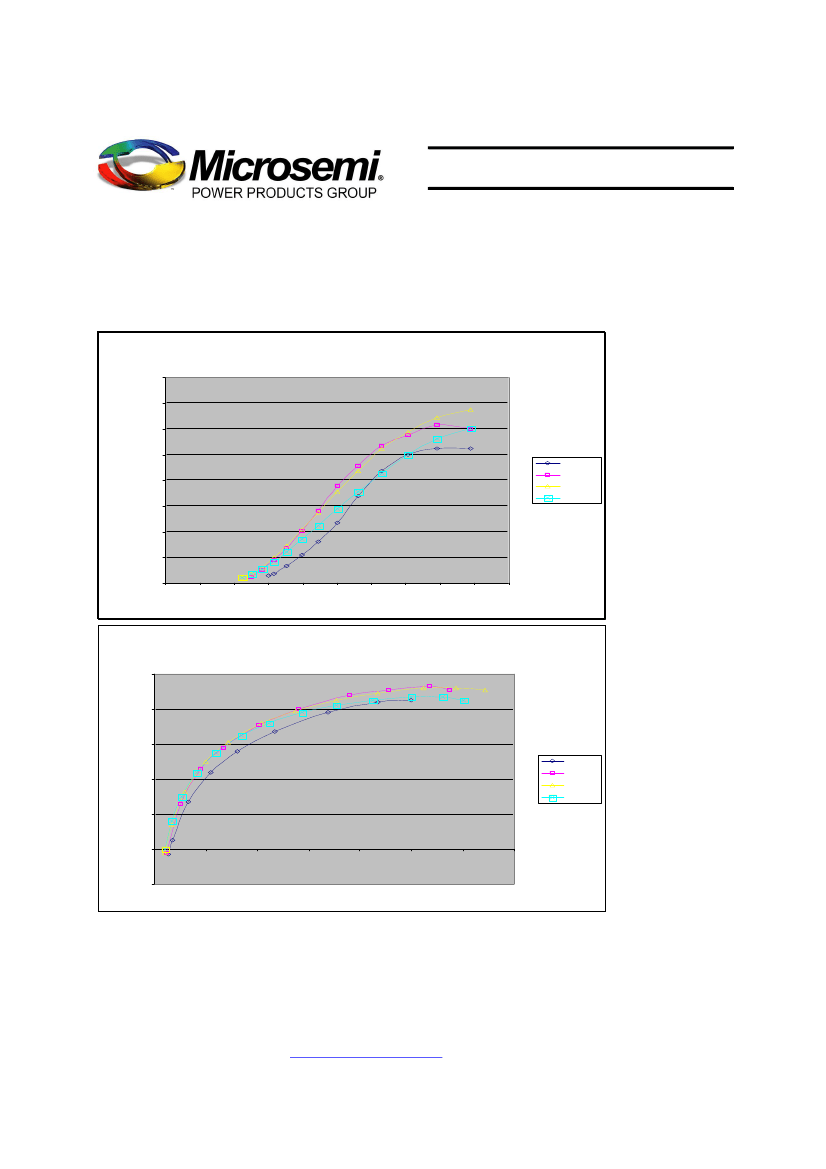

Typical Dynamic Range Data
Vcc = 36 Volts, Pulse Width = 100µs, Duty = 10 %
3 1 3 4 - 1 0 0 P in v s . P o u t
V cc=36V , 100u s 10%
1 6 0 .0 0
1 4 0 .0 0
1 2 0 .0 0
1 0 0 .0 0
3 .1 G H z
Pout (W)
8 0 .0 0
3 .2 G H z
3 .3 G H z
3 .4 G H z
6 0 .0 0
4 0 .0 0
2 0 .0 0
0 .0 0
0 .0 0
2 .0 0
4 .0 0
6 .0 0
8 .0 0
1 0 .0 0
P in ( W )
1 2 .0 0
1 4 .0 0
1 6 .0 0
1 8 .0 0
2 0 .0 0
3 1 3 4 - 1 0 0 P o u t vs . Ga in
V c c=3 6 V , 1 0 0 us 10 %
1 0 .0 0
8 .0 0
6 .0 0
Gain (dB)
3 .1 G H z
4 .0 0
3 .2 G H z
3 .3 G H z
3 .4 G H z
2 .0 0
0 .0 0
0 .0 0
2 0 .0 0
4 0 .0 0
6 0 .0 0
8 0 .0 0
1 0 0 .0 0
1 2 0 .0 0
1 4 0 .0 0
- 2 .0 0
Po u t (W )
MICROSEMI RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE. TO VERIFY THE CURRENT VERSION PLEASE
CHECK OUR WEB SITE AT
WWW.MICROSEMI.COM
OR CONTACT OUR FACTORY DIRECTLY.
3134-100R1
3134 – 100
Input and Output Impedance
Input
Matching
Network
Output
Matching
Network
Z
in
Z
out
Typical Impedance Values
Frequency (MHz)
3100
3200
3300
3400
* V
cc
= 36V, P
out
= 100W min
* Pulse Format: 100 uS 10%
Z
in
(?”)
4.79 - j0.44
5.05 - j0.38
5.29 - j0.37
5.50 - j0.39
Z
out
(?”)
5.51 – j5.76
5.10 – j5.68
4.75 – j5.55
4.47 – j5.38
MICROSEMI RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE. TO VERIFY THE CURRENT VERSION PLEASE
CHECK OUR WEB SITE AT
WWW.MICROSEMI.COM
OR CONTACT OUR FACTORY DIRECTLY.
3134-100R1
3134 – 100

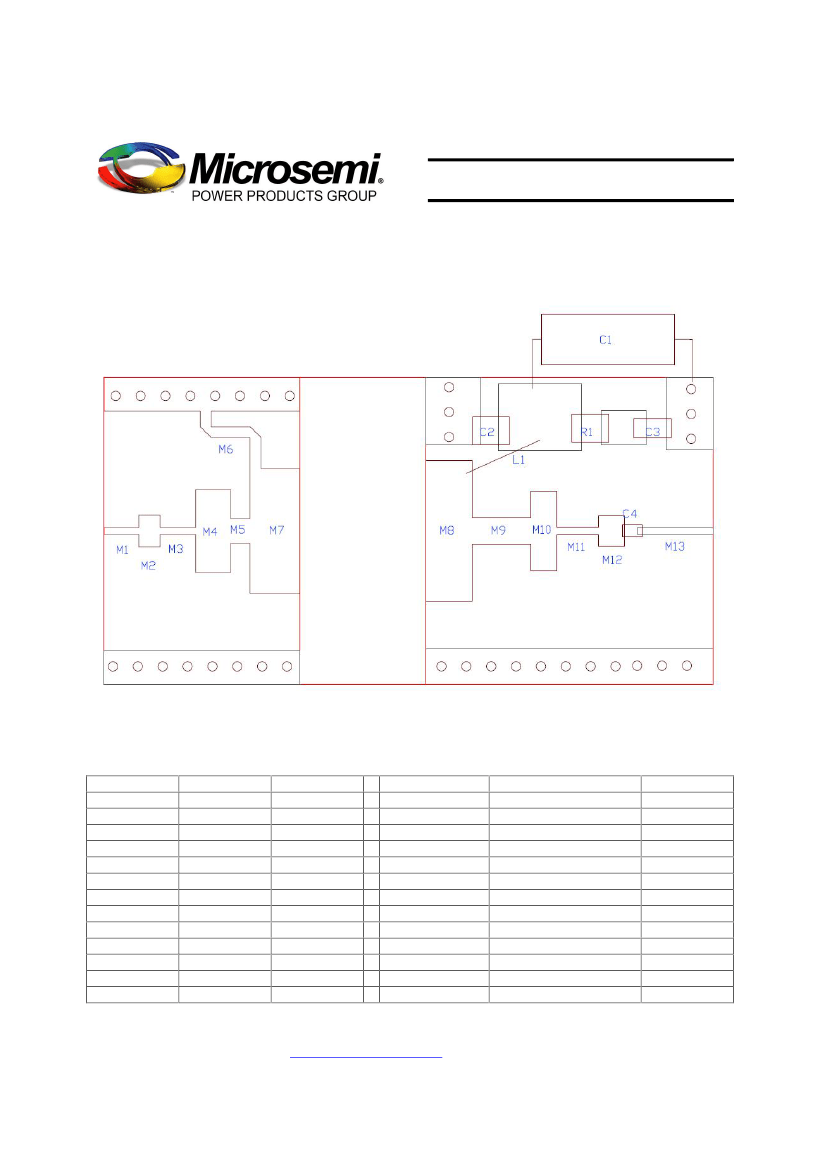

Broadband Test Circuit
PCB Material: Rogers RT6010, Er 10.2, 25mil
Designation
M1
M2
M3
M4
M5
M6
M7
M8
M9
M10
M11
M12
M13
Circuit Dimensions
W (mil)
L (mil)
22
112
103
68
22
115
266
113
78
62
35
345
400
160
450
150
86
188
255
84
22
135
99
83
22
245
Designation
C1
C2
C3
C4
R1
L1
Component List
Value
2200 uF
100 pF
10000 pF
10 pF
8.2 ohms
20 AWG wire
Size
Electrolytic
ATC B
ATC B
ATC A
1206
400 mil
MICROSEMI RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE. TO VERIFY THE CURRENT VERSION PLEASE
CHECK OUR WEB SITE AT
WWW.MICROSEMI.COM
OR CONTACT OUR FACTORY DIRECTLY.
