RHRP870CC: DescriptionRectifier Diode, Avalanche, 1 Phase, 2 Element, 8A, 700V V(RRM), Silicon; CategoryDiscrete semiconductor diode; File Size32KB，2 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric View All

RHRP870CC Overview

Rectifier Diode, Avalanche, 1 Phase, 2 Element, 8A, 700V V(RRM), Silicon

RHRP870CC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	R-PSFM-T3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	FREEWHEELING DIODE
application	HYPERFAST SOFT RECOVERY
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	3 V
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Maximum non-repetitive peak forward current	100 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	8 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum power dissipation	75 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	700 V
Maximum reverse current	100 µA
Maximum reverse recovery time	0.065 µs
surface mount	NO
technology	AVALANCHE
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

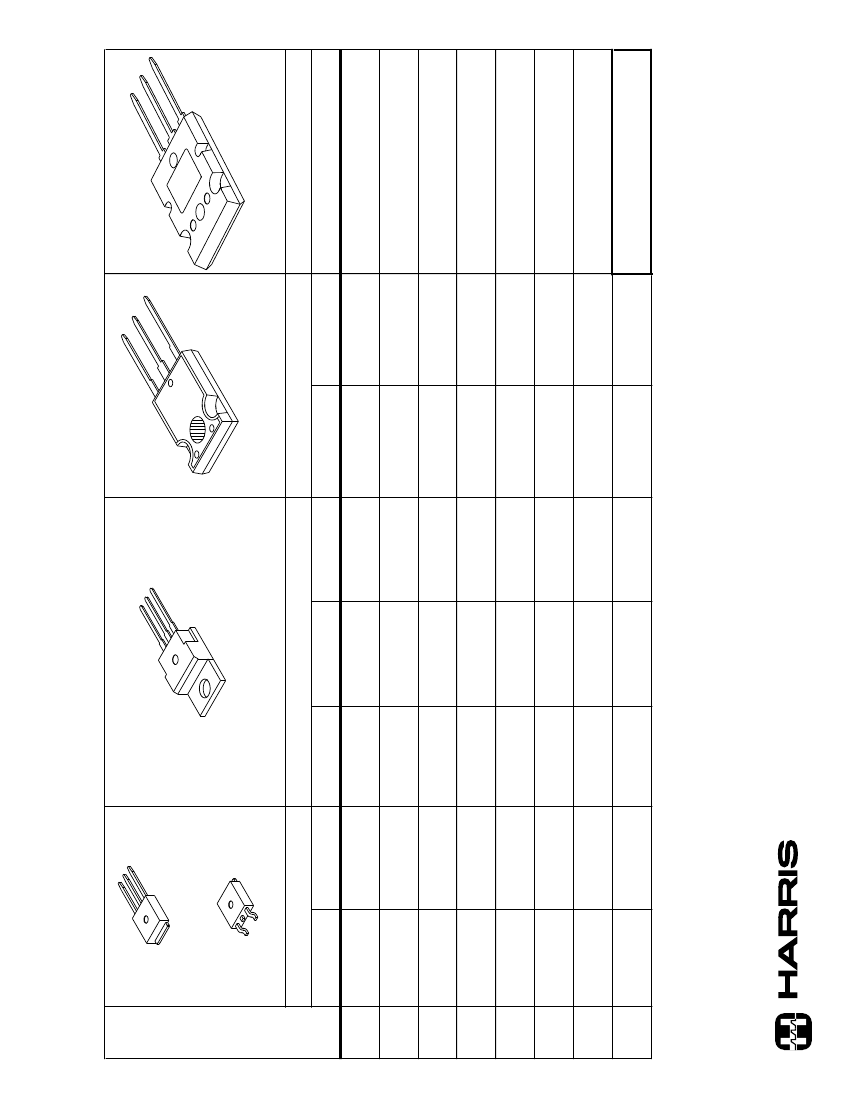

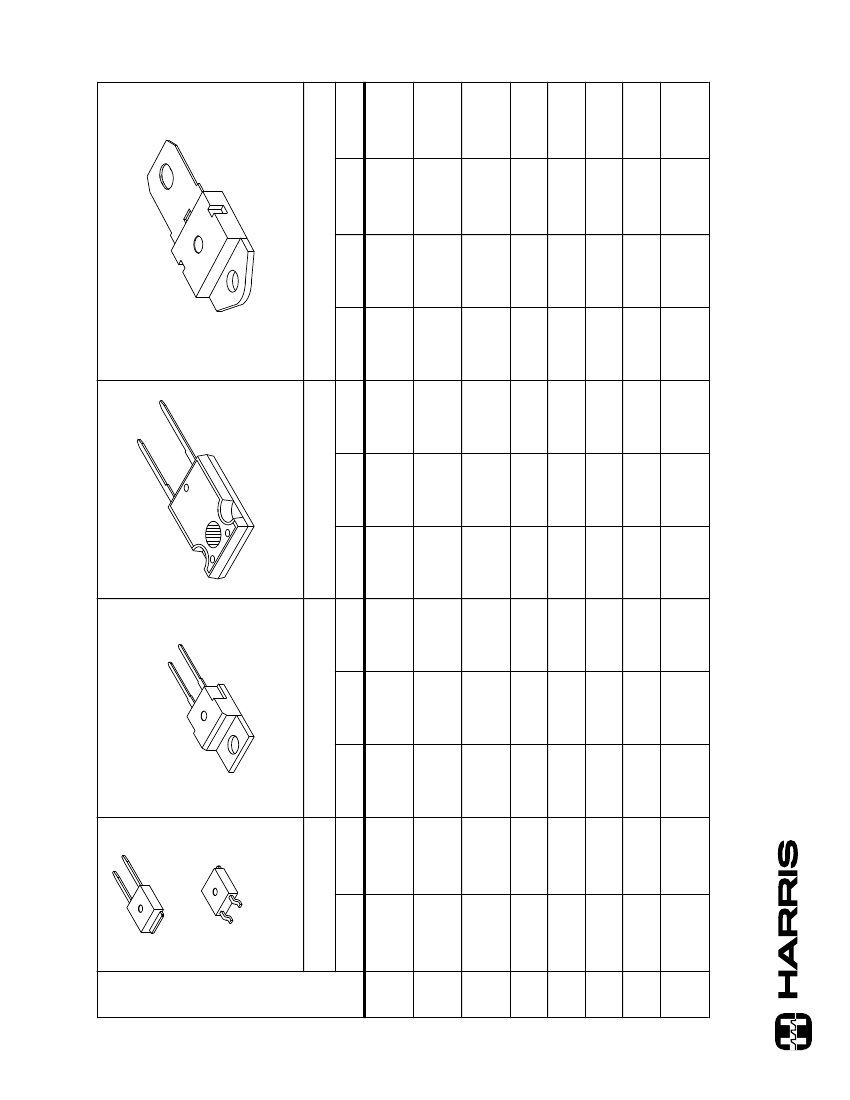

HARRIS HYPERFAST RECOVERY RECTIFIER PRODUCT LINE

TO-251

TO-252

TO-220AC

I

F(AVG)

8A

RHRP840

2.1V

35ns

RHRP1540

2.1V

40ns

RHRP3040

2.1V

45ns

RHRG3040

2.1V

45ns

RHRG5040

2.1V

50ns

RHRG7540

2.1V

60ns

NOTE: The TO-252 is desig-

nated by "S" sufﬁx.

2 LEADED TO-247

I

F(AVG)

30A

50A

75A

50A

RHRU5040

2.1V

50ns

SINGLE LEAD TO-218

I

F(AVG)

75A

RHRU7540

2.1V

60ns

I

F(AVG)

15A

V

RRM

4A

6A

100A

RHRU10040

2.1V

60ns

150A

RHRU15040

2.1V

70ns

400V

RHRD440

RHRD440S

2.1V

35ns

RHRP850

2.1V

35ns

RHRP1550

2.1V

40ns

RHRP3050

2.1V

45ns

RHRG3050

2.1V

45ns

RHRG5050

2.1V

50ns

RHRG7550

2.1V

60ns

RHRD640

RHRD640S

2.1V

35ns

500V

RHRD450

RHRD450S

2.1V

35ns

RHRP860

2.1V

35ns

RHRP1560

2.1V

40ns

RHRP3060

2.1V

45ns

RHRG3060

2.1V

45ns

RHRG5060

2.1V

50ns

RHRD650

RHRD650S

2.1V

35ns

RHRU5050

2.1V

50ns

RHRU7550

2.1V

60ns

RHRU10050

2.1V

60ns

RHRU15050

2.1V

70ns

600V

RHRD460

RHRD460S

2.1V

35ns

RHRP870

3.0V

65ns

RHRP880

3.0V

65ns

RHRP890

3.0V

65ns

RHRP8100

3.0V

65ns

RHRP8120

3.2V

70ns

RHRP15120

3.2V

75ns

RHRP15100

3.0V

70ns

RHRP30100

3.0V

75ns

RHRP30120

3.2V

75ns

RHRP1590

3.0V

70ns

RHRP3090

3.0V

75ns

RHRP1580

3.0V

70ns

RHRP3080

3.0V

75ns

RHRG3080

3.0V

75ns

RHRG3090

3.0V

75ns

RHRG30100

3.0V

75ns

RHRG30120

3.2V

75ns

RHRP1570

3.0V

70ns

RHRP3070

3.0V

75ns

RHRG3070

3.0V

75ns

RHRD660

RHRD660S

2.1V

35ns

RHRG7560

2.1V

60ns

RHRU5060

2.1V

50ns

RHRU7560

2.1V

60ns

RHRU10060

2.1V

60ns

RHRU15060

2.1V

70ns

700V

RHRG5070

3.0V

95ns

RHRG5080

3.0V

95ns

RHRG5090

3.0V

95ns

RHRG50100

3.0V

95ns

RHRG50120

3.2V 100ns

RHRG7570

3.0V 100ns

RHRG7580

3.0V 100ns

RHRG7590

3.0V 100ns

RHRG75100

3.0V 100ns

RHRG75120

3.2V 100ns

RHRU5070

3.0V

95ns

RHRU5080

3.0V

95ns

RHRU5090

3.0V

95ns

RHRU50100

3.0V

95ns

RHRU50120

3.2V 100ns

RHRU7570

3.0V 100ns

RHRU7580

3.0V 100ns

RHRU7590

3.0V 100ns

RHRU75100

3.0V 100ns

RHRU75120

3.2V 100ns

RHRU100120

3.2V 100ns

RHRU15090

3.0V 100ns

RHRU150100

3.0V 100ns

RHRU150120

3.2V 125ns

800V

900V

1000V

1200V

RHRD4120

RHRD4120S

3.2V

70ns

RHRD6120

RHRD6120S

3.2V

65ns

NOTE:

V

F

at I

F(AVG)

, T

J

= 25

o

C; t

rr

at I

F(AVG)

, dI

F

/dt = 100A/µs or 200A/µs,T

J

= 25

o

C;

†

t

rr

at I

F

= 1A

LC-3268.4
