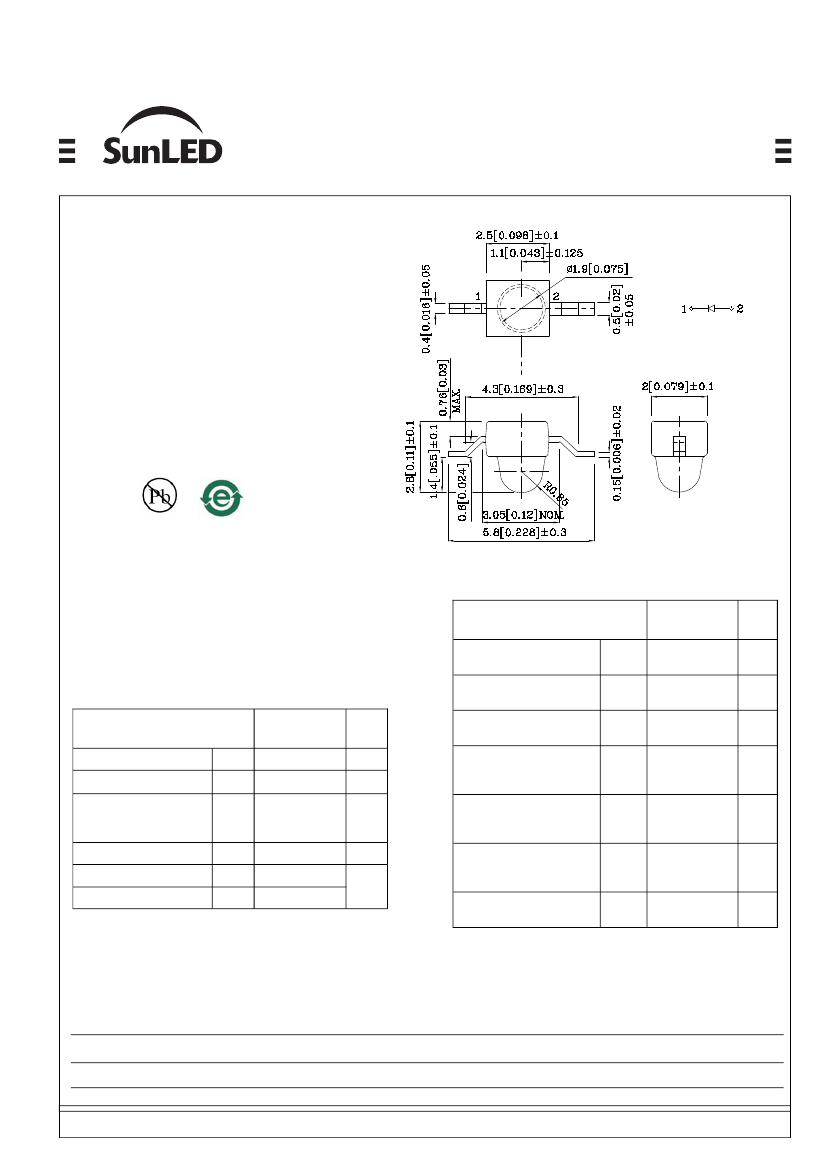

Part Number:
ZM2CR46W-9
www.SunLED.com
SUBMINIATURE SOLID STATE LAMP
PRELIMINARY SPEC
Features
SUBMINIATURE PACKAGE.
WIDE VIEWING ANGLE.
Z-BEND LEAD.
LONG LIFE-SOLID STATE RELIABILITY.
LOW PACKAGE PROFILE.
PACKAGE : 1000PCS / REEL.
MOISTURE SENSITIVITY LEVEL : LEVEL 3.
RoHS COMPLIANT.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.25(0.01") unless otherwise noted.
3.Specifications are subject to change without notice.
Operating Characteristics
(T
A
=25°C)
Forward Voltage (Typ.)
(I
F
=20mA)
Forward Voltage (Max.)
(I
F
=20mA)
Unit
V
mA
mA
mW
°C
Reverse Current (Max.)
(V
R
=5V)
Wavelength Of Peak
Emission (Typ.)
(I
F
=20mA)
Wavelength Of Dominant
Emission (Typ.)
(I
F
=20mA)
Spectral Line Full Width
At Half-Maximum (Typ.)
(I
F
=20mA)
Capacitance (Typ.)
(VF=0V, f=1MHz)
V
F
V
F
I
R
M2CR
(AlInGaP)
2.2
2.8
10
Unit
V
V
uA
Absolute Maximum Ratings
(T
A
=25°C)
Reverse Voltage
Forward Current
Forward Current (Peak)
1/10 Duty Cycle
0.1ms Pulse Width
Power Dissipation
Operating Temperature
Storage Temperature
V
R
I
F
i
FS
P
T
T
A
Tstg
M2CR
(AlInGaP)
5
30
150
84
-40 ~ +85
-40 ~ +85
λ
P
640
nm
λ
D
630
nm
Δλ
25
nm
C
27
pF
Part
Number
Emitting
Color
Emitting
Material
Lens-color
Luminous
Intensity
(IF=20mA)
mcd
min.
typ.
14990
Wavelength
nm
λ
P
Viewing
Angle
2
θ
1/2
ZM2CR46W-9
Red
AlInGaP
Water Clear
8000
640
20°
Published Date : FEB 27,2008
Drawing No : SDSA6186
V1
Checked : B.L.LIU
P.1/4
Part Number:
ZM2CR46W-9
www.SunLED.com
SUBMINIATURE SOLID STATE LAMP

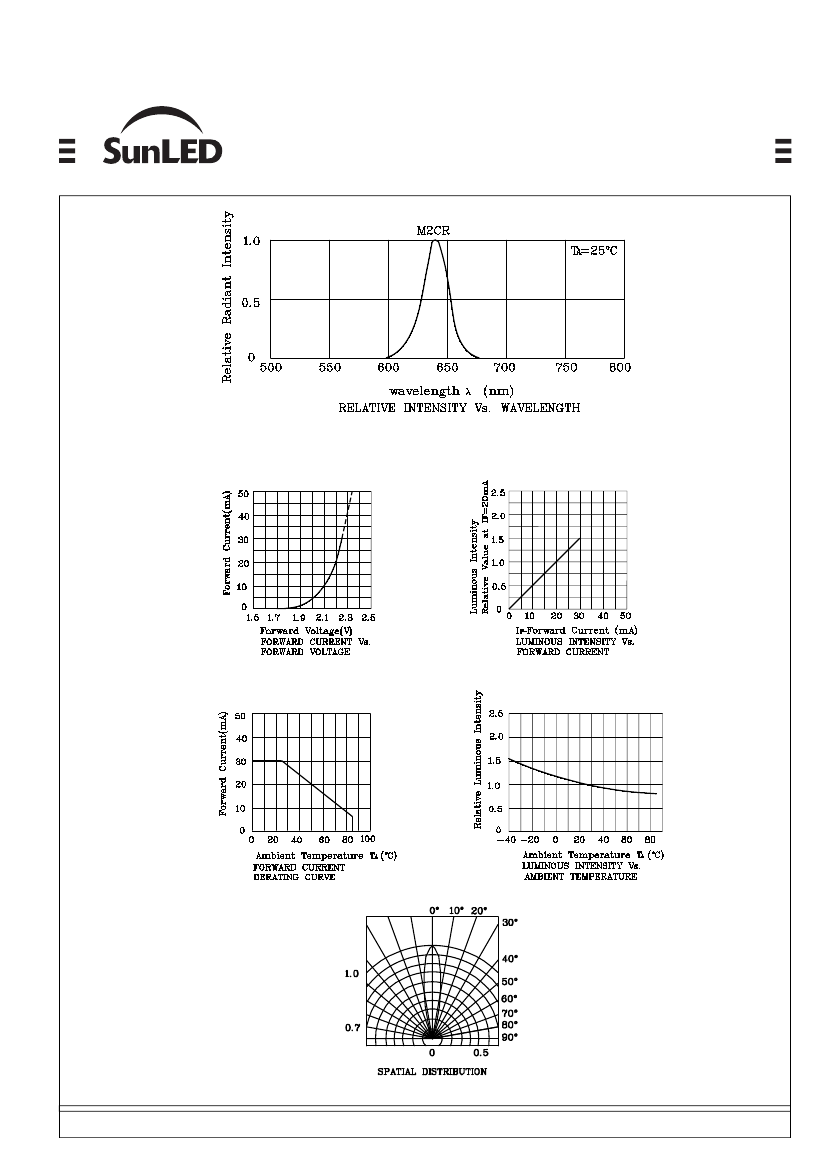

M2CR
Published Date : FEB 27,2008
Drawing No : SDSA6186
V1
Checked : B.L.LIU
P.2/4
Part Number:
ZM2CR46W-9
www.SunLED.com
SUBMINIATURE SOLID STATE LAMP

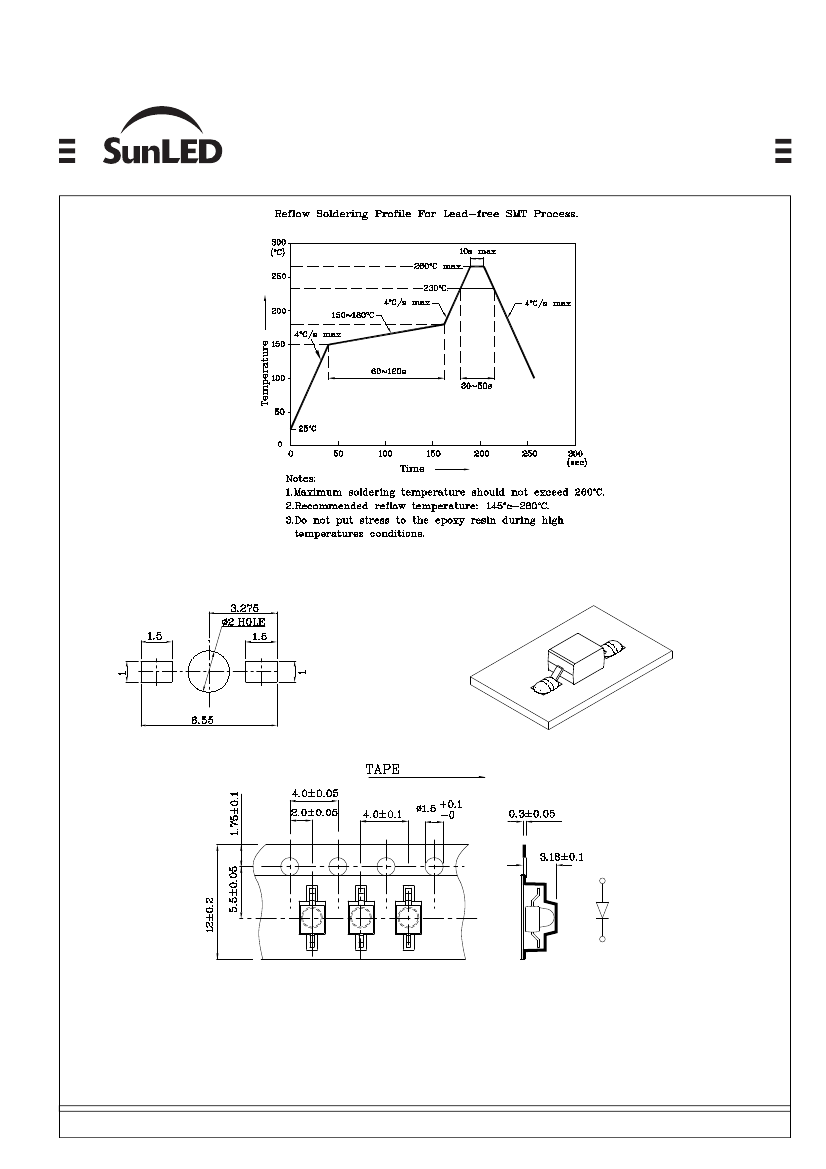

Recommended Soldering Pattern
(Units : mm;Tolerance:
±
0.1)
The device has a single mounting surface. The device
must be mounted according to the specifications.
Tape Specification (Units : mm)
Remarks:
If special sorting is required (e.g. binning based on forward voltage, Luminous intensity / luminous flux, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity / Luminous Flux: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
Published Date : FEB 27,2008
Drawing No : SDSA6186
V1
Checked : B.L.LIU
P.3/4
Part Number:
ZM2CR46W-9
www.SunLED.com
SUBMINIATURE SOLID STATE LAMP

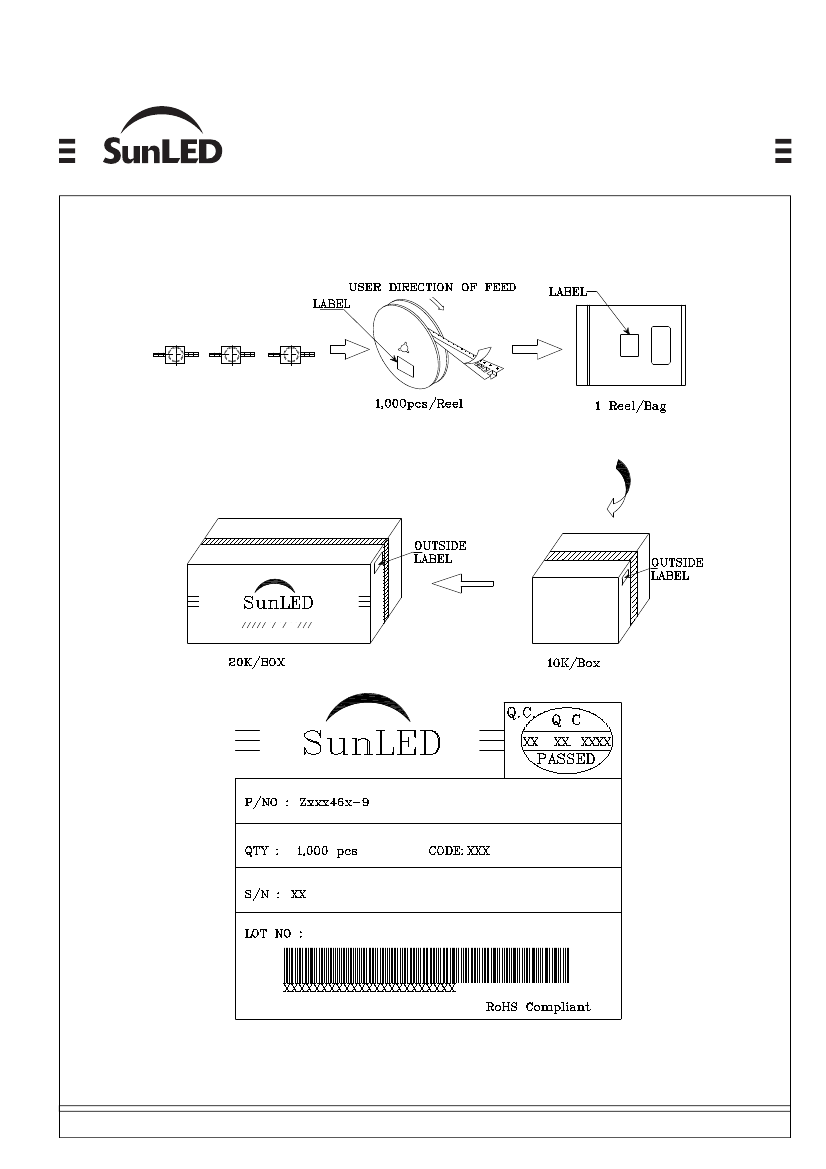

PACKING & LABEL SPECIFICATIONS
ZM2CR46W-9
Published Date : FEB 27,2008
Drawing No : SDSA6186
V1
Checked : B.L.LIU
P.4/4
