ZUY46W-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> ZUY46W-9

ZUY46W-9: DescriptionSUBMINIATURE SOLID STATE LAMP; CategoryLED optoelectronic/LED photoelectric; File Size178KB，4 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

ZUY46W-9 Overview

SUBMINIATURE SOLID STATE LAMP

ZUY46W-9 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUNLED
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compli
ECCN code	EAR99
Other features	HIGH RELIABILITY
color	YELLOW
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	29.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	2.8 mm
method of packing	TAPE AND REEL
peak wavelength	590 nm
shape	ROUND
size	1.9 mm
surface mount	YES
T code	T-3/4
Terminal pitch	5.05 mm
perspective	20 deg

Preview

Download Datasheet

View All

Part Number:

ZUY46W-9

www.SunLED.com

SUBMINIATURE SOLID STATE LAMP

Features

SUBMINIATURE PACKAGE.

WIDE VIEWING ANGLE.

Z-BEND LEAD.

LONG LIFE-SOLID STATE RELIABILITY.

LOW PACKAGE PROFILE.

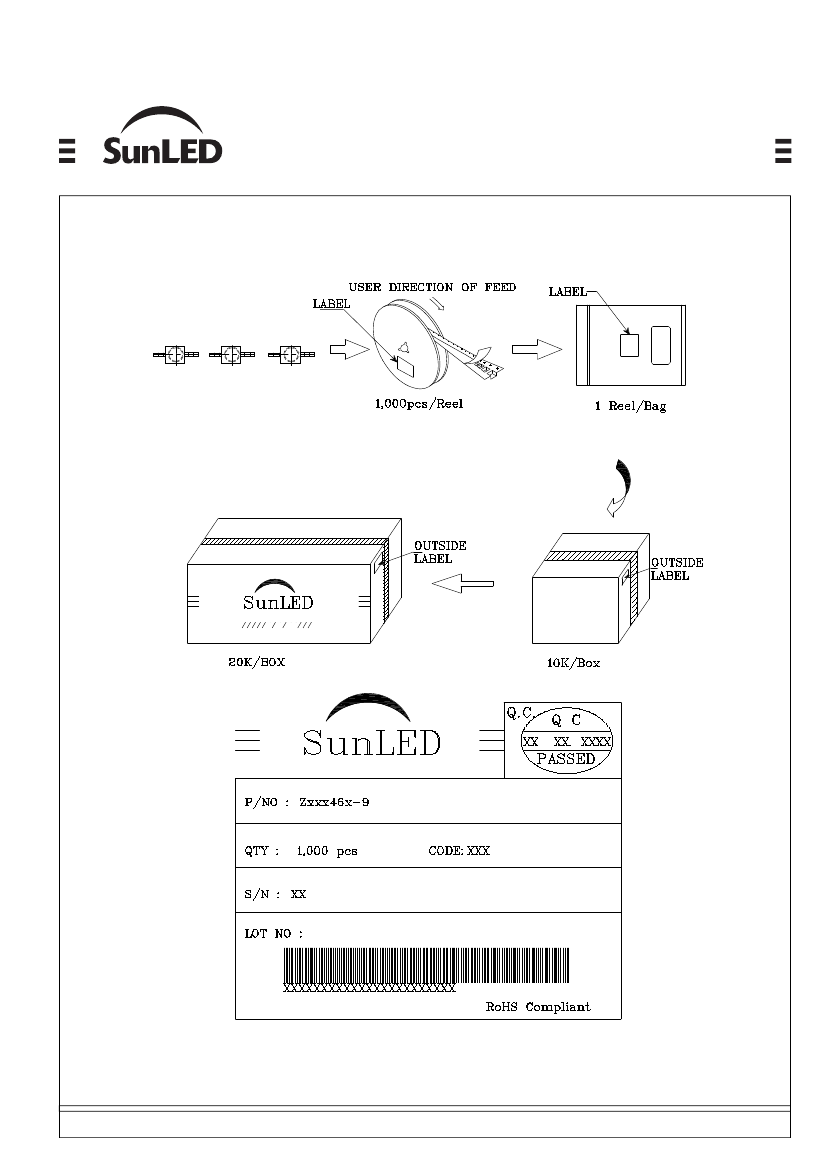

PACKAGE : 1000PCS / REEL.

MOISTURE SENSITIVITY LEVEL : LEVEL 3.

RoHS COMPLIANT.

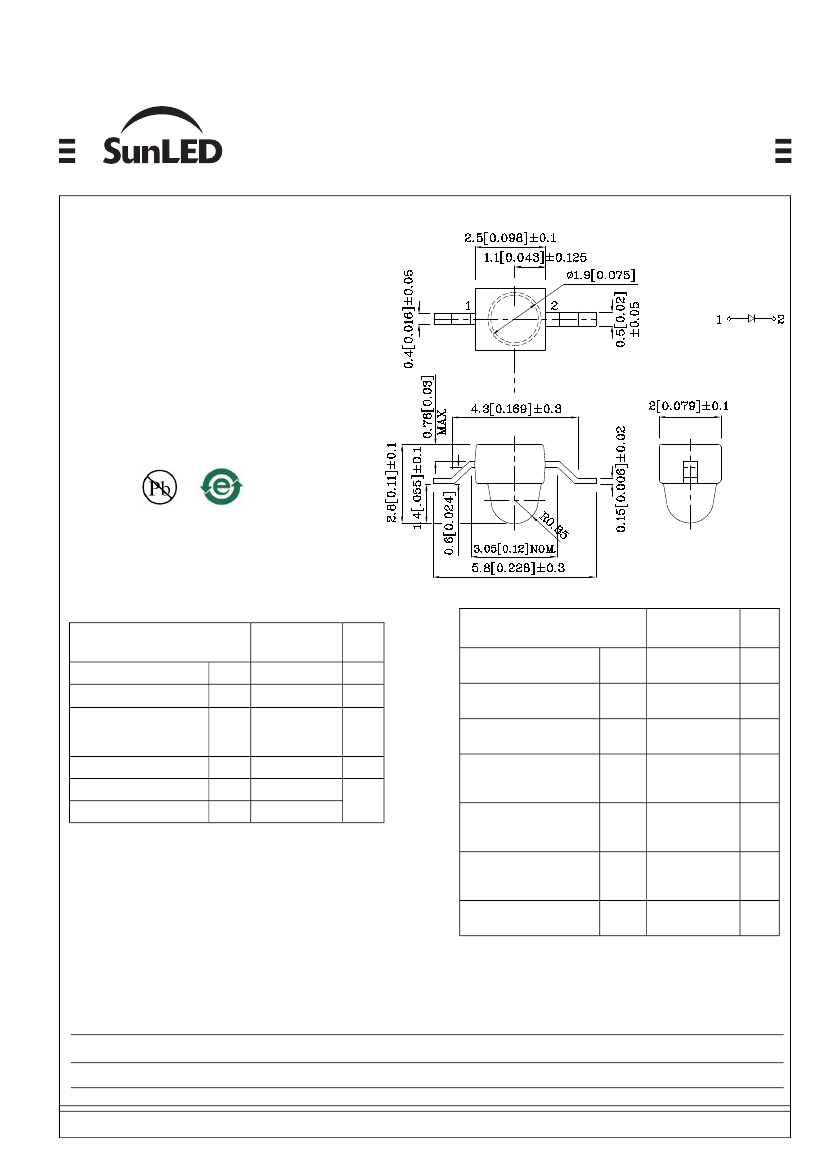

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.25(0.01") unless otherwise noted.

3.Specifications are subject to change without notice.

Operating Characteristics

=25°C)

Forward Voltage (Typ.)

=20mA)

Forward Voltage (Max.)

=20mA)

Reverse Current (Max.)

=5V)

Wavelength Of Peak

Emission (Typ.)

=20mA)

Wavelength Of Domi-

nant Emission (Typ.)

=20mA)

Spectral Line Full Width

At Half-Maximum (Typ.)

=20mA)

Capacitance (Typ.)

(VF=0V, f=1MHz)

(GaAsP/GaP)

2.1

2.5

Absolute Maximum Ratings

=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Tstg

(GaAsP/GaP)

140

-40 ~ +85

Unit

°C

590

588

Δλ

Part

Number

Emitting

Color

Emitting

Material

Lens-color

Luminous

Intensity

(IF=20mA)

mcd

min.

typ.

Wavelength

Viewing

Angle

1/2

ZUY46W-9

Yellow

GaAsP/GaP

Water Clear

590

20°

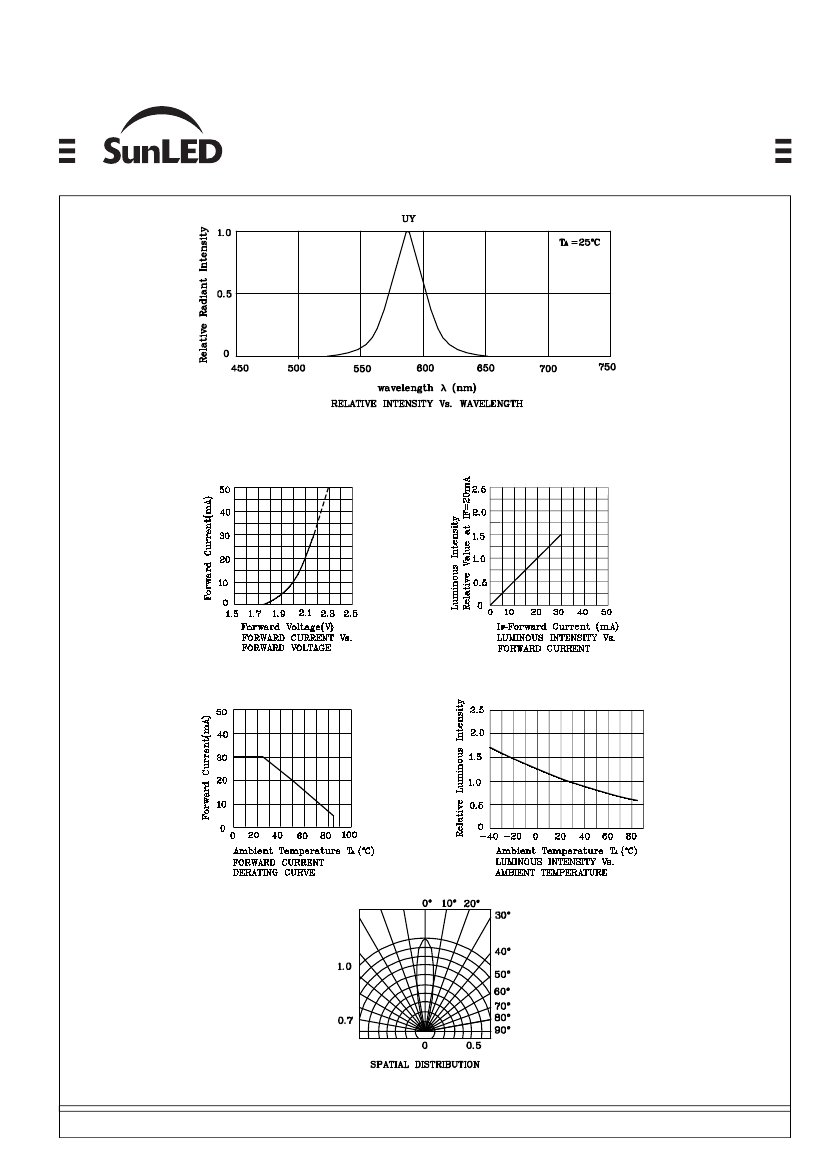

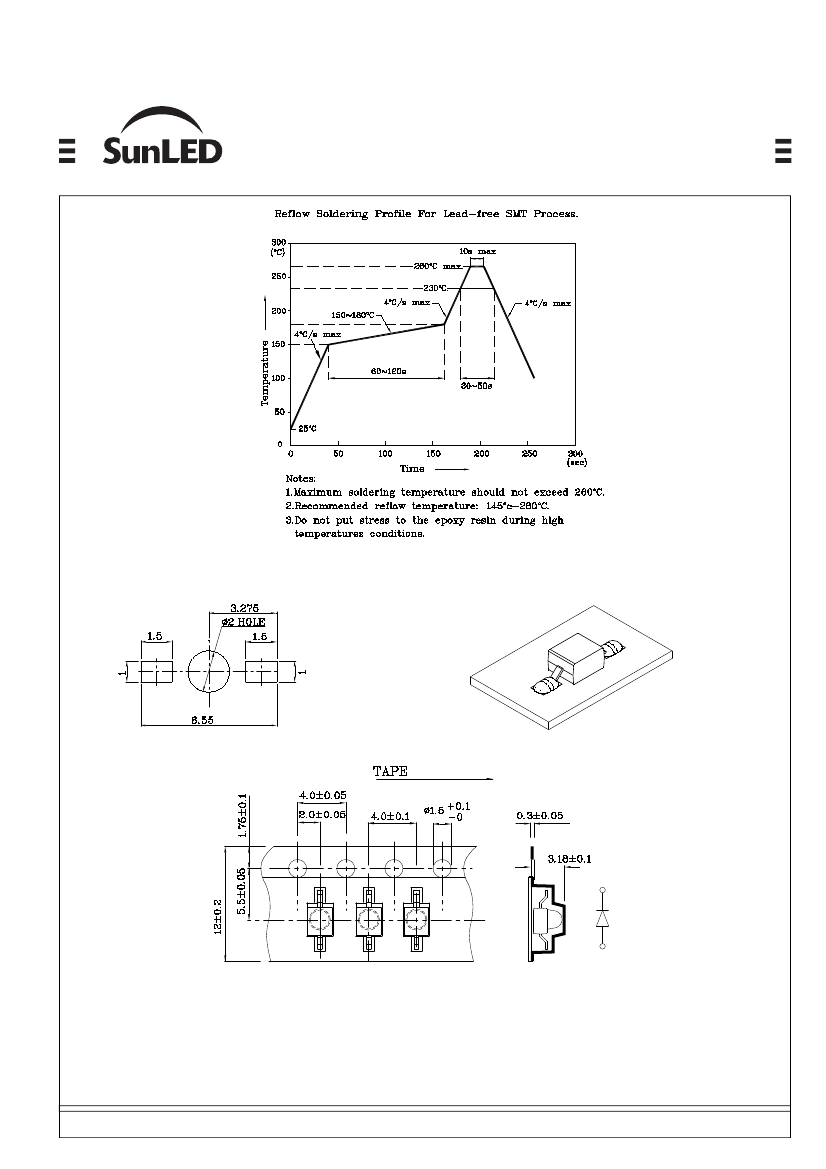

Published Date : FEB 27,2008

Drawing No : SDSA1385

Checked : B.L.LIU

P.1/4
