Part Number:
ZVG56W
www.SunLED.com

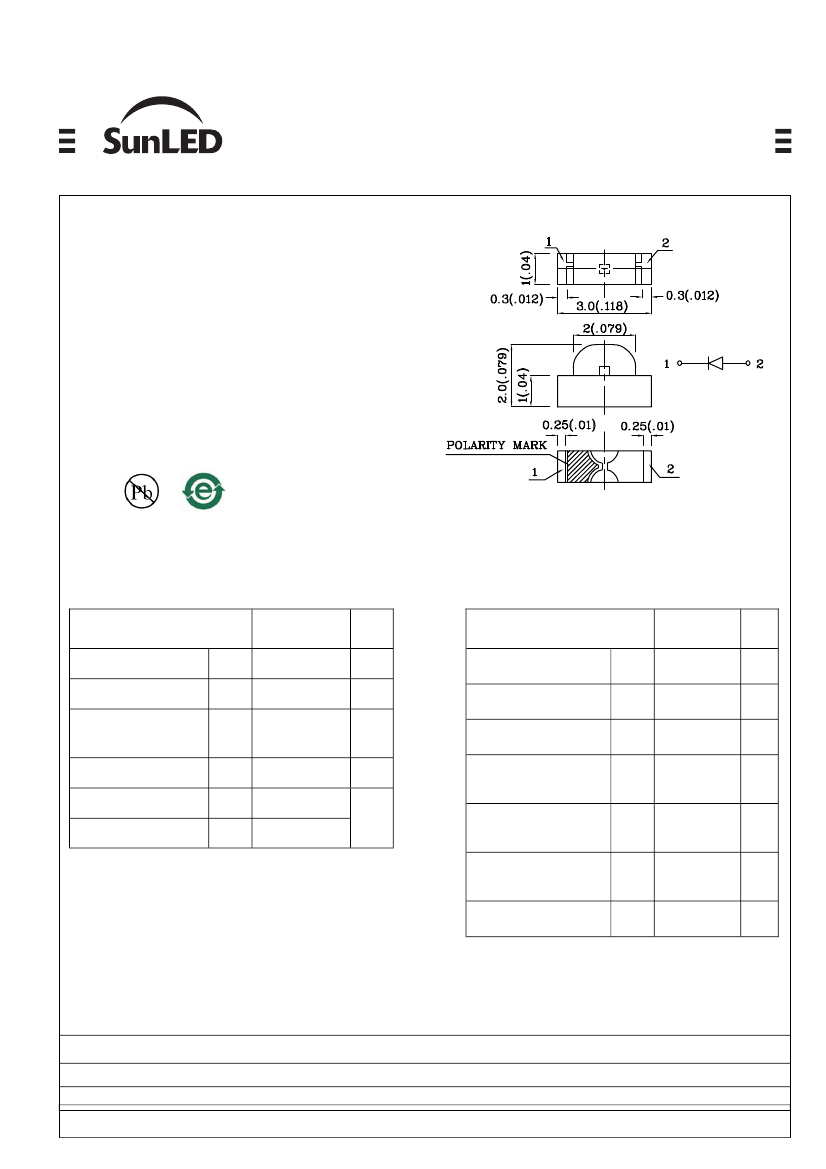

3.0mmx1.0 mm RIGHT ANGLE SMD CHIP LED
LAMP
Features
3.0mmx1.0mm RIGHT ANGLE SMT LED, 2.0mm
THICKNESS.
LOW POWER CONSUMPTION.
WIDE VIEWING ANGLE.
IDEAL FOR BACK LIGHT AND INDICATOR.
VARIOUS COLORS AND LENS TYPES AVAILABLE.
PACKAGE : 2000PCS / REEL.
MOISTURE SENSITIVITY LEVEL : LEVEL 3.
RoHS COMPLIANT.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.15(0.006") unless otherwise noted.
3. Specifications are subject to change without notice.
Absolute Maximum Ratings
(T
A
=25°C)
Reverse Voltage
Forward Current
Forward Current (peak)
1/10 Duty Cycle
0.1ms Pulse Width
Power Dissipation
Operating Temperature
Storage Temperature
V
R
I
F
i
FS
P
T
T
A
Tstg
VG
(InGaAlP)
5
30
150
75
-40 ~ +85
°C
-40 ~ +85
Unit
V
mA
mA
mW
Operating Characteristics
(T
A
=25°C)
Forward Voltage (Typ.)
(I
F
=20mA)
Forward Voltage (Max.)
(I
F
=20mA)
Reverse Current (Max.)
(V
R
=5V)
Wavelength Of Peak
Emission (Typ.)
(I
F
=20mA)
Wavelength Of Dominant
Emission (Typ.)
(I
F
=20mA)
Spectral Line Full Width
At Half-Maximum (Typ.)
(I
F
=20mA)
Capacitance (Typ.)
(V
F
=0V, f=1MHz)
V
F
V
F
I
R
VG
(InGaAlP)
2.1
2.5
10
Unit
V
V
uA
λ
P
574
nm
λ
D
570
nm
Δλ
20
nm
C
15
pF
Part
Number
Emitting
Color
Emitting
Material
Lens-color
Luminous
Intensity
(IF=20mA)
mcd
min.
typ.
59
Wavelength
nm
λ
P
Viewing
Angle
2
θ
1/2
ZVG56W
Green
InGaAlP
Water Clear
18
574
120°
Published Date : FEB 25, 2008
Drawing No : SDSA1739
V5
Checked : B.L.LIU
P.1/4
Part Number:
ZVG56W
www.SunLED.com
3.0mmx1.0 mm RIGHT ANGLE SMD CHIP LED
LAMP

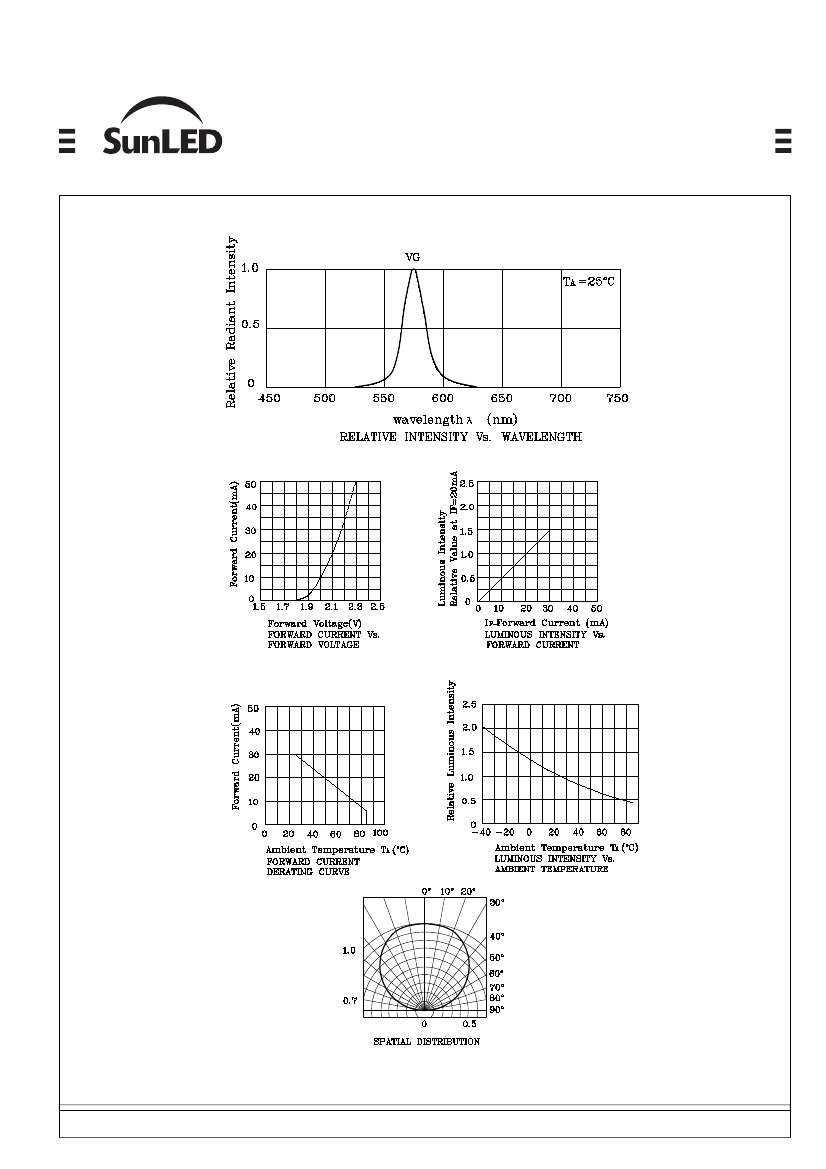

VG
Published Date : FEB 25, 2008
Drawing No : SDSA1739
V5
Checked : B.L.LIU
P.2/4
Part Number:
ZVG56W
www.SunLED.com
3.0mmx1.0 mm RIGHT ANGLE SMD CHIP LED
LAMP

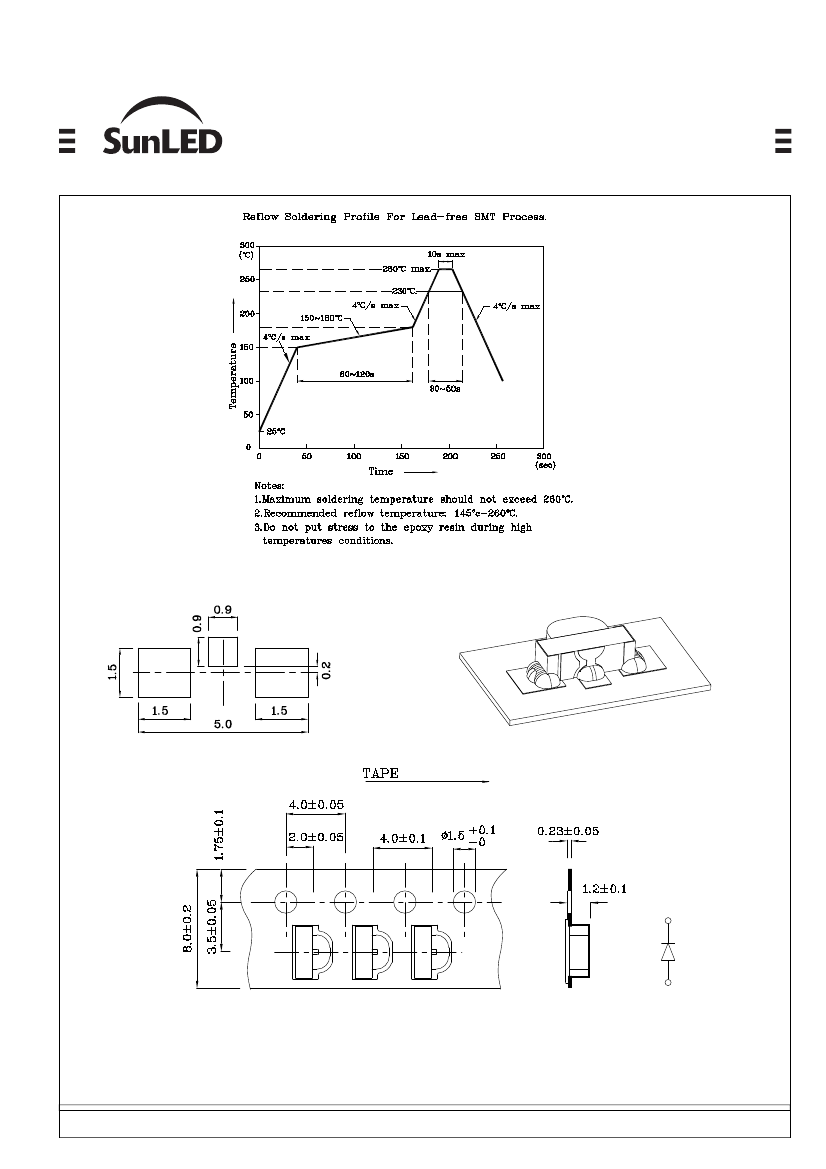

Recommended Soldering Pattern
(Units : mm; Tolerance: ±0.1)
The device has a single mounting surface. The device
must be mounted according to the specifications.
Tape Specification (Units : mm)
Remarks:
If special sorting is required (e.g. binning based on forward voltage, Luminous intensity / luminous flux, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity / Luminous Flux: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
Published Date : FEB 25, 2008
Drawing No : SDSA1739
V5
Checked : B.L.LIU
P.3/4
Part Number:
ZVG56W
www.SunLED.com
3.0mmx1.0 mm RIGHT ANGLE SMD CHIP LED
LAMP

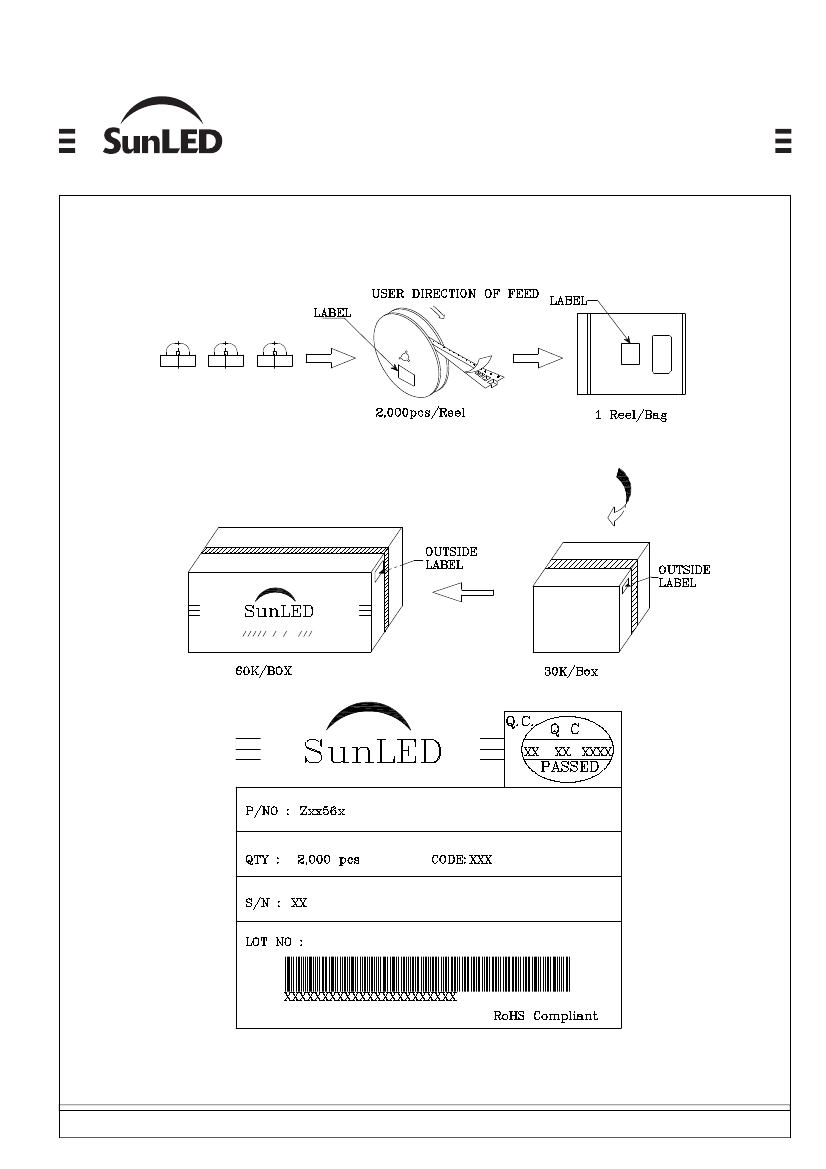

PACKING & LABEL SPECIFICATIONS
ZVG56W
Published Date : FEB 25, 2008
Drawing No : SDSA1739
V5
Checked : B.L.LIU
P.4/4
