A-BRIGHT
Part Number: 61-26UWC
A-BRIGHT INDUSTRIAL CO., LTD.
SURFACE MOUNT LED LAMPS
Power White Surface Mount Device

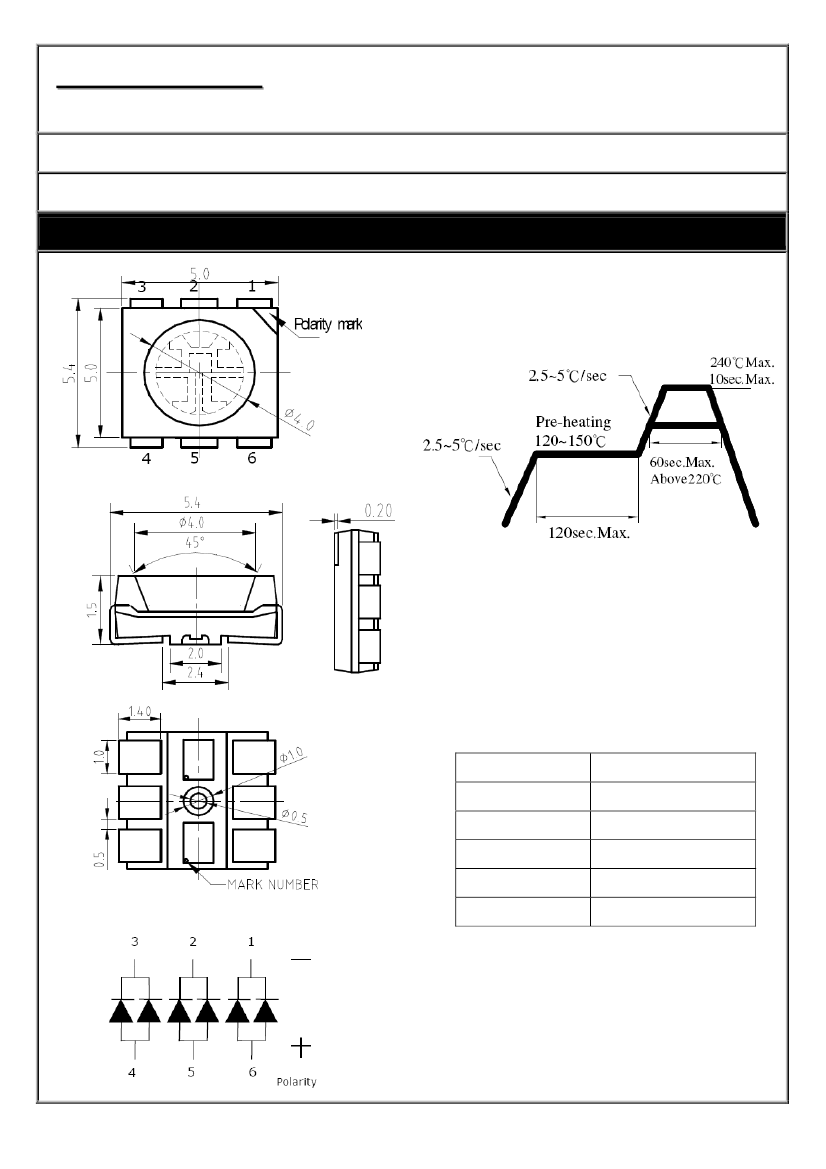

Package outlines & Re-flow Profile
Reflow Temp/Time
Soldering iron
Basic spec is 5sec when 260℃. If temperature is higher,
time should be shorter (+10℃ -1sec ).Power dissipation
of iron should be smaller than 15W, and temperatures
should be controllable .Surface temperature of the device
should be under 230℃ .
ITEM
Resin (mold)
Lens color
Printed circuit board
Emitted color
For reflow soldering (Propose)
Material
MATERIALS
Epoxy
Yellow Diffused
BT
White
InGaN
NOTES:
1. All dimensions are in millimeters (inches);
2. Tolerances are
±0.1mm
(0.004inch) unless otherwise
noted.
3. Polarity referring onto the cathode mark is reversed on the
red.
A-BRIGHT
A-BRIGHT INDUSTRIAL CO., LTD.
SURFACE MOUNT LED LAMPS
Part Number: 61-26UWC
ELECTRO-OPTICAL CHARACTERISTICS
Parameter
Viewing angle at 50% I
V
Forward voltage
Luminous intensity
Peak pulsing current (1/10 duty f=1kHz)
(T
A
=25℃)
Value
MIN. TYP.
MAX.
Test
Condition Symbol
I
F
=10mA
I
F
=20mA
I
F
=20mA*2line
2θ1/2
V
F
I
V
I
FP
Unit
Deg
120
2.8
---
3.8
V
mcd
mA
5000 6300
---
100
Absolute maximum ratings
Parameter
Forward current
Reverse voltage
Reverse current
Power Consumptoin
Operating temperature range
Storage temperature range
(T
A
=25℃)
Symbol
I
F
V
R
I
R
P
C
Top
Tstg
Value
120
5
10
455
-40 ~+85
-40 ~+100
Unit
mA
V
µA
mW
℃
℃

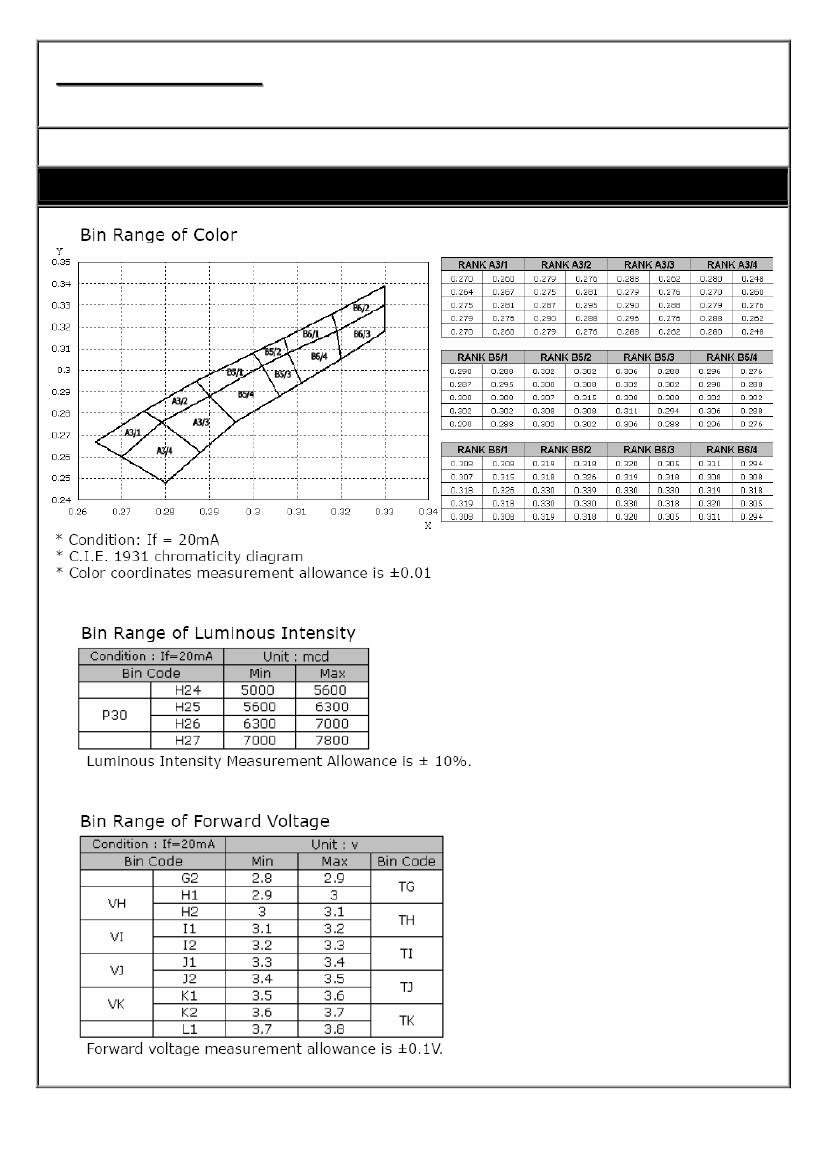

A-BRIGHT
Part Number: 61-26UWC
A-BRIGHT INDUSTRIAL CO., LTD.
SURFACE MOUNT LED LAMPS

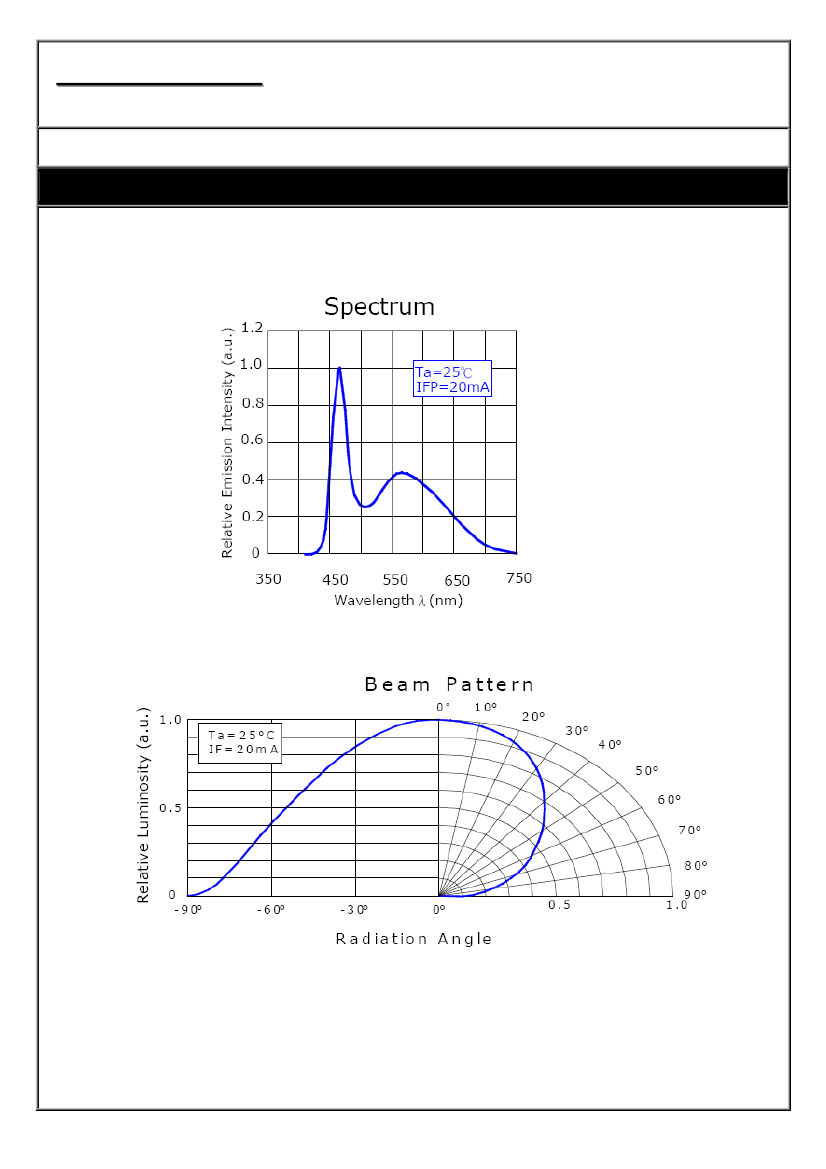

Typical Electro-Optical Characteristic Curves
A-BRIGHT
Part Number: 61-26UWC
A-BRIGHT INDUSTRIAL CO., LTD.
SURFACE MOUNT LED LAMPS

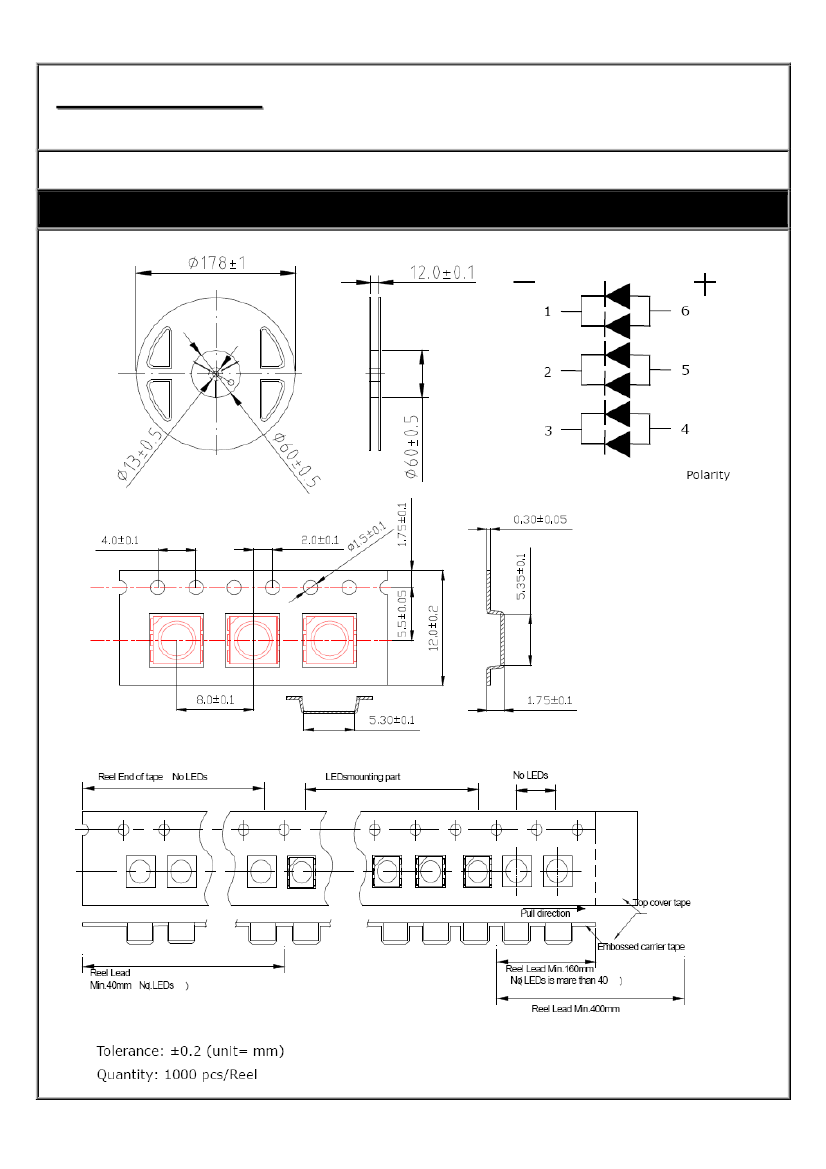

Taping Dimension (Unit=mm)
