A-BRIGHT
A-BRIGHT INDUSTRIAL CO., LTD.
Part No.
5 mm
AL-513IR-850-30C
Round
Diff No.002
Type:LED Lamps
Package Dimension:
Notes:
1. All dimensions are in millimeter.
2.An epoxy meniscus may extend about.
1.5mm(0.059") down to the lead
3.Tolerances unless Dimension
±
0.25mm
Features︰
Choice of various
viewing angles.
Available on Tape
and Reel.
Reliable and robust.
Descriptions︰
The series is
specially designed
for application
requiring higher
brightness.
The LED lamps are
available with
different color,
intensities, epoxy
colors etc.
□
□
Applications︰
TV set
Monitor
Telephone
1
2006/9/28
A-BRIGHT
A-BRIGHT INDUSTRIAL CO., LTD.
Part No.
5 mm
AL-513IR-850-30C
Round
Diff No.002
Type:LED Lamps
Lens Color
Water Clear
LED Parts P/N.
AL-513IR-850-30C
Chip
Material
Emitted Color
GaAlAs
Infrared
Absolute Maximum Ratings at Ta=25℃
Parameter
Continuous Forward Current
Operating Temperature
Storage Temperature
Soldering Temperature
Power Dissipation
Peak Forward Current
(Duty
1/10@1KHz)
Reverse Voltage
Symbol
I
F
Topr
Tstg
Tsol
P
D
I
F
(Peak)
V
R
Rating
50
-30~+85
-30~+100
260±5
110
200
5.0
Unit
mA
℃
℃
℃
mW
mA
V
Electronic Optical Characteristics :
Parameter
Radiated Output Power
Viewing Angle
Peak Wavelength
Spectrum Radiation Bandwidth
Forward Voltage
Reverse Current
Symbol
P
O
2θ1/2
λp
△λ
V
F
I
R
Min.
/
/
/
/
/
/
Typ.
45
30
850
30
1.5
/
Max.
/
/
/
/
1.8
10
Unit Condition
mW/sr I
F
=50mA
deg
nm
nm
V
µA
I
F
=50mA
I
F
=50mA
I
F
=50mA
I
F
=50mA
V
R
=5V
2
2006/9/28
A-BRIGHT
A-BRIGHT INDUSTRIAL CO., LTD.
Part No.
5 mm
AL-513IR-850-30C
Round
Diff No.002
Type:LED Lamps
Reliability test items and conditions :
The reliability of products shall be satisfied with items listed below.
Confidence level: 90%
LTPD: 10%
Test
Sample
NO
ITEM
Test Conditions
Ac/Re
hours/cycle Q’ty
1
Solder Heat
Temp:260℃±5℃
H:+100℃ 15min
2
Temperature Cycle
5min
50 cycles
22 pcs
0/1
〜
5 sec
22 pcs
0/1
L:-40℃ 15min
H:+100℃ 15min
3
Thermal Shock
10sec
50 cycles
22 pcs
0/1
〜
L:-10℃ 15min
4
5
6
7
High Temperature Storage
Low Temperature Storage
DC Operating Life
High Temperature/
High Humidity
Temp:100℃
Temp:-40℃
I
F
=20mA
85℃/85%RH
1000 hrs
1000 hrs
1000 hrs
1000 hrs
22 pcs
22 pcs
22 pcs
22 pcs
0/1
0/1
0/1
0/1
3
2006/9/28
A-BRIGHT
A-BRIGHT INDUSTRIAL CO., LTD.
Part No.
5 mm
AL-513IR-850-30C
Round
Diff No.002
Type:LED Lamps

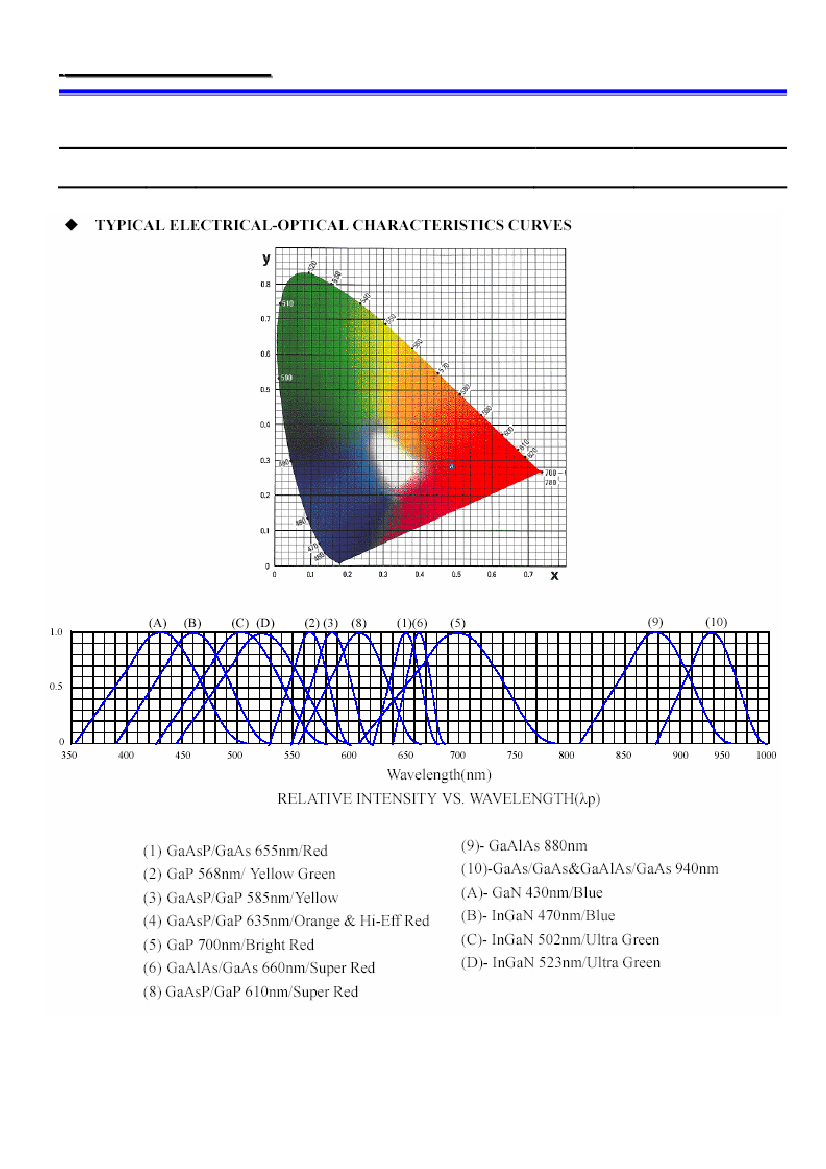

4
2006/9/28
A-BRIGHT
A-BRIGHT INDUSTRIAL CO., LTD.
Part No.
5 mm
AL-513IR-850-30C
Round
Diff No.002
Type:LED Lamps

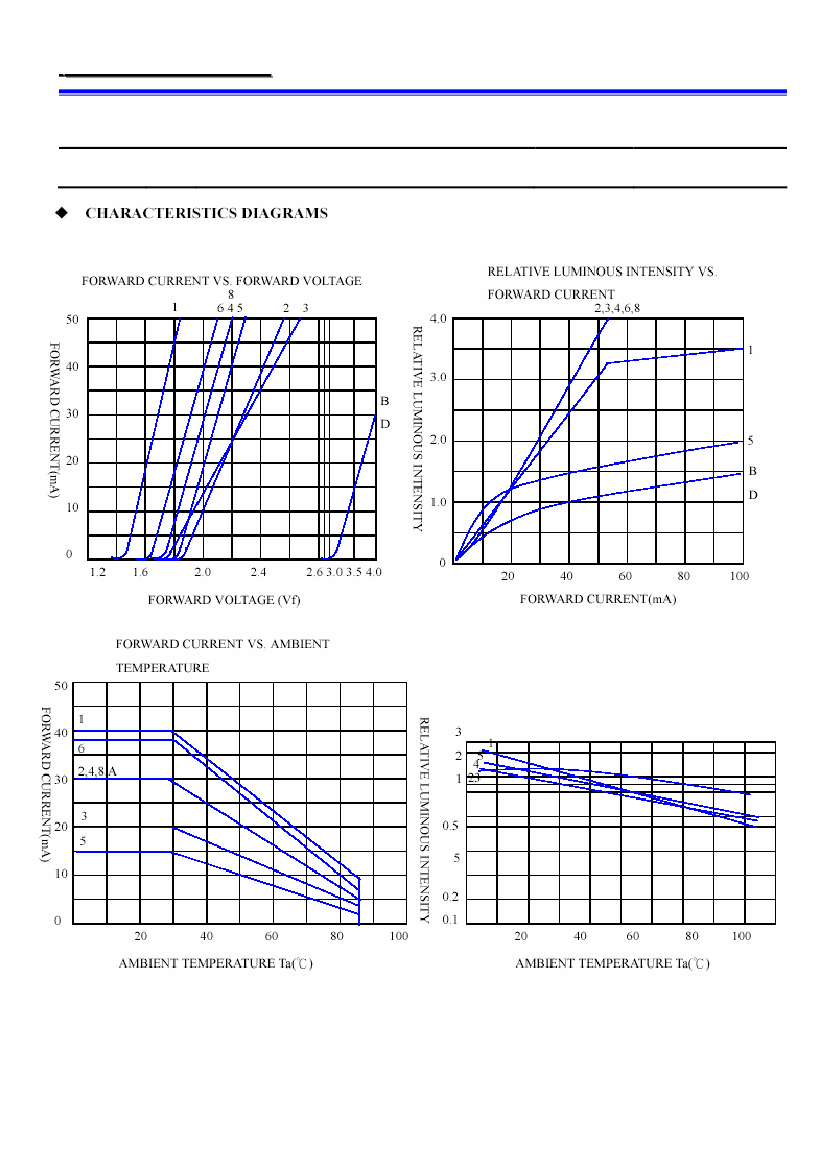

5
2006/9/28
