REVISION F
Pb
THIS PRODUCT MANUFACTURED
WITH LEAD-FREE PROCESSING
DESIGNED AND DIMENSIONED IN MILLIMETERS

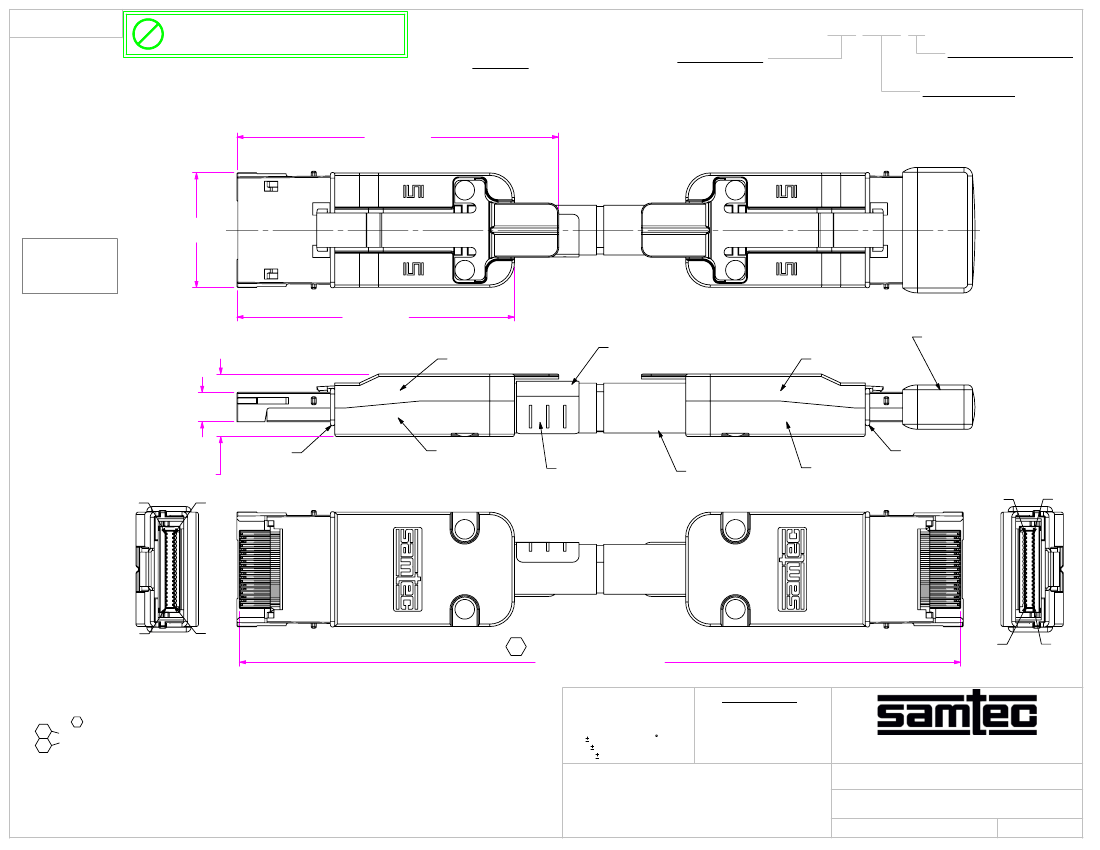

FIGURE 1
(EPLSP-019-XXXX-26 SHOWN)
(SOME COMPONENTS NOT SHOWN
IN ALL VIEWS FOR CLARITY)
65.40 (REF)
(TYP)
DO NOT
SCALE FROM
THIS PRINT
NOTES:
C1
C2
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. ALL ASSEMBLIES TO BE 100% ELECTRICALLY TESTED FOR SHORTS AND OPENS.
3. ALL ASSEMBLIES TO BE HI-POT TESTED AT 300V.
AFTER FINAL ELECTRICAL TEST, LABEL EACH ASSEMBLY WITH 1 LABEL-ET.
4. WRAP ENDS IN BUBBLE WRAP AND PACKAGE IN CLEAR POLY-BAGS.
5. MEASURE 12.70 DIMENSION 2.0mm FROM BACK EDGE OF DIE CASTINGS.
6. HDRL-11 IS TO BE CENTERED ON CABLE AS SHOWN. ADD 1 LABEL FOR EVERY METER OF CABLE LENGTH TO TIE CABLE TOGETHER.
HDRL-11 IS TO CONTAIN: PART NUMBER, SHOP ORDER & DATE CODE.
7. CABLE FOR OC ROUTING IS 41.0mm SHORTER THAN OVERALL CABLE ASSEMBLY CABLE LENGTH.
O
S
B
O
56.40 (REF)
(TYP)
EPLSP-XXX-01
6.00 (REF)
OR-100-XXX
EPLSP-XXX-02
12.70
(REF)
Nx2
N
N+1
1
C3
F:\DWG\MISC\Mktg\EPLSP-XXX-XXXX-26-MKT.SLDDRW
S
O S
P O
9 P
1 1
R 3
O R
F
X FO
X X
-
7 -X
6 8
7 6
1 7
5 1
1 5
-
R -1
D R
H D
E H
E E
S E
S
"A"
(REF)
C
L
SUB-LSPC-08-PS-01-XXXX
EPLSP-XXX-01
OR-100-XXX
LABEL-ET
(SEE NOTE 3)
HDRL-11
(SEE NOTE 6)
EPLSP-XXX-02
1
N
ASSEMBLY LENGTH ±1%
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN MILLIMETERS.
TOLERANCES ARE:
E
L
X.X: 0.3
X.XX: 0.13
X.XXX: 0.051
MATERIAL:
No OF POSITIONS

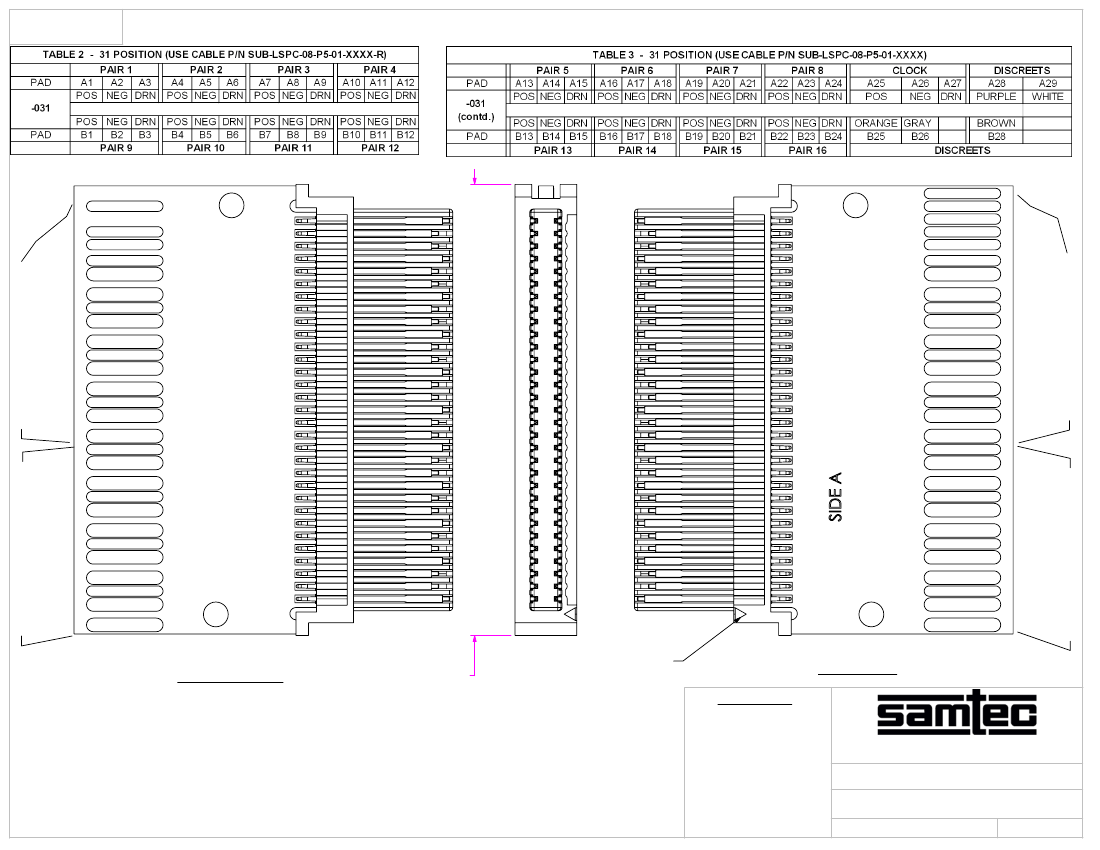

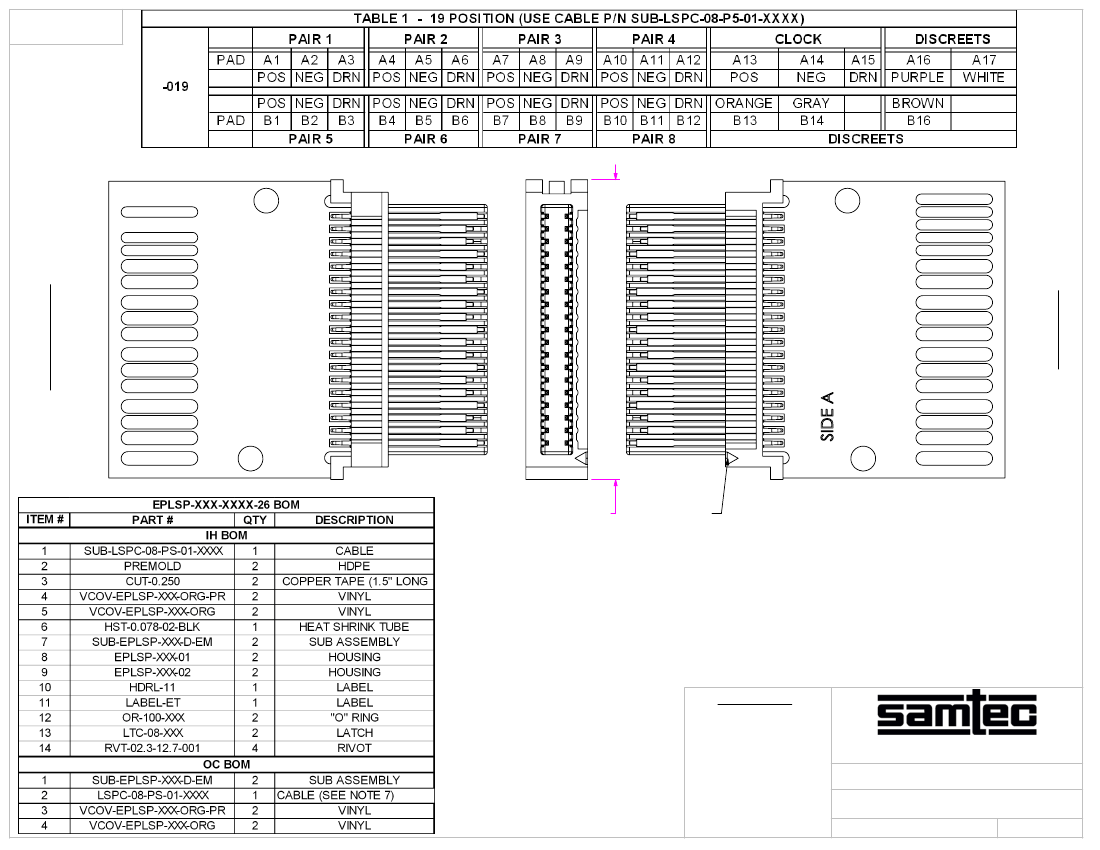

-019 = 19 POSITION (SEE TABLE 1) PIN 1 TO 1
-031 = 31 POSITION (SEE TABLE 2) PIN 1 TO 1
E
T
SHEET SCALE: 2:1
EPLSP-XXX-XXXX-26
CONDUCTOR WIRE AWG
-26: 26 AWG
ASSEMBLY LENGTH
(IN MILLIMETERS)
-0500 TO -9999
(-1000, -2000, -3000, AND
-5000 ARE STOCKED LENGTHS)
VCOV-EPLSP-XXX-ORG
(TYP BOTH ENDS)
N+1
Nx2
PROPRIETARY NOTE
DECIMALS
ANGLES
2
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DO NOT SCALE DRAWING
DESCRIPTION:
DWG. NO.
INSULATOR: HIGH TEMP NYLON
TERMINALS: Cu ALLOY
CABLE MATERIAL: JACKET: PVC
INSULATOR: DIELECTRIC
CONDUCTORS: COPPER
COVERS: DIECAST ZINC ALLOY
RIVETS: STEEL
CABLE ASSEMBLY, EPLSP CONNECTOR
OVERMOLD: LDPE
BRAID: TINNED COPPER
FOIL: ALUMINUM/POLYESTER
BY:
KNOWLDEN 04/23/2007
EPLSP-XXX-XXXX-26
SHEET
1
OF
8
REVISION F
(SIGNAL PAIR: -YELLOW=POSITIVE
-WHITE=NEGATIVE
PAD B16
BROWN DIS
GRAY DIS
ORANGE DIS
PR 8 DRAIN
PR 8 NEG
PR 8 POS
PR 7 DRAIN
PR 7 NEG
PR 7 POS
PR 6 DRAIN
PR 6 NEG
PR 6 POS
PR 5 DRAIN
PR 5 NEG
PR 5 POS
)
WHITE DIS
PURPLE DIS
CLK DRAIN
CLK NEG
CLK POS
PR 4 DRAIN
PR 4 NEG
PR 4 POS
PR 3 DRAIN
PR 3 NEG
PR 3 POS
PR 2 DRAIN
PR 2 NEG
PR 2 POS
PR 1 DRAIN
PR 1 NEG
PR 1 POS
PAD A17
SIDE B (BOTTOM)
CABLE
PAIR 5
CABLE
PAIR 8
CABLE
PAIR 7
CABLE
PAIR 6
PAD B1
{
{
{
{
}
}
}
}
}
CLOCK
(PAIR 9)
CABLE
PAIR 4
CABLE
PAIR 3
SIDE A (TOP)
CABLE
PAIR 2
CABLE
PAIR 1
PAD A1
19.04
(REF)
PIN ONE
INDICATOR
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
CABLE ASSEMBLY, EPLSP CONNECTOR
EPLSP-XXX-XXXX-26
04/23/2007
SHEET
2
OF
8
F:\DWG\MISC\Mktg\EPLSP-XXX-XXXX-26-MKT.SLDDRW
BY:
KNOWLDEN
REVISION F
PAD B28
BROWN DIS.
GRAY DIS.
ORANGE DIS
WHITE DIS
PURPLE DIS
CLK DRAIN
CLK NEG
CLK POS
PR 8 DRAIN
PR 8 NEG
PR 8 POS
PR 7 DRAIN
PR 7 NEG
PR 7 POS
PR 6 DRAIN
PR 6 NEG
PR 6 POS
PR 5 DRAIN
PR 5 NEG
PR 5 POS
PR 4 DRAIN
PR 4 NEG
PR 4 POS
PR 3 DRAIN
PR 3 NEG
PR 3 POS
PR 2 DRAIN
PR 2 NEG
PR 2 POS
PR 1 DRAIN
PR 1 NEG
PR 1 POS
PAD A29
CABLE SUB-LSPC-08-P5-01-XXXX
CABLE
PAIR 5
CABLE
PAIR 8
CABLE
PAIR 7
CABLE
PAIR 6
CABLE
PAIR 5
CABLE
PAIR 8
CABLE
PAIR 7
CABLE
PAIR 6
PAD B1
{
{
{
{
{
{
{
{
PR 16 POS
PR 15 DRAIN
PR 15 NEG
PR 15 POS
PR 14 DRAIN
PR 14 NEG
PR 14 POS
PR 13 DRAIN
PR 13 NEG
PR 13 POS
PR 12 DRAIN
PR 12 NEG
PR 12 POS
PR 11 DRAIN
PR 11 NEG
PR 11 POS
PR 10 DRAIN
PR 10 NEG
PR 10 POS
PR 9 DRAIN
PR 9 NEG
PR 9 POS
CABLE
PAIR 4
CABLE
PAIR 3
CABLE
PAIR 2
CABLE
PAIR 1
CABLE
PAIR 4
CABLE
PAIR 3
CABLE
PAIR 2
CABLE
PAIR 1
PAD A1
CABLE SUB-LSPC-08-P5-01-XXXX-R
SIDE B (BOTTOM)
28.64
(REF)
(SIGNAL PAIR: -YELLOW=POSITIVE
-WHITE=NEGATIVE
PIN ONE
INDICATOR
PROPRIETARY NOTE
SIDE A (TOP)
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
)
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
CABLE ASSEMBLY, EPLSP CONNECTOR
EPLSP-XXX-XXXX-26
04/23/2007
SHEET
3
OF
8
F:\DWG\MISC\Mktg\EPLSP-XXX-XXXX-26-MKT.SLDDRW
BY:
KNOWLDEN
CABLE SUB-LSPC-08-P5-01-XXXX-R
CABLE SUB-LSPC-08-P5-01-XXXX
PR 16 DRAIN
PR 16 NEG
}
}
}
}
}
}
}
}
}
CLOCK
(PAIR 9)
REVISION F
SUB-EPLSP-XXX-D-EM
WHITE POWER
PURPLE POWER
SUB-LSPC-08-P5-01-XXXX
SUB-EPLSP-XXX-D-EM
1-ONE
PIN ONE INDICATOR
CLOCK
4-FOUR
3-THREE
2-TWO
1-ONE
2-TWO
3-THREE
4-FOUR
CLOCK
HST-0.078-02-BLK (TYP)
(AFTER SHRINKING)
VCOV-EPLSP-XXX-ORG-PR
(ADD PRIOR TO SOLDERING)
(MUST REMAIN IN PLACE
UNTIL MOLDING)
(TYP BOTH ENDS)
PIN ONE
INDICATOR
8.80±0.5
C5
PURPLE POWER
WHITE POWER

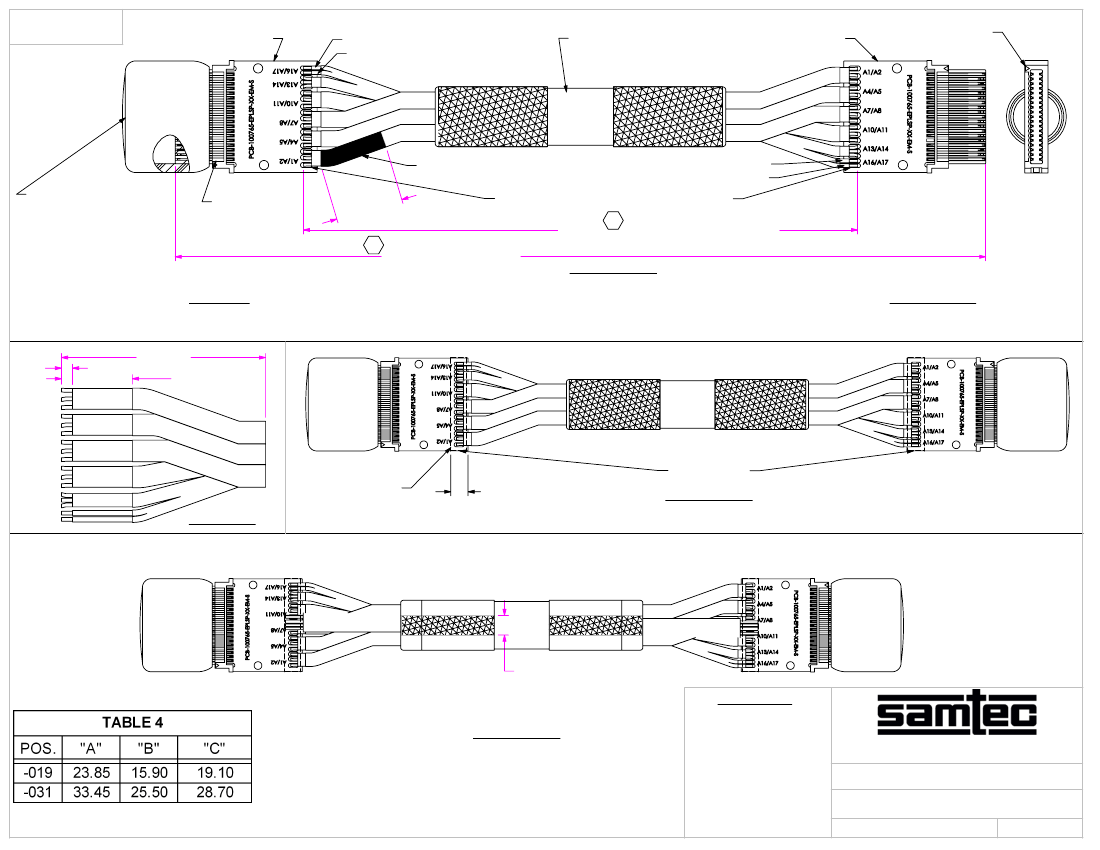

SOLDER TERMINATE CABLE TO MATING CARDS
C4
CABLE LENGTH=
ASSEMBLY LENGTH -41.0mm[1.61in] +/-1%
ASSEMBLY LENGTH +/-1%
FIRST END
(SUB-EPLSP-019-XXXX-26 SHOWN)
A) SLIDE HEAT SHRINK TUBE OVER INDIVIDUAL PAIRS
B) ADD VCOV-EPLSP-XXX-ORG-PR TO SUB-EPLSP
C) SOLDER CABLE TO PCB SUB
D) PUSH H/S TUBE UP TO PCB AND ACTIVATE
IN-PROCESS 1
SECOND END
1.40
19.00
- 4.0
9.00
0.0
KEEP EPOXY
WITHIN PAD AREA
0.00
3.50
- 0.50
EPOXY REGION
APPLY EPOXY
(SUB-EPLSP-019-XXXX-26 SHOWN)
STRIP DIMS
(TYP BOTH ENDS)
IN-PROCESS 2
4.00±0.25
PROPRIETARY NOTE
TRIM BRAID TO 4MM WIDE (PRE-TRIMMED TO LENGTH)
(SUB-EPLSP-019-XXXX-26 SHOWN)
IN-PROCESS 3
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
CABLE ASSEMBLY, EPLSP CONNECTOR
EPLSP-XXX-XXXX-26
04/23/2007
SHEET
4
OF
8
F:\DWG\MISC\Mktg\EPLSP-XXX-XXXX-26-MKT.SLDDRW
BY:
KNOWLDEN
REVISION F
SUB-EPLSP-XXX-D-EM
22.55 REF (TYP)
LDPE PREMOLD
SUB-LSPC-08-P5-01-XXXX
SUB-EPLSP-XXX-D-EM
"C" (TYP)
"B" (TYP)
C
L
PIN ONE INDICATOR
4.25 (TYP)
(TO EDGE OF PCB)
0.13 (4 PLCS)
SUB-LSPC-08-P5-01-XXXX-R
LDPE PREMOLD
PIN ONE INDICATOR
PREMOLD WITH LDPE
(REMOVE VCOV DURING MOLDING,
REPLACE AFTER MOLDING)
(EPLSP-031-XXXX-26 SHOWN)

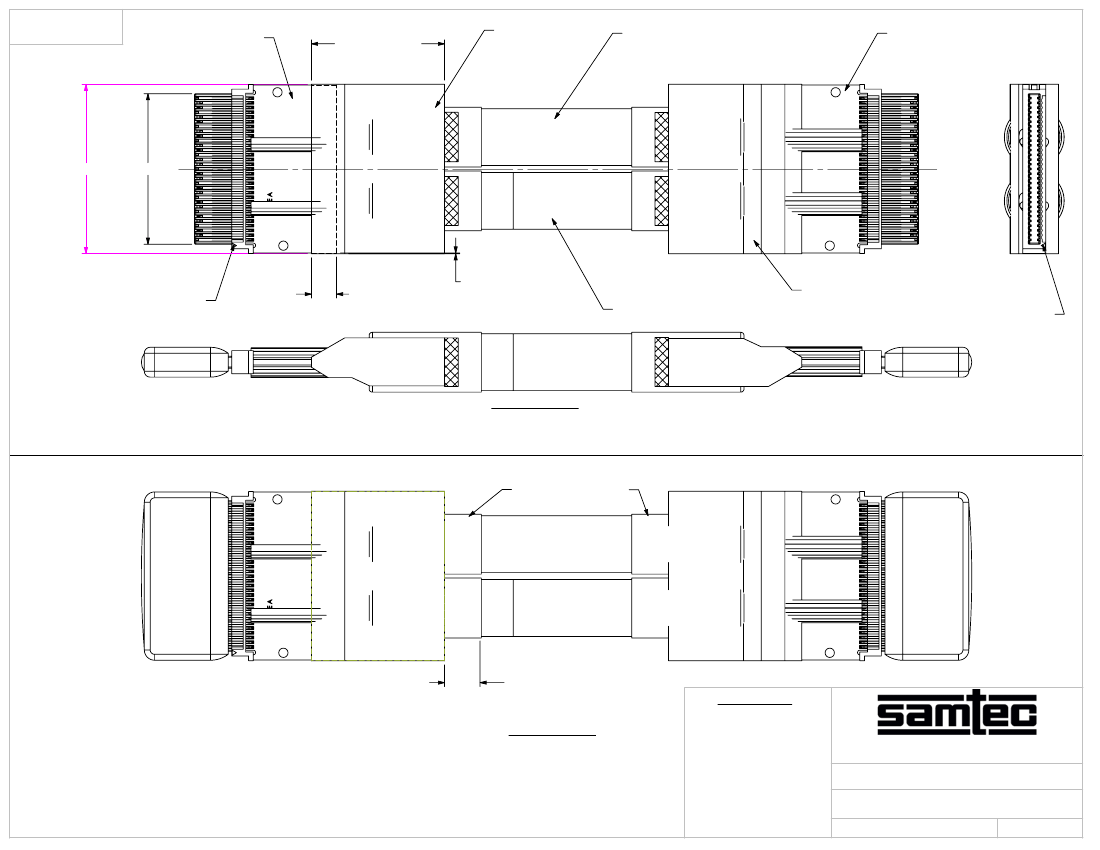

IN-PROCESS 4
CUT-0.250 (1.5" LONG)
6.00±0.25
(TYP)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
ADD COPPER TAPE
(EPLSP-031-XXXX-26 SHOWN)
IN-PROCESS 5
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
CABLE ASSEMBLY, EPLSP CONNECTOR
EPLSP-XXX-XXXX-26
F:\DWG\MISC\Mktg\EPLSP-XXX-XXXX-26-MKT.SLDDRW
BY:
KNOWLDEN 04/23/2007
SHEET
5
OF
8
