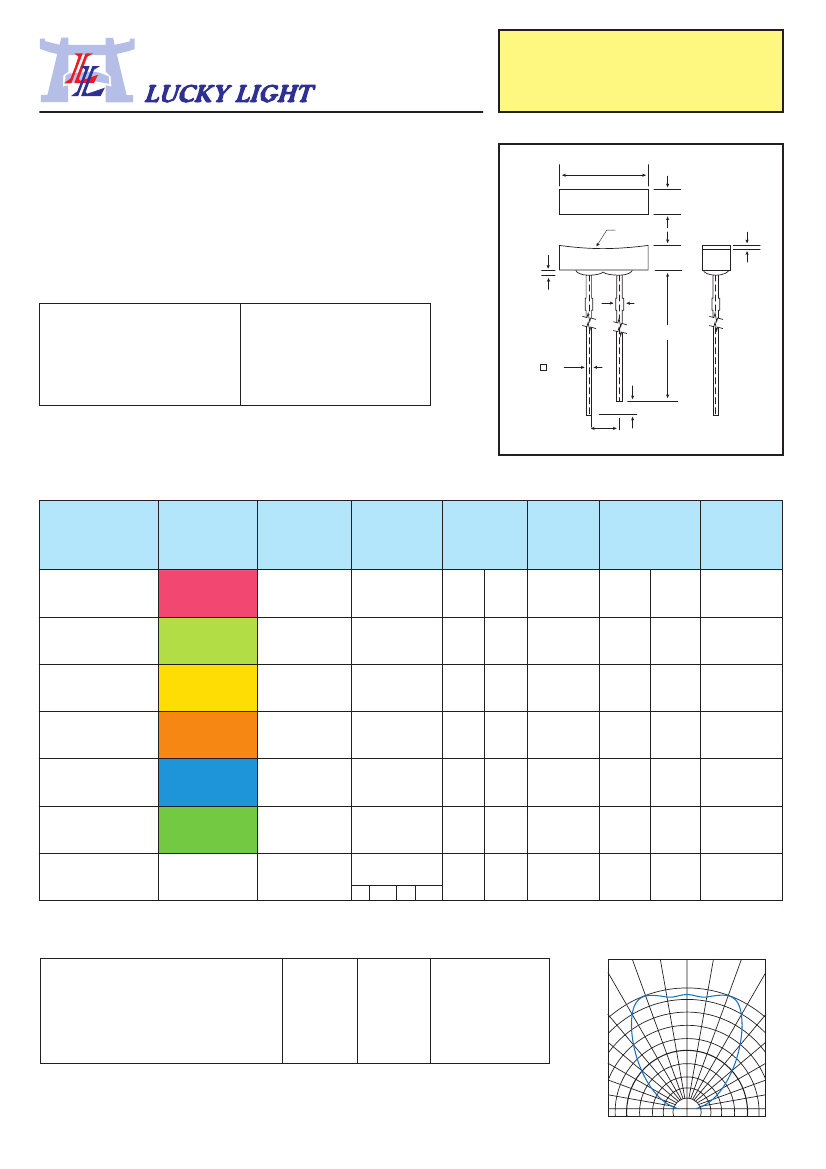

GB-663 SERIES

Side Backlight Type

Single Chip (2.2 x 5.5mm)

DESCRIPTION:

The 663 series is side looking LED Lamps and is most suitably used for LCD

back light with excellent uniformity of light emitted.

The semi-conductor materials used are:

GaP for (663UGC)

AlGalnP for (663RS2C, 663UY2C, 663UO2C)

InGaN/Sic for (663B472C, 663PG2C, 663W2C)

PACKAGE DIMENSIONS

5.50

2.2

R37.86

2.2

Unit: mm

Tol: +/- 0.2mm

ABSOLUTE MAXIMUM RATINGS: (Ta=25 C)

Reverse Voltage

Reverse Current (Vr =5V)

Operating Temperature Range

Storage Temperature Range

Lead Soldering Temperature

(1.6mm (1/16)From Body)

5 Volt

100µA

-40 C To 85 C

-40 C To 100 C

260 C For 5 Seconds

1.0 Max.

0.6

25.4

0.36

0.5

1.0

NOTES : 1. All dimensions are in millimeters.

2. Lead spacing is measured where the leads emerge from the package.

3. Protuded resin under flange is 1.5 mm (0.059") Max.

4. Specifications are subject to change without notice.

2.54

PART NO. SELECTION AND APPLICATION INFORMATION (RATINGS AT 25 C AMBIENT)

Emitted

Color

Lens

Color

Peak

Wavelength

λp

(nm)

635

Vf (v)

Min Max

Rec.

If (mA).

Iv (mcd)

Min

Typ.

View

Angle

2θ

1/2

(Deg)

Part No.

GB-663RS2C

Ultra Red

Water Clear

1.7

2.6

70.0

180.0

106

GB-663UGC

Ultra Green

Water Clear

570

1.7

2.6

23.0

59.0

106

GB-663UY2C

Ultra Yellow

Water Clear

590

1.7

2.6

96.0

250.0

106

GB-663UO2C

Amber

Water Clear

610

1.7

2.6

42.0

110.0

106

GB-663B472C

Blue

Water Clear

470

2.8

4.5

100.0

260.0

106

GB-663PG2C

Pure Green

Water Clear

525

TYPICAL

CHROMATICITY

COORDINATES

0.3

2.8

4.5

180.0

450.0

106

GB-663W2C

White

Water Clear

2.8

4.5

180.0

450.0

106

CAUTION: Handle with care against static electricity

TESTING CONDITION FOR EACH PARAMETER :

PARAMETER:

REVERSE VOLTAGE

REVERSE CURRENT

FORWARD VOLTAGE

LUMINOUS INTENSITY

VIEWING ANGLE

RECOMMENDED OPERATING CURRENT

SYMBOL

2θ

1/2

If (Rec)

UNIT

VOLT

µA

VOLT

MCD

DEGREE

TEST CONDITION

Vr = 5.0 Volt

If = 20mA

1.0

0.9

0.8

0.7

0.5

0.3

0.1

0.2

0.4

0.6

SPATIAL DISTRIBUTION
