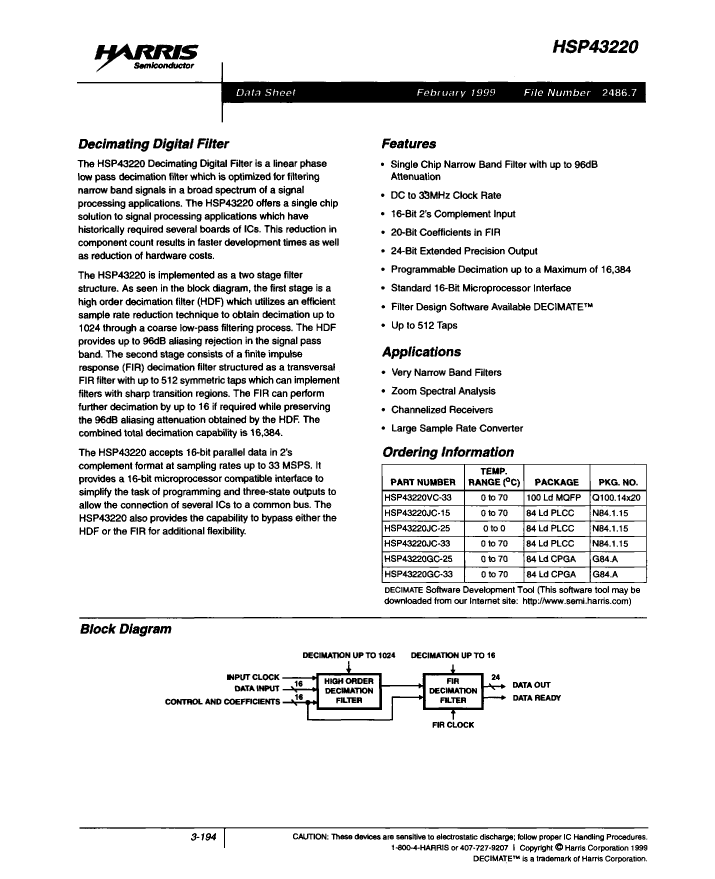

Digital Filter, 16-Bit, MOS, PQFP100
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| package instruction | QFP, QFP100,.7X.9 |
| Reach Compliance Code | unknown |
| ECCN code | 3A991.A.2 |
| Other features | ICC SPECIFIED @ 15MHZ |
| boundary scan | NO |
| maximum clock frequency | 33.33 MHz |
| External data bus width | 16 |
| JESD-30 code | R-PQFP-G100 |
| JESD-609 code | e0 |
| low power mode | YES |
| Number of terminals | 100 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output data bus width | 24 |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | QFP |
| Encapsulate equivalent code | QFP100,.7X.9 |
| Package shape | RECTANGULAR |
| Package form | FLATPACK |
| power supply | 5 V |
| Certification status | Not Qualified |
| Maximum slew rate | 120 mA |
| Maximum supply voltage | 5.25 V |
| Minimum supply voltage | 4.75 V |
| Nominal supply voltage | 5 V |
| surface mount | YES |
| technology | MOS |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 0.635 mm |
| Terminal location | QUAD |
| uPs/uCs/peripheral integrated circuit type | DSP PERIPHERAL, DIGITAL FILTER |
| Base Number Matches | 1 |
| HSP43220VC-33 | HSP43220GC-33 | HSP43220JC-25 | HSP43220JC-33 | HSP43220GC-25 | HSP43220JC-15 | |
|---|---|---|---|---|---|---|
| Description | Digital Filter, 16-Bit, MOS, PQFP100 | Digital Filter, 16-Bit, MOS, CPGA84 | Digital Filter, 16-Bit, MOS, PQCC84 | Digital Filter, 16-Bit, MOS, PQCC84 | Digital Filter, 16-Bit, MOS, CPGA84 | Digital Filter, 16-Bit, MOS, PQCC84 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| package instruction | QFP, QFP100,.7X.9 | PGA, PGA84M,11X11 | QCCJ, LDCC84,1.2SQ | QCCJ, LDCC84,1.2SQ | PGA, PGA84M,11X11 | QCCJ, LDCC84,1.2SQ |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknow |
| boundary scan | NO | NO | NO | NO | NO | NO |
| maximum clock frequency | 33.33 MHz | 33.33 MHz | 25.64 MHz | 33.33 MHz | 25.64 MHz | 15.15 MHz |
| External data bus width | 16 | 16 | 16 | 16 | 16 | 16 |
| JESD-30 code | R-PQFP-G100 | S-CPGA-P84 | S-PQCC-J84 | S-PQCC-J84 | S-CPGA-P84 | S-PQCC-J84 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 |
| low power mode | YES | YES | YES | YES | YES | YES |
| Number of terminals | 100 | 84 | 84 | 84 | 84 | 84 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Output data bus width | 24 | 24 | 24 | 24 | 24 | 24 |
| Package body material | PLASTIC/EPOXY | CERAMIC, METAL-SEALED COFIRED | PLASTIC/EPOXY | PLASTIC/EPOXY | CERAMIC, METAL-SEALED COFIRED | PLASTIC/EPOXY |
| encapsulated code | QFP | PGA | QCCJ | QCCJ | PGA | QCCJ |
| Encapsulate equivalent code | QFP100,.7X.9 | PGA84M,11X11 | LDCC84,1.2SQ | LDCC84,1.2SQ | PGA84M,11X11 | LDCC84,1.2SQ |
| Package shape | RECTANGULAR | SQUARE | SQUARE | SQUARE | SQUARE | SQUARE |
| Package form | FLATPACK | GRID ARRAY | CHIP CARRIER | CHIP CARRIER | GRID ARRAY | CHIP CARRIER |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum slew rate | 120 mA | 120 mA | 120 mA | 120 mA | 120 mA | 120 mA |
| Maximum supply voltage | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V |
| Minimum supply voltage | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | NO | YES | YES | NO | YES |
| technology | MOS | MOS | MOS | MOS | MOS | MOS |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | PIN/PEG | J BEND | J BEND | PIN/PEG | J BEND |
| Terminal pitch | 0.635 mm | 2.54 mm | 1.27 mm | 1.27 mm | 2.54 mm | 1.27 mm |
| Terminal location | QUAD | PERPENDICULAR | QUAD | QUAD | PERPENDICULAR | QUAD |
| uPs/uCs/peripheral integrated circuit type | DSP PERIPHERAL, DIGITAL FILTER | DSP PERIPHERAL, DIGITAL FILTER | DSP PERIPHERAL, DIGITAL FILTER | DSP PERIPHERAL, DIGITAL FILTER | DSP PERIPHERAL, DIGITAL FILTER | DSP PERIPHERAL, DIGITAL FILTER |
| ECCN code | 3A991.A.2 | 3A991.A.2 | 3A991.A.2 | 3A991.A.2 | 3A991.A.2 | - |
| Other features | ICC SPECIFIED @ 15MHZ | ICC SPECIFIED @ 15MHZ | ICC SPECIFIED @ 15MHZ | ICC SPECIFIED @ 15MHZ | ICC SPECIFIED @ 15MHZ | - |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | - |
| Maker | - | Harris | Harris | Harris | - | Harris |
