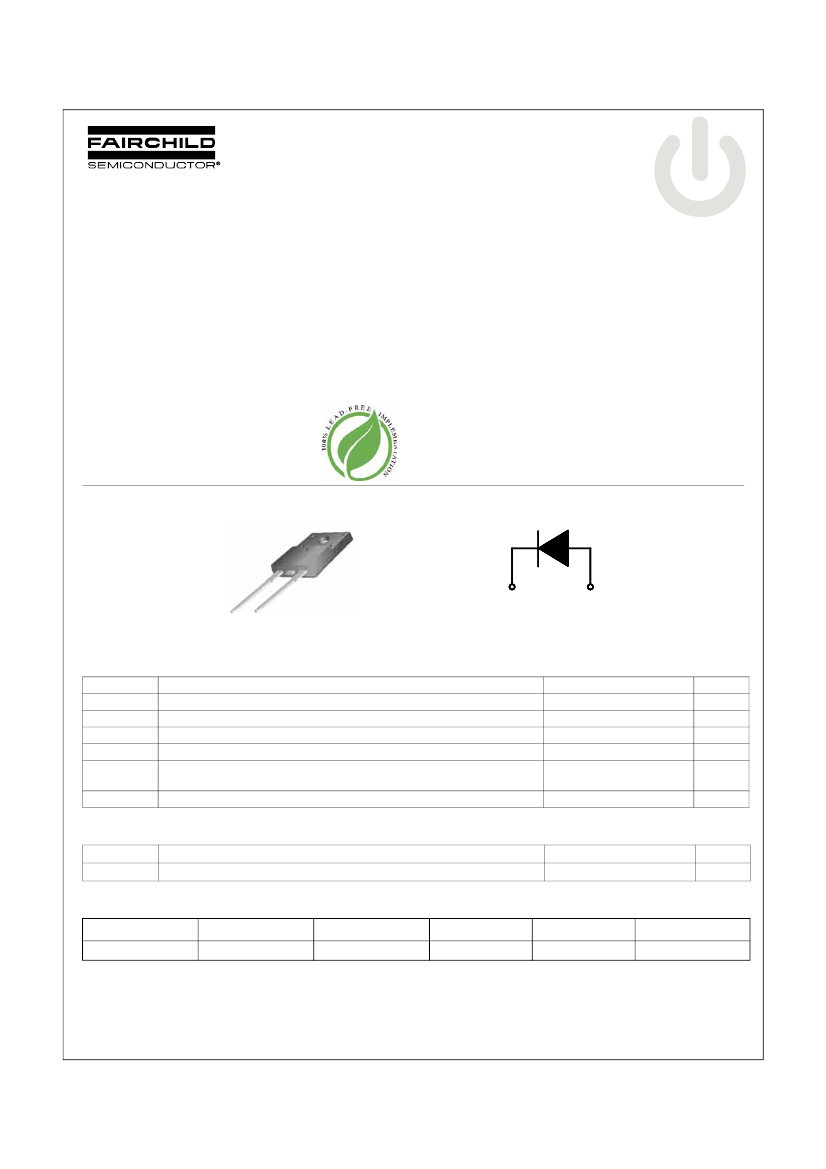

FFPF15S60S
October 2007
STEALTH
TM
II Rectifier
FFPF15S60S
Features
• High Speed Switching, t
rr
< 35ns @ I
F
= 15A
• High Reverse Voltage and High Reliability
• RoHS compliant
tm
15A, 600V STEALTH
TM
II Rectifier
The FFPF15S60S is STEALTH
TM
II rectifier with soft recovery
characteristics. It is silicon nitride passivated ion-implanted epi-
taxial planar construction.
This device is intended for use as freewheeling of boost diode in
switching power supplies and other power swithching applica-
tions. Their low stored charge and hyperfast soft recovery mini-
mize ringing and electrical noise in many power switching circuits
reducing power loss in the switching transistors.
Applications
• General Purpose
• Switching Mode Power Supply
• Boost Diode in continuous mode power factor corrections
• Power switching circuits
TO-220F-2L
1. Cathode 2. Anode
1. Cathode
2. Anode
Absolute Maximum Ratings
T
C
= 25
o
C unless otherwise noted
Symbol
V
RRM
V
RWM
V
R
I
F(AV)
I
FSM
T
J
, T
STG
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Forward Current
Non-repetitive Peak Surge Current
60Hz Single Half-Sine Wave
Operating and Storage Temperature Range
@ T
C
= 52 C
o
Parameter
Ratings
600
600
600
15
150
-65 to +150
Units
V
V
V
A
A
o
C
Thermal Characteristics
Symbol
R
θJC
Parameter
Maximum Thermal Resistance, Junction to Case
Ratings
4.6
Units
o
C/W
Package Marking and Ordering Information
Device Marking
F15S60S
Device
FFPF15S60STU
Package
TO-220F-2L
Reel Size
-
Tape Width
-
Quantity
50
©2007 Fairchild Semiconductor Corporation
FFPF15S60S Rev. A
1
www.fairchildsemi.com
FFPF15S60S
Electrical Characteristics
T
C
= 25
o
C unless otherwise noted
Symbol
V
FM
1
I
RM
1
t
rr
t
rr
I
rr
S factor
Q
rr
t
rr
I
rr
S factor
Q
rr
W
AVL
I
F
= 15A
I
F
= 15A
V
R
= 600V
V
R
= 600V
I
F
= 1A, di/dt = 100A/µs, V
R
= 30V
I
F
= 15A, di/dt = 200A/µs, V
R
= 390V
Parameter
T
C
= 25 C
T
C
= 125
o
C
T
C
= 25
o
C
T
C
= 125
o
C
T
C
= 25
o
C
T
C
= 25
o
C
o
Min.
-
-
-
-
-
-
-
-
-
-
-
-
-
20
Typ.
2.1
1.6
-
-
21
23
2.5
0.7
29
55
4.3
1.1
118
-
Max.
2.6
-
100
500
30
35
-
-
-
-
-
-
-
-
Units
V
µA
ns
ns
A
nC
ns
A
nC
mJ
I
F
= 15A, di/dt = 200A/µs, V
R
= 390V
Avalanche Energy ( L = 40mH)
T
C
= 125
o
C
Notes:
1: Pulse: Test Pulse width = 300µs, Duty Cycle = 2%

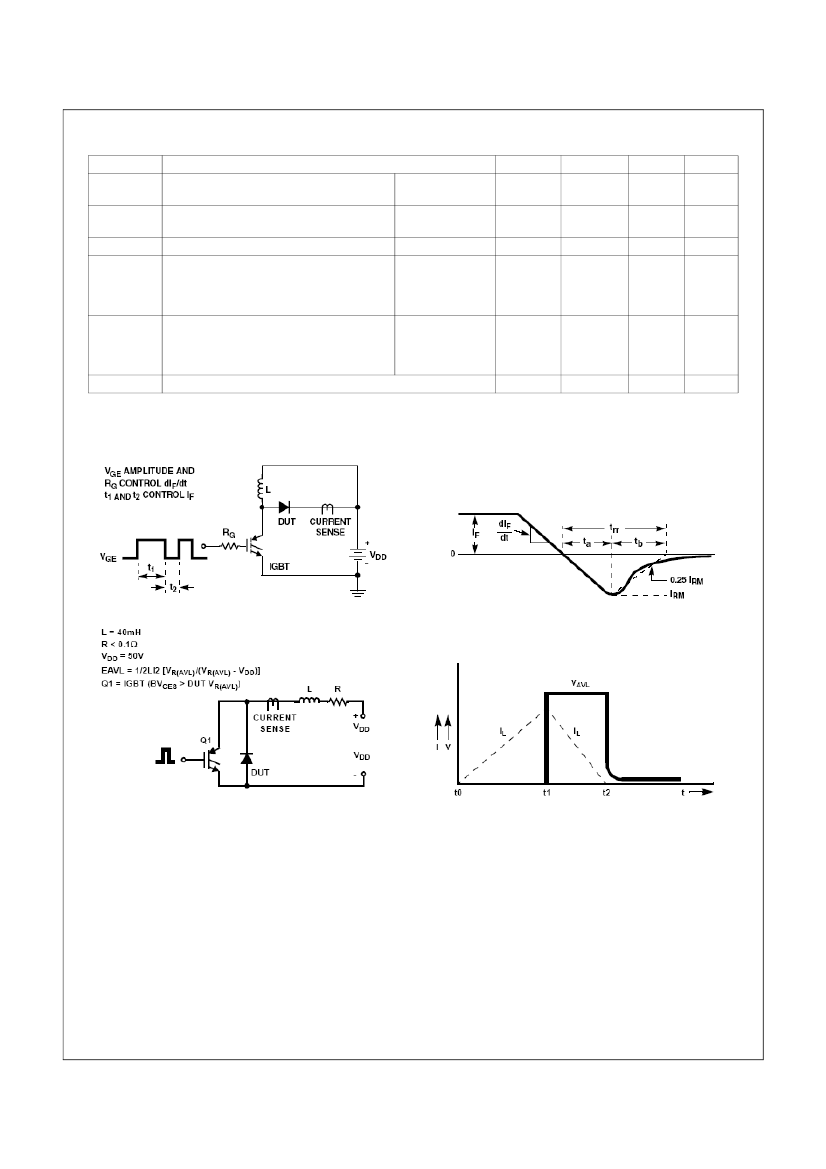

Test Circuit and Waveforms
FFPF15S60S Rev. A
2
www.fairchildsemi.com
FFPF15S60S

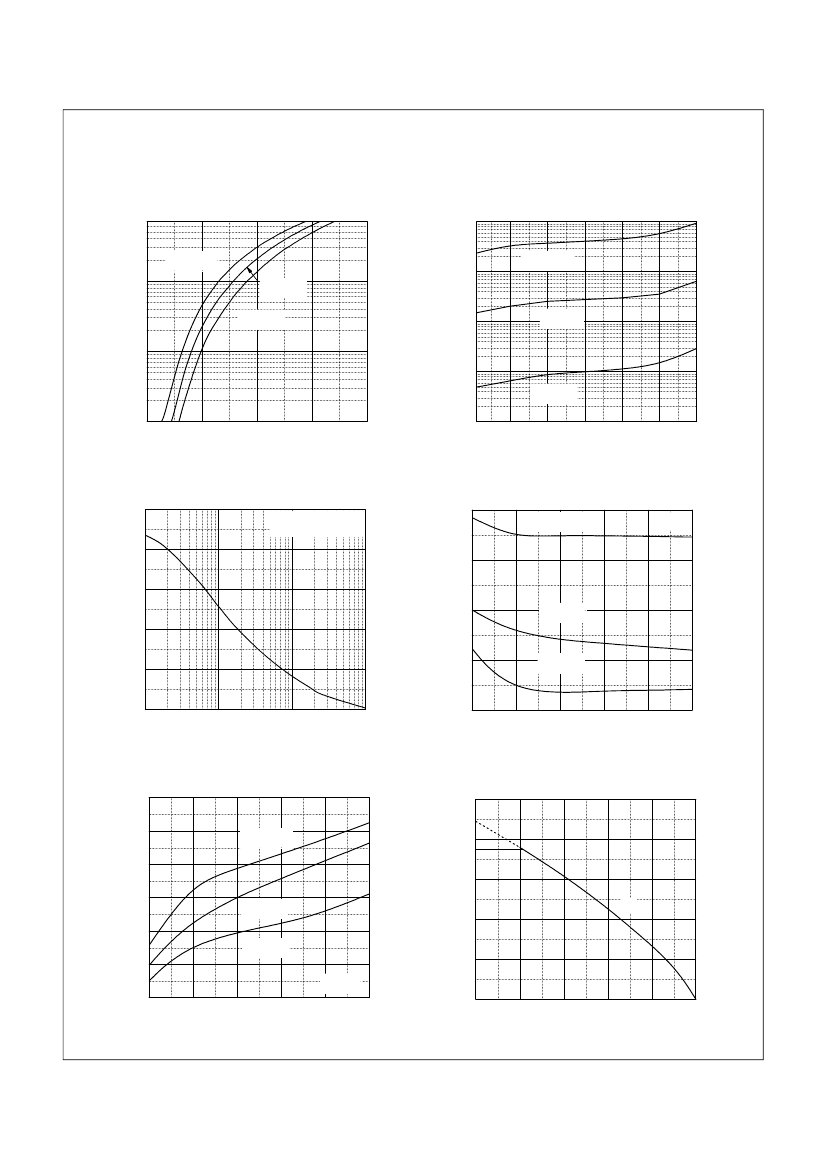

Typical Performance Characteristics
Figure 1. Typical Forward Voltage Drop
vs. Forward Current
70
o
Figure 2. Typical Reverse Current
vs. Reverse Voltage
100
Reverse Current, I
R
[
µ
A
]
T
C
= 125 C
Forward Current, I
F
[A]
10
10
T
C
= 125 C
o
T
C
= 75 C
T
C
= 25 C
o
o
1
T
C
=75 C
o
1
0.1
T
C
= 25 C
o
0.1
0
1
2
3
Forward Voltage, V
F
[V]
4
0.01
10
100
200
300
400
Reverse Voltage, V
R
[V]
500
600
Figure 3. Typical Junction Capacitance
180
Typical Capacitance
at 0V = 180 pF
Figure 4. Typical Reverse Recovery Time
vs. di/dt
60
Reverse Recovery Time, t
rr
[ns]
T
C
= 125 C
o
I
F
= 15A
150
Capacitances, Cj [pF]
50
120
40
T
C
= 75 C
o
90
30
60
T
C
= 25 C
o
30
0.1
1
10
Reverse Voltage, V
R
[V]
100
20
100
200
300
400
di/dt
[
A/
µ
s
]
500
600
Figure 5. Typical Reverse Recovery
Current vs. di/dt
7
6
5
4
3
T
C
= 25 C
o
Figure 6. Forward Current Derating Curve
20
T
C
= 125 C
o
Average Forward Current, I
F(AV)
[A]
Reverse Recovery Current, I
rr
[A]
16
12
DC
T
C
= 75 C
o
8
2
I
F
= 15A
4
1
100
200
300
400
500
600
0
25
50
di/dt
[
A/
µ
s
]
75
100
125
o
Case temperature, T
C
[
C
]
150
FFPF15S60S Rev. A
3
www.fairchildsemi.com
FFPF15S60S
Mechanical Dimensions
TO-220F 2L
10.16
±0.20
ø3.18
±0.10
2.54
±0.20
(0.70)
3.30
±0.10
6.68
±0.20
15.80
±0.20
(1.00x45°)
(6.50)
(1.80)
9.75
±0.30
12.00
±0.20
MAX1.47
0.80
±0.10
2.76
±0.20
0.35
±0.10
2.54TYP
[2.54
±0.20
]
2.54TYP
[2.54
±0.20
]
+0.10
0.50
–0.05
9.40
±0.20
4.70
±0.20
Dimensions in Millimeters
15.87
±0.20
FFPF15S60S Rev. A
4
www.fairchildsemi.com
FFPF15S60S
