FAV332 — Quad Video Switch with Individual Enables
March 2008
FSAV332 — Quad Video Switch with Individual
Enables
Features
Wide Bandwidth: 368MHz
-84dB Non-adjacent Channel Crosstalk at 10MHz
-49dB Off-Isolation at 10MHz
3Ω Typical On Resistance (R
ON
)
Low-Power Consumption: 3µA Maximum
Control Input: TTL Compatible
Description
The FSAV332 video switch is a quad high-speed video
switch. Low on resistance allows inputs to be connected
to outputs without adding propagation delay or
generating additional ground bounce noise.
The device is organized as four one-bit switches with
separate output enable (/OE) pins. When OE is LOW,
the switch is ON and port A is connected to port B.
When OE is HIGH, the switch is OPEN and a high-
impedance state exists between the two ports.
Applications
Y/C Video or CVBS Video Switch in LCD
Plasma, or Projector Displays
Ordering Information
Part Number
FSAV332MTC
FSAV332MTCX
FSAV332QSC
FSAV332QSCX
Operating
Temperature Range
-40 to +85°C
-40 to +85°C
-40 to +85°C
-40 to +85°C
Package
14-Lead, Thin Shrink Small Outline Package
(TSSOP), JEDEC MO-153, 4.4mm Wide
14-Lead, Thin Shrink Small Outline Package
(TSSOP), JEDEC MO-153, 4.4mm Wide
16-Lead, Quarter Size Outline Package (QSOP),
JEDEC MO-137, 0.150 inch Wide
16-Lead, Quarter Size Outline Package (QSOP),
JEDEC MO-137, 0.150 inch Wide
Packing
Method
Tube
Tape and Reel
Tube
Tape and Reel
All packages are lead free per JEDEC: J-STD-020B standard.
/OE
1
1A
/OE
2
1B
2A
2B
/OE
3
3A
/OE
4
4B
3B
4A
Figure 1. Logic Diagram
© 2004 Fairchild Semiconductor Corporation
FSAV332 • Rev. 1.0.3
www.fairchildsemi.com
FSAV332 — Quad Video Switch with Individual Enables
Pin Assignments
NC
/OE
1
1A
1
14
V
CC
1
16
V
CC
/OE
4
4A
/OE
1
2
13
/OE
4
2
15
1A
1B
3
12
4A
3
14
1B
/OE
2
2A
4
11
4B
4
13
4B
/OE
2
5
10
/OE
3
5
12
/OE
3
3A
2A
2B
6
9
3A
6
11
2B
GND
7
8
3B
7
10
3B
GND
8
9
NC
Figure 2. TSSOP Pin Assignments
Figure 3. QSOP Pin Assignments
Pin Descriptions
Pin Names
/OE
1
, /OE
2
, /OE
3
, /OE
4
1A, 2A, 3A, 4A
1B, 2B, 3B, 4B
NC
V
CC
GND
Description
Bus Switch Enables
Bus A
Bus B
Not Connected
Supply Voltage
Ground
Truth Table
Inputs
/OE
LOW
HIGH
Inputs/Outputs
A, B
A=B
High Impedance
© 2004 Fairchild Semiconductor Corporation
FAV332 • Rev. 1.0.3
www.fairchildsemi.com
2
FSAV332 — Quad Video Switch with Individual Enables
Absolute Maximum Ratings
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be
operable above the recommended operating conditions and stressing the parts to these levels is not recommended.
In addition, extended exposure to stresses above the recommended operating conditions may affect device
reliability. The absolute maximum ratings are stress ratings only.
Symbol
V
CC
V
S
V
IN
I
IK
I
OUT
T
STG
ESD
Supply Voltage
DC Switch Voltage
DC Input Voltage
Parameter
(1)
Min.
-0.5
-0.5
-0.5
-50
Max.
7.0
V
CC
+ 0.5
7.0
128
Unit
V
V
V
mA
mA
°C
V
(1)
DC Input Diode Current
DC Output Current
Storage Temperature Range
Human Body Model, JESD22-A114
-65
+150
4000
Note:
1. The input and output negative voltage ratings may be exceeded if the input and output diode current ratings are
observed.
Recommended Operating Conditions
The Recommended Operating Conditions table defines the conditions for actual device operation. Recommended
operating conditions are specified to ensure optimal performance to the datasheet specifications. Fairchild does not
recommend exceeding them or designing to Absolute Maximum Ratings.
Symbol
V
CC
V
IN
V
S
T
A
Θ
JA
Power Supply
Parameter
Control Input Voltage
Switch Input Voltage
Operating Temperature
Thermal Resistance
TSSOP
QSOP
(2)
Min.
4.75
0
0
-40
Max.
5.25
V
CC
V
CC
+85
+115
+127
Unit
V
V
V
°C
°C/W
Note:
2. Unused control inputs must be held HIGH or LOW; they may not float.
© 2004 Fairchild Semiconductor Corporation
FAV332 • Rev. 1.0.3
www.fairchildsemi.com
3
FSAV332 — Quad Video Switch with Individual Enables
DC Electrical Characteristics
All typical values are for V
CC
=5.0V and 25°C, unless otherwise noted.
Symbol
V
ANALOG
V
IK
V
IH
V
IL
I
IN
I
OZ
R
ON
I
CC
Parameter
Analog Signal Range
Clamp Diode Voltage
High-Level Input Voltage
Low-Level Input Voltage
Input Leakage Current
Off-state Leakage
Current
Switch On Resistance
Quiescent Supply
Current
(3)
Conditions
V
CC
(V)
4.75 to
5.25
4.75
4.75 to
5.25
4.75 to
5.25
5.25
5.25
4.75
4.75
5.25
Min.
0
Typ.
Max.
2
-1.2
Units
V
V
V
I
IN
=-18mA
2.0
0.8
±1.0
±1.0
3
7
7
10
3
V
µA
µA
Ω
µA
V
IN
=
0V to V
CC
0
≤
A, B
≤
V
CC
V
IN
=1V, R
L
=75Ω, I
ON
=13mA
V
IN
=2V, R
L
=75Ω, I
ON
=26mA
V
IN
= 0V V
CC
or I
OUT
=0
Note:
3. Measured by the voltage drop between the A and B pins at the indicated current through the switch. On
resistance is determined by the lower of the voltages on the A or B pins.
AC Electrical Characteristics
All typical values are for V
CC
=5.0V at T
A
=25°C, unless otherwise noted.
Symbol
t
ON
t
OFF
t
PLH,
t
PHL
D
G
D
P
O
IRR
X
TALK
B
W
Parameter
Turn-on Time
Turn-off Time
Propagation Delay
Differential Gain
Differential Phase
Off Isolation
Crosstalk
-3dB Bandwidth
(4)
Conditions
V
IN
=7V for t
PZL,
V
IN
=Open for t
PZH
V
IN
=7V for t
PZL,
V
IN
=Open for t
PZH
V
IN
=Open
R
L
=150Ω, f=3.58MHz
R
L
=150Ω, f=3.58MHz
f=10MHz, R
L
=150Ω
R
L
=150Ω, f=10MHz
R
L
=150Ω
Min.
1.0
1.0
Typ.
Max.
5.0
5.0
0.1
Units
ns
ns
ns
%
°
dB
dB
MHz
Figure
Figure 4
Figure 5
Figure 4
Figure 5
Figure 4
Figure 5
0.29
0.1
-84
-54
368
Figure 6
Figure 7
Figure 8
Note:
4. This parameter is guaranteed by design.
Capacitance
All typical values are for T
A
= -40 to +85°C.
Symbol
C
IN
C
ON
C
OFF
Parameter
Control Pin Input Capacitance
A/B On Capacitance
Port B Off Capacitance
Conditions
V
CC
=5.0V
V
CC
=5.0V, /OE=0V
V
CC
and /OE=5.0V
Typ.
3.0
30.0
5.0
Units
pF
pF
pF
© 2004 Fairchild Semiconductor Corporation
FAV332 • Rev. 1.0.3
www.fairchildsemi.com
4
FSAV332 — Quad Video Switch with Individual Enables
AC Loadings and Waveforms
Notes: Input drive by 50Ω source terminated in 50Ω.
C
L
includes load and stray capacitance.
Input PRR=1.0MHz, t
W
=500ns.

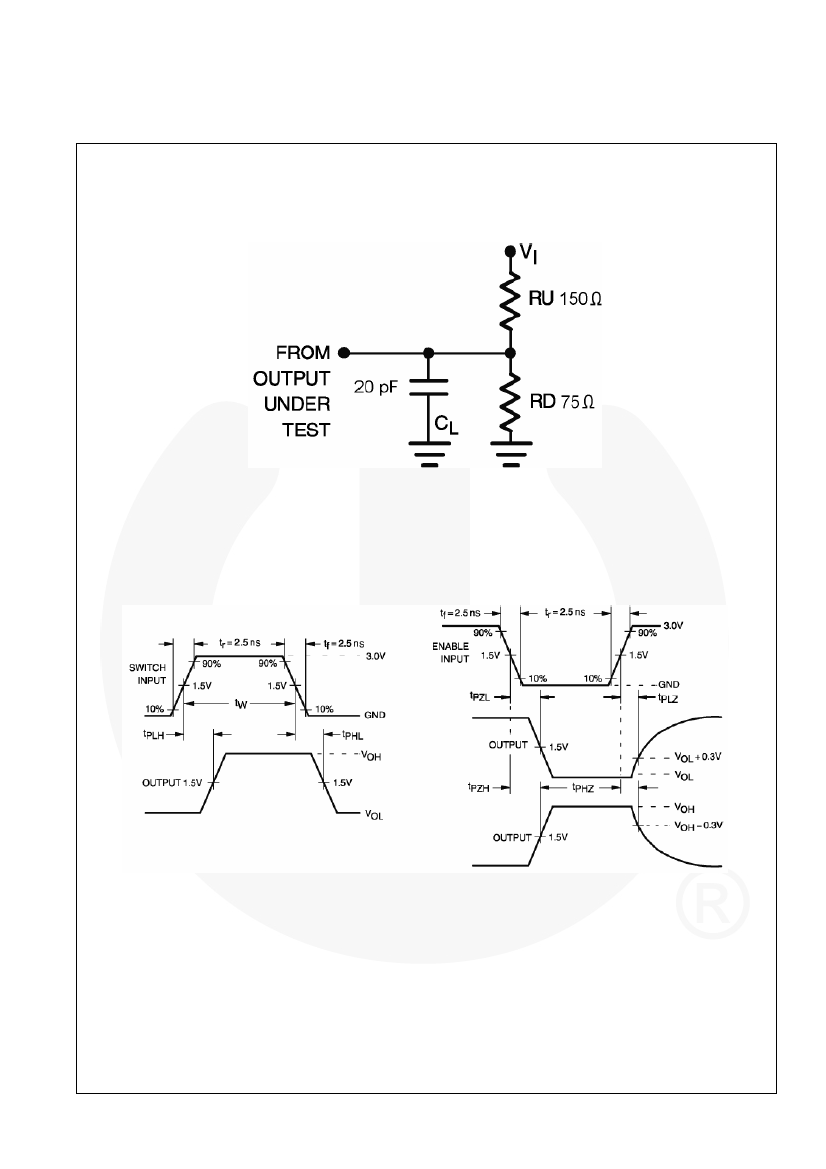

Figure 4. AC Test Circuit
Figure 5. AC Waveforms
© 2004 Fairchild Semiconductor Corporation
FSAV332 • Rev. 1.0.3
www.fairchildsemi.com
5
