MS24264R18B31SN datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MS24264R18B31SN

Preview

MS24264R18B31SN: DescriptionMIL Series Connector, 31 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle,; CategoryThe connector The connector; File Size181KB，1 Pages; ManufacturerAero-Electric Connector; Websitehttps://www.aero-electric.com/index.html

Download Datasheet Parametric View All

MS24264R18B31SN Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MS24264R18B31SN	-	-	View	Buy Now

MS24264R18B31SN Overview

MIL Series Connector, 31 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Receptacle,

MS24264R18B31SN Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: MIL-DTL-26500
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	BAYONET
DIN compliance	NO
empty shell	YES
Environmental characteristics	CORROSION/ENVIRONMENT/FLUID/IMMERSION RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	ANODIZED BLACK
Shell material	ALUMINUM ALLOY
Housing size	18
Termination type	CRIMP
Total number of contacts	31
Base Number Matches	1

Preview

Download Datasheet

View All

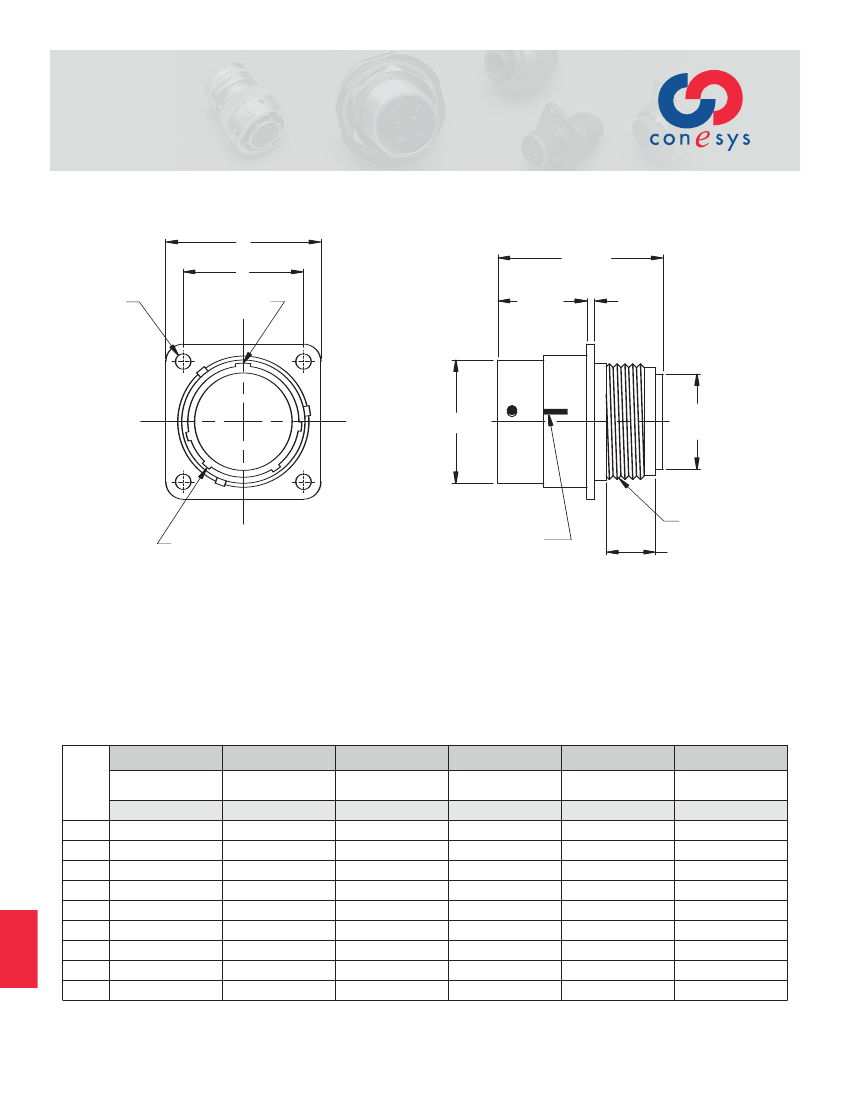

MS24264R**B

Wall Mounting Receptacle

AE664R**B

Bayonet Coupling, Crimp Removable, Front Release

A

B

4x

C

MASTER

KEYWAY

.728(18.49)

.708(17.98)

1.421(36.09)

MAX

MOUNTING

HOLES

.072(1.83)

.052(1.32)

F

D

MAX

GROMMET

E

ACCESSORY THREAD

4 MINOR KEYWAYS

3 ORANGE COLOR STRIPES

EQUALLY SPACED

.306(7.77) MIN FULL THREAD

Page 111

Page 120

Page 123

Page 110

Page 122

Page 118

Completed Part Number

Contacts, Sealing Plugs and Tools

Insert Arrangements

Performance Speciﬁcations

Insert Availability and Contact Information

Polarization

PANEL THICKNESS:

.125(3.18)MAX

A

Shell

Size

8

±.005

inch

.812

.937

1.031

1.125

1.250

1.343

1.437

1.562

1.703

±.13

mm

20.62

23.80

26.19

28.58

31.75

34.11

36.50

39.67

43.26

inch

.594

.719

.812

.906

.969

1.062

1.156

1.250

1.375

B

(TP)

mm

15.09

18.26

20.62

23.01

24.61

26.97

29.36

31.75

34.93

+.000

-.009

inch

.125

.154

C

+.00

-.23

mm

3.18

3.91

+.000

-.005

inch

.536

.659

.829

.898

1.025

1.131

1.256

1.381

1.506

D

+.00

-.13

mm

13.61

16.74

21.06

22.81

26.04

28.73

31.90

35.08

38.25

E

Accessory Thread

Class 2A

7/16-28UNEF

9/16-24UNEF

3/4-20UNEF

13/16-20UNEF

15/16-20UNEF

1-1/16-18UNEF

1-3/16-18UNEF

1-5/16-18UNEF

1-7/16-18UNEF

F

Maximum

inch

.328

.420

.580

.664

.769

.902

1.033

1.152

1.282

mm

8.33

10.67

14.73

16.87

19.53

22.91

26.24

29.26

32.56

MIL–DTL–

26500

10

12

14

16

18

20

22

24

www.conesys.com

– 112 –

sales

@

aero-electric.com
