PA0803NL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> PA0803NL

PA0803NL: DescriptionRF Transformer, 0.2MHz Min, 0.7MHz Max, ROHS COMPLIANT; CategoryPower management transformer; File Size516KB，3 Pages; ManufacturerPulse Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

PA0803NL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PA0803NL	-	-	View	Buy Now

PA0803NL Overview

RF Transformer, 0.2MHz Min, 0.7MHz Max, ROHS COMPLIANT

PA0803NL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
application	POWER
maximum cutoff frequency	0.7 MHz
minimum cutoff frequency	0.2 MHz
high	8.6 mm
Insulation voltage	1750 V
length	23.37 mm
Load Resistance	0.007 Ω
Installation features	SURFACE MOUNT
Number of primary windings	3
Number of secondary windings	3
Maximum operating frequency	700 kHz
Minimum operating frequency	200 kHz
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
method of packing	TRAY
physical size	L23.37XB21.6XH8.6 (mm)
rated power	140 W
Primary inductance	240 µH
surface mount	YES
Transformer type	RF TRANSFORMER
width	21.6 mm
Base Number Matches	1

Preview

Download Datasheet

View All

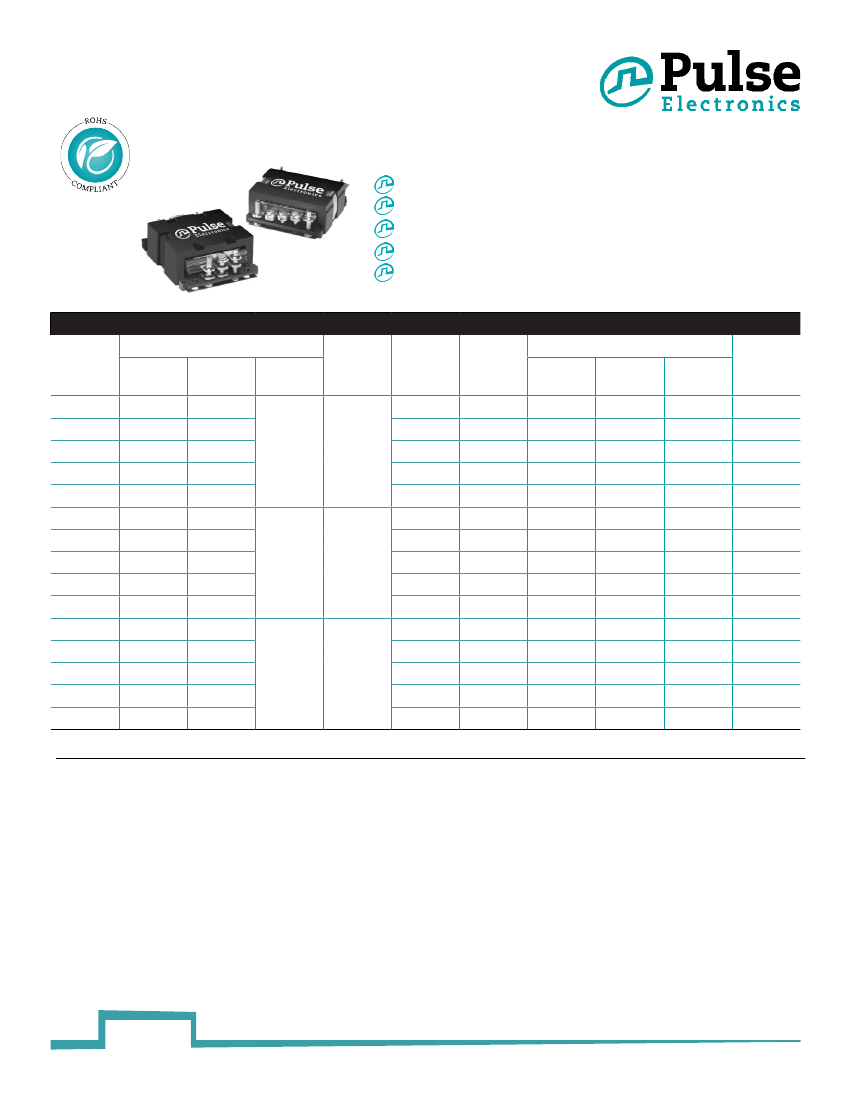

High Frequency Planar

Transformer

Power Rating:

up to 140W

Height:

8.6mm to 9.7mm Max

Footprint:

23.4mm x 21.6mm Max

Frequency Range:

200kHz to 700kHz

Isolation (Primary to Secondary & Core):

1750V

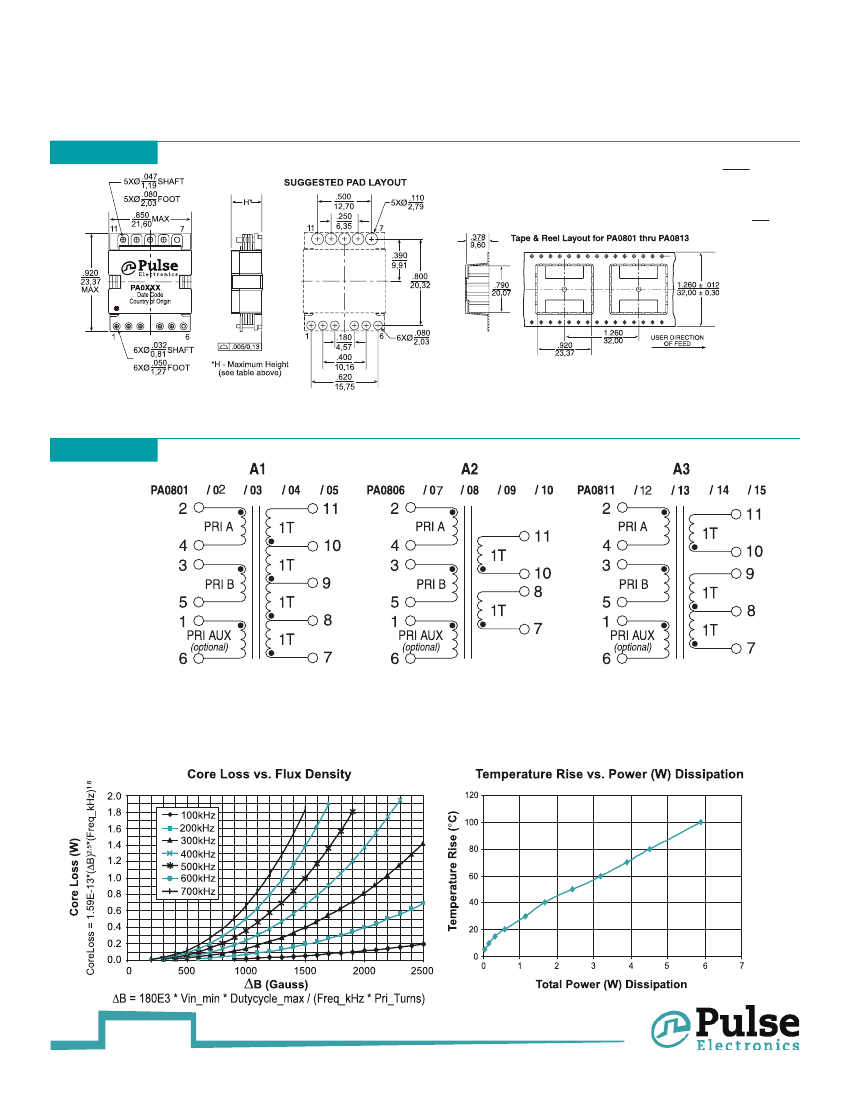

Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C

Turns Ratio

Part

Number

Primary A

Primary B

Secondary

Schematic

Primary

Inductance

(µH MIN)

153

194

Leakage

Inductance

(µH MAX)

0.45

0.55

0.60

0.65

0.45

0.55

0.60

0.65

0.45

0.50

0.55

DCR

(mΩ MAX)

Primary

17.5

Primary

17.5

Secondary

.875 & .875

1.75 & 1.75

Maximum

Height

(mm)

8.6

9.7

PA0801NL

PA0802NL

PA0803NL

PA0804NL *

PA0805NL

PA0806NL

PA0807NL

PA0808NL

PA0809NL *

PA0810NL *

PA0811NL

PA0812NL

PA0813NL

PA0814NL *

PA0815NL

(1T:1T:1T:1T)

240

290

345

153

194

1T & 1T

240

290

345

153

194

2T & 1T

240

290

345

Notes:

1. Inductance is measure, where applicable, with both primary windings connected in series

(2 to 5, with 3 and 4 shorted).

2. Leakage inductance is measured on winding (2-5) with (3,4) and (7, 8, 9, 10, 11) shorted.

3. The

suffix indicates an RoHS-compliant part number. Non-NL suffixed parts are not

necessarily RoHS compliant, but are electrically and mechanically equivalnt to NL

versions. If a part number does not have the “NL” suffix, but an RoHS compliant

version is required, please contact Pulse for availability.

4. Basic insulated parts can be made available. Please contact Pulse for availability.

* Contact Pulse for availability

USA 858 674 8100

Germany 49 2354 777 100

Singapore 65 6287 8998

Shanghai 86 21 62787060

China 86 755 33966678

Taiwan 886 3 4356768

SPM2007 (12/16)

pulseelectronics.com
