71233-0110: DescriptionRectangular Power Connector, 6 Contact(s), Male, Solder Terminal; CategoryThe connector The connector; File Size868KB，11 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

71233-0110 Overview

Rectangular Power Connector, 6 Contact(s), Male, Solder Terminal

71233-0110 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	MINI-FIT
Connector type	RECTANGULAR POWER CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	71233
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYESTER
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

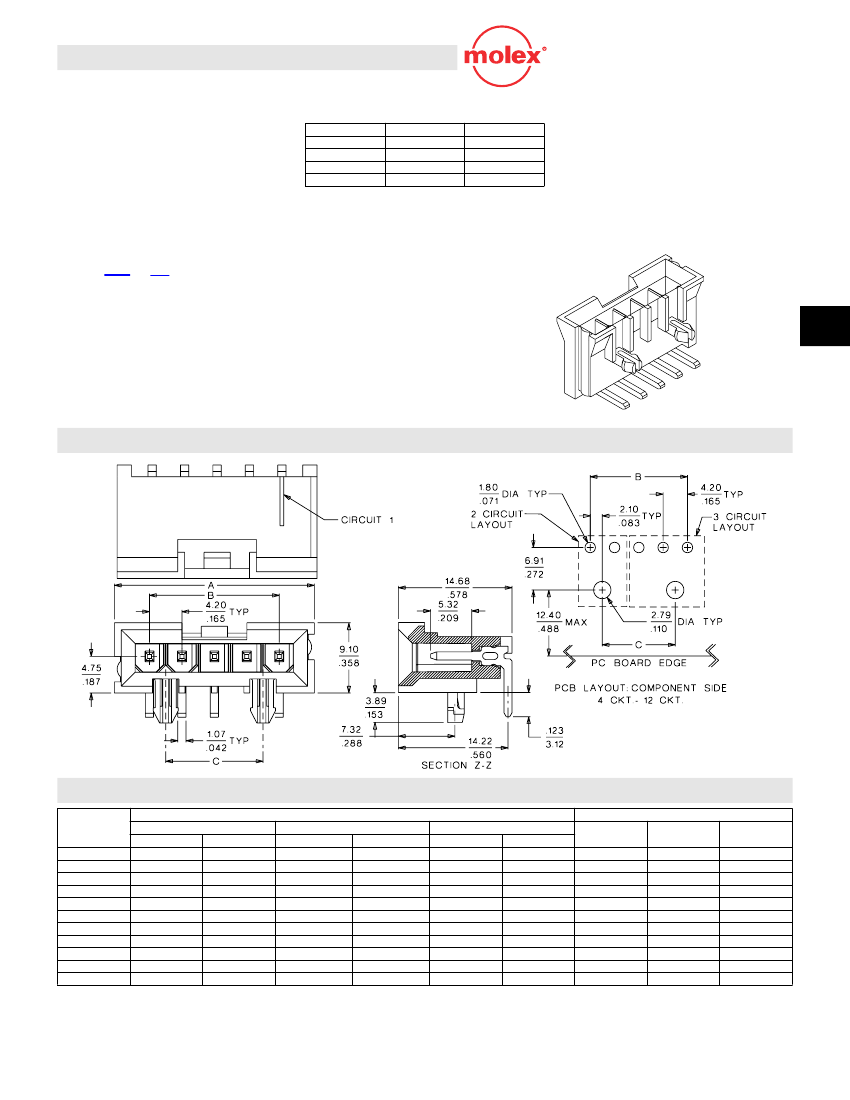

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 2 to 12 circuits

Positive latching system

Polarized

Flanged mating envelope for ease in blind mating

PCB pegs optional

Surface Mount Compatible

Reference Information

Product Speciﬁcation: PS-71690-001

Packaging: Tray

UL File No.: E29179

CSA File No.: LR19980

Mates With:

71694

and

5557

Designed In: Inches

Electrical

Voltage: 600V

Current: Receptacle and header

Wire Gauge

2 Circuit

7.00

6.00

5.00

4.50

3 to 12 Circuit

6.00

5.25

4.50

4.00

4.20mm (.165") Pitch

Mini-Fit

™

Wire-to-Board

Header

Power Connectors

Contact Resistance: 20m

Ω

max.

Dielectric Withstanding Voltage: 2200V AC

Insulation Resistance: 1000 M

Ω

min.

Mechanical

Insertion Force to PCB: 21N (4.72 lb) min.

Retention Force to PCB: 18N (4.05 lb) min.

Mating Force: 6.86N (1.54 lb) max.

Unmating Force: 3.92N (.89 lb) max.

Durability: 30 cycles

Physical

Housing: High temperature glass-filled polyester, UL 94V-0

Contact: Brass

Plating: See Table

Operating Temperature: -40 to +105˚C

71233

Single Row, Right Angle

SMC

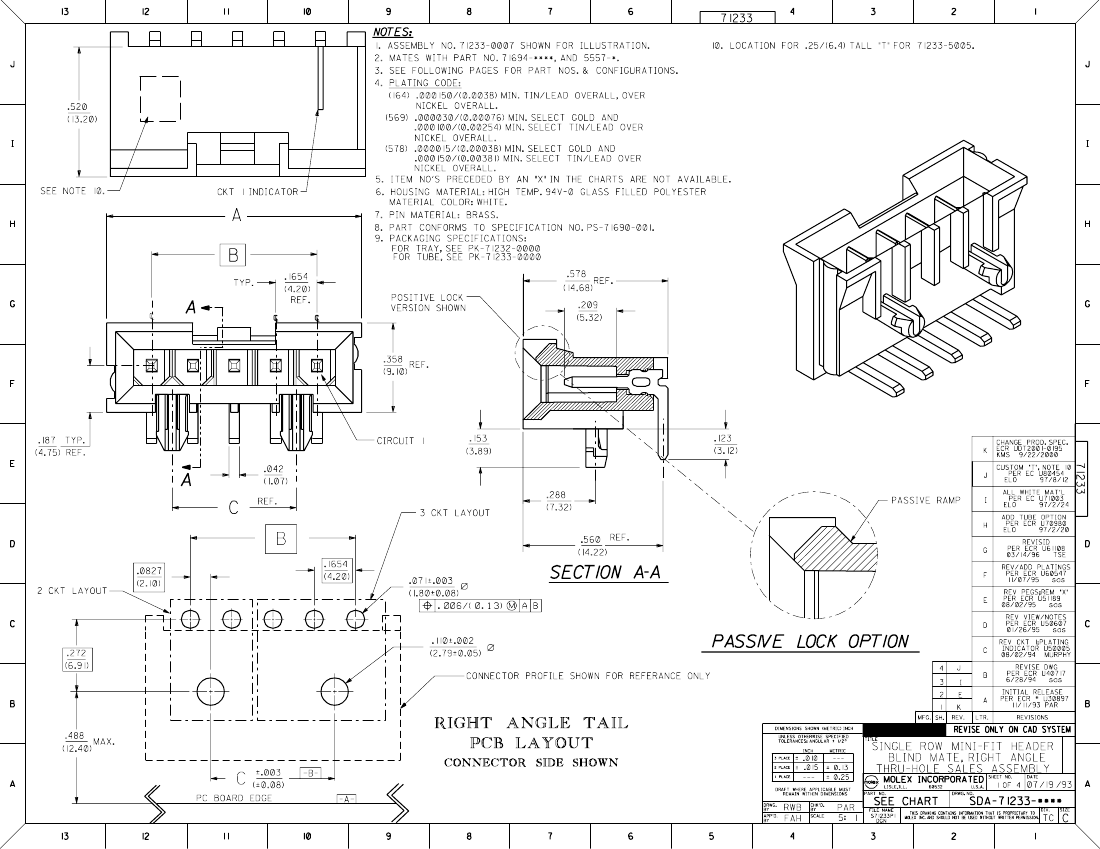

CATALOG DRAWING (FOR REFERENCE ONLY)

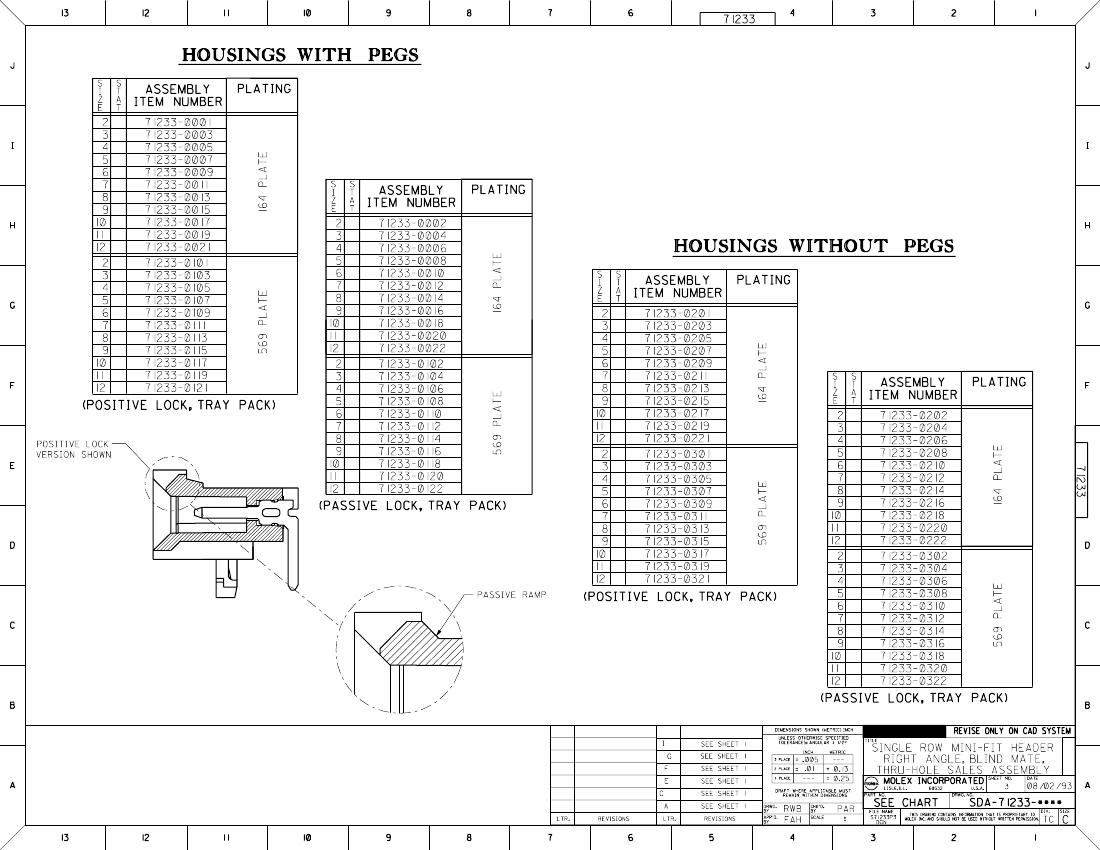

ORDERING INFORMATION AND DIMENSIONS

Circuits

Tin/Lead

With Pegs

Without Pegs

• 71233-0001

71233-0201

• 71233-0003

71233-0203

• 71233-0005

71233-0205

• 71233-0007

71233-0207

• 71233-0009

71233-0209

• 71233-0011

71233-0211

• 71233-0013

71233-0213

• 71233-0015

71233-0215

• 71233-0017

71233-0217

• 71233-0019

71233-0219

• 71233-0021

71233-0221

Order No.

" Gold

With Pegs

Without Pegs

71233-0401

71233-0501

71233-0403

71233-0503

71233-0405

71233-0505

71233-0407

71233-0507

71233-0409

71233-0509

71233-0411

71233-0511

71233-0413

71233-0513

71233-0415

71233-0515

71233-0417

71233-0517

71233-0419

71233-0519

71233-0421

71233-0521

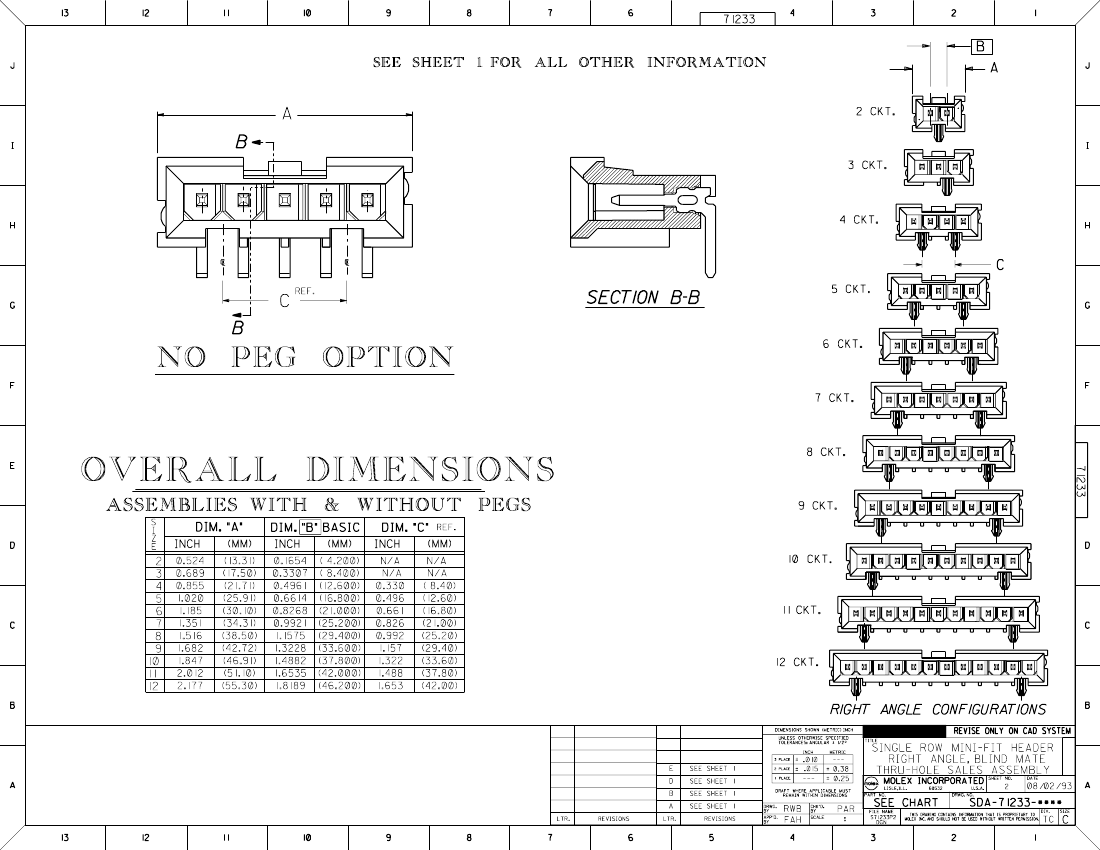

Dimension

" Gold

With Pegs

Without Pegs

71233-0101

71233-0301

71233-0103

71233-0303

71233-0105

71233-0305

71233-0107

71233-0307

71233-0109

71233-0309

71233-0111

71233-0311

71233-0113

71233-0313

71233-0115

71233-0315

71233-0117

71233-0317

71233-0119

71233-0319

71233-0121

71233-0321

13.31

17.50

21.71

25.91

30.10

34.31

38.50

42.72

46.91

51.10

55.30

(.524)

(.689)

(.855)

(1.020)

(1.185)

(1.351)

(1.516)

(1.682)

(1.847)

(2.012)

(2.177)

4.20

8.40

12.60

16.80

21.00

25.20

29.40

33.60

37.80

42.00

46.20

(.165)

(.331)

(.496)

(.661)

(.827)

(.992)

(1.158)

(1.323)

(1.488)

(1.654)

(1.819)

8.40

12.60

16.80

21.00

25.20

29.40

33.60

37.80

42.00

(.330)

(.496)

(.661)

(.826)

(.992)

(1.157)

(1.322)

(1.488)

(1.653)

• US Standard Product, available through Molex franchised distributors

MX01

F-61
