BUK9528-55,127 datasheet, PDF - EEWORLD Datasheet

BUK9528-55,127: Description40A, 55V, 0.028ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB; CategoryDiscrete semiconductor The transistor; File Size229KB，6 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

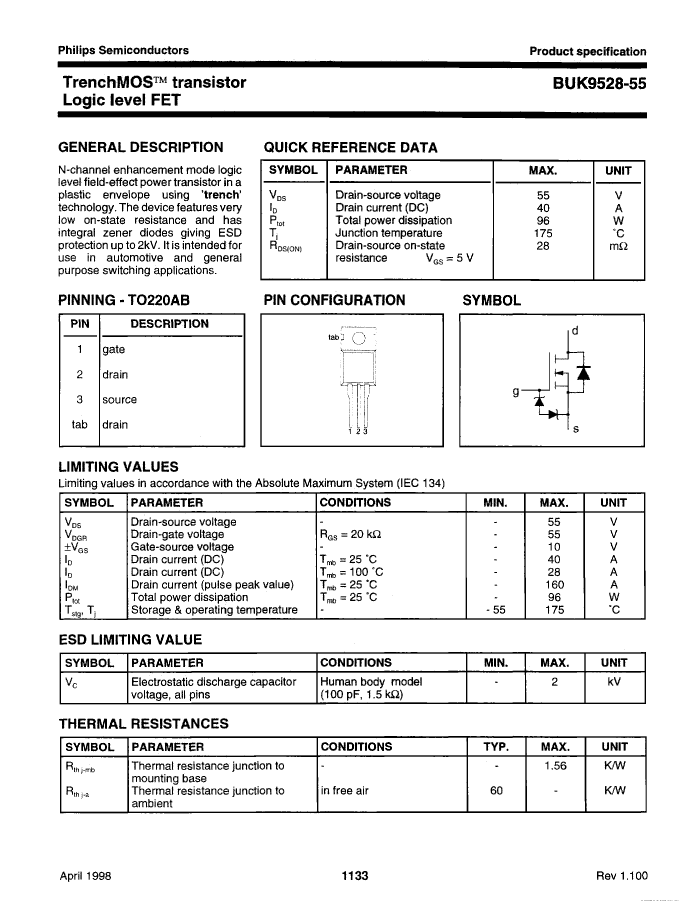

BUK9528-55,127 Overview

40A, 55V, 0.028ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB

Parameter Name	Attribute value
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOGIC LEVEL COMPATIBLE, ESD PROTECTION

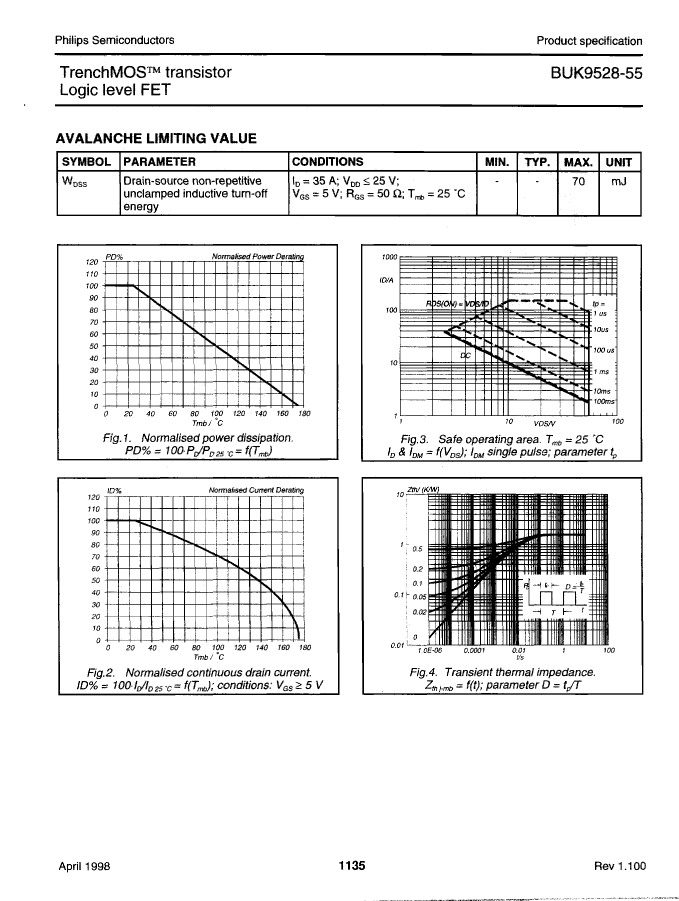

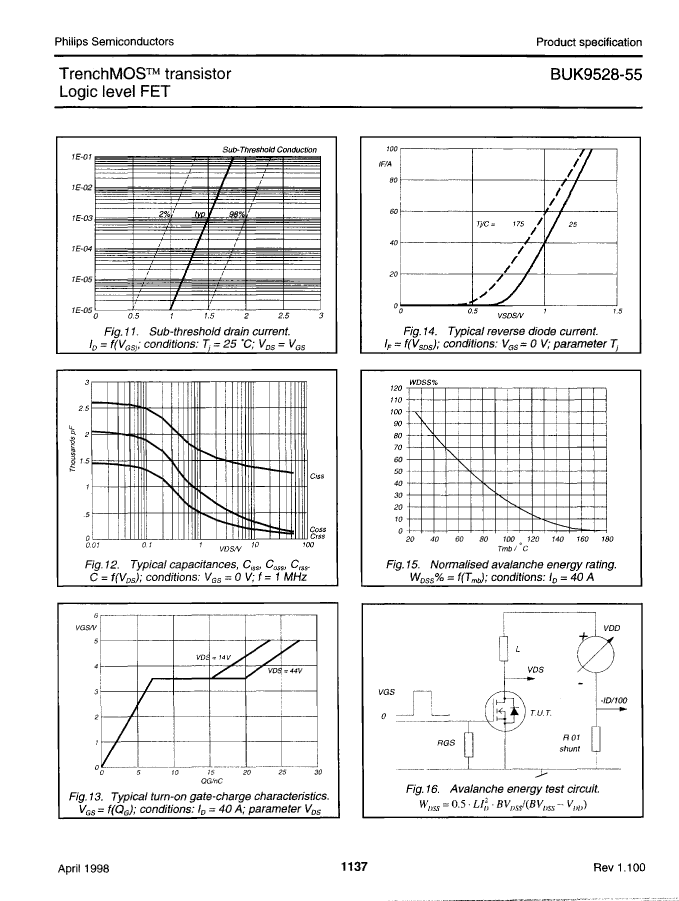

Avalanche Energy Efficiency Rating (Eas)	70 mJ
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE

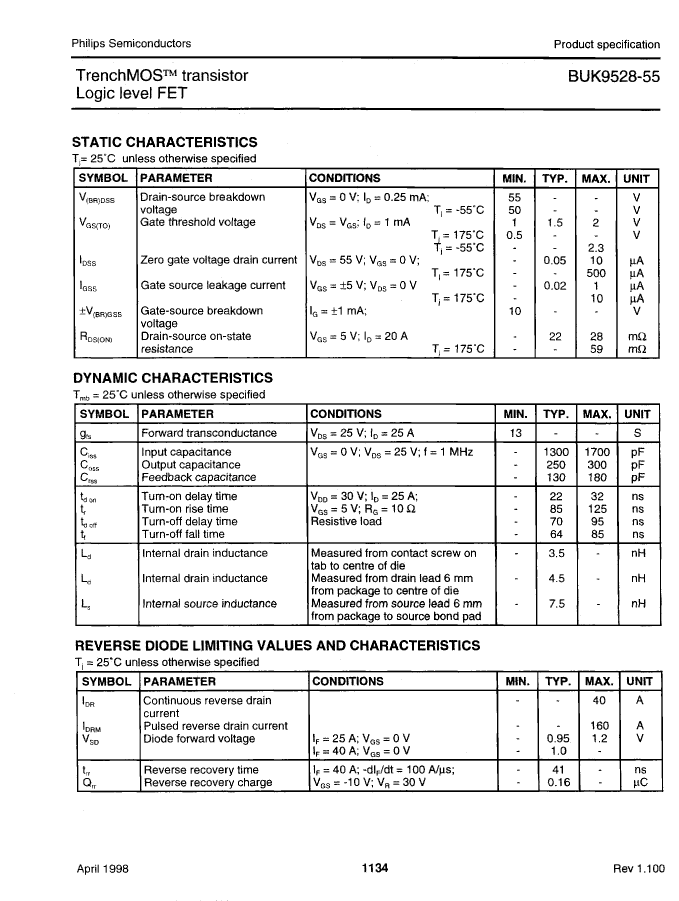

Minimum drain-source breakdown voltage	55 V
Maximum drain current (ID)	40 A

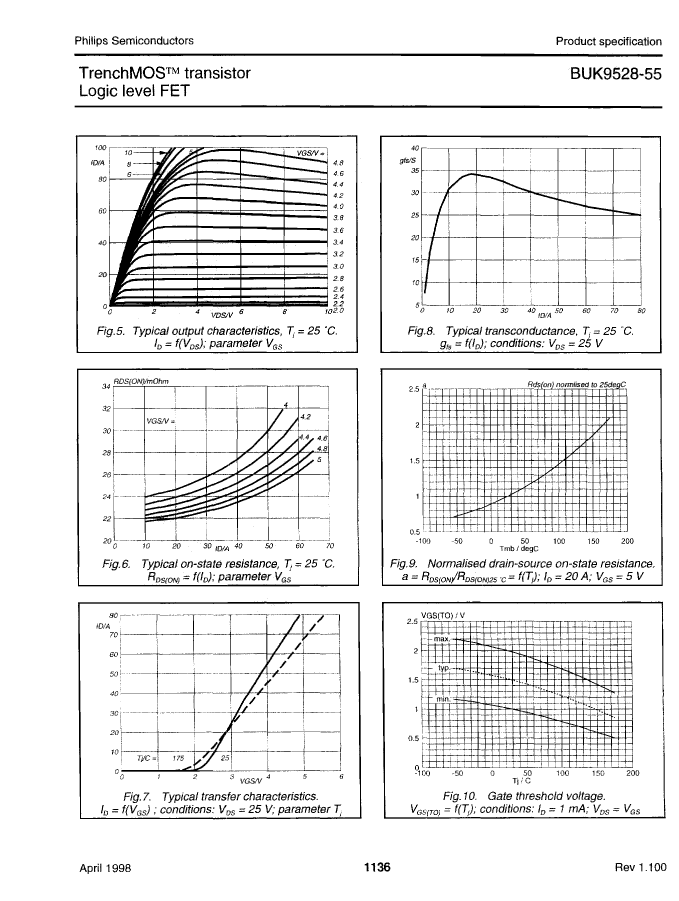

Maximum drain-source on-resistance	0.028 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Maximum pulsed drain current (IDM)	160 A
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1

	BUK9528-55,127	BUK9528-55127
Description	40A, 55V, 0.028ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB	TRANSISTOR 40 A, 55 V, 0.028 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, FET General Purpose Power
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	LOGIC LEVEL COMPATIBLE, ESD PROTECTION	LOGIC LEVEL COMPATIBLE, ESD PROTECTION
Avalanche Energy Efficiency Rating (Eas)	70 mJ	70 mJ
Shell connection	DRAIN	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	55 V	55 V
Maximum drain current (ID)	40 A	40 A
Maximum drain-source on-resistance	0.028 Ω	0.028 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3
Number of components	1	1
Number of terminals	3	3
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	N-CHANNEL	N-CHANNEL
Maximum pulsed drain current (IDM)	160 A	160 A
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
Base Number Matches	1	1
