959HADTFREQ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> 959HADTFREQ

959HADTFREQ: DescriptionCMOS Output Clock Oscillator, 1MHz Min, 30MHz Max; CategoryPassive components oscillator; File Size234KB，2 Pages; ManufacturerCorning Frequency Control Inc

Download Datasheet Parametric View All

959HADTFREQ Overview

CMOS Output Clock Oscillator, 1MHz Min, 30MHz Max

959HADTFREQ Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Ageing	1 PPM/YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	2%
Manufacturer's serial number	959
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	30 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	50 °C
Minimum operating temperature
Oscillator type	CMOS

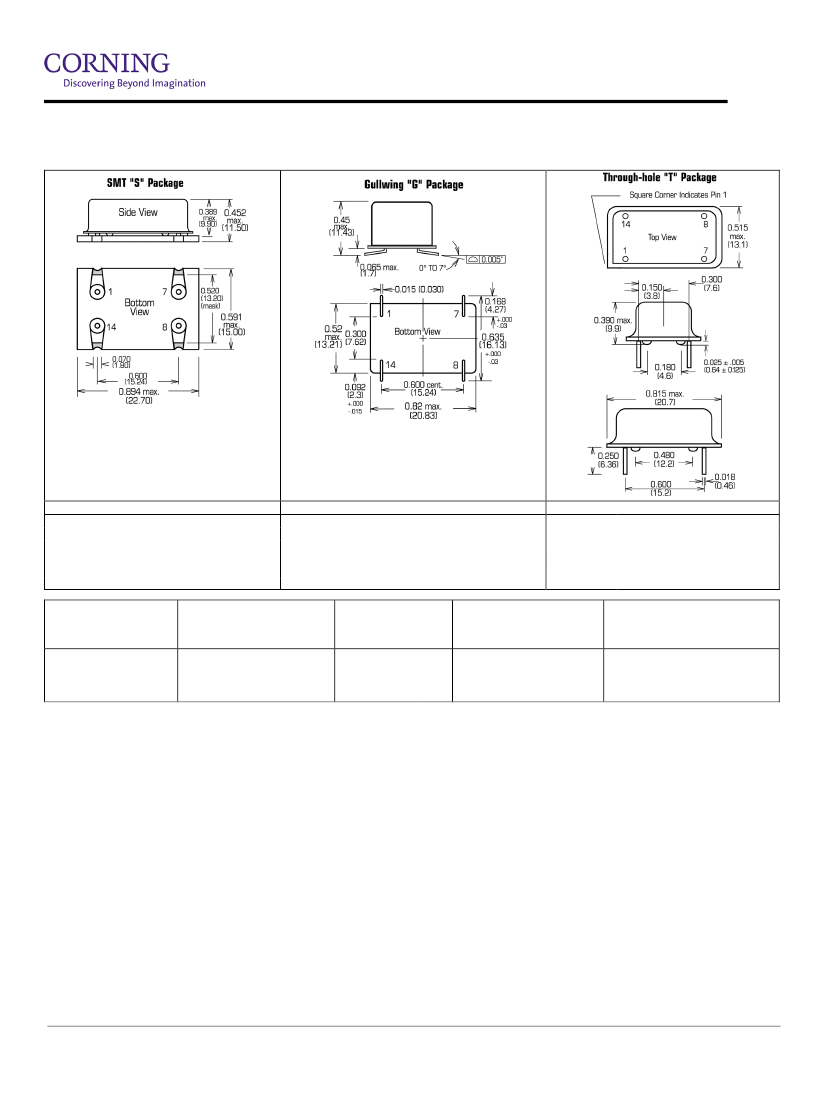

physical size	20.7mm x 13.1mm x 9.9mm
Nominal supply voltage	5 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

959

Typical Applications

PCS Base Stations

Land Mobile Radio

Cellular Telephony

Radio in the Local Loop

Test Equipment

TCXO

Features

EFC Standard

Low Profile Standard Package

Hermetically Sealed Package

Surface Mount Options Available

Stratum III Option Available

Frequency Range

Parameters

Operating

Temperature Range

Frequency Stability *

(ppm)

1 MHz – 30 MHz

Model Numbers

Clipped Sine Wave

(1 Vpp min. into 1kΩ)

Square Wave

(CMOS)

0....50°C

0.....70°C

-20....+70°C

-30....+70°C

-40....+85°C

0.5 ppm

1.0 ppm

2.0 ppm

1.0 ppm

2.5 ppm

5.0 ppm

1.0 ppm

1.5 ppm

2.0 ppm

2.5 ppm

1.0 ppm

2.0 ppm

2.5 ppm

1.0 ppm

2.0 ppm

2.5 ppm

959VAA

959VAB

959VAD

959VDB

959VDE

959VDF

959VBB

959VBC

959VBD

959VBE

959VCB

959VCD

959VCE

959VEB

959VED

959VEE

959VHAA

959VHAB

959VHAD

959VHDB

959VHDE

959VHDF

959VHBB

959VHBC

959VHBD

959VHBE

959VHCB

959VHCD

959VHCE

959VHEB

959VHED

959VHEE

Typical Phase Noise @ 10 MHz

Additional Parameters

Supply Voltage:

Current

Clipped Sinewave:

CMOS:

Aging:

Electrical Frequency

Control

Voltage Range:

Deviation:

Slope:

Input Impedance:

+5 Vdc

2 mA to 6 mA

10 mA to 60 mA

1 ppm/year

0.5 to 4.5 Vdc

8 ppm min.

(others available)

Positive

> 10 kohms

1Hz Offset

10Hz Offset

100Hz Offset

1kHz Offset

10kHz Offset

<- 55 dBc / Hz

<-90 dBc / Hz

<-120 dBc / Hz

<-140dBc / Hz

<-150dBc / Hz

* Stratum III option of ±4.6 ppm total for all conditions over 20 years available.

Corning Frequency Control • Worldwide Databook 2001

2001-10-09

Corning Frequency Control Inc.

• 100 Watts Street • Mount Holly Springs, PA 17065, USA • Tel 1-717-486-3411 • Fax 1-717-486-5920 • www.corningfrequency.com

Corning Frequency Control GmbH & Co. KG

• Landstrasse D-74924 Neckarbischofsheim, Germany • Tel +49-7268-801-0 • Fax +49-07268-801-281 • www.corningfrequency.de

1/2
