Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> MC145453PS

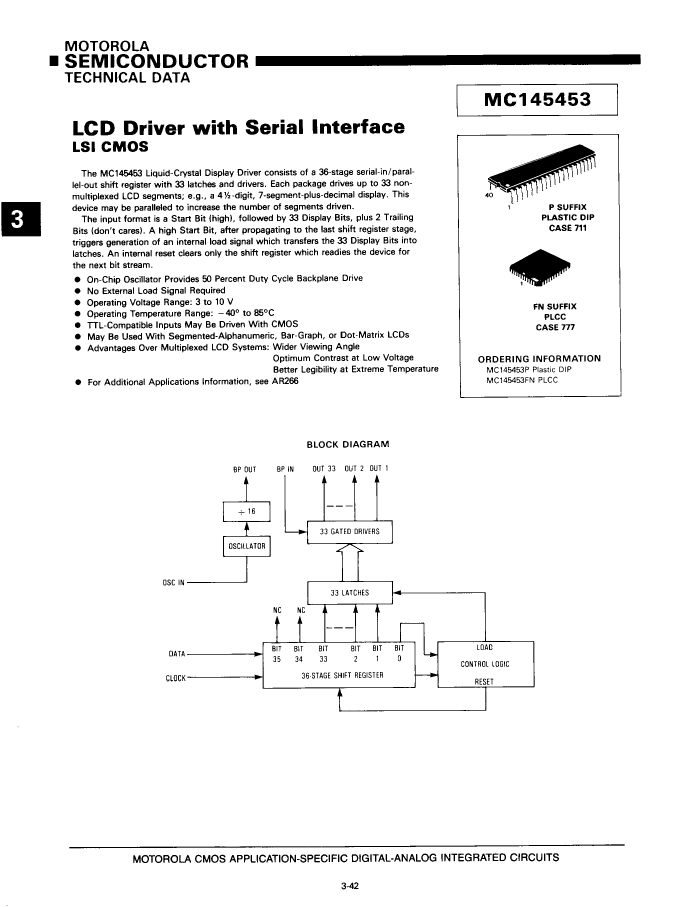

Preview

MC145453PS: DescriptionIC,LCD DISPLAY DRIVER,33-SEG,1-BP,CMOS,DIP,40PIN,PLASTIC; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size257KB，6 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MC145453PS Overview

IC,LCD DISPLAY DRIVER,33-SEG,1-BP,CMOS,DIP,40PIN,PLASTIC

MC145453PS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP40,.6
Reach Compliance Code	unknown
display mode	SEGMENT
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
Number of base plates	1-BP
Number of segments	33
Number of terminals	40
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	3/10 V
Certification status	Not Qualified
Maximum slew rate	0.04 mA
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

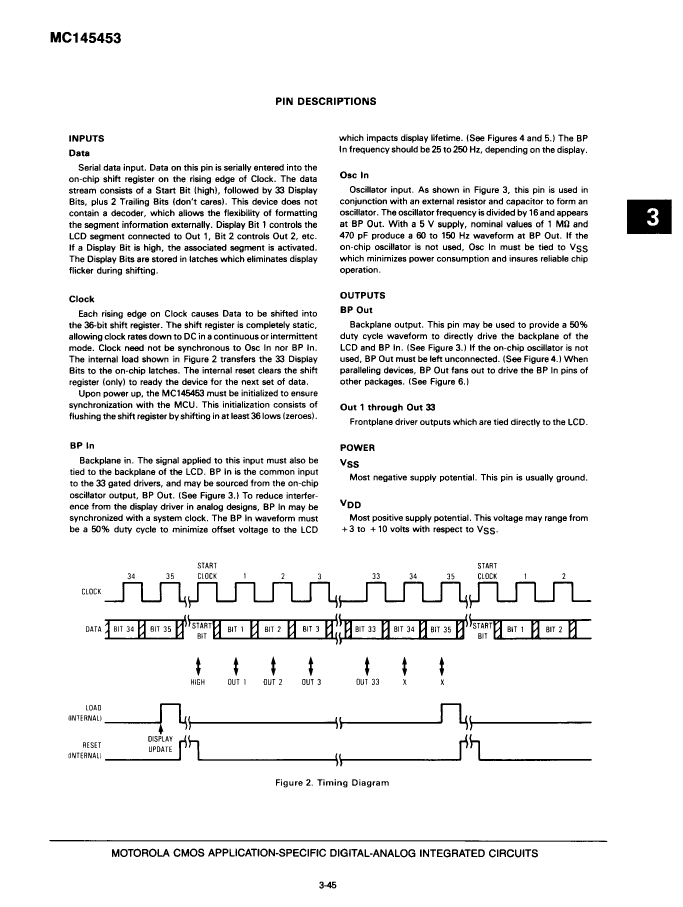

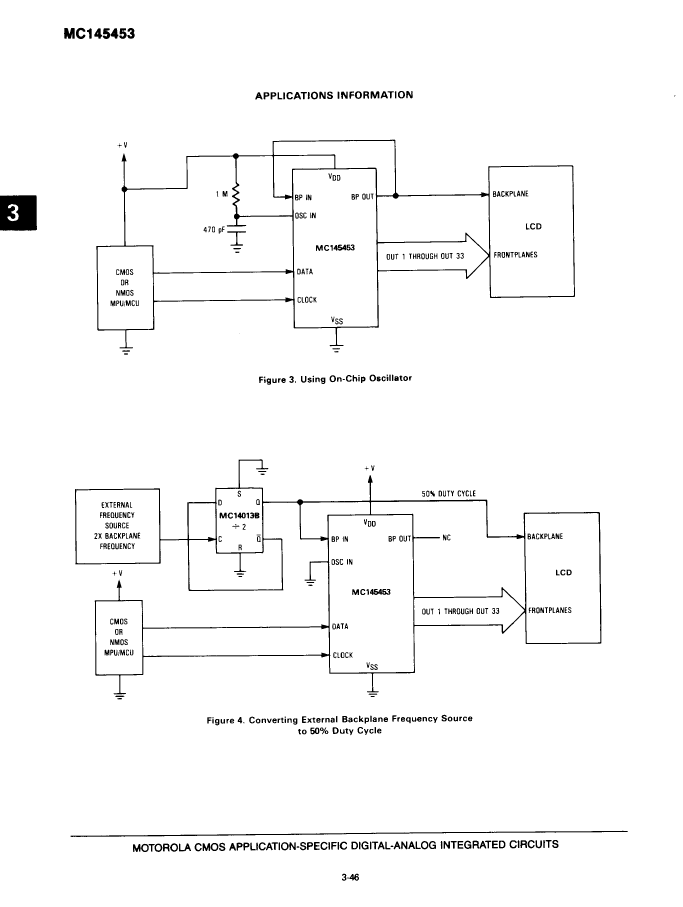

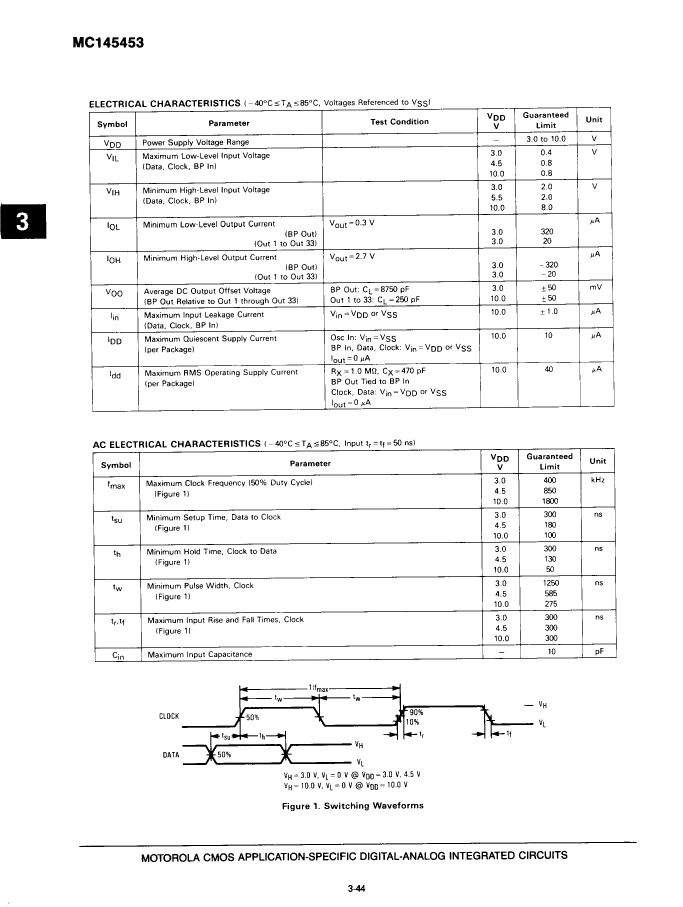

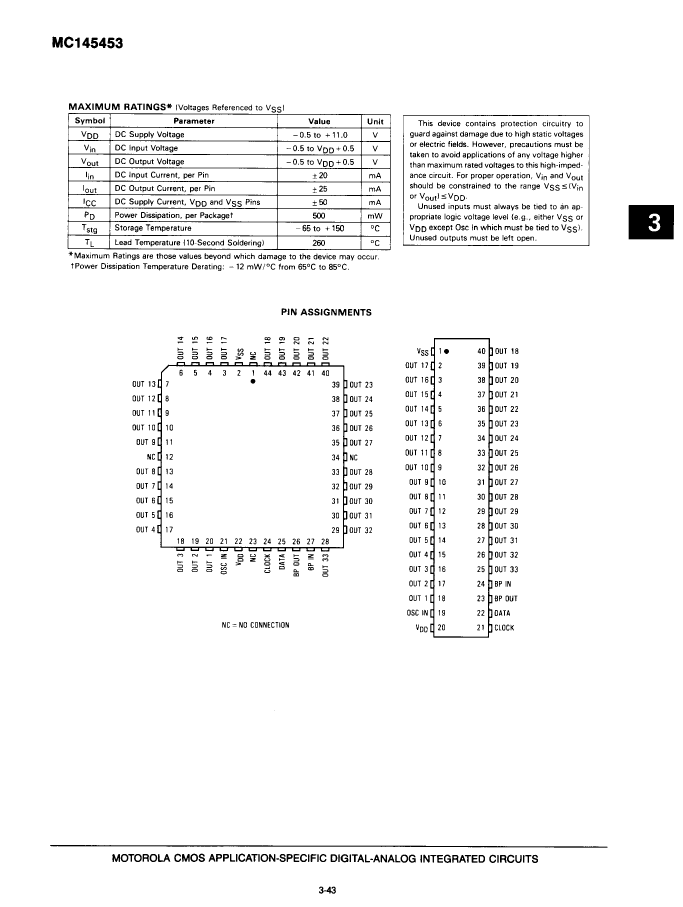

Preview

Download Datasheet

View All

MC145453PS Related Products

	MC145453PS	MC145453P	MC145453FN	MC145453FNDS
Description	IC,LCD DISPLAY DRIVER,33-SEG,1-BP,CMOS,DIP,40PIN,PLASTIC	IC,LCD DISPLAY DRIVER,33-SEG,1-BP,CMOS,DIP,40PIN,PLASTIC	IC,LCD DISPLAY DRIVER,33-SEG,1-BP,CMOS,LDCC,44PIN,PLASTIC	IC,LCD DISPLAY DRIVER,33-SEG,1-BP,CMOS,LDCC,44PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP40,.6	DIP, DIP40,.6	QCCJ, LDCC44,.7SQ	QCCJ, LDCC44,.7SQ
Reach Compliance Code	unknown	unknown	unknown	unknown
display mode	SEGMENT	SEGMENT	SEGMENT	SEGMENT
JESD-30 code	R-PDIP-T40	R-PDIP-T40	S-PQCC-J44	S-PQCC-J44
JESD-609 code	e0	e0	e0	e0
Number of base plates	1-BP	1-BP	1-BP	1-BP
Number of segments	33	33	33	33
Number of terminals	40	40	44	44
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	QCCJ	QCCJ
Encapsulate equivalent code	DIP40,.6	DIP40,.6	LDCC44,.7SQ	LDCC44,.7SQ
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE
Package form	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER
power supply	3/10 V	3/10 V	3/10 V	3/10 V
Maximum slew rate	0.04 mA	0.04 mA	0.04 mA	0.04 mA
surface mount	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	J BEND	J BEND
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD	QUAD
Base Number Matches	1	1	1	1
Certification status	Not Qualified	Not Qualified	Not Qualified	-
